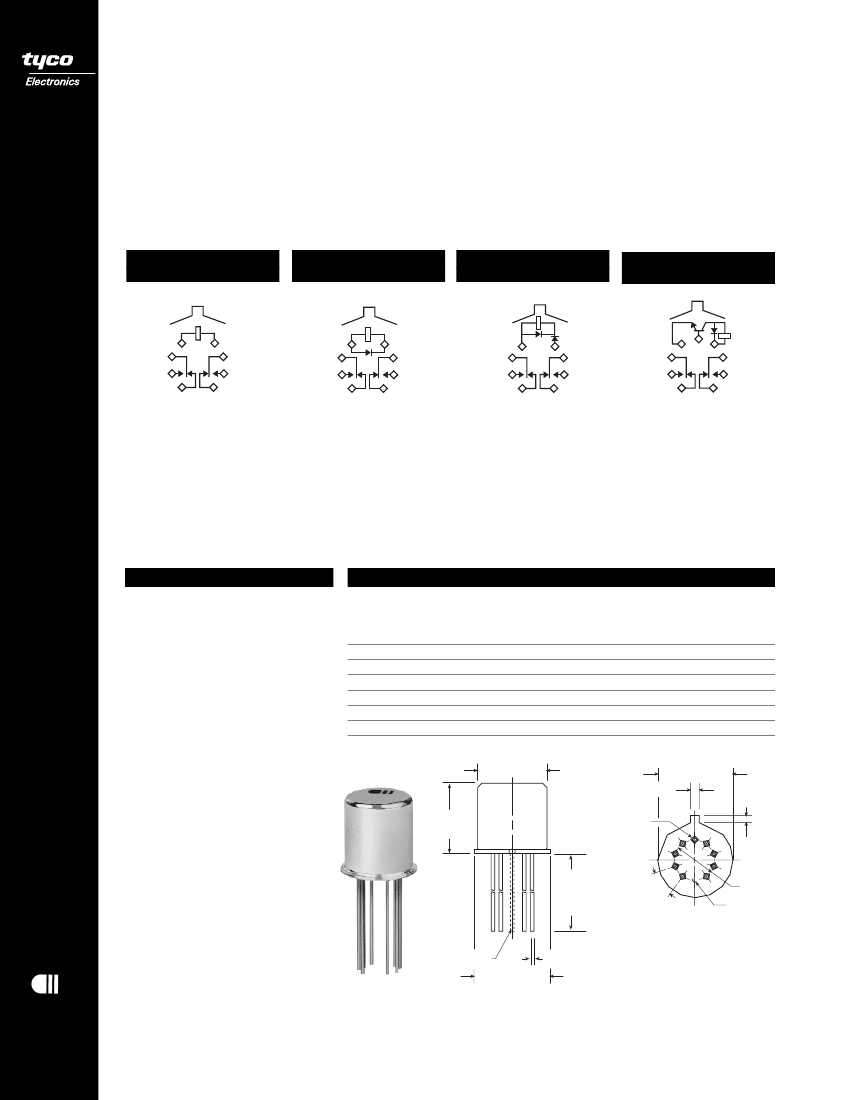

MS MSD MSDD MST
■
■
■
TO-5 HIGH-PERFORMANCE RELAYS
MS
SENSITIVE TO-5
HIGH-PERFORMANCE RELAY
MSD
SENSITIVE TO-5
DIODE SUPPRESSED
HIGH-PERFORMANCE RELAY
MSDD
SENSITIVE TO-5 DIODE
SUPPRESSED/PROTECTED
HIGH-PERFORMANCE RELAY
MST
SENSITIVE TO-5 DIODE
SUPPRESSED/TRANSISTOR DRI-
VEN HIGH-PERFORMANCE
RELAY
QUALIFIED TO
MIL-R-39016/11
QUALIFIED TO
MIL-R-39016/16
QUALIFIED TO
MIL-R-39016/21
QUALIFIED TO
MIL-R-28776/3
–
X1
A2
A1
A3
B3
X2
B2
B1
A2
A1
A3
X2
+
X1
B2
B1
B3
A2
A1
–
X2
+
–
X1
B2
B1
X2
A2
A1
A3
B3
XB
+
X1
B2
B1
A3
B3
TERMINAL VIEW
TERMINAL VIEW
TERMINAL VIEW
TERMINAL VIEW
FEATURES
■
■
FEATURES
■
■
■
FEATURES
■
FEATURES
■
Hermetically sealed
High shock & vibration
ratings
■
Spreader pads
■
Excellent RF switching
Suppression diode
Hermetically sealed
High shock & vibration
ratings
■
Spreader pads
■
Excellent RF switching
Suppression &
protection diodes
■
Hermetically sealed
■
High shock & vibration
ratings
■
Spreader pads
■
Excellent RF switching
CONTACT RATINGS
Transistor driver &
suppression diode
■
Hermetically sealed
■
High shock & vibration
ratings
■
Spreader pads
■
Excellent RF switching
ELECTRICAL CHARACTERISTICS
CONTACT ARRANGEMENT
2 Form C (DPDT)
CONTACT MATERIAL
CONTACT
LOAD
TYPE
OPERATIONS
MIN.
Stationary:
Gold/platinum/palladium/silver
alloy (gold plated)
Moveable:
Gold/platinum/palladium/silver
alloy (gold plated)
CONTACT RESISTANCE
1.0 A @ 28 Vdc
250 mA @ 115 Vac, 60 Hz & 400 Hz
100 mA @ 115 Vac, 60 Hz & 400 Hz
0.2 A @ 28 Vdc
0.1 A @ 28 Vdc
30 µA @ 50 mVdc
0.1 A @ 28 Vdc
Resistive
100,000
Resistive (case not grounded) 100,000
Resistive
100,000
Inductive (0.32 Henry)
100,000
Lamp
100,000
Low Level
1,000,000
Intermediate Current
50,000
Before Life: 100 milliohms max.
(measured @ 10 mA @ 6 Vdc)
After Life: 200 milliohms max.
(measured @ 1 A @ 28 Vdc)
MECHANICAL LIFE EXPECTANCY
.375 (9.53)
MAX
.335 (8.51) DIA MAX
.370 (9.40) DIA MAX
.031
±
.003 (0.79)
.035 (0.89)
TRANSISTOR
BASE
CONNECTION
(MAT ONLY)
TERMINALS
W 1.500 MIN (38.1)
36°
±
3°
C .500 MIN (12.7)
P .187±.010 (4.75±.25)
(Length excludes mounting pad)
1 million operations
COIL VOLTAGE
5 to 48 Vdc
COIL POWER
565 mW max. @ 25°C
DUTY CYCLE
.200 (5.08)
DIA
GROUND PIN
(OPTIONAL)
Continuous
PICK-UP VOLTAGE
OPTIONAL PINS
.017
+.002
(0.43) DIA
-.001
Approximately 50% of
nominal coil voltage
PICK-UP SENSITIVITY
.370 (9.40) DIA MAX
ENCLOSURE
HEADER
60 mW max. @ 25°C
12
Tyco Electronics Corporation www.tycoelectronics.com 800-522-6752 (U.S.A.) or 717-564-0100 Specifications subject to change. CII and TYCO are trademarks. ©2003 by Tyco Electronics Corporation
OPERATING CHARACTERISTICS
TIMING
ENVIRONMENTAL CHARACTERISTICS
TEMPERATURE RANGE
SEMICONDUCTOR CHARACTERISTICS
DIODE
OperateTime:
4.0 ms max.
Release Time:
MS: 2.0 ms max.
MSD/MSDD: 7.5 ms max.
(suppression diode,
suppression/steering diodes)
MST: 7.5 ms max .
(transistor driven)
CONTACT BOUNCE
-65°C to +125°C
WEIGHT
100 Vdc peak inverse voltage (PIV)
1.0 Vdc max. transient voltage
TRANSISTOR
0.12 oz. (3.40 gms)
0.13 oz. (3.45 gms) with spreader
pad attached
VIBRATION RESISTANCE
TO-5 HIGH-PERFORMANCE RELAYS
30 G’s, 10 to 3,000 Hz
SHOCK RESISTANCE
75 G’s, 6 ±1 ms max.
QPL APPROVAL
0.3 Vdc min. base turn off voltage
6.0 Vdc min. emitter-base
breakdown voltage (BV
EBO
) @ 25°C
80.0Vdc min. collector-base
breakdown voltage (BV
CBO
) @ 25°C
& I
C
=100
μA
1.5 ms max
DIELECTRIC WITHSTANDING VOLTAGE
Between Open Contacts:
500 Vrms 60 Hz
Between Adjacent Contacts:
500 Vrms 60 Hz
Between Contacts & Coil:
500 Vrms 60 Hz
INSULATION RESISTANCE
MIL-R-39016/11 (JMS)
MIL-R-39016/16 (JMSD)
MIL-R-39016/21 (JMSDD)
MIL-R-28776/3 (JMST)
.103 (2.62)
.156 (3.96)
.014±.003 (0.36)
.370 (9.40) SQ MAX
.100 (2.54)
.395 (10.03) SQ MAX
.150 (3.81)
0.47 (1.19) DIA
10,000 megohms min. @ 500 Vdc
1,000 megohms @ 500 Vdc
(coil to case @ +125°C)
.100 (2.54)
.100 (2.54)
.140 – .175 DIA
(3.56 – 4.45)
S
S2
SPREADER & MOUNTING PADS
W
COIL DATA
NOM.
COIL
VOLTAGE
(Vdc)
COIL
RESISTANCE
IN OHMS
±10% @ 25°C
(Note 1)
COIL CIRCUIT
CURRENT
mA (MAX.)
(Note 1&2)
COIL CIRCUIT
CURRENT
mA (MIN.)
(Note 1&2)
PICKUP
VOLTAGE
Vdc (MAX.)
@ 25°C
(Note 2)
BASE TURN
ON CURRENT
mA (MAX.)
@ 25°C
PICKUP
VOLTAGE
Vdc (MAX.)
@ 125°C
(Note 2)
BASE TURN
ON CURRENT
mA (MAX.)
@ 125°C
DROP-OUT
VOLTAGE
Vdc (MIN.)
@ 25°C
(Note 2)
DROP-OUT
VOLTAGE
Vdc (MIN.)
@ -65°C
(Note 2)
NOM. COIL
POWER
(mW)
@ 25°C
MAX.
COIL
VOLTAGE
COIL
DESIG.
MS/MSD
5.0
100
6.0
200
9.0
400
12.0
850
18.0
1,600
26.5
3,300
36.0
6,500
48.0
11,000
MSDD
5.0
6.0
9.0
12.0
18.0
26.5
36.0
48.0
MST
5.0
6.0
9.0
12.0
18.0
26.5
36.0
48.0
64
125
400
850
1,600
3,300
6,500
11,000
100
200
400
850
1,600
3,300
6,500
11,000
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
78.1
48.9
23.6
15.0
12.2
8.8
6.1
4.8
59.3
35.4
25.8
16.7
13.1
9.5
6.4
5.1
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
56.8
36.3
18.1
11.7
9.6
7.0
4.9
3.9
43.5
26.4
19.7
12.2
9.7
6.9
4.8
3.7
2.6
3.4
4.85
7.0
9.8
14.0
20.0
25.8
2.9
4.0
6.1
7.8
11.3
15.2
21.7
27.8
2.8
3.8
5.2
7.4
10.0
14.2
20.0
25.8
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
0.37
0.25
0.18
0.12
0.09
0.06
0.034
0.026
3.5
4.5
6.8
9.0
13.5
18.0
27.0
36.0
3.7
4.8
8.0
11.0
14.5
19.0
27.2
34.8
3.6
4.8
7.8
11.0
14.5
19.0
27.0
36.0
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
1.50
1.00
0.75
0.47
0.38
0.24
0.17
0.13
0.23
0.28
0.55
0.64
0.92
1.4
1.8
2.4
0.8
0.9
1.1
1.3
1.5
1.7
2.3
2.8
0.22
0.28
0.54
0.63
0.91
1.37
1.80
2.40
0.12
0.18
0.35
0.41
0.59
0.89
1.25
1.60
0.7
0.8
0.9
1.0
1.1
1.3
1.7
2.0
0.14
0.18
0.35
0.41
0.59
0.89
1.25
1.60
250
180
203
169
203
213
199
209
391
288
203
169
203
213
199
209
250
180
203
169
203
213
199
209
7.5
10.0
15.0
20.0
30.0
40.0
57.0
75.0
7.0
10.0
15.0
20.0
30.0
40.0
57.0
75.0
7.0
10.0
15.0
20.0
30.0
40.0
57.0
75.0
5
6
9
12
18
26
36
48
5
6
9
12
18
26
36
48
5
6
9
12
18
26
36
48
Note 1: Coil resistance not directly measurable. Coil current should be within limits shown when tested at nominal voltage at 25°C for 5 seconds max.
Note 2: Set base current at 3 mA to 15 mA during measurements.
SPECIFYING A PART NUMBER EXAMPLE
:
TYPE
TERMINALS
DIODES
TRANSISTOR
GROUND PINS
COILS
SPREADER
/
MOUNTING PADS
MS
C
D
G
-26
S
13
