M500D1NC

Description
Electromechanical Relay, 3PDT, 29VDC (Coil), 25A (Contact), 28VDC (Contact), Random, AC/DC Output
CategoryMechanical and electronic products    relay
File Size399KB,14 Pages
ManufacturerEsterline Technologies Corporation
Download Datasheet Parametric View All

M500D1NC Overview

Electromechanical Relay, 3PDT, 29VDC (Coil), 25A (Contact), 28VDC (Contact), Random, AC/DC Output

M500D1NC Parametric

Parameter NameAttribute value
MakerEsterline Technologies Corporation
Reach Compliance Codecompliant
body width26 mm
body height25.7 mm
Body length or diameter44 mm
Coil operating voltage (DC)18 V
Coil release voltage (DC)1.5 V
Coil resistance290 Ω
Maximum coil voltage (DC)29 V
Nominal coil voltage28 V
Coil/Input Power TypeDC
Contact (AC) maximum rated load I12A@115VAC
Contact (AC) maximum rated load M10A@115VAC
Contact (AC) maximum rated R load25A@115VAC
Maximum contact current (AC)25 A
Maximum contact current (DC)25 A
Contact (DC) maximum rated R load25A@28VDC
Maximum contact voltage (AC)115 V
Maximum contact voltage (DC)28 V
Contact/Output Power TypeAC/DC
Dielectric strength between coil and contacts1000 Vrms
Dielectric strength between breaking contacts1250 Vrms
Electrical life50000 Cycle(s)
Input switching control typeRandom
Insulation resistance100000000 Ω
Number of terminals11
operating hours15 ms
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
PCB hole count11
physical size44mm x 26mm x 25.7mm
Relay style3 FORM C
Relay function3PDT
release time15 ms
sealHERMETICAL
Terminal length0.007 inch
Termination typeSOLDER
weight85 g
M500

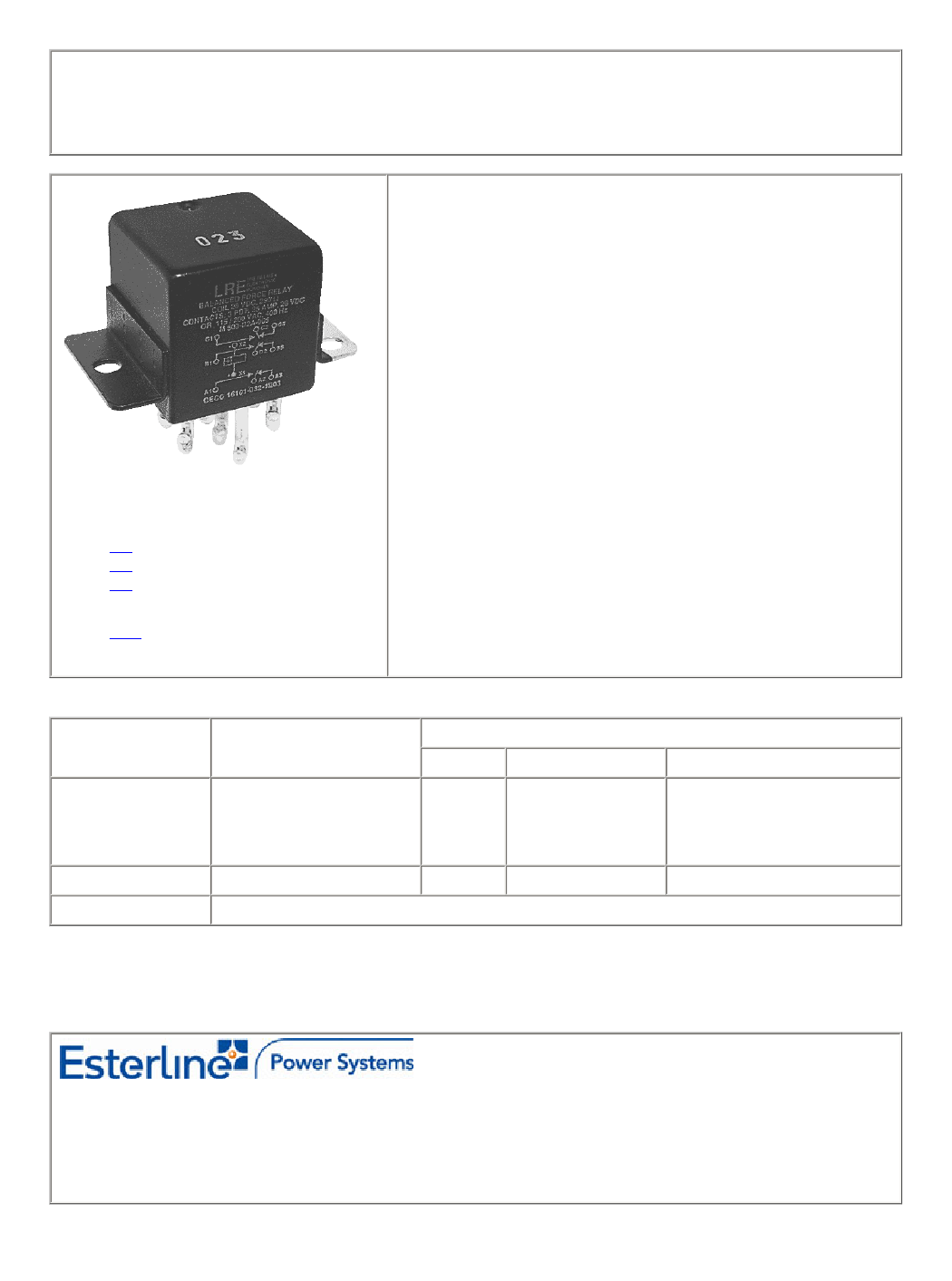

ENGINEERING DATA SHEET
RELAY - NONLATCH
3 PDT, 25 AMP
Polarized, non latching hermetically sealed relay
3 PDT
Contact arrangement
Coil supply
Meets the requirements of
Qualified to
Direct current
MS27743
CECC16101-032
CECC16103-805
PRINCIPLE TECHNICAL CHARACTERISTICS
Contacts rated at
Weight
Dimensions max.
of case in mm
Balanced-force design
APPLICATION NOTES:
001
007
023
APPLICABLE SOCKET:
S500
28 Vdc; 115 Vac, 400 Hz
85 grams max

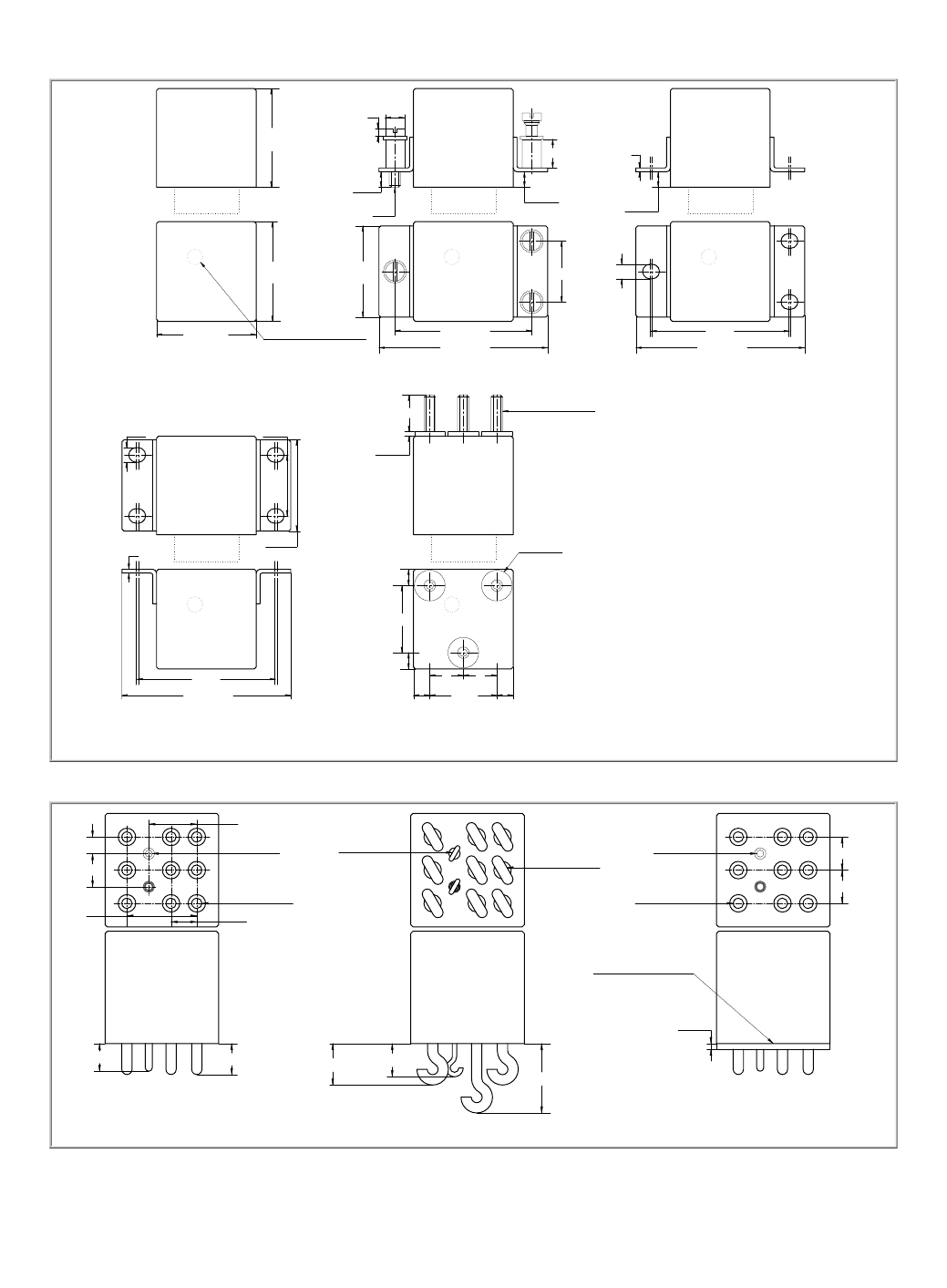

26 x 25.4 x 26
Hermetically sealed, corrosion protected metal can
CONTACT ELECTRICAL CHARACTERISTICS
Minimum
operating cycles
50,000 cycles
10,000 cycles
50,000 cycles
50,000 cycles
50 cycles
200,000 cycles
Contact rating per
pole and load type
resistive load
inductive load (L/R=5ms)
motor load
lamp load
resistive overload
at 25% rated resistive load
Load Current in Amps
@28 Vdc
25
12
10
5
50
@115 Vac, 400 Hz
25
12
10
5
80
@115/200 Vac, 400 Hz
25
12
10
5
Featuring
LEACH
©
power and control solutions
www.esterline.com
AMERICAS
6900 Orangethorpe Ave.
P.O. Box 5032
Buena Park, CA 90622
.
.
Tel: (01) 714-736-7599
Fax: (01) 714-670-1145
EUROPE
2 Rue Goethe
57430 Sarralbe
France
.
.
Tel: (33) 3 87 97 31 01
Fax: (33) 3 87 97 96 86
ASIA
Units 602-603 6/F Lakeside 1
No.8 Science Park West Avenue
Phase Two, Hong Kong Science Park
Pak Shek Kok, Tai Po, N.T.
Hong Kong
Tel: (852) 2 191 3830
Fax: (852) 2 389 5803
Data sheets are for initial product selection and comparison. Contact Esterline Power Systems prior to choosing a component.
Date of issue: 9/07
