APT3565BN-GULLWING datasheet, PDF

APT3565BN-GULLWING: Description11 A, 350 V, 0.65 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-247, TO-247, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size161KB，4 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

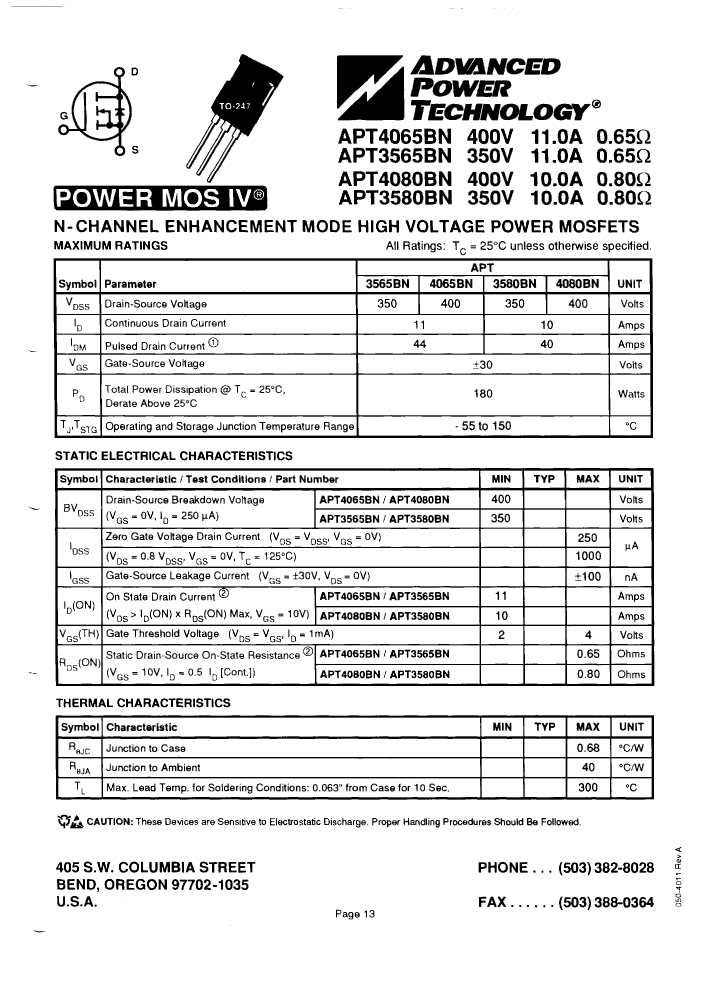

APT3565BN-GULLWING Overview

11 A, 350 V, 0.65 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-247, TO-247, 3 PIN

Parameter Name	Attribute value
Maker	Microsemi

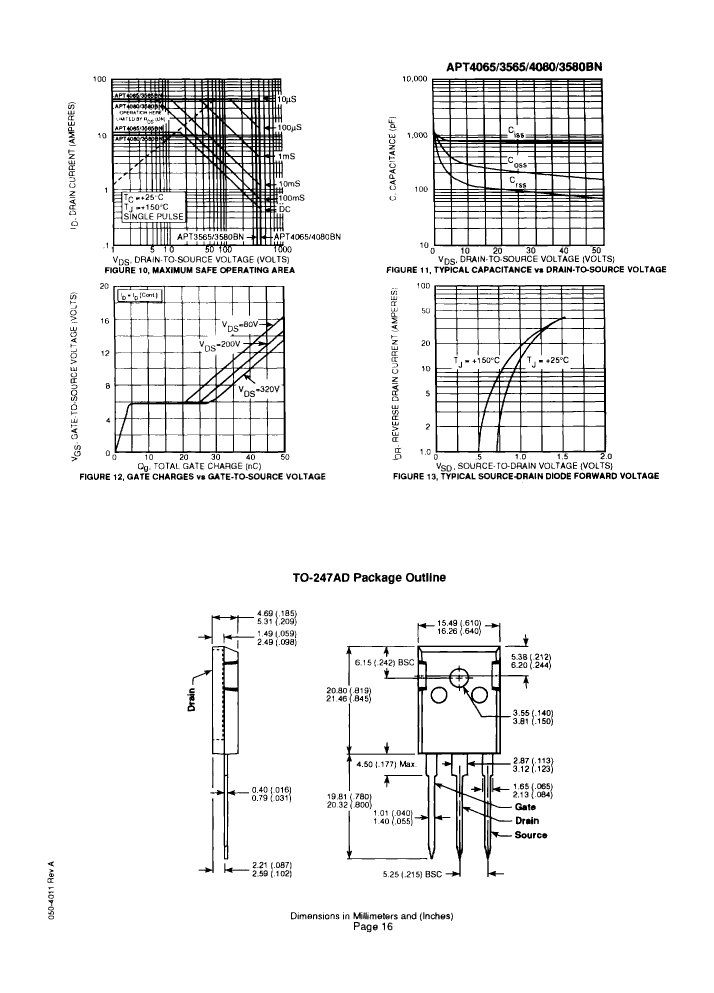

Parts packaging code	TO-247
package instruction	FLANGE MOUNT, R-PSFM-G3
Contacts	3
Reach Compliance Code	unknown
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	350 V

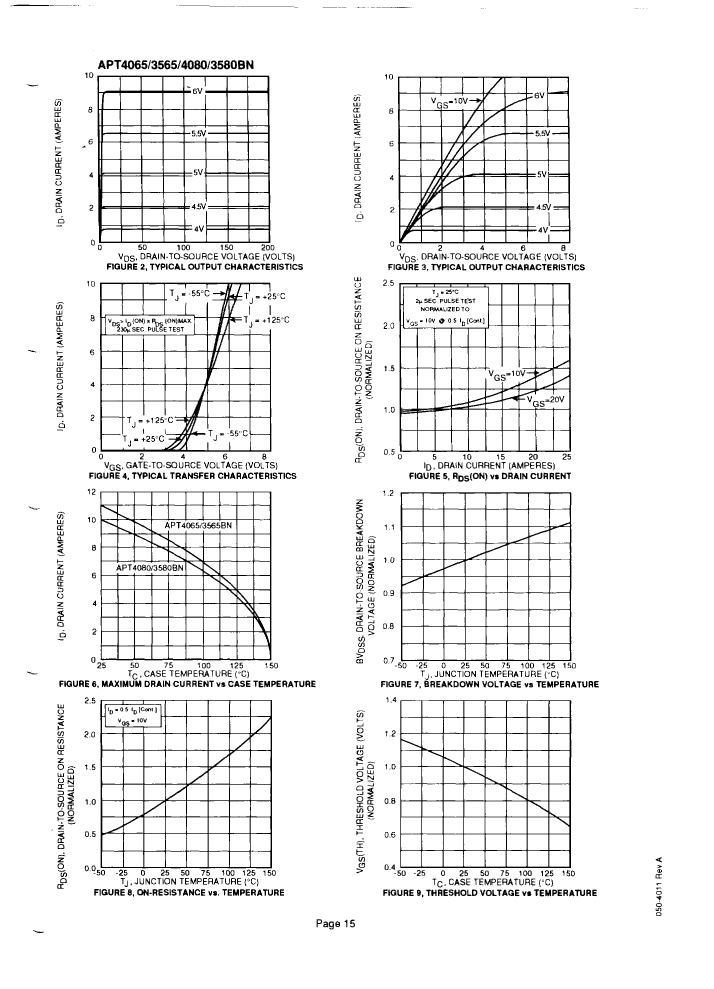

Maximum drain current (ID)	11 A
Maximum drain-source on-resistance	0.65 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR

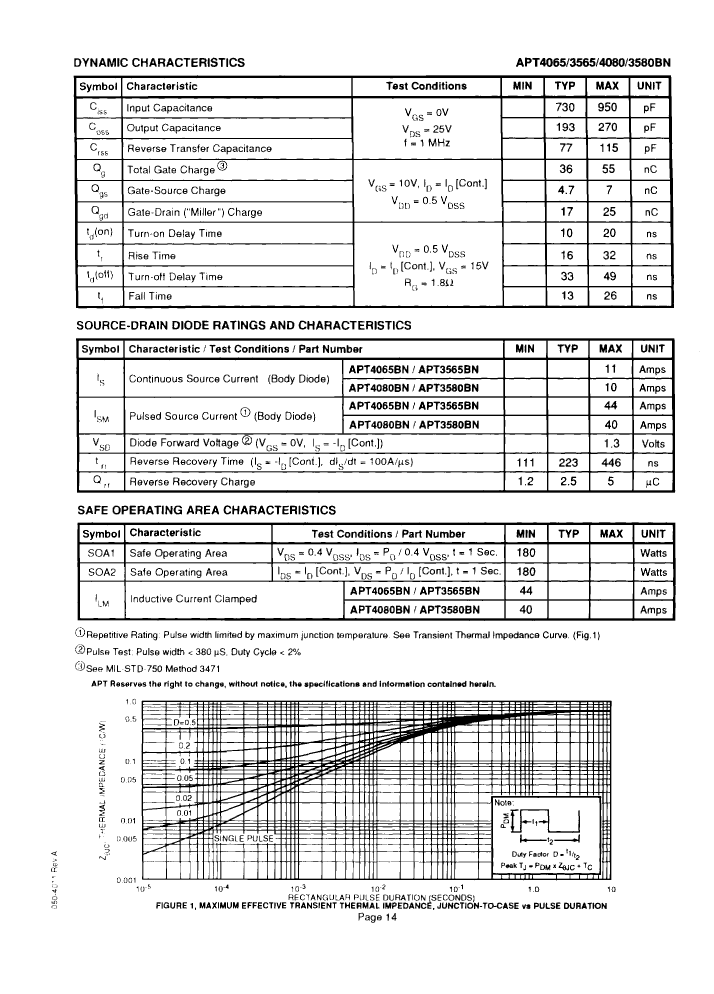

Maximum feedback capacitance (Crss)	115 pF
JESD-30 code	R-PSFM-G3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	180 W
Maximum pulsed drain current (IDM)	44 A
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
Transistor component materials	SILICON
Maximum off time (toff)	75 ns
Maximum opening time (tons)	52 ns
