ET03MD1AVGE: DescriptionTOGGLE SWITCH, SPDT, LATCHED, 2A, 28VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size469KB，7 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric Compare View All

ET03MD1AVGE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ET03MD1AVGE	-	-	View	Buy Now

ET03MD1AVGE Overview

TOGGLE SWITCH, SPDT, LATCHED, 2A, 28VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT

ET03MD1AVGE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	C&K
package instruction	ROHS COMPLIANT
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Actuator angle	25 deg
Executor completed	CHROME
Actuator length	0.24 inch
Actuator material	BRASS
Actuator type	TOGGLE
Other features	PANEL MOUNTABLE
body width	6.22 mm
body height	8.13 mm
Body length or diameter	9.27 mm
Casing diameter	0.18 inch
Nozzle length	0.177 inch
center contact material	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated power R load	0.4VA@20VAC
Contact (AC) maximum rated R load	2A@120VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@28VDC
Contact resistance	0.02 mΩ
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VRMS V
Electrical life	30000 Cycle(s)
End contact material	COIN SILVER
End contact plating	GOLD OVER NICKEL
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED NYLON
JESD-609 code	e4
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED; IP57
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	TOGGLE SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Terminal length	0.13 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER

Preview

Download Datasheet

View All

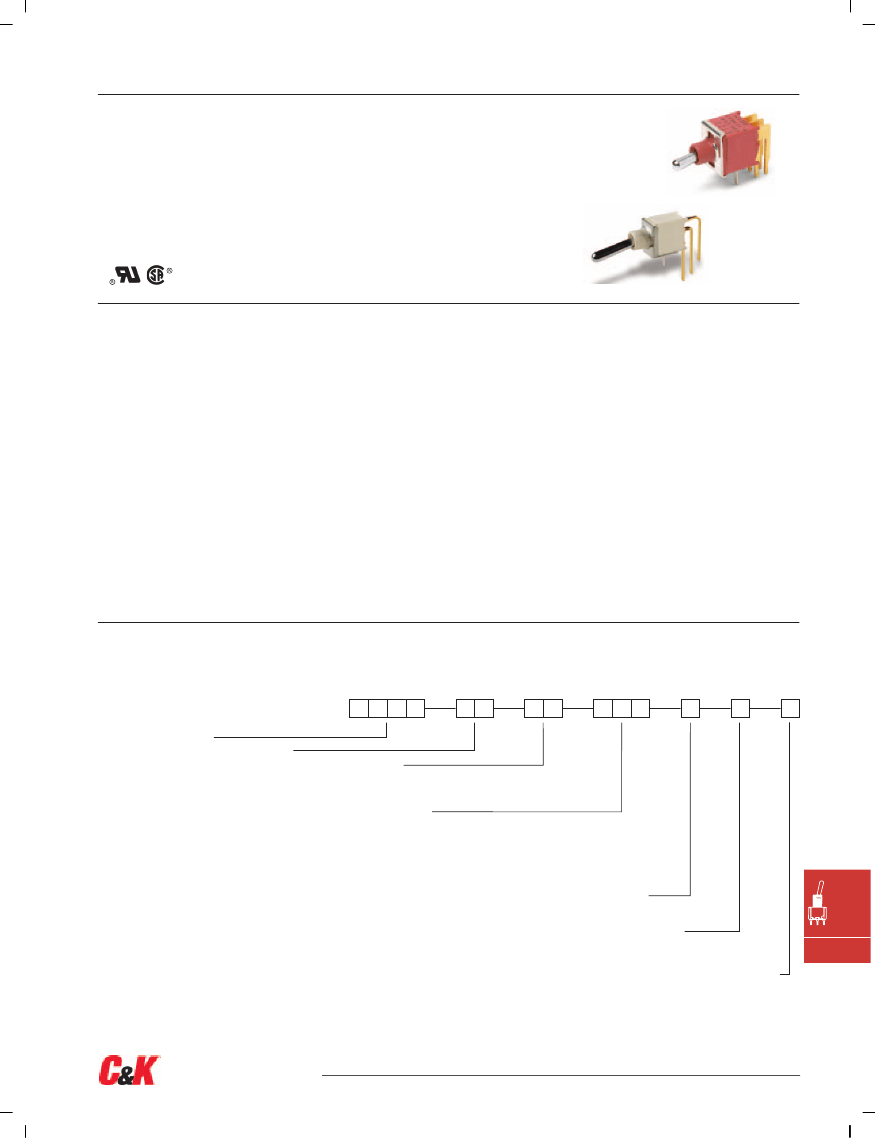

ET Series

Sealed Subminiature Toggle Switches

Features/Benefits

•

Sealed against solder and cleaning

process contaminants

•

ESD protection available

•

Thru-hole and surface mount models

•

Compact size and small footprint

save PCB space

Typical Applications

•

Hand-held telecommunications

•

Instrumentation

•

Medical equipment

•

RoHS compliant models available

Models Available

Specifications

CONTACT RATING: B contact material: 0.4 VA max. @

20 V AC or DC max. See page F-35 for additional ratings.

ELECTRICAL LIFE: ETX1 models: 60,000 make-and-break cycles at

full load. All other models: 30,000 cycles.

CONTACT RESISTANCE: Below 20 m

Ω

typ. initial @ 2-4

V DC, 100 mA, for both silver and gold plated contacts.

INSULATION RESISTANCE: 109

Ω

min.

ELECTROSTATIC DISCHARGE (ESD) RESISTANT OPTION:

M3 & S3 insulating actuator only: 9,000 V DC min. @ sea level,

actuator to terminals. F1 conductive bushing only: Dissipates

up to 20,000 V DC from actuator to ground. M3 & S3 actuator

and F1 bushing options are not recommended for use together.

DIELECTRIC STRENGTH: 1000 Vrms min. @ sea level.

OPERATING TEMPERATURE: –30ºC to 85ºC.

SOLDERABILITY: Per MIL-STD-202F method 208D, or

EIA RS-186E method 9 (1 hour steam aging).

DEGREE OF PROTECTION: IP57; Protection against harmful dust

deposit, full-scale voltage protection, temporary immersion.

PACKAGING: Surface mount switches are shipped in tape and reel

packaging, see page F-31 for drawings and reel information.

Materials

CASE & BUSHING: Glass filled nylon 6/6, flame retardant, heat

stabilized (UL 94V-0) or glass filled 4/6 nylon, flame retardant, heat

stabilized (UL 94V-0). F1 conductive bushing option is impregnated

with carbon fibers.

ACTUATOR: M3 & S3 anti-static actuator: Nylon 4/6, black standard

(UL 94V-0). All other actuators: Brass, chrome plated. Internal

o-ring seal standard with all actuators.

SWITCH SUPPORT: Brass, tin plated.

CONTACTS & TERMINALS: B contact material: Copper alloy,

with gold plate over nickel plate. Q contact material: Copper

alloy, silver plated. See F-35 for additional contact materials.

TERMINAL SEAL: Epoxy.

NOTE:

Any models supplied with Q, B, G, P or R contact material are RoHS compliant

and compatible.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages F–26 thru F–31. For additional options not shown in catalog, consult our Customer Service Center. All

models are process sealed to withstand machine soldering temperatures and pressure wash cleaning methods.

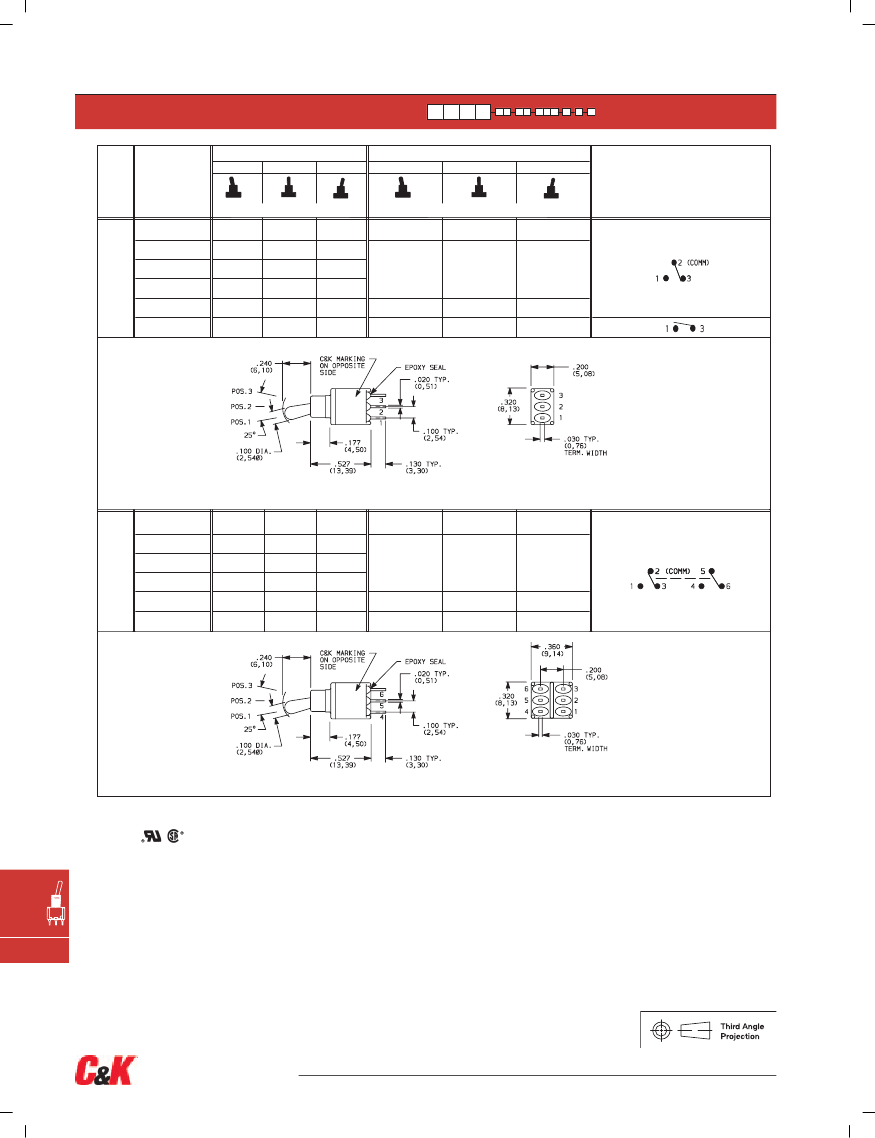

Switch Function

ET01

SP, On-None-On

ET02

SPST, Off-None-On

ET03

SP, On-Off-On

ET05

SP, Mom.-Off-Mom.

ET07

SP, On-Off-Mom.

ET08

SP, On-None-Mom.

ET21

DP, On-None-On

ET23

DP, On-Off-On

ET24

DP, On-On-On

ET25

DP, Mom.-Off-Mom.

ET27

DP, On-Off-Mom.

ET28

DP, On-None-Mom.

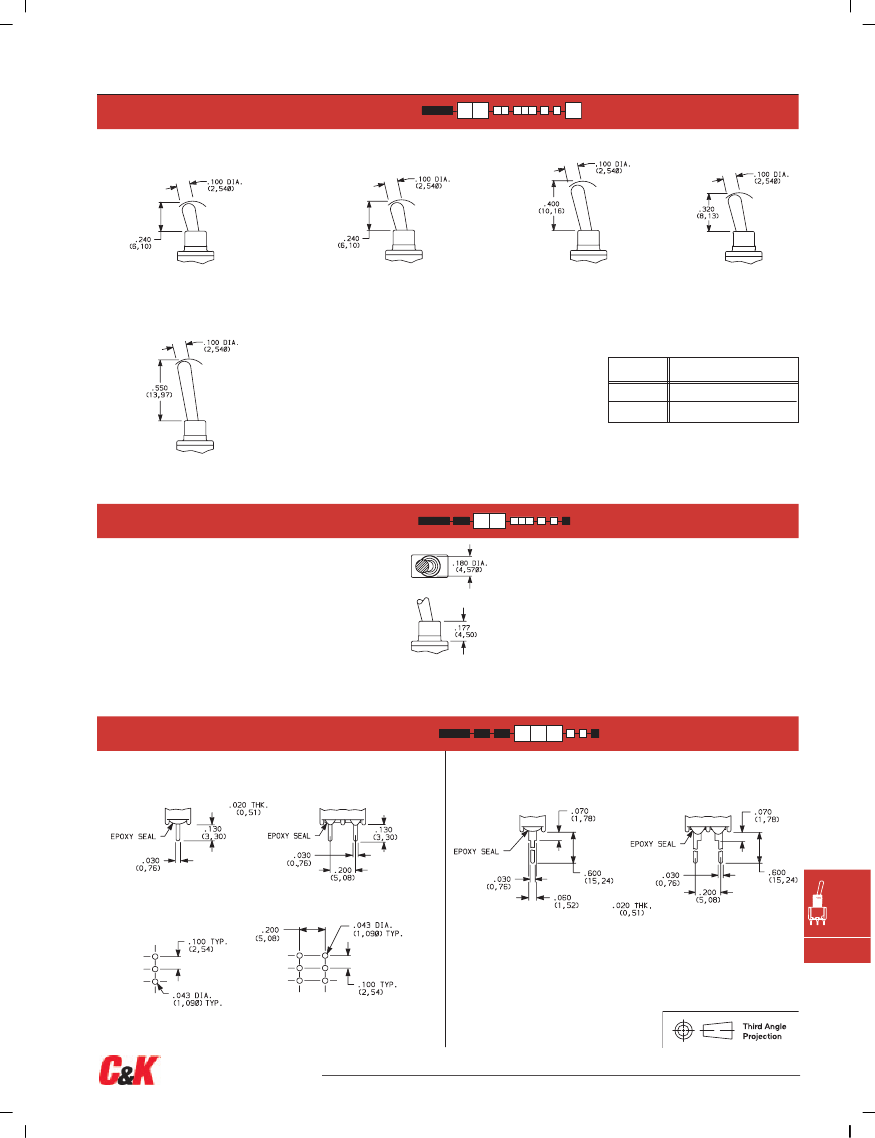

Actuator

.240" high

Plastic, anti-static,

.240" high

.400" high

.320" high

.540" high

Bushing

.177" High, Unthreaded

.177" high, unthreaded, ESD conductive

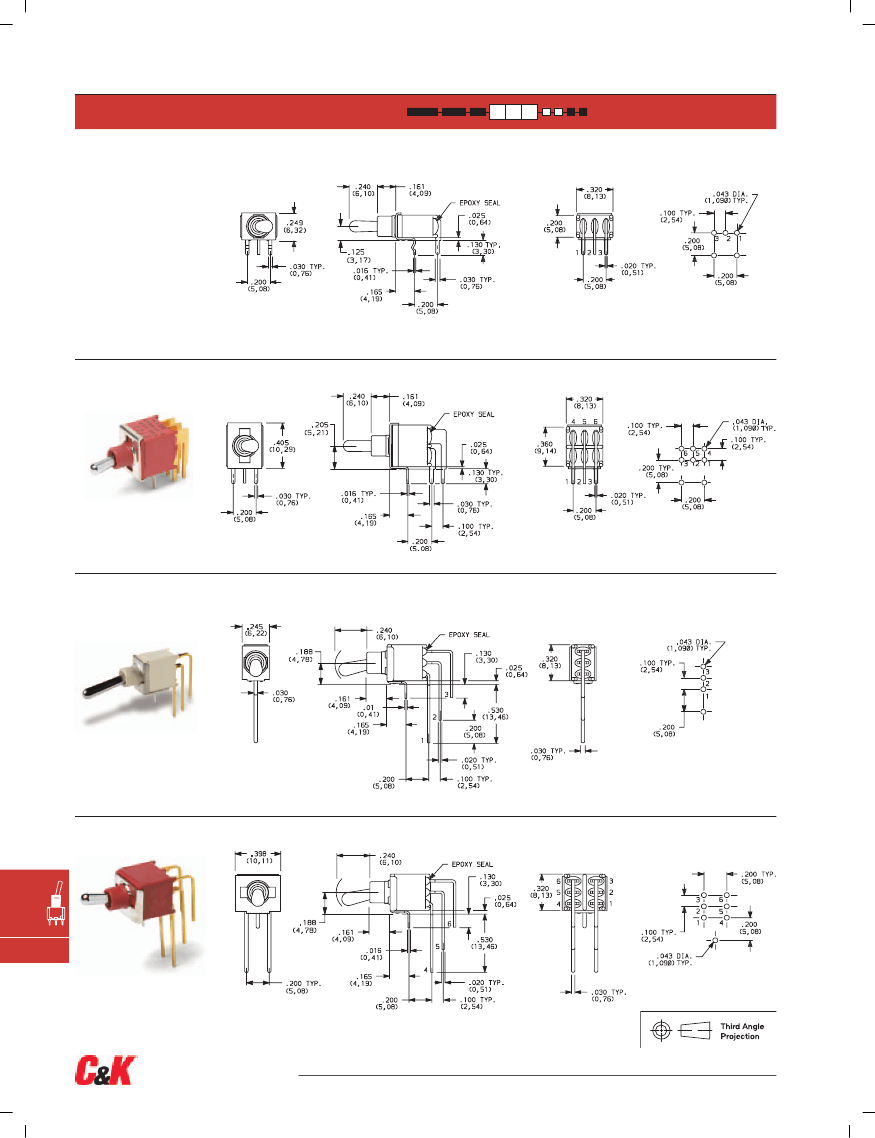

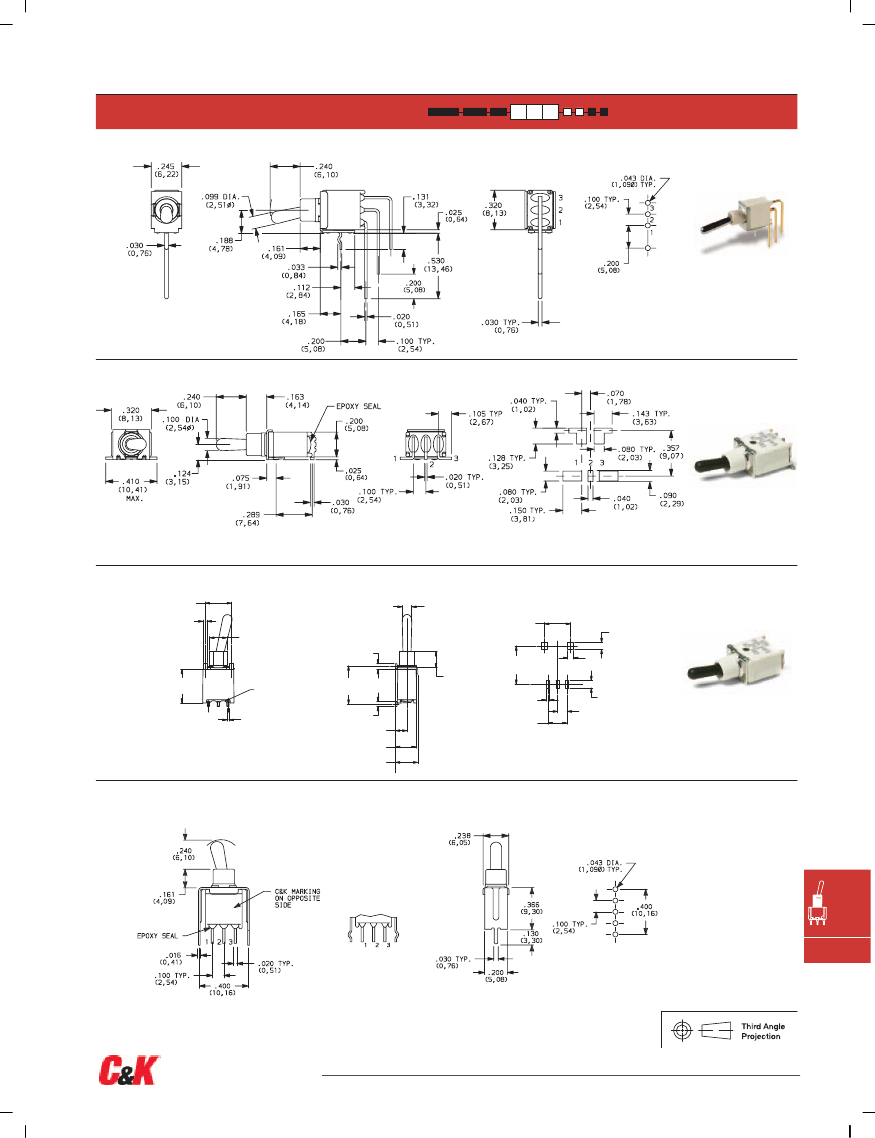

Terminations

Right angle, PC thru-hole

Vertical right angle, PC thru-hole

PC Thru-hole

Right angle, surface mount

SA1

Right angle, surface mount rear-facing

Vertical mount, V-bracket

Contact Material

AV3

Vertical right angle, snap-in, PC thru-hole

Gold

V31

Vertical mount, V-bracket, snap-in

Gold, matte tin

Wire wrap

Silver

Silver/matte-tin

Gold over silver

Gold over silver,

matte-tin

Seal

Epoxy

Plastic Actuator Color

NONE

No actuator color

Black

White

Toggle

Dimensions are shown: Inches (mm)

Specifications and dimensions subject to change

F–25

www.ck-components.com

ET03MD1AVGE Related Products

	ET03MD1AVGE	ET01MD1V3QE	ET01MF1ABE	ET23MD1AQE	ET21MF1AVGE	ET03LD1V31BE	ET01M3D1V3BE	ET08LD1AGE	ET23MD1AVQE	ET08LD1AVSE
Description	TOGGLE SWITCH, SPDT, LATCHED, 2A, 28VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT	TOGGLE SWITCH, SPDT, LATCHED, 3A, 28VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	TOGGLE SWITCH, SPDT, LATCHED, 0.02A, 20VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT	TOGGLE SWITCH, DPDT, LATCHED, 2A, 28VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT	TOGGLE SWITCH, DPDT, LATCHED, 3A, 28VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT	TOGGLE SWITCH, SPDT, LATCHED, 0.02A, 20VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	TOGGLE SWITCH, SPDT, MOMENTARY, 0.02A, 20VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	TOGGLE SWITCH, SPDT, MOMENTARY, 2A, 28VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT	TOGGLE SWITCH, DPDT, LATCHED, 2A, 28VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT	TOGGLE SWITCH, SPDT, MOMENTARY, 2A, 28VDC, THROUGH HOLE-RIGHT ANGLE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator angle	25 deg	25 deg	25 deg	25 deg	25 deg	25 deg	25 deg	25 deg	25 deg	25 deg
Executor completed	CHROME	CHROME	CHROME	CHROME	CHROME	CHROME	CHROME	CHROME	CHROME	CHROME
Actuator length	0.24 inch	0.24 inch	0.24 inch	0.24 inch	0.24 inch	0.32 inch	0.24 inch	0.32 inch	0.24 inch	0.32 inch
Actuator material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	NYLON	BRASS	BRASS	BRASS
Actuator type	TOGGLE	TOGGLE	TOGGLE	TOGGLE	TOGGLE	TOGGLE	PLASTIC, ANTI-STATIC	TOGGLE	TOGGLE	TOGGLE
body width	6.22 mm	5.08 mm	8.13 mm	8.13 mm	9.27 mm	5.08 mm	6.05 mm	8.13 mm	9.27 mm	6.22 mm
body height	8.13 mm	9.3 mm	5.08 mm	9.14 mm	8.13 mm	9.3 mm	9.3 mm	5.08 mm	8.13 mm	8.13 mm
Body length or diameter	9.27 mm	10.16 mm	9.27 mm	9.27 mm	10.11 mm	10.16 mm	10.16 mm	9.27 mm	10.11 mm	9.27 mm
Casing diameter	0.18 inch	0.18 inch	0.18 inch	0.18 inch	0.18 inch	0.18 inch	0.18 inch	0.18 inch	0.18 inch	0.18 inch
Nozzle length	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch
center contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL	SILVER	GOLD OVER NICKEL	SILVER	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	SILVER	SILVER
Contact (AC) maximum rated R load	2A@120VAC	3A@120VAC	.02A@20VAC	2A@120VAC	3A@120VAC	.02A@20VAC	.02A@20VAC	2A@120VAC	2A@120VAC	2A@120VAC
Maximum contact current (AC)	2 A	3 A	0.02 A	2 A	3 A	0.02 A	0.02 A	2 A	2 A	2 A
Maximum contact current (DC)	2 A	3 A	0.02 A	2 A	3 A	0.02 A	0.02 A	2 A	2 A	2 A
Contact (DC) maximum rated R load	2A@28VDC	3A@28VDC	.02A@20VDC	2A@28VDC	3A@28VDC	.02A@20VDC	.02A@20VDC	2A@28VDC	2A@28VDC	2A@28VDC
Contact resistance	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ
Maximum contact voltage (AC)	120 V	120 V	20 V	120 V	120 V	20 V	20 V	120 V	120 V	120 V
Maximum contact voltage (DC)	28 V	28 V	20 V	28 V	28 V	20 V	20 V	28 V	28 V	28 V
Dielectric withstand voltage	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V
Electrical life	30000 Cycle(s)	60000 Cycle(s)	60000 Cycle(s)	30000 Cycle(s)	60000 Cycle(s)	30000 Cycle(s)	60000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)
End contact material	COIN SILVER	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COIN SILVER	COPPER ALLOY	COPPER ALLOY	COIN SILVER	COPPER ALLOY	COPPER ALLOY
End contact plating	GOLD OVER NICKEL	SILVER	GOLD OVER NICKEL	SILVER	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	SILVER	SILVER
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e3
Installation features	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-STRAIGHT	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
seal	EPOXY TERMINAL SEALED; IP57	EPOXY TERMINAL SEALED; IP57	EPOXY TERMINAL SEALED; IP57	EPOXY TERMINAL SEALED; IP57	EPOXY TERMINAL SEALED; IP57	EPOXY TERMINAL SEALED; IP57	EPOXY TERMINAL SEALED; IP57	EPOXY TERMINAL SEALED; IP57	EPOXY TERMINAL SEALED; IP57	EPOXY TERMINAL SEALED; IP57
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	MOMENTARY	MOMENTARY	LATCHED	MOMENTARY
switch function	SPDT	SPDT	SPDT	DPDT	DPDT	SPDT	SPDT	SPDT	DPDT	SPDT
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrier	Silver (Ag)	Gold (Au) - with Nickel (Ni) barrier	Silver (Ag)	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Silver (Ag)	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal length	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch
Terminal material	COPPER ALLOY	COIN SILVER	COPPER ALLOY	COIN SILVER	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COIN SILVER	COPPER ALLOY
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-
Contact (AC) maximum rated power R load	0.4VA@20VAC	-	0.4VA@20VAC	-	0.4VA@20VAC	0.4VA@20VAC	0.4VA@20VAC	0.4VA@20VAC	-	-
Base Number Matches	-	1	1	1	1	1	1	-	-	-
