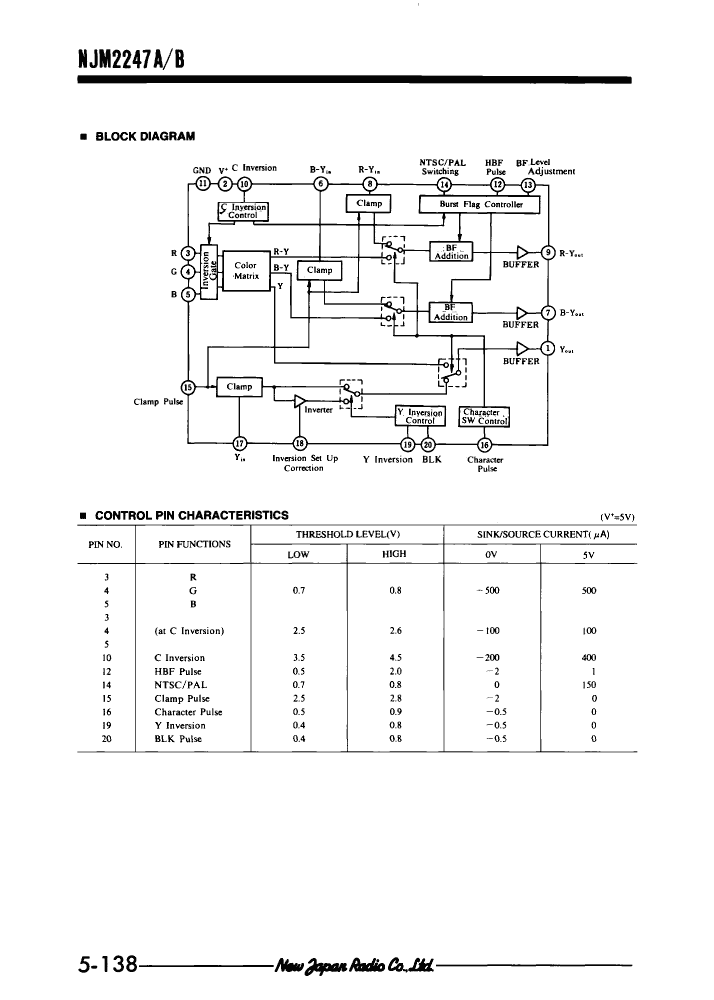

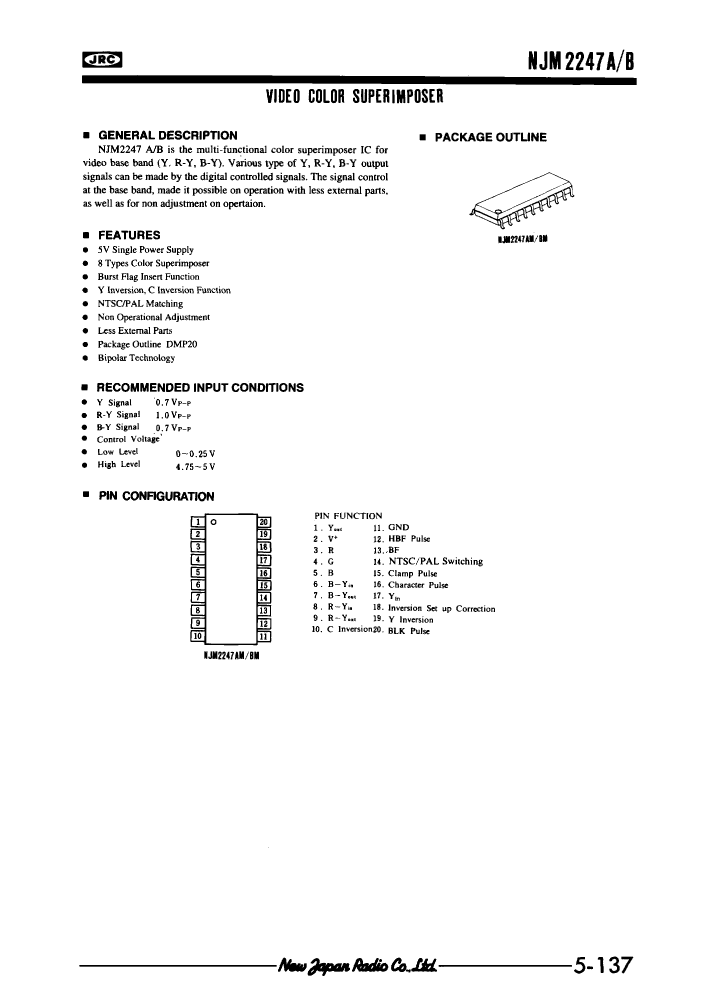

Consumer Circuit, Bipolar, PDSO20, MINI, PLASTIC, DMP-20

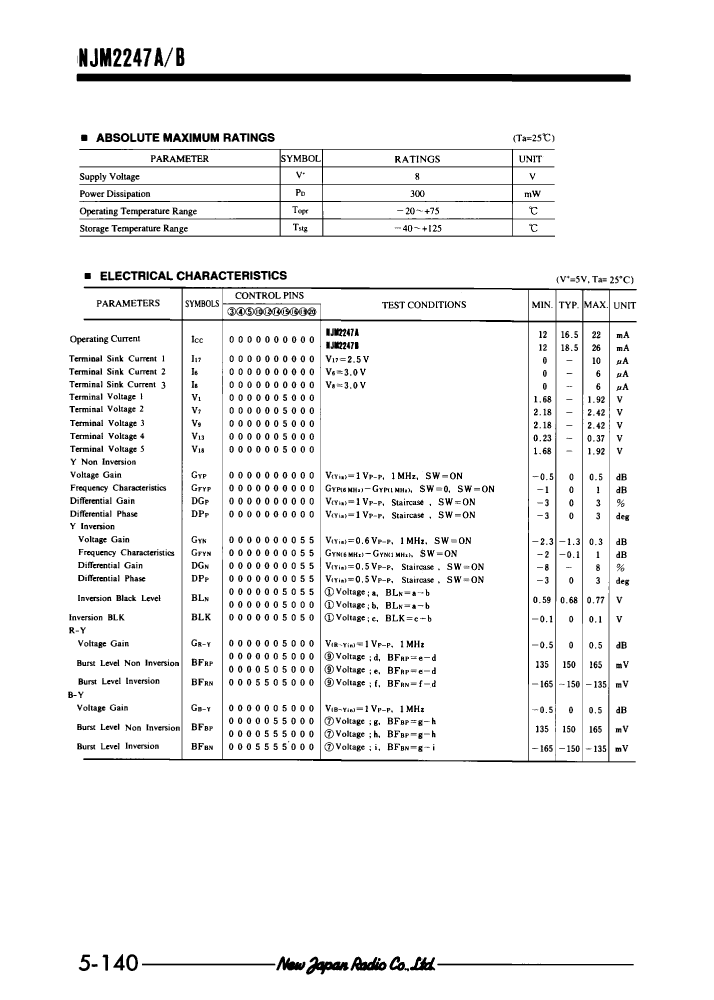

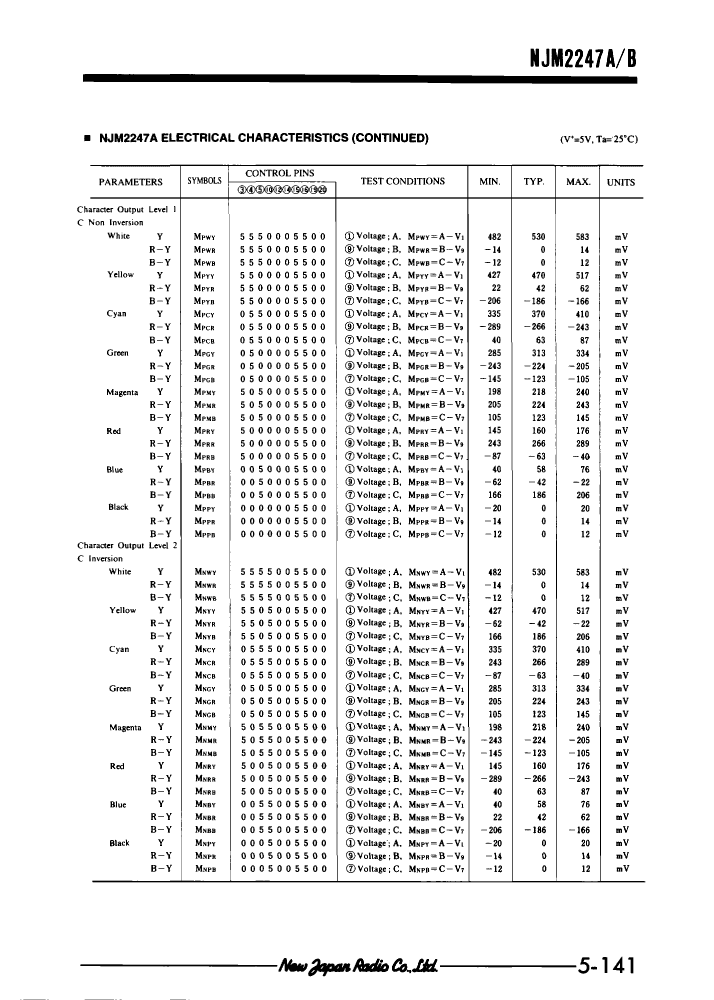

| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | New Japan Radio Co., Ltd.. |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| Commercial integrated circuit types | CONSUMER CIRCUIT |
| JESD-30 code | R-PDSO-G20 |
| JESD-609 code | e6 |
| Number of functions | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 75 °C |
| Minimum operating temperature | -20 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 260 |
| Certification status | Not Qualified |
| Maximum slew rate | 26 mA |
| Maximum supply voltage (Vsup) | 5 V |
| Minimum supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL EXTENDED |
| Terminal surface | TIN BISMUTH |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 10 |
| NJM2247BM-(TE1) | NJM2247BM-(TE2) | NJM2247BM-(T2) | NJM2247BM-(T1) | NJM2247AM-(TE1) | NJM2247AM-(T1) | NJM2247AM-(T2) | NJM2247AM-(TE2) | |
|---|---|---|---|---|---|---|---|---|
| Description | Consumer Circuit, Bipolar, PDSO20, MINI, PLASTIC, DMP-20 | Consumer Circuit, Bipolar, PDSO20, MINI, PLASTIC, DMP-20 | Consumer Circuit, Bipolar, PDSO20, MINI, PLASTIC, DMP-20 | Consumer Circuit, Bipolar, PDSO20, MINI, PLASTIC, DMP-20 | Consumer Circuit, Bipolar, PDSO20, MINI, PLASTIC, DMP-20 | Consumer Circuit, Bipolar, PDSO20, MINI, PLASTIC, DMP-20 | Consumer Circuit, Bipolar, PDSO20, MINI, PLASTIC, DMP-20 | Consumer Circuit, Bipolar, PDSO20, MINI, PLASTIC, DMP-20 |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Maker | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. | New Japan Radio Co., Ltd.. |
| Parts packaging code | SOIC | SOIC | SOIC | SOIC | SOIC | SOIC | SOIC | SOIC |
| package instruction | SOP, | SOP, | SOP, | SOP, | SOP, | SOP, | SOP, | SOP, |
| Contacts | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Commercial integrated circuit types | CONSUMER CIRCUIT | CONSUMER CIRCUIT | CONSUMER CIRCUIT | CONSUMER CIRCUIT | CONSUMER CIRCUIT | CONSUMER CIRCUIT | CONSUMER CIRCUIT | CONSUMER CIRCUIT |
| JESD-30 code | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 |
| JESD-609 code | e6 | e6 | e6 | e6 | e6 | e6 | e6 | e6 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 75 °C | 75 °C | 75 °C | 75 °C | 75 °C | 75 °C | 75 °C | 75 °C |
| Minimum operating temperature | -20 °C | -20 °C | -20 °C | -20 °C | -20 °C | -20 °C | -20 °C | -20 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | SOP | SOP | SOP | SOP | SOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 260 | 260 | 260 | 260 | 260 | 260 | 260 | 260 |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum slew rate | 26 mA | 26 mA | 26 mA | 26 mA | 22 mA | 22 mA | 22 mA | 22 mA |
| Maximum supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Minimum supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED |
| Terminal surface | TIN BISMUTH | TIN BISMUTH | TIN BISMUTH | TIN BISMUTH | TIN BISMUTH | TIN BISMUTH | TIN BISMUTH | TIN BISMUTH |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
