MLL5949C-1E3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MLL5949C-1E3

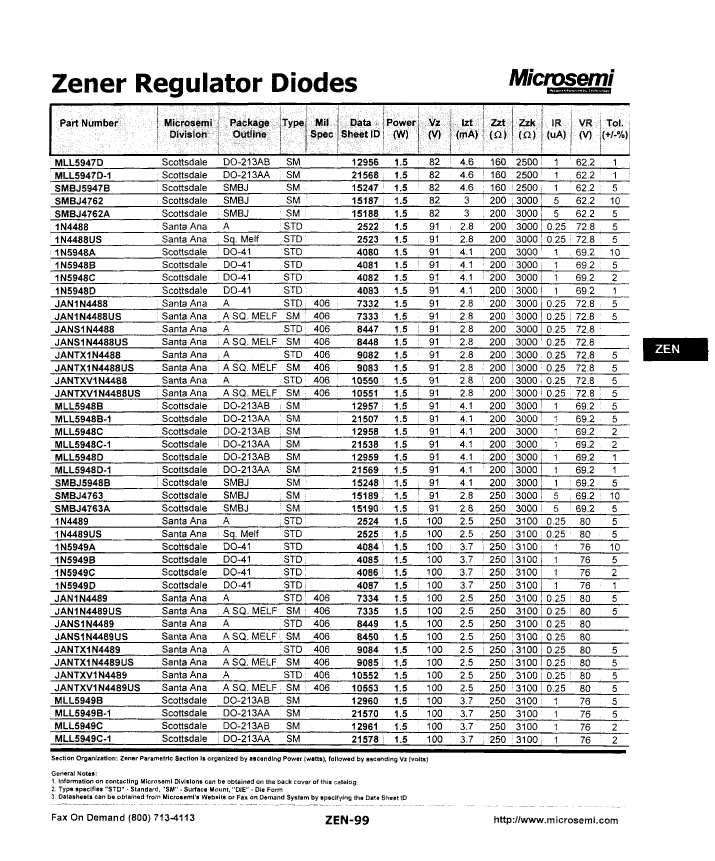

MLL5949C-1E3: DescriptionZener Diode, 100V V(Z), 2%, 1.5W, Silicon, Unidirectional, DO-213AA, SURFACE MOUNT PACKAGE-2; CategoryDiscrete semiconductor diode; File Size97KB，1 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

MLL5949C-1E3 Overview

Zener Diode, 100V V(Z), 2%, 1.5W, Silicon, Unidirectional, DO-213AA, SURFACE MOUNT PACKAGE-2

MLL5949C-1E3 Parametric

Parameter Name	Attribute value
Objectid	8072123560
package instruction	O-XELF-R2
Reach Compliance Code	compliant
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-213AA
JESD-30 code	O-XELF-R2
Number of components	1
Number of terminals	2
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	1.5 W
Nominal reference voltage	100 V
surface mount	YES
technology	ZENER
Terminal form	WRAP AROUND
Terminal location	END
Maximum voltage tolerance	2%
Working test current	3.7 mA

Preview

Download Datasheet

View All

MLL5949C-1E3 Related Products

	MLL5949C-1E3	MLL5947D-1E3	MLL5948B-1E3	MLL5948C-1E3	MLL5948D-1E3	MLL5949B-1E3
Description	Zener Diode, 100V V(Z), 2%, 1.5W, Silicon, Unidirectional, DO-213AA, SURFACE MOUNT PACKAGE-2	Zener Diode, 82V V(Z), 1%, 1.5W, Silicon, Unidirectional, DO-213AA, SURFACE MOUNT PACKAGE-2	Zener Diode, 91V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-213AA, SURFACE MOUNT PACKAGE-2	Zener Diode, 91V V(Z), 2%, 1.5W, Silicon, Unidirectional, DO-213AA, SURFACE MOUNT PACKAGE-2	Zener Diode, 91V V(Z), 1%, 1.5W, Silicon, Unidirectional, DO-213AA, SURFACE MOUNT PACKAGE-2	Zener Diode, 100V V(Z), 5%, 1.5W, Silicon, Unidirectional, DO-213AA, SURFACE MOUNT PACKAGE-2
package instruction	O-XELF-R2	O-XELF-R2	O-XELF-R2	O-XELF-R2	O-XELF-R2	O-XELF-R2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
JEDEC-95 code	DO-213AA	DO-213AA	DO-213AA	DO-213AA	DO-213AA	DO-213AA
JESD-30 code	O-XELF-R2	O-XELF-R2	O-XELF-R2	O-XELF-R2	O-XELF-R2	O-XELF-R2
Number of components	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	1.5 W	1.5 W	1.5 W	1.5 W	1.5 W	1.5 W
Nominal reference voltage	100 V	82 V	91 V	91 V	91 V	100 V
surface mount	YES	YES	YES	YES	YES	YES
technology	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal form	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND
Terminal location	END	END	END	END	END	END
Maximum voltage tolerance	2%	1%	5%	2%	1%	5%
Working test current	3.7 mA	4.6 mA	4.1 mA	4.1 mA	4.1 mA	3.7 mA
Maker	-	Microsemi	Microsemi	Microsemi	Microsemi	-
