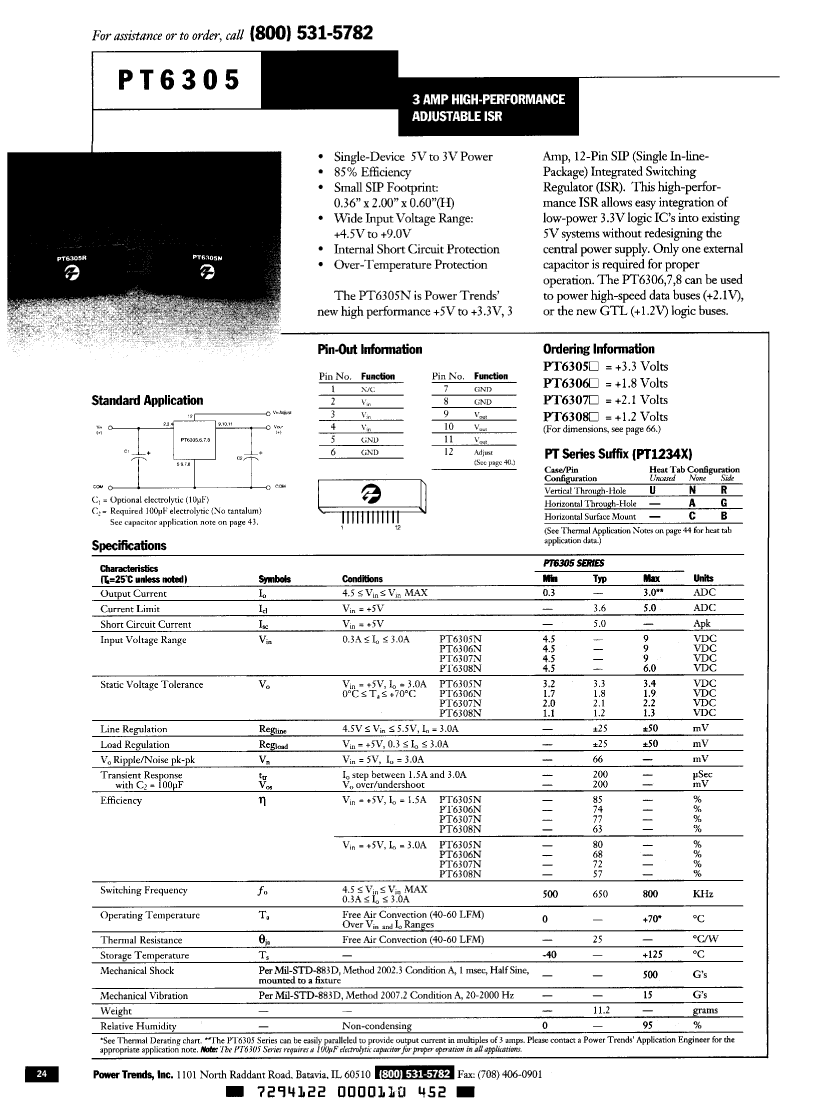

PT6305U

Description
DC-DC Regulated Power Supply Module, 1 Output, Hybrid,
CategoryPower/power management    The power supply circuit
File Size483KB,8 Pages
ManufacturerPower Trends Inc
Download Datasheet Parametric Compare View All

PT6305U Overview

DC-DC Regulated Power Supply Module, 1 Output, Hybrid,

PT6305U Parametric

Parameter NameAttribute value
MakerPower Trends Inc
Reach Compliance Codeunknown
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE

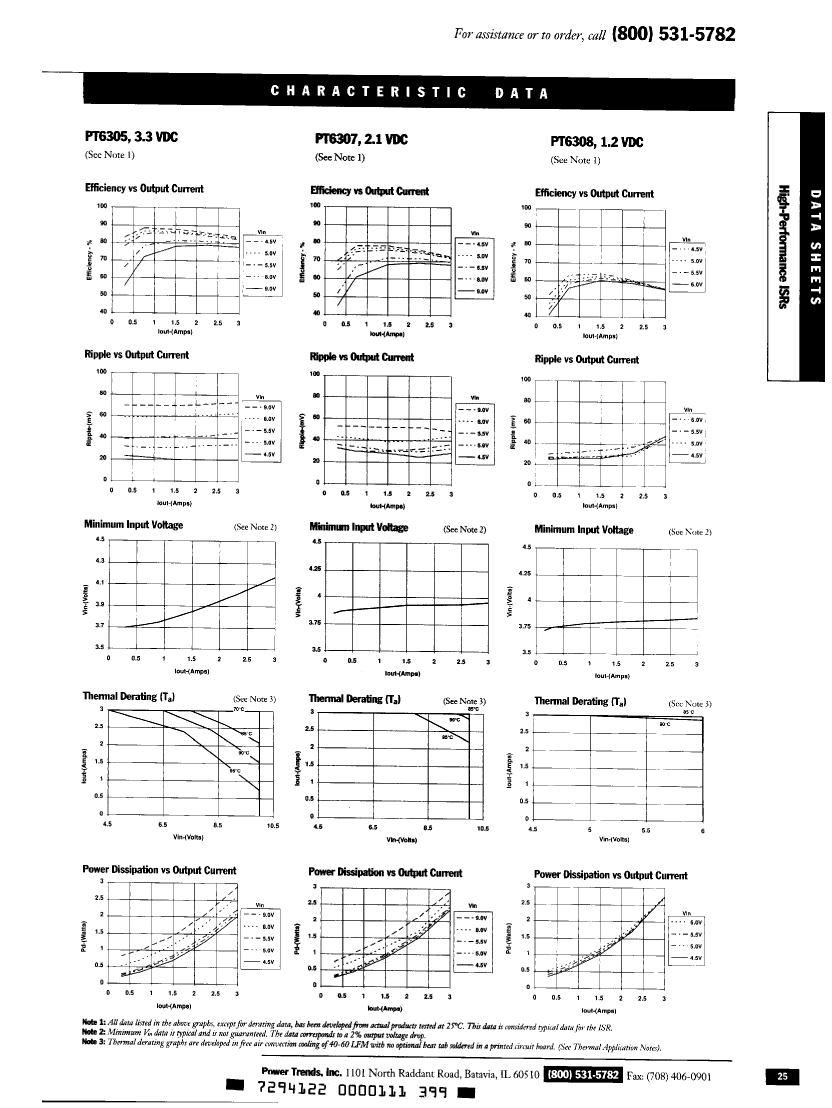

Efficiency (main output)80%
Maximum input voltage9 V
Minimum input voltage4.5 V
Nominal input voltage5 V
JESD-30 codeR-XSIP-T12
Maximum load regulation1.51%
Number of functions1
Output times1
Number of terminals12
Maximum operating temperature70 °C
Minimum operating temperature
Nominal output voltage3.3 V

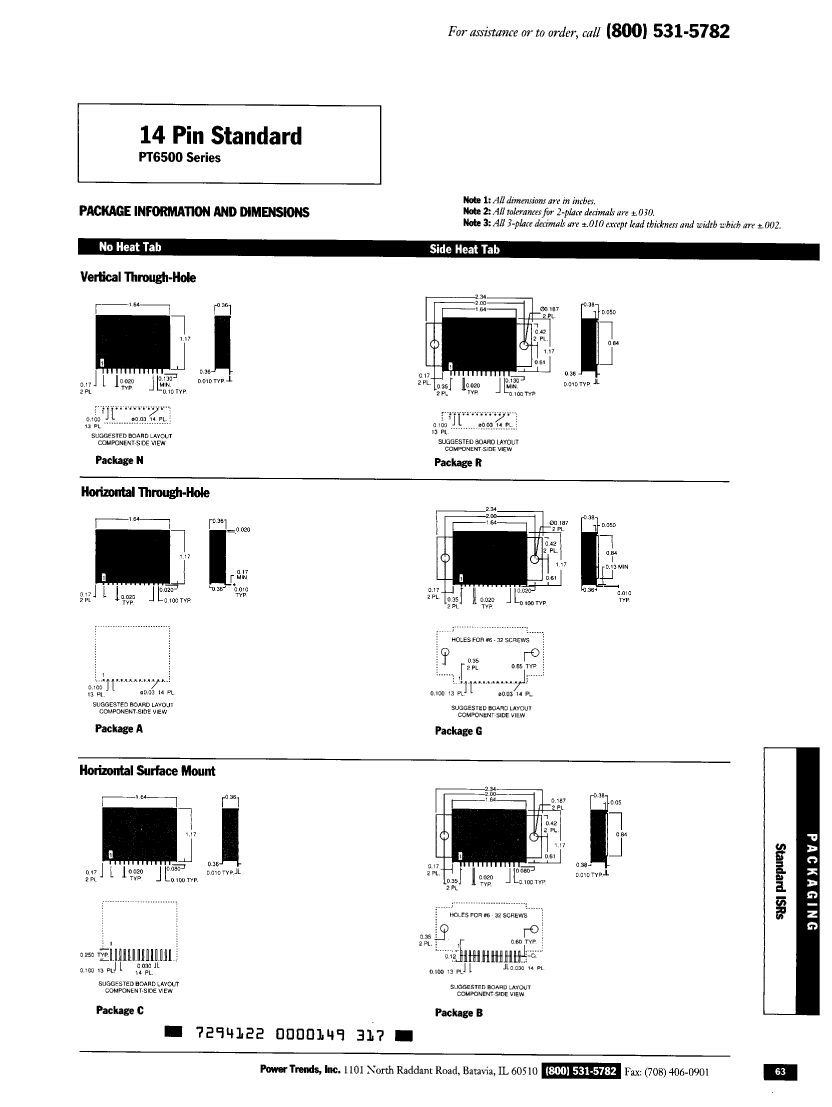

Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formIN-LINE
ProtectTHERMAL; CURRENT
Certification statusNot Qualified
surface mountNO
technologyHYBRID
Temperature levelCOMMERCIAL
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Fine-tuning/adjustable outputYES

PT6305U Related Products

PT6305U PT6306U PT6308U
Description DC-DC Regulated Power Supply Module, 1 Output, Hybrid, DC-DC Regulated Power Supply Module, 1 Output, Hybrid, DC-DC Regulated Power Supply Module, 1 Output, Hybrid,
Reach Compliance Code unknown unknown unknown
Analog Integrated Circuits - Other Types DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output) 80% 68% 57%
Maximum input voltage 9 V 9 V 6 V
Minimum input voltage 4.5 V 4.5 V 4.5 V
Nominal input voltage 5 V 5 V 5 V
JESD-30 code R-XSIP-T12 R-XSIP-T12 R-XSIP-T12
Maximum load regulation 1.51% 2.78% 4.166%
Number of functions 1 1 1
Output times 1 1 1
Number of terminals 12 12 12
Maximum operating temperature 70 °C 70 °C 70 °C
Nominal output voltage 3.3 V 1.8 V 1.2 V
Package body material UNSPECIFIED UNSPECIFIED UNSPECIFIED
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE IN-LINE
Protect THERMAL; CURRENT THERMAL; CURRENT THERMAL; CURRENT
Certification status Not Qualified Not Qualified Not Qualified
surface mount NO NO NO
technology HYBRID HYBRID HYBRID
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE SINGLE
Fine-tuning/adjustable output YES YES YES
Maker Power Trends Inc - Power Trends Inc
