SyncMOS Technologies International, Inc.
SM89516A
8-Bits Micro-controller
With 64KB flash & 1KB RAM embedded
Product List
SM89516AL25, 25MHz 64KB internal flash MCU
SM89516AC25, 25MHz 64KB internal flash MCU
SM89516AC40, 40MHz 64KB internal flash MCU
Features
Working Voltage:
3.0V ~ 3.6V For L Version.
4.5V ~ 5.5V For C Version.
Description
The SM89516A series product is an 8 - bit single chip
micro controller with 64KB on-chip flash and 1K byte RAM
embedded. It is a derivative of the 8052 micro controller
family. It has 5-channel SPWM build-in. With its hardware
features and powerful instruction set, it’s straight forward to
make it a versatile and cost effective controller for those
applications which demand up to 32 I/O pins for PDIP
package or up to 36 I/O pins for PLCC/QFP package, or
applications which need up to 64K byte flash memory for
program data.
To program the on-chip flash memory, a commercial writer
is available to do it in parallel programming method.
Ordering Information
yymmv
SM89516AihhkL
yy: year, mm: month
v: version identifier{ , A, B,…}
i: process identifier {L=3.0V~3.6V,C=4.5V~ 5.5V}
hh: working clock in MHz {25, 40}
k: package type postfix {as below table}
L:PB Free identifier
{No text is Non-PB Free，”P”is PB Free}
General 8052 family compatible
12 clocks per machine cycle
64K byte on chip program flash
1024 byte on-chip data RAM
Three 16 bit Timers/Counters
One Watch Dog Timer
Four 8-bit I/O ports for PDIP package
Four 8-bit I/O ports + one 4-bit I/O ports for
PLCC or QFP package
Full duplex serial channel
Bit operation instruction
Industrial Level
8-bit Unsigned Division
8-bit Unsigned Multiply
BCD arithmetic
Direct Addressing
Indirect Addressing
Nested Interrupt
Two priority level interrupt
A serial I/O port
Power save modes: Idle mode and Power
down mode
Code protection function
Low EMI (inhibit ALE)
5 channel SPWM function with P1.3 ~ P1.7
Taiwan
6F, No.10-2
Li- Hsin 1st
Road ,
Science-based Industrial Park,
Hsinchu, Taiwan 30078
TEL: 886-3-567-1820
886-3-567-1880
FAX: 886-3-567-1891
886-3-567-1894
Postfix
P
J
Q
U
Package
40L PDIP
44L PLCC
44L QFP
48L LQFP

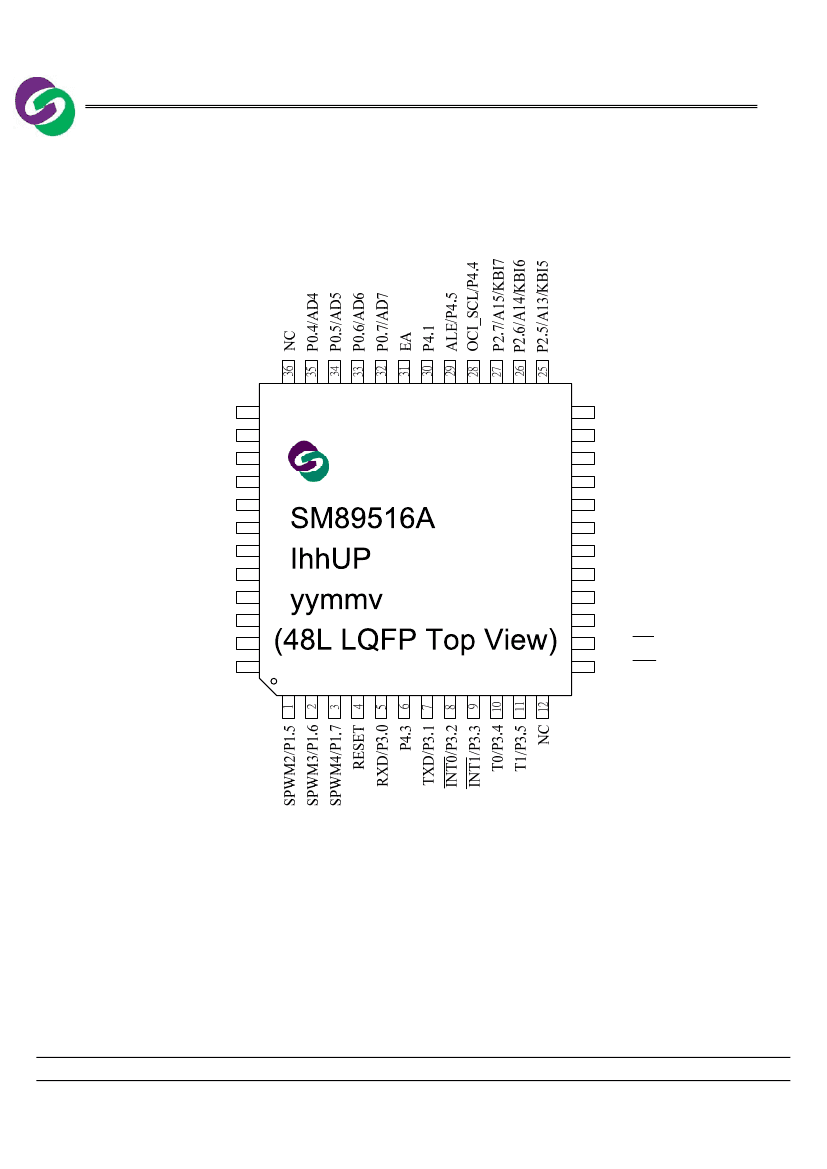

Pin / Pad Configuration
Page 2
Page 3
Page 4
Page 5
Specifications subject to change without notice contact your sales representatives for the most recent information.
ISSFD-M016
Ver:C
SM89516A
1
07/2010
