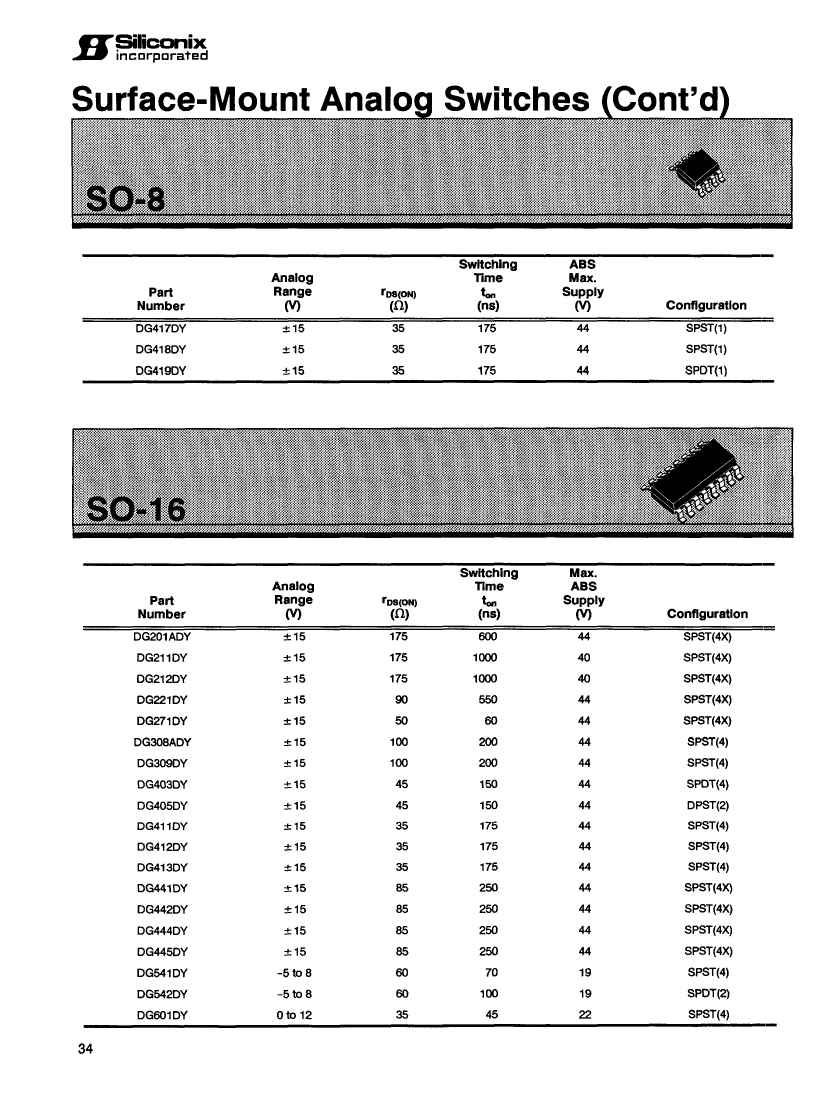

DG211DY: DescriptionSPST, 4 Func, 1 Channel, CMOS, PDSO16, SOIC-16; CategoryAnalog mixed-signal IC The signal circuit; File Size145KB，1 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

DG211DY Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG211DY	-	-	View	Buy Now

DG211DY Overview

SPST, 4 Func, 1 Channel, CMOS, PDSO16, SOIC-16

DG211DY Parametric

Parameter Name	Attribute value
Maker	Vishay
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G16
length	9.9 mm
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	70 dB
Maximum on-state resistance (Ron)	175 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.75 mm
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	500 ns
Maximum connection time	1000 ns
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

Preview

Download Datasheet

View All

DG211DY Related Products

	DG211DY	DG212DY	DG201ADY	DG221DY	DG601DY	DG271DY
Description	SPST, 4 Func, 1 Channel, CMOS, PDSO16, SOIC-16	SPST, 4 Func, 1 Channel, CMOS, PDSO16, SOIC-16	SPST, 4 Func, 1 Channel, CMOS, PDSO16, SOIC-16	SPST, 4 Func, 1 Channel, CMOS, PDSO16, SOIC-16	SPST, 4 Func, CMOS, PDSO16	SPST, 4 Func, CMOS, PDSO16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST	SPST	SPST
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
Number of functions	4	4	4	4	4	4
Number of terminals	16	16	16	16	16	16
Maximum on-state resistance (Ron)	175 Ω	175 Ω	175 Ω	90 Ω	140 Ω	75 Ω
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES
Maximum connection time	1000 ns	1000 ns	600 ns	550 ns	45 ns	75 ns
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Vishay	Vishay	-	Vishay	Vishay	Vishay
Parts packaging code	SOIC	SOIC	-	SOIC	SOIC	SOIC
package instruction	SOP,	-	SOP, SOP16,.25	SOP,	SOP, SOP16,.25	SOP, SOP16,.25
Contacts	16	16	-	16	16	16
Nominal Negative Supply Voltage (Vsup)	-15 V	-	-15 V	-15 V	-	-15 V
Nominal supply voltage (Vsup)	15 V	-	15 V	15 V	-	15 V
Is it Rohs certified?	-	incompatible	incompatible	-	incompatible	incompatible
JESD-609 code	-	e0	e0	-	e0	e0
normal position	-	NO	NC	-	NC	NC
output	-	SEPARATE OUTPUT	SEPARATE OUTPUT	-	SEPARATE OUTPUT	SEPARATE OUTPUT
Encapsulate equivalent code	-	SOP16,.25	SOP16,.25	-	SOP16,.25	SOP16,.25
power supply	-	5,+-15 V	+-15 V	-	5/+-5/12 V	+-15 V
switch	-	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	-	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
