MN370H/B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> MN370H/B

MN370H/B: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 50us Settling Time, CDIP18, HERMETIC SEALED, CERAMIC, DIP-18; CategoryAnalog mixed-signal IC converter; File Size2MB，2 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

MN370H/B Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 50us Settling Time, CDIP18, HERMETIC SEALED, CERAMIC, DIP-18

MN370H/B Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Spectrum Microwave
Parts packaging code	DIP
package instruction	DIP, DIP18,.3
Contacts	18
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-CDIP-P18
JESD-609 code	e0
length	25.455 mm
Maximum linear error (EL)	0.012%
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	18
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.21 mm
Maximum stabilization time	60 µs
Nominal settling time (tstl)	50 µs
Maximum slew rate	22 mA
Nominal supply voltage	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

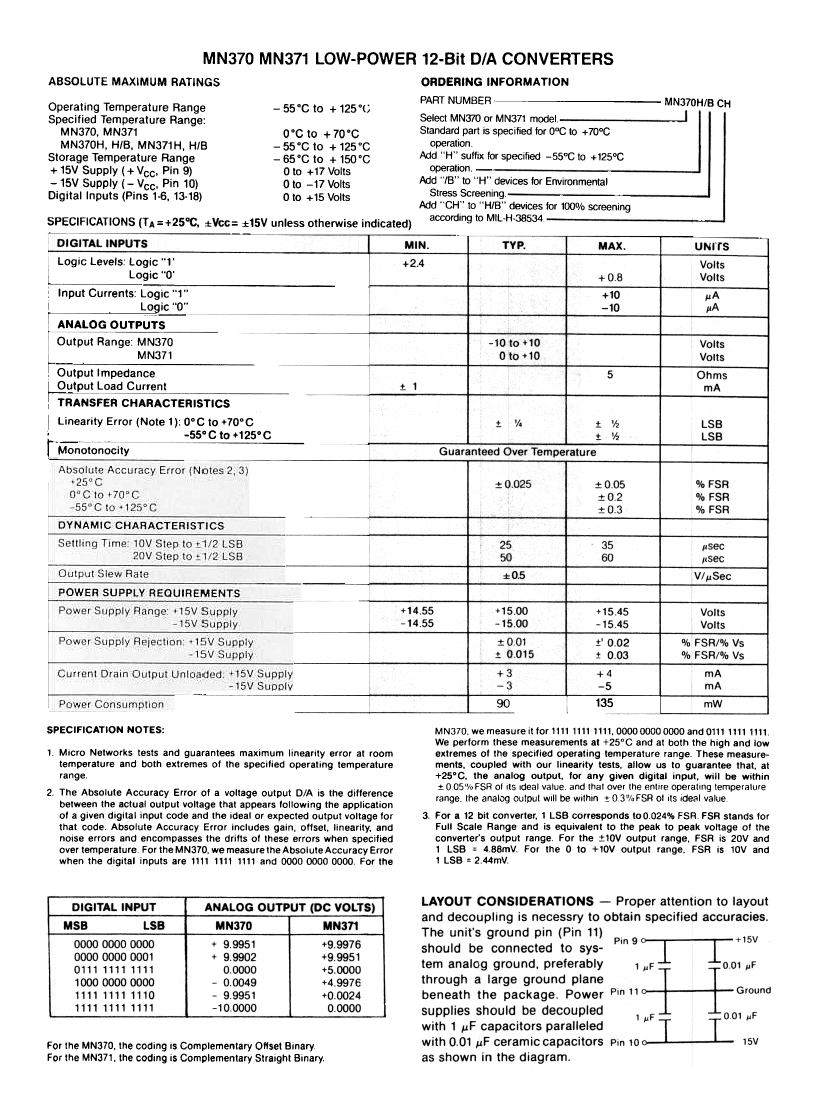

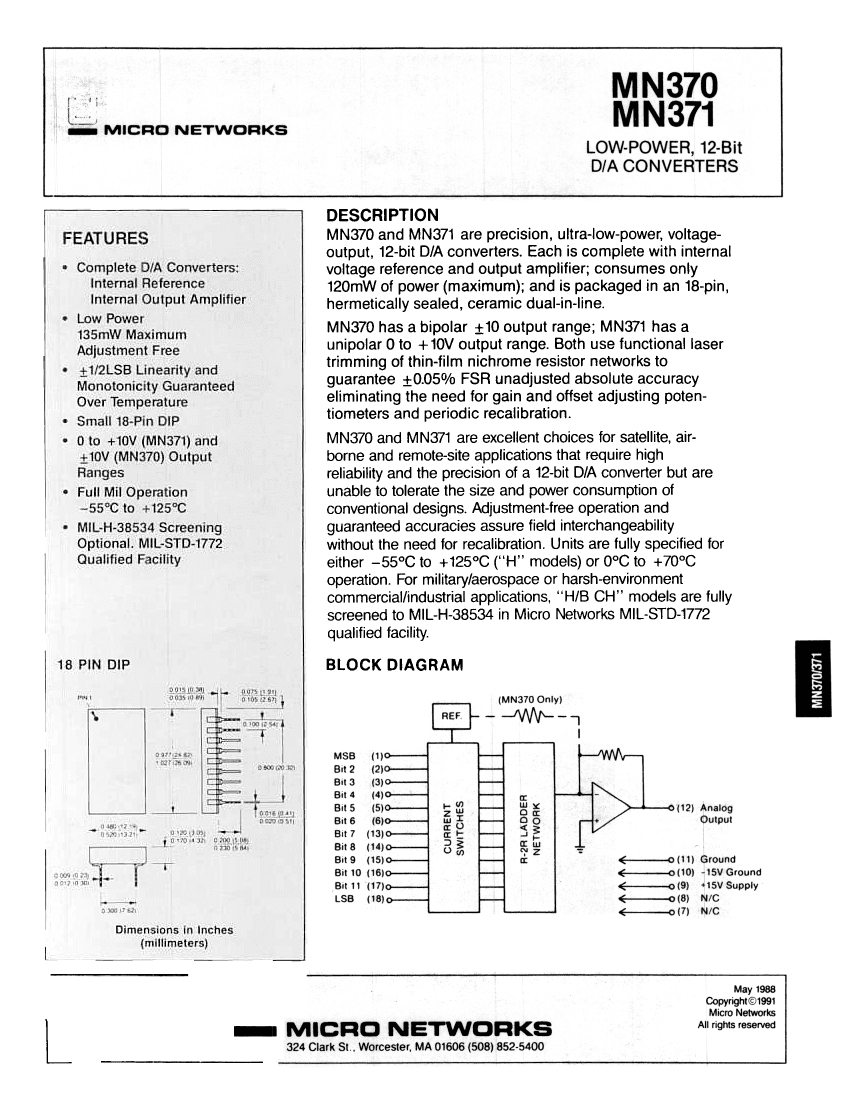

Preview

Download Datasheet

View All

MN370H/B Related Products

	MN370H/B	MN370H/BCH	MN371H/BCH	MN370H	MN371	MN371H	MN371H/B
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 50us Settling Time, CDIP18, HERMETIC SEALED, CERAMIC, DIP-18	D/A Converter, 1 Func, Parallel, Word Input Loading, 50us Settling Time, CDIP18, HERMETIC SEALED, CERAMIC, DIP-18	D/A Converter, 1 Func, Parallel, Word Input Loading, 50us Settling Time, CDIP18, HERMETIC SEALED, CERAMIC, DIP-18	D/A Converter, 1 Func, Parallel, Word Input Loading, 50us Settling Time, CDIP18, HERMETIC SEALED, CERAMIC, DIP-18	D/A Converter, 1 Func, Parallel, Word Input Loading, 50us Settling Time, CDIP18, HERMETIC SEALED, CERAMIC, DIP-18	D/A Converter, 1 Func, Parallel, Word Input Loading, 50us Settling Time, CDIP18, HERMETIC SEALED, CERAMIC, DIP-18	D/A Converter, 1 Func, Parallel, Word Input Loading, 50us Settling Time, CDIP18, HERMETIC SEALED, CERAMIC, DIP-18
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3
Contacts	18	18	18	18	18	18	18
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknow	unknow
Maximum analog output voltage	10 V	10 V	10 V	10 V	10 V	10 V	10 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-CDIP-P18	R-CDIP-P18	R-CDIP-P18	R-CDIP-P18	R-CDIP-P18	R-CDIP-P18	R-CDIP-P18
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
length	25.455 mm	25.455 mm	25.455 mm	25.455 mm	25.455 mm	25.455 mm	25.455 mm
Maximum linear error (EL)	0.012%	0.012%	0.012%	0.012%	0.012%	0.012%	0.012%
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of digits	12	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1	1
Number of terminals	18	18	18	18	18	18	18
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	70 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.21 mm	5.21 mm	5.21 mm	5.21 mm	5.21 mm	5.21 mm	5.21 mm
Maximum stabilization time	60 µs	60 µs	60 µs	60 µs	60 µs	60 µs	60 µs
Nominal settling time (tstl)	50 µs	50 µs	50 µs	50 µs	50 µs	50 µs	50 µs
Maximum slew rate	22 mA	22 mA	22 mA	22 mA	22 mA	22 mA	22 mA
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	-	3A001.A.2.C	3A001.A.2.C
Filter level	38535Q/M;38534H;883B	MIL-PRF-38534 Class H	MIL-PRF-38534 Class H	-	-	-	38535Q/M;38534H;883B
