MP7228KN: DescriptionD/A Converter, 1 Func, Parallel, 8 Bits Input Loading, PDIP24,; CategoryAnalog mixed-signal IC converter; File Size83KB，2 Pages; ManufacturerMicro Power Systems

Download Datasheet Parametric Compare View All

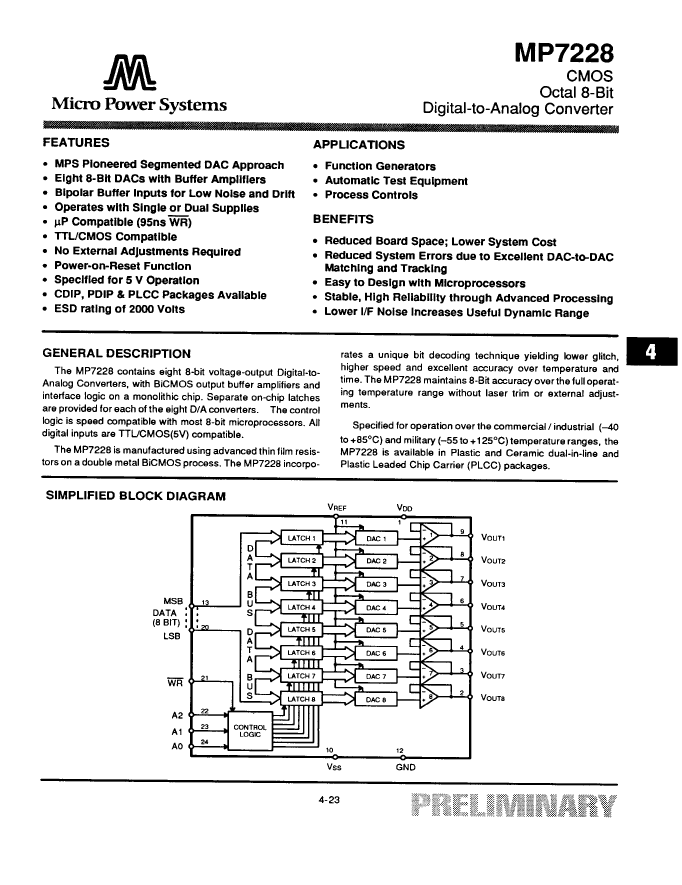

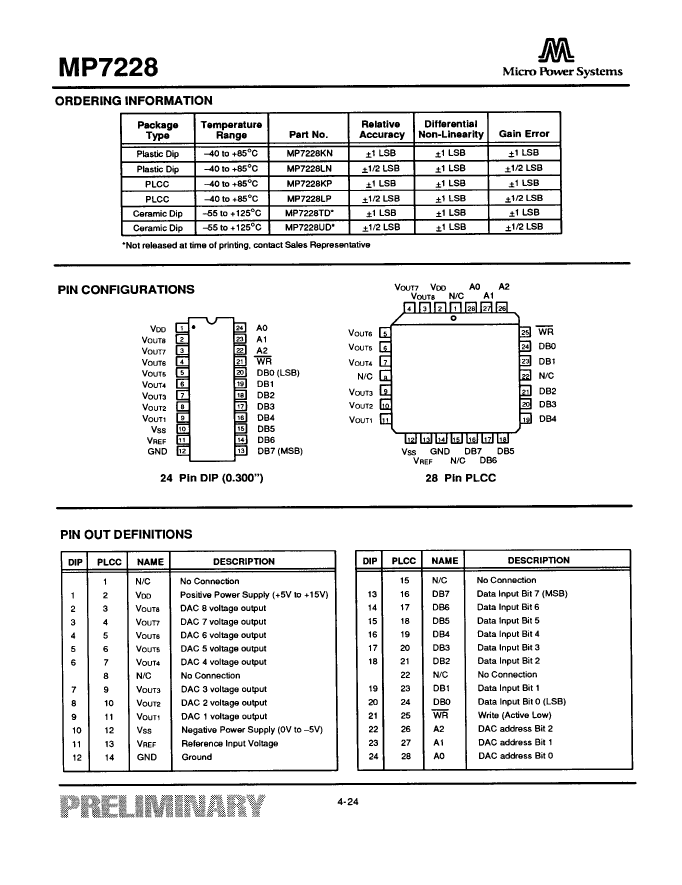

MP7228KN Overview

D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, PDIP24,

MP7228KN Parametric

Parameter Name	Attribute value
Maker	Micro Power Systems
Reach Compliance Code	unknown
Maximum analog output voltage	12 V
Minimum analog output voltage
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, 8 BITS
JESD-30 code	R-PDIP-T24
Maximum linear error (EL)	0.391%
Nominal negative supply voltage	-5 V
Number of digits	8
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum stabilization time	4 µs
Maximum slew rate	16 mA
surface mount	NO
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

MP7228KN Related Products

	MP7228KN	MP7228KP	MP7228UD	MP7228LN	MP7228LP	MP7228TD
Description	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, PDIP24,	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, CQCC28,	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, PDIP24,	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, PDIP24,	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, CQCC28,	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, PDIP24,
Maker	Micro Power Systems	Micro Power Systems	Micro Power Systems	Micro Power Systems	Micro Power Systems	Micro Power Systems
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum analog output voltage	12 V	12 V	12 V	12 V	12 V	12 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY
Input format	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
JESD-30 code	R-PDIP-T24	S-PQCC-J28	R-GDIP-T24	R-PDIP-T24	S-PQCC-J28	R-GDIP-T24
Maximum linear error (EL)	0.391%	0.391%	0.195%	0.195%	0.195%	0.391%
Nominal negative supply voltage	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Number of digits	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	24	28	24	24	28	24
Maximum operating temperature	85 °C	85 °C	125 °C	85 °C	85 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C	-40 °C	-40 °C	-55 °C
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum stabilization time	4 µs	4 µs	4 µs	4 µs	4 µs	4 µs
Maximum slew rate	16 mA	16 mA	16 mA	16 mA	16 mA	16 mA
surface mount	NO	YES	NO	NO	YES	NO
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	MILITARY
Terminal form	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE
Terminal location	DUAL	QUAD	DUAL	DUAL	QUAD	DUAL
