NJU7002D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> NJU7002D

NJU7002D: DescriptionOperational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDIP8, DIP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size598KB，5 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance

Download Datasheet Parametric Compare View All

NJU7002D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NJU7002D	-	-	View	Buy Now

NJU7002D Overview

Operational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDIP8, DIP-8

NJU7002D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	New Japan Radio Co., Ltd..
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.000001 µA
Minimum Common Mode Rejection Ratio	60 dB
Nominal Common Mode Rejection Ratio	70 dB
frequency compensation	YES
Maximum input offset voltage	10000 µV
JESD-30 code	R-PDIP-T8
JESD-609 code	e6
length	8.8 mm
low-bias	YES
low-dissonance	NO
micropower	YES
Number of functions	2
Number of terminals	8
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3 V
Certification status	Not Qualified
Maximum seat height	4.7 mm
Nominal slew rate	0.05 V/us
Maximum slew rate	0.05 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN BISMUTH
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	100 kHz
Minimum voltage gain	10000
width	7.62 mm

Preview

Download Datasheet

View All

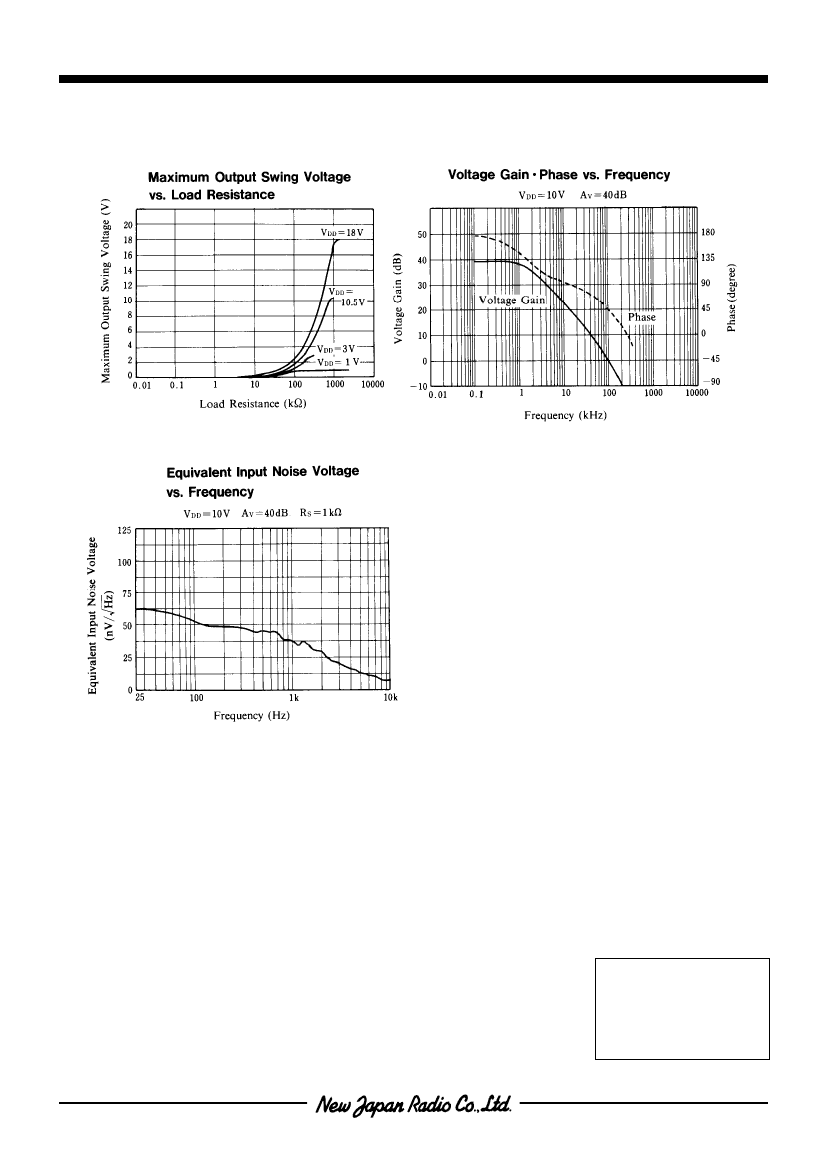

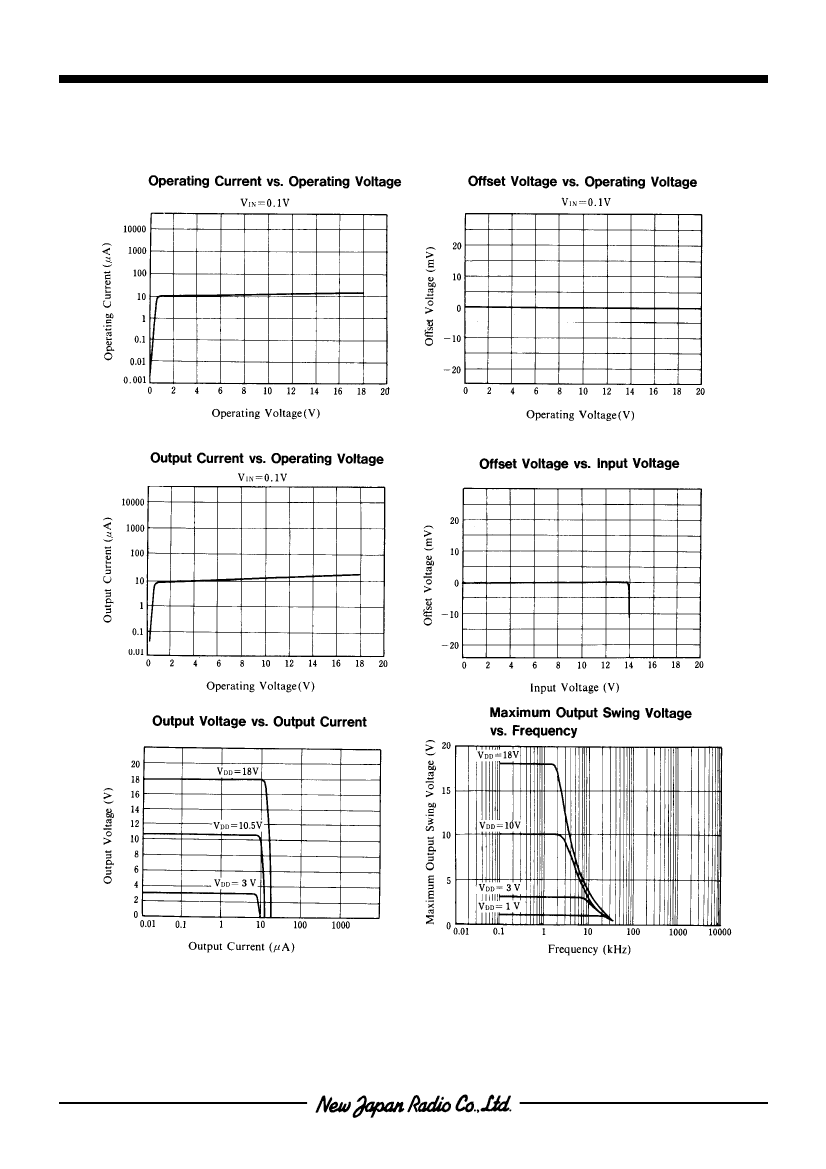

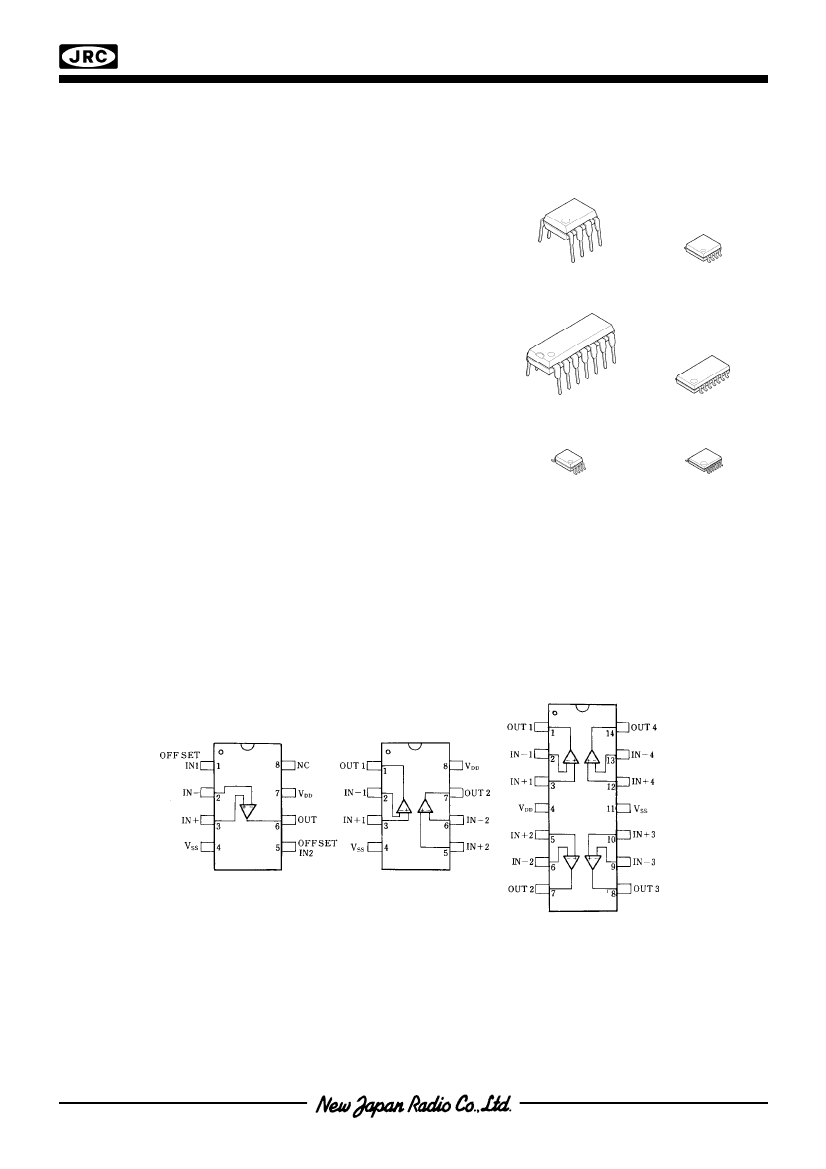

NJU7001/02/04

LOW VOLTAGE C-MOS OPERATIONAL AMPLIFIER

■ GENERAL DESCRIPTION

■ PACKAGE OUTLINE

The NJU7001, 02 and 04 are single, dual and quad C-MOS

Operational Amplifiers operated on a single-power-supply, low

voltage and low operating current.

The minimum operating voltage is 1V and the output stage

permits output signals to swing between both of the supply rails.

NJU7001D

NJU7002D

The input bias current is as low as less than 1pA,consequently

the very small signal around the ground level can be amplified.

Furthermore, the operating current is also as low as 15μA ( typ )

per circuit, therefore it can be applied especially to

battery-operated items.

■ FEATURES

● Single-Power-Supply

● Wide Operating Voltage

( V

=1~16V )

● Wide Output Swing Range

( V

=2.94V typ.at V

=3V )

● Low Operating Current

( 15μA/circuit )

● Low Bias Current

( I

=1pA )

● Internal Compensation Capacitor

● External Offset Null Adjustment ( Only NJU7001 )

● Package Outline

DIP/DMP/SSOP8 ( NJU7001 )

DIP/DMP8 ( NJU7002 )

DIP/DMP/SSOP14 ( NJU7004 )

● C-MOS Technology

■ PIN CONFIGURATION

NJU7004D

NJU7001M

NJU7002M

NJU7004M

NJU7001V

NJU7004V

NJU7001D

NJU7001M

NJU7001V

NJU7002D

NJU7002M

NJU7004D

NJU7004M

NJU7004V

Ver.2014-11-26

-1-

NJU7002D Related Products

	NJU7002D	NJU7002M	NJU7001D	NJU7001M	NJU7004D	NJU7004M
Description	Operational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDIP8, DIP-8	Operational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDSO8, DMP-8	Operational Amplifier, 1 Func, 10000uV Offset-Max, CMOS, PDIP8, DIP-8	Operational Amplifier, 1 Func, 10000uV Offset-Max, CMOS, PDSO8, DMP-8	Operational Amplifier, 4 Func, 10000uV Offset-Max, CMOS, PDIP14, DIP-14	Operational Amplifier, 4 Func, 10000uV Offset-Max, CMOS, PDSO14, DMP-14
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..
Parts packaging code	DIP	SOIC	DIP	SOIC	DIP	SOIC
package instruction	DIP, DIP8,.3	SOP, SOP8,.25	DIP, DIP8,.3	SOP, SOP8,.25	DIP, DIP14,.3	SOP, SOP14,.25
Contacts	8	8	8	8	14	14
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.000001 µA	0.000001 µA	0.000001 µA	0.000001 µA	0.000001 µA	0.000001 µA
Minimum Common Mode Rejection Ratio	60 dB	60 dB	60 dB	60 dB	60 dB	60 dB
Nominal Common Mode Rejection Ratio	70 dB	70 dB	70 dB	70 dB	70 dB	70 dB
frequency compensation	YES	YES	YES	YES	YES	YES
Maximum input offset voltage	10000 µV	10000 µV	10000 µV	10000 µV	10000 µV	10000 µV
JESD-30 code	R-PDIP-T8	S-PDSO-G8	R-PDIP-T8	S-PDSO-G8	R-PDIP-T14	R-PDSO-G14
JESD-609 code	e6	e6	e6	e6	e6	e6
length	8.8 mm	5 mm	8.8 mm	5 mm	19 mm	10 mm
low-bias	YES	YES	YES	YES	YES	YES
low-dissonance	NO	NO	NO	NO	NO	NO
micropower	YES	YES	YES	YES	YES	YES
Number of functions	2	2	1	1	4	4
Number of terminals	8	8	8	8	14	14
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	DIP	SOP	DIP	SOP
Encapsulate equivalent code	DIP8,.3	SOP8,.25	DIP8,.3	SOP8,.25	DIP14,.3	SOP14,.25
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	260	NOT SPECIFIED	260	NOT SPECIFIED	260
power supply	3 V	3 V	3 V	3 V	3 V	3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.7 mm	2 mm	4.7 mm	2 mm	4.7 mm	2 mm
Nominal slew rate	0.05 V/us	0.05 V/us	0.05 V/us	0.05 V/us	0.05 V/us	0.05 V/us
Maximum slew rate	0.05 mA	0.05 mA	0.025 mA	0.025 mA	0.1 mA	0.1 mA
Supply voltage upper limit	18 V	18 V	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V
surface mount	NO	YES	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz
Minimum voltage gain	10000	10000	10000	10000	10000	10000
width	7.62 mm	5 mm	7.62 mm	5 mm	7.62 mm	5 mm
