GSX-309/551EF10.0MHZ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> GSX-309/551EF10.0MHZ

Preview

GSX-309/551EF10.0MHZ: DescriptionParallel - Fundamental Quartz Crystal, 10MHz Nom, PLASTIC PACKAGE-4; CategoryPassive components Crystal/resonator; File Size37KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

GSX-309/551EF10.0MHZ Overview

Parallel - Fundamental Quartz Crystal, 10MHz Nom, PLASTIC PACKAGE-4

GSX-309/551EF10.0MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Golledge Electronics
package instruction	PLASTIC PACKAGE-4
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	50 ppm
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	10 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L12.5XB4.6XH3.7 (mm)/L0.492XB0.181XH0.146 (inch)
Series resistance	50 Ω
surface mount	YES

Preview

Download Datasheet

View All

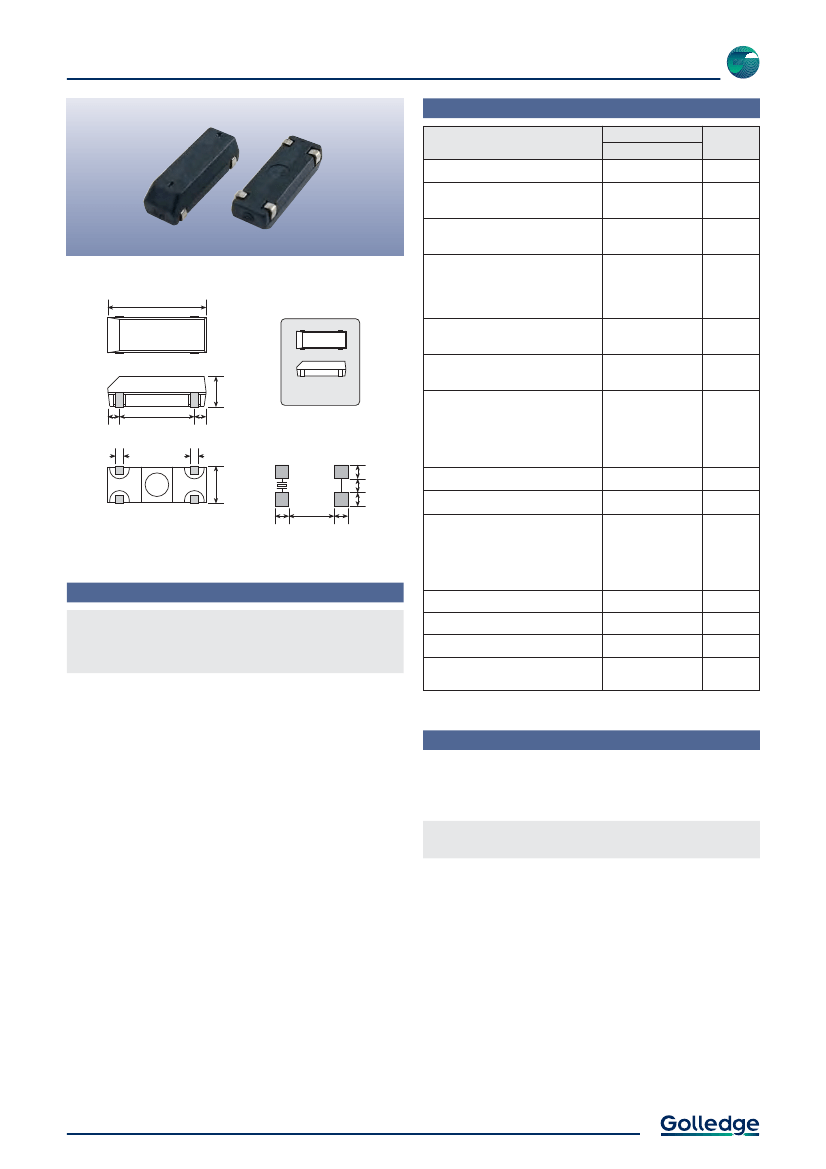

SM Crystal

Specifications

GSX-309

Product

GSX-309

Option

Codes

Parameters

Frequency range:

3.50 ~ 32.0MHz

Calibration tolerance:

Temperature stability:

±30ppm

±50ppm

±30ppm

±50ppm

3

5

3

5

1

2

specify

12.50

(max)

4

3

Operating temperature range:

-10 to +60°C

-20 to +70°C

Other values

Operable temperature range:

-40 to +85°C

1

2

3.70

(max)

Storage temperature range:

-55 to +125°C

ACTUAL SIZE

Circuit condition:

16pF

18pF

20pF

30pF

Other values

Fundamental

7pF max

D

E

F

J

specify

F

1.50

0.80

9.50

0.80

1.50

SOLDER PAD LAYOUT

4.60

(max)

4

1

1.80

3

2

7.60

1.80

TOP VIEW

1.80

1.70

1.80

Oscillation mode:

Static capacitance (C

0

):

Scale 2:1

Equivalent series resistance (max):

200 (3.5 ~ 3.9MHz)

150 (4.0 ~ 5.9MHz)

100 (6.0 ~ 9.9MHz)

50 (10.0 ~ 32.0MHz)

Ageing:

Drive level:

Shock resistance:

±5ppm max first year

100µW typ

±5ppm

Features

«

Wide frequency range

Low profile plastic moulded package

Soldering conditions:

240°C, 10sec max

Standard.

Optional - Please specify required code(s) when ordering

Ordering Information

Product name + option codes + frequency

eg:

GSX-309/551DF 16.0MHz

50/50/10/16-F (standard)

GSX-309/352JF 24.0MHz

30/50/20/30-F

Option code X (eg GSX-309/X) denotes a custom specification.

Available on T&R - 1k pcs per reel.

WARNING

- Not recommended for new designs.

Tel:

+44 1460 256 100

04 Jan 2010

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
