NJU7034M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> NJU7034M

NJU7034M: DescriptionOperational Amplifier, 4 Func, 10000uV Offset-Max, CMOS, PDSO14, DMP-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size181KB，4 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance

Download Datasheet Parametric Compare View All

NJU7034M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NJU7034M	-	-	View	Buy Now

NJU7034M Overview

Operational Amplifier, 4 Func, 10000uV Offset-Max, CMOS, PDSO14, DMP-14

NJU7034M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	New Japan Radio Co., Ltd..
Parts packaging code	SOIC
package instruction	SOP, SOP14,.25
Contacts	14
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.000001 µA
Minimum Common Mode Rejection Ratio	60 dB
Nominal Common Mode Rejection Ratio	75 dB
frequency compensation	YES
Maximum input offset voltage	10000 µV
JESD-30 code	R-PDSO-G14
JESD-609 code	e6
length	10 mm
low-bias	YES
low-dissonance	NO
Number of functions	4
Number of terminals	14
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	10 V
Certification status	Not Qualified
Maximum seat height	2 mm
Nominal slew rate	3.5 V/us
Maximum slew rate	8 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	10 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN BISMUTH
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	1500 kHz
Minimum voltage gain	10000
width	5 mm

Preview

Download Datasheet

View All

NJU7031/32/34

LOW VOLTAGE C-MOS OPERATIONAL AMPLIFIER

■

GENERAL DESCRIPTION

The NJU7031/32/34 are single, dual and quad single supply,

low offset, output full swing C-MOS Operational Amplifiers.

The wide operating voltage 3V to 16V, High slew rate 3.5V/µs

and output full swing are suitable for fast signal processing

amplifiers. Additionally, low input bias current 1pA, and single

supply operation offer amplification of the very small signal

around the ground level.

The NJU7031 has external offset null function.

■

PACKAGE OUTLINE

NJM7031D

NJU7032D

NJM7031M

NJU7032M

NJM7031V

■

FEATURES

●

High Slew Rate

3.5V/µs

●

Wide Operating Voltage

+3V to +16V

●Output

Voltage with full Swing V

=9.98V typ. (@V

=10V)

●Input

Common Mode Voltage Range

ICM

=0V to 9V (@V

=10V)

●

Low Bias Current

=1pA typ.

●

Input Common Mode Voltage range includes ground.

●

External Offset Null Adjustment (Only NJU7031)

●

C-MOS Technology

●

Package Outline

NJU7031 (single) DIP8, DMP8, SSOP8

NJU7032 (dual) DIP8, DMP8

NJU7034 (quad) DIP14, DMP14, SSOP14

■

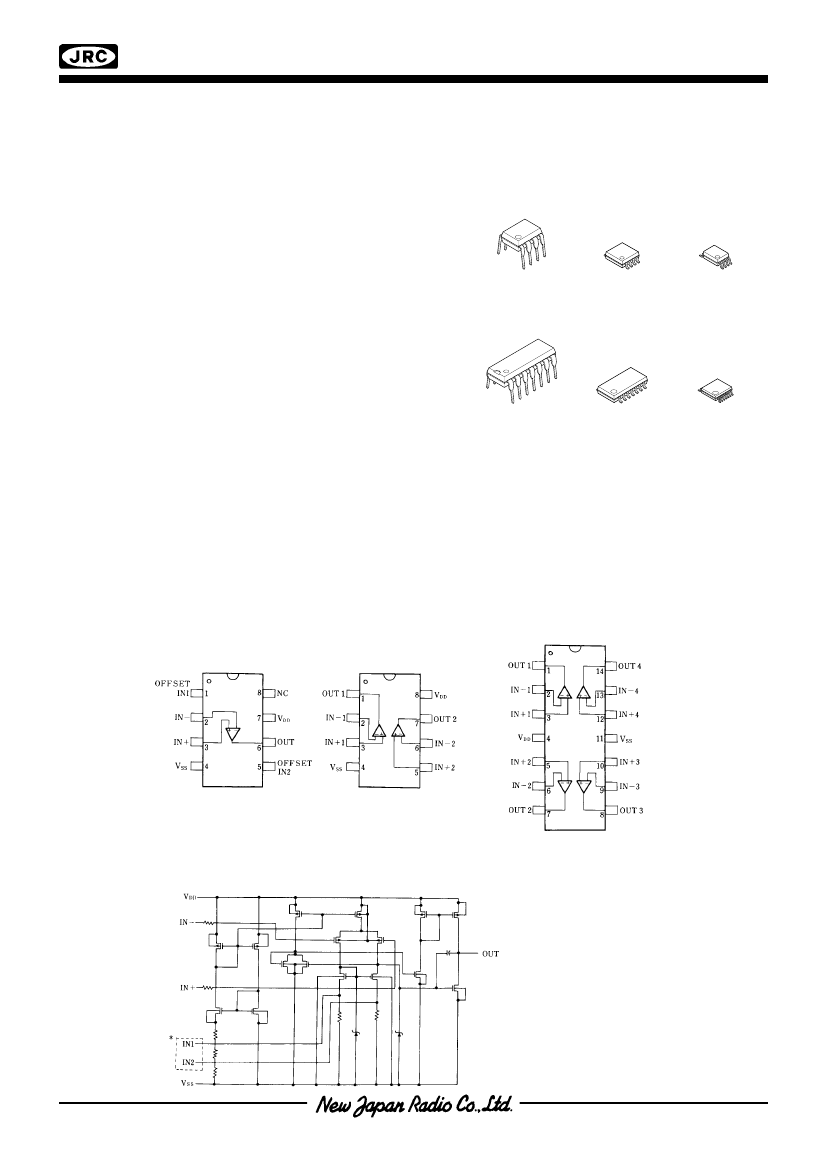

PIN CONFIGURATION

NJM7034D

NJM7034M

NJM7034V

NJU7031D

NJU7031M

NJU7031V

NJU7032D

NJU7032M

NJU7034D

NJU7034M

NJU7034V

■

EQUIVALENT CIRCUIT

The terminals IN1, IN2 are only for NJU7031

( NJU7032/34 don’t have these terminals ).

Ver.2008-06-13

-1-

NJU7034M Related Products

	NJU7034M	NJU7031D	NJU7031M	NJU7032M	NJU7032D	NJU7034D
Description	Operational Amplifier, 4 Func, 10000uV Offset-Max, CMOS, PDSO14, DMP-14	Operational Amplifier, 1 Func, 10000uV Offset-Max, CMOS, PDIP8, DIP-8	Operational Amplifier, 1 Func, 10000uV Offset-Max, CMOS, PDSO8, DMP-8	Operational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDSO8, DMP-8	Operational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDIP8, DIP-8	Operational Amplifier, 4 Func, 10000uV Offset-Max, CMOS, PDIP14, DIP-14
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	SOIC	DIP	SOIC	SOIC	DIP	DIP
package instruction	SOP, SOP14,.25	DIP, DIP8,.3	SOP, SOP8,.25	SOP, SOP8,.25	DIP, DIP8,.3	DIP, DIP14,.3
Contacts	14	8	8	8	8	14
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.000001 µA	0.000001 µA	0.000001 µA	0.000001 µA	0.000001 µA	0.000001 µA
Minimum Common Mode Rejection Ratio	60 dB	60 dB	60 dB	60 dB	60 dB	60 dB
Nominal Common Mode Rejection Ratio	75 dB	75 dB	75 dB	75 dB	75 dB	75 dB
frequency compensation	YES	YES	YES	YES	YES	YES
Maximum input offset voltage	10000 µV	10000 µV	10000 µV	10000 µV	10000 µV	10000 µV
JESD-30 code	R-PDSO-G14	R-PDIP-T8	S-PDSO-G8	S-PDSO-G8	R-PDIP-T8	R-PDIP-T14
JESD-609 code	e6	e6	e6	e6	e6	e6
length	10 mm	8.8 mm	5 mm	5 mm	8.8 mm	19 mm
low-bias	YES	YES	YES	YES	YES	YES
low-dissonance	NO	NO	NO	NO	NO	NO
Number of functions	4	1	1	2	2	4
Number of terminals	14	8	8	8	8	14
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	SOP	DIP	DIP
Encapsulate equivalent code	SOP14,.25	DIP8,.3	SOP8,.25	SOP8,.25	DIP8,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	260	NOT SPECIFIED	260	260	NOT SPECIFIED	NOT SPECIFIED
power supply	10 V	10 V	10 V	10 V	10 V	10 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2 mm	4.7 mm	2 mm	2 mm	4.7 mm	4.7 mm
Nominal slew rate	3.5 V/us	3.5 V/us	3.5 V/us	3.5 V/us	3.5 V/us	3.5 V/us
Maximum slew rate	8 mA	2 mA	2 mA	4 mA	4 mA	8 mA
Supply voltage upper limit	18 V	18 V	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	10 V	10 V	10 V	10 V	10 V	10 V
surface mount	YES	NO	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	1500 kHz	1500 kHz	1500 kHz	1500 kHz	1500 kHz	1500 kHz
Minimum voltage gain	10000	10000	10000	10000	10000	10000
width	5 mm	7.62 mm	5 mm	5 mm	7.62 mm	7.62 mm
Maker	New Japan Radio Co., Ltd..	-	-	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..
