LH28F002SCN-L85 datasheet, PDF

Datasheet> All Categories > storage> storage> LH28F002SCN-L85

LH28F002SCN-L85: DescriptionFlash, 256KX8, 150ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44; Categorystorage storage; File Size1MB，44 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH28F002SCN-L85 Overview

Flash, 256KX8, 150ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44

LH28F002SCN-L85 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHARP
package instruction	0.600 INCH, PLASTIC, SOP-44
Reach Compliance Code	unknown
Maximum access time	150 ns
Other features	IT ALSO OPERATES AT MULTIPLE VOLTAGES & ACCESS TIME
JESD-30 code	R-PDSO-G44
JESD-609 code	e0
length	28.2 mm
memory density	2097152 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	44
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Programming voltage	3 V
Certification status	Not Qualified
Maximum seat height	3.25 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
type	NOR TYPE
width	13.2 mm

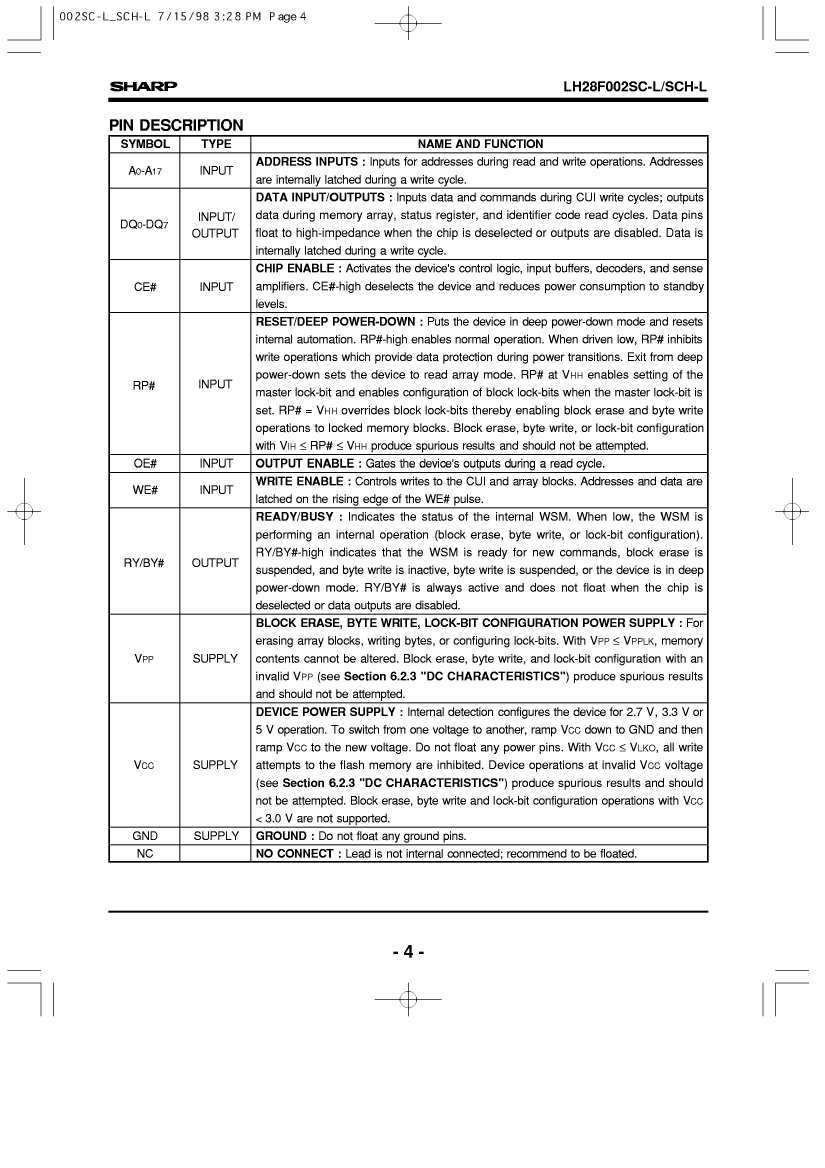

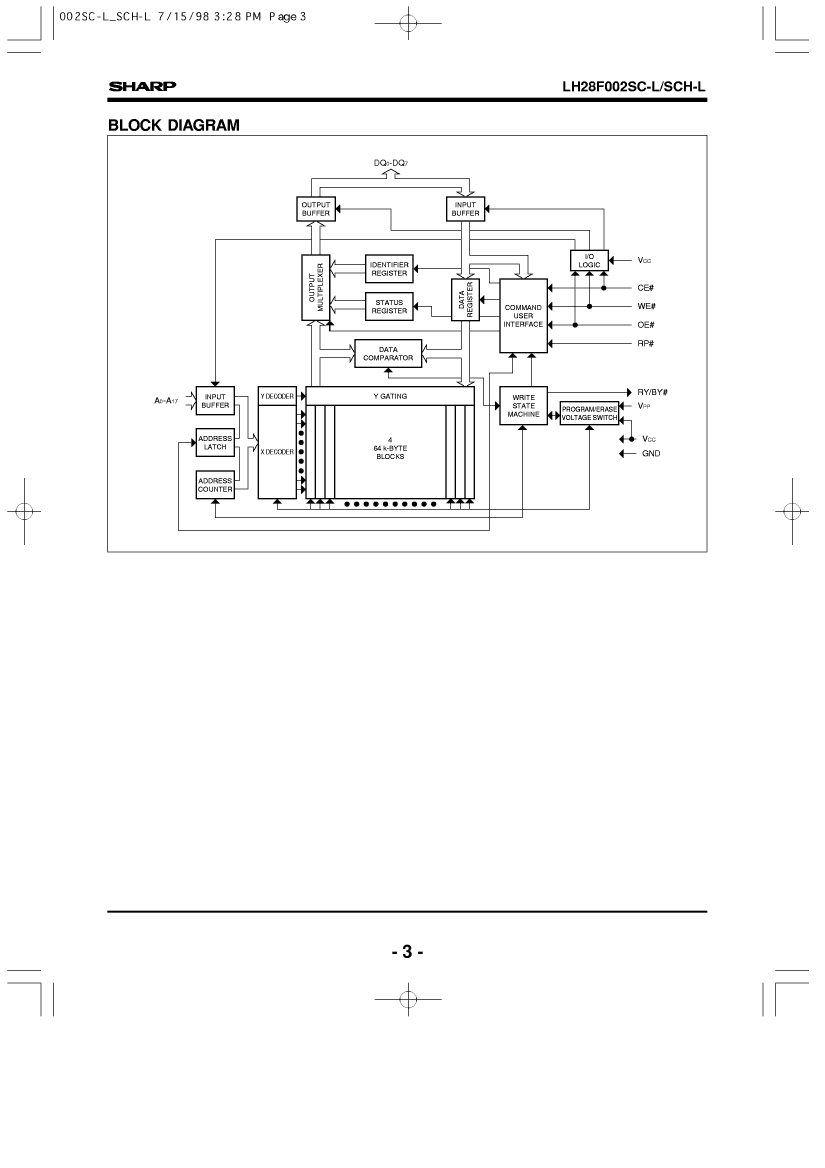

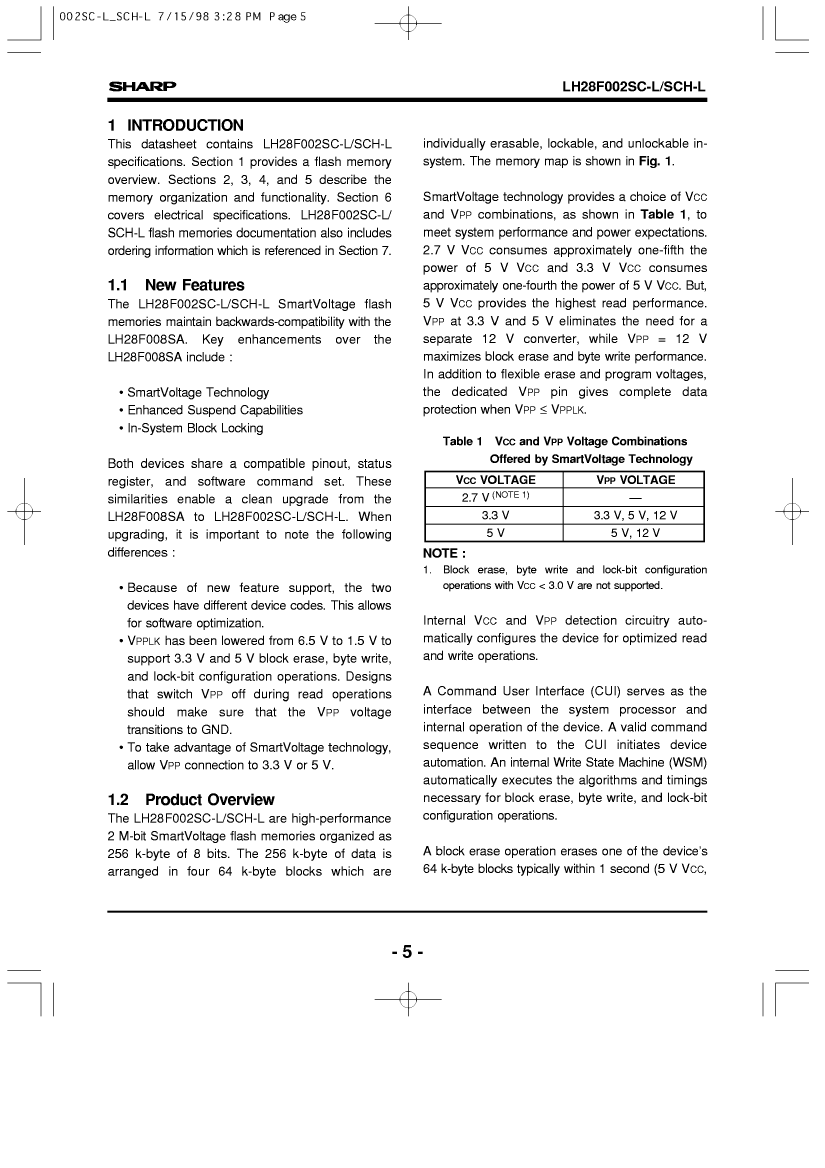

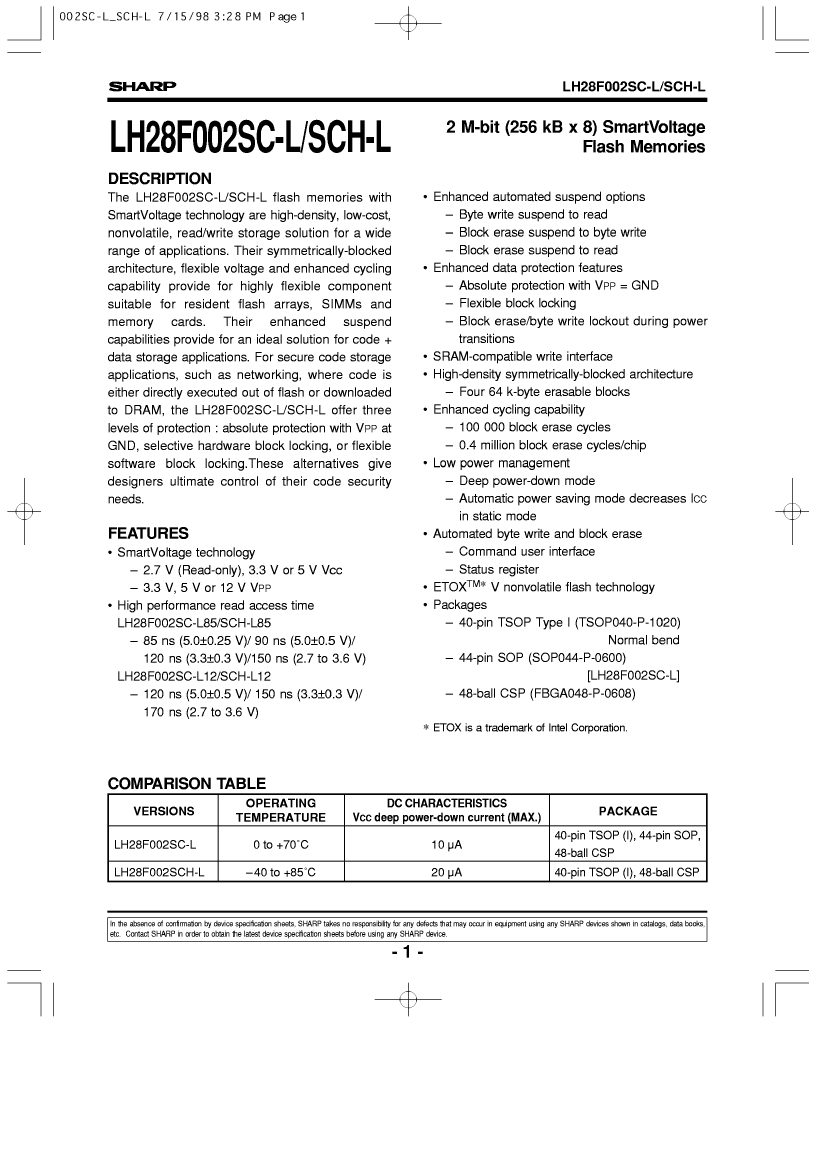

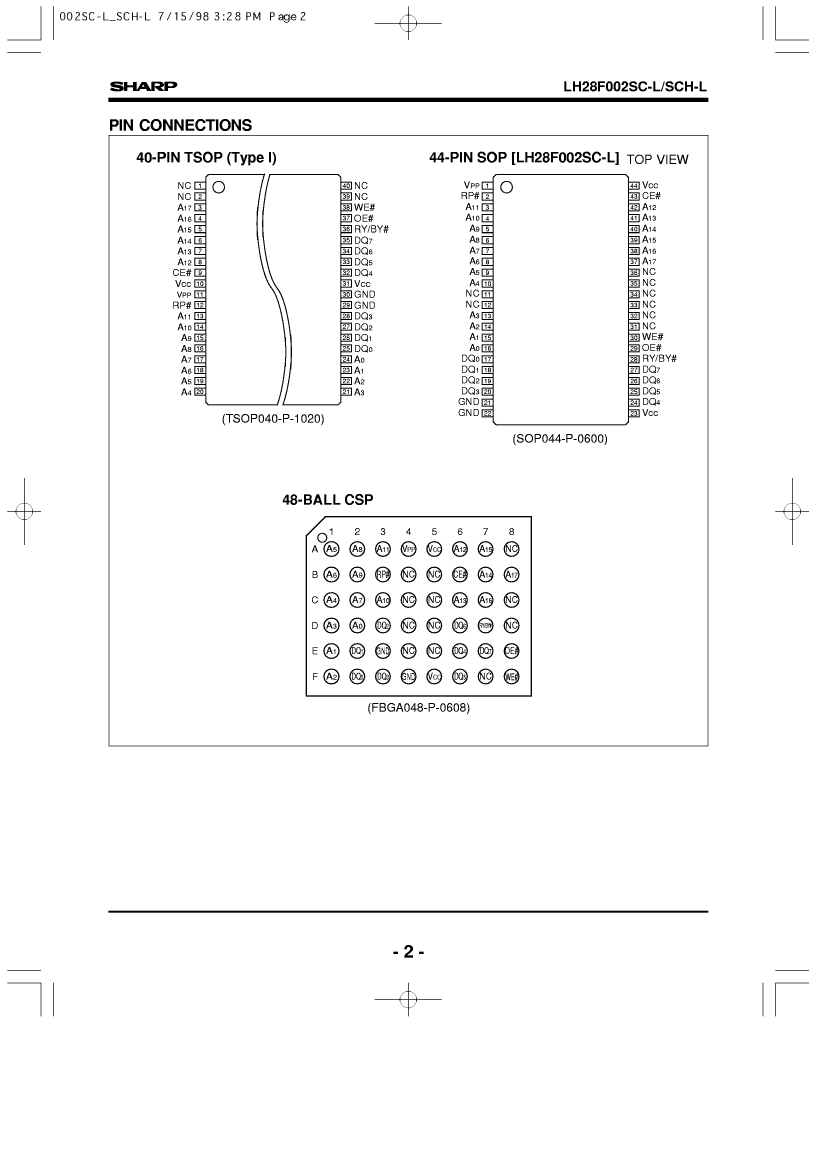

Preview

Download Datasheet

View All

LH28F002SCN-L85 Related Products

	LH28F002SCN-L85	LH28F002SCB-L12	LH28F002SCB-L85	LH28F002SCN-L12	LH28F002SCT-L12	LH28F002SCT-L85
Description	Flash, 256KX8, 150ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44	Flash, 256KX8, 170ns, PBGA48, 6 X 8 MM, PLASTIC, CSP, FBGA-48	Flash, 256KX8, 150ns, PBGA48, 6 X 8 MM, PLASTIC, CSP, FBGA-48	Flash, 256KX8, 170ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44	Flash, 256KX8, 170ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40	Flash, 256KX8, 150ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SHARP	SHARP	SHARP	SHARP	SHARP	SHARP
package instruction	0.600 INCH, PLASTIC, SOP-44	6 X 8 MM, PLASTIC, CSP, FBGA-48	6 X 8 MM, PLASTIC, CSP, FBGA-48	0.600 INCH, PLASTIC, SOP-44	10 X 20 MM, PLASTIC, TSOP1-40	10 X 20 MM, PLASTIC, TSOP1-40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	150 ns	170 ns	150 ns	170 ns	170 ns	150 ns
Other features	IT ALSO OPERATES AT MULTIPLE VOLTAGES & ACCESS TIME	IT ALSO OPERATES AT MULTIPLE VOLTAGES & ACCESS TIME	IT ALSO OPERATES AT MULTIPLE VOLTAGES & ACCESS TIME	IT ALSO OPERATES AT MULTIPLE VOLTAGES & ACCESS TIME	IT ALSO OPERATES AT MULTIPLE VOLTAGES & ACCESS TIME	IT ALSO OPERATES AT MULTIPLE VOLTAGES & ACCESS TIME
JESD-30 code	R-PDSO-G44	R-PBGA-B48	R-PBGA-B48	R-PDSO-G44	R-PDSO-G40	R-PDSO-G40
JESD-609 code	e0	e0	e0	e0	e0	e0
length	28.2 mm	8 mm	8 mm	28.2 mm	18.4 mm	18.4 mm
memory density	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	44	48	48	44	40	40
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	256KX8	256KX8	256KX8	256KX8	256KX8	256KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TFBGA	TFBGA	SOP	TSOP1	TSOP1
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	GRID ARRAY, THIN PROFILE, FINE PITCH	GRID ARRAY, THIN PROFILE, FINE PITCH	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Programming voltage	3 V	3 V	3 V	3 V	3 V	3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.25 mm	1.2 mm	1.2 mm	3.25 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	BALL	BALL	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.8 mm	0.8 mm	1.27 mm	0.5 mm	0.5 mm
Terminal location	DUAL	BOTTOM	BOTTOM	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
width	13.2 mm	6 mm	6 mm	13.2 mm	10 mm	10 mm
