MP574AJN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> MP574AJN

MP574AJN: DescriptionADC, Successive Approximation, 12-Bit, 1 Func, Parallel, Word Access, BICMOS, PDIP28,; CategoryAnalog mixed-signal IC converter; File Size324KB，9 Pages; ManufacturerMicro Power Systems

Download Datasheet Parametric Compare View All

MP574AJN Overview

ADC, Successive Approximation, 12-Bit, 1 Func, Parallel, Word Access, BICMOS, PDIP28,

MP574AJN Parametric

Parameter Name	Attribute value
Maker	Micro Power Systems
Reach Compliance Code	unknown
Maximum analog input voltage	10 V
Minimum analog input voltage	-10 V
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDIP-T28
Maximum linear error (EL)	0.024%
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	OFFSET BINARY
Output format	PARALLEL, WORD
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum slew rate	12 mA
Nominal supply voltage	15 V
surface mount	NO
technology	BICMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

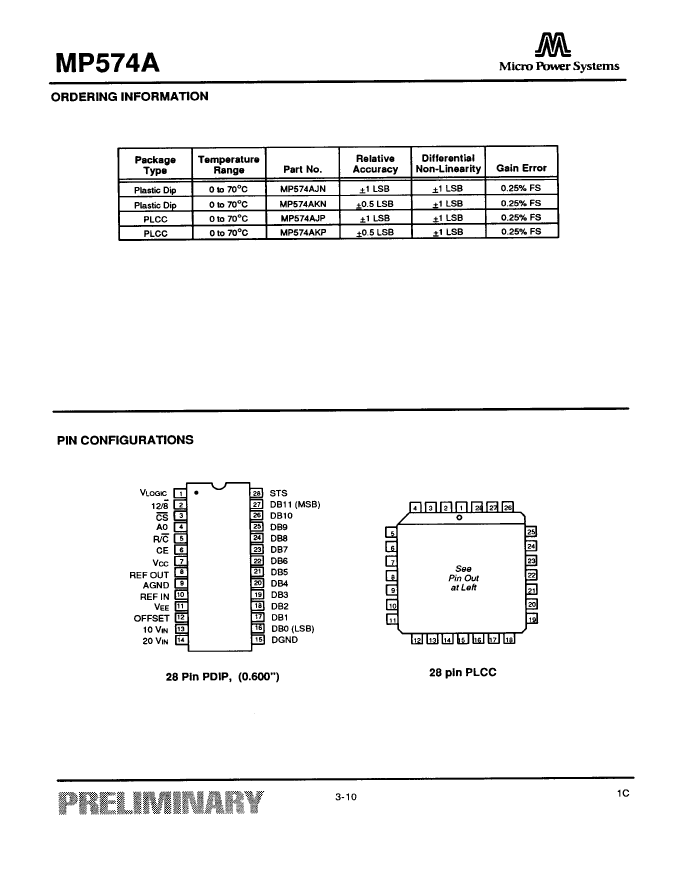

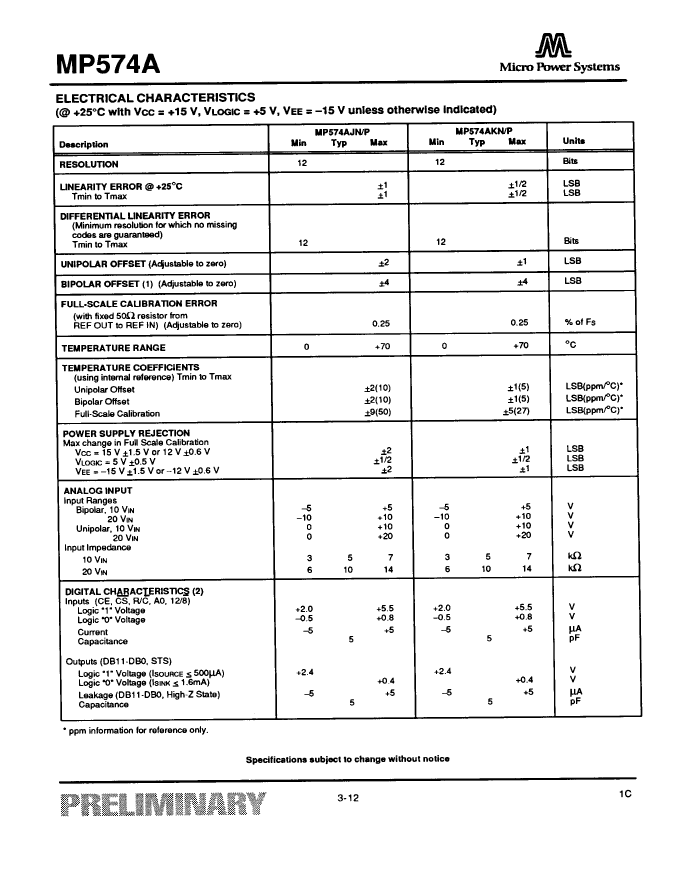

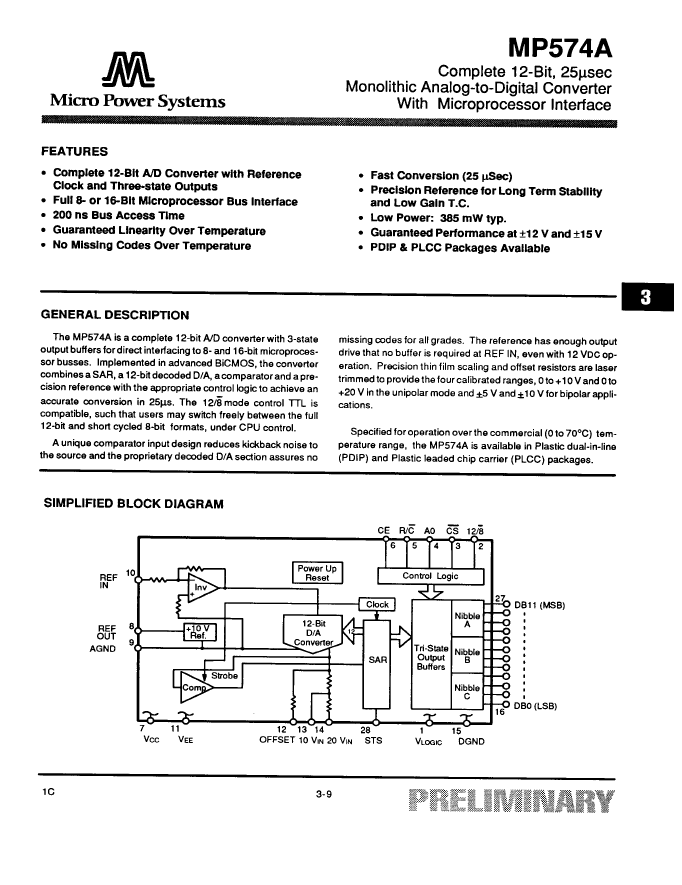

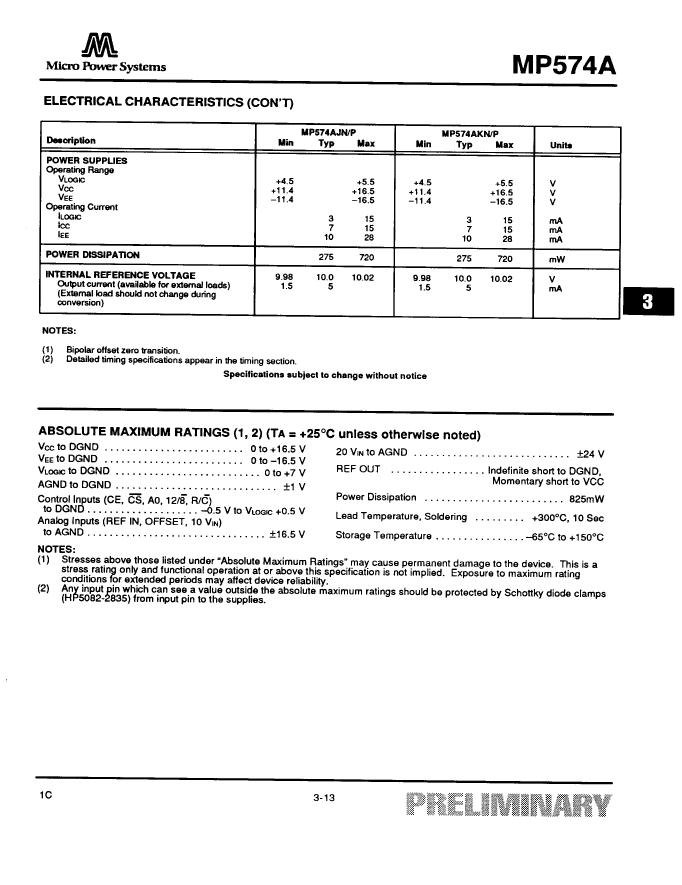

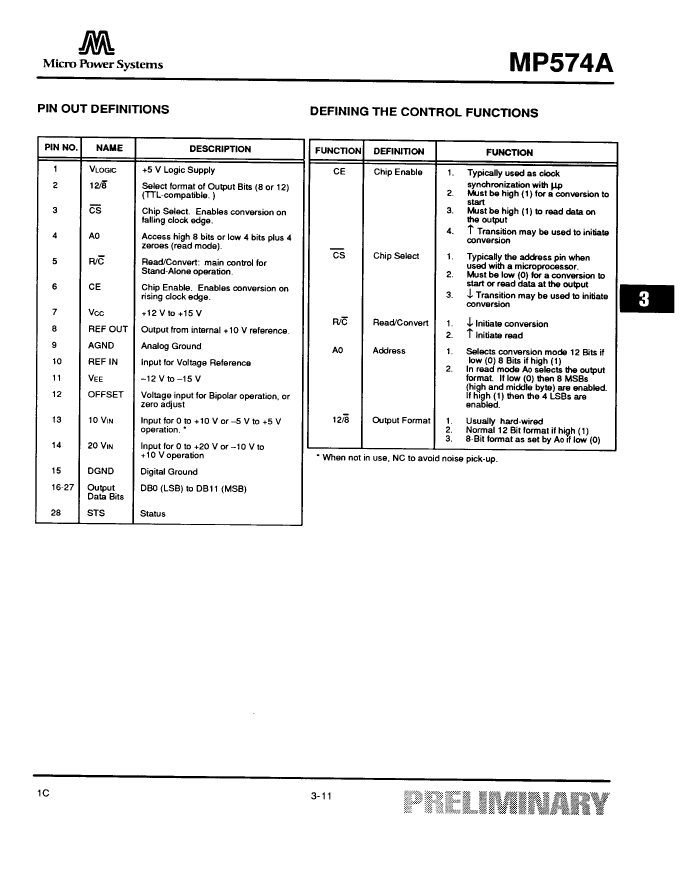

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

MP574AJN Related Products

	MP574AJN	MP574AJP	MP574AKP	MP574AKN
Description	ADC, Successive Approximation, 12-Bit, 1 Func, Parallel, Word Access, BICMOS, PDIP28,	ADC, Successive Approximation, 12-Bit, 1 Func, Parallel, Word Access, BICMOS, PQCC28,	ADC, Successive Approximation, 12-Bit, 1 Func, Parallel, Word Access, BICMOS, PQCC28,	ADC, Successive Approximation, 12-Bit, 1 Func, Parallel, Word Access, BICMOS, PDIP28,
Maker	Micro Power Systems	Micro Power Systems	Micro Power Systems	Micro Power Systems
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum analog input voltage	10 V	10 V	10 V	10 V
Minimum analog input voltage	-10 V	-10 V	-10 V	-10 V
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDIP-T28	S-PQCC-J28	S-PQCC-J28	R-PDIP-T28
Maximum linear error (EL)	0.024%	0.024%	0.012%	0.012%
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V
Number of digits	12	12	12	12
Number of functions	1	1	1	1
Number of terminals	28	28	28	28
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Output bit code	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	12 mA	12 mA	12 mA	12 mA
Nominal supply voltage	15 V	15 V	15 V	15 V
surface mount	NO	YES	YES	NO
technology	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE
Terminal location	DUAL	QUAD	QUAD	DUAL
