55K101-303L5

Description
RF Connector, Female, Cable Mount, Crimp Terminal, Jack, ROHS COMPLIANT
CategoryThe connector    The connector
File Size86KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Download Datasheet Parametric View All

55K101-303L5 Overview

RF Connector, Female, Cable Mount, Crimp Terminal, Jack, ROHS COMPLIANT

55K101-303L5 Parametric

Parameter NameAttribute value
MakerRosenberger
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresAPPLICABLE CABLES : RG 316 /U-D, INSERTION LOSS MAX AT: 1 GHZ
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderFEMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.1 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number55K101-303L5
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency2 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCRIMP
voltage standing wave ratio1.92

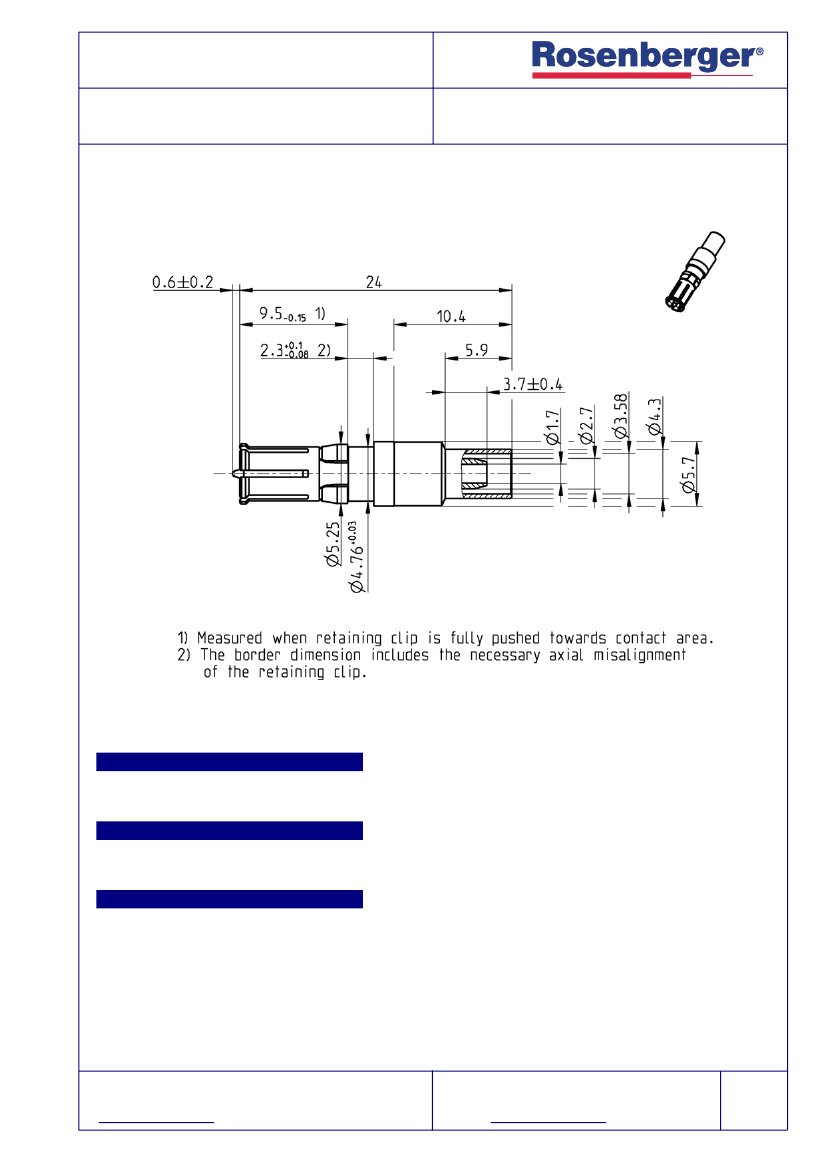

TECHNICAL DATA SHEET
D-SUB
Coax Insert
STRAIGHT JACK
55K101-303L5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
D-Sub
Documents
Assembly instruction
55 A
Material and plating
Connector parts
Center contact
Outer contact
Body
Clip
Dielectric
Crimping ferrule
RF_35/11.05/3.1
Material
Brass
CuBe
CuBe
CuBe
PTFE
Brass
Plating
AuroDur®, gold plated
AuroDur®, gold plated
AuroDur®, gold plated
Nickel, 2.5-5 µm
Gold, 0.1 µm
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
