55K252-303L5

Description
RF Connector, Female, Cable Mount, Crimp Terminal, Jack, ROHS COMPLIANT
CategoryThe connector    The connector
File Size82KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Environmental Compliance
Download Datasheet Parametric View All

55K252-303L5 Overview

RF Connector, Female, Cable Mount, Crimp Terminal, Jack, ROHS COMPLIANT

55K252-303L5 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerRosenberger
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresAPPLICABLE CABLES : RG 316 /U-D, INSERTION LOSS MAX AT: 0.5 GHZ
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderFEMALE
Contact materialBRASS
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.07 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number55K252-303L5
Installation methodRIGHT ANGLE
Installation typeCABLE
Maximum operating frequency2 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCRIMP
voltage standing wave ratio1.5

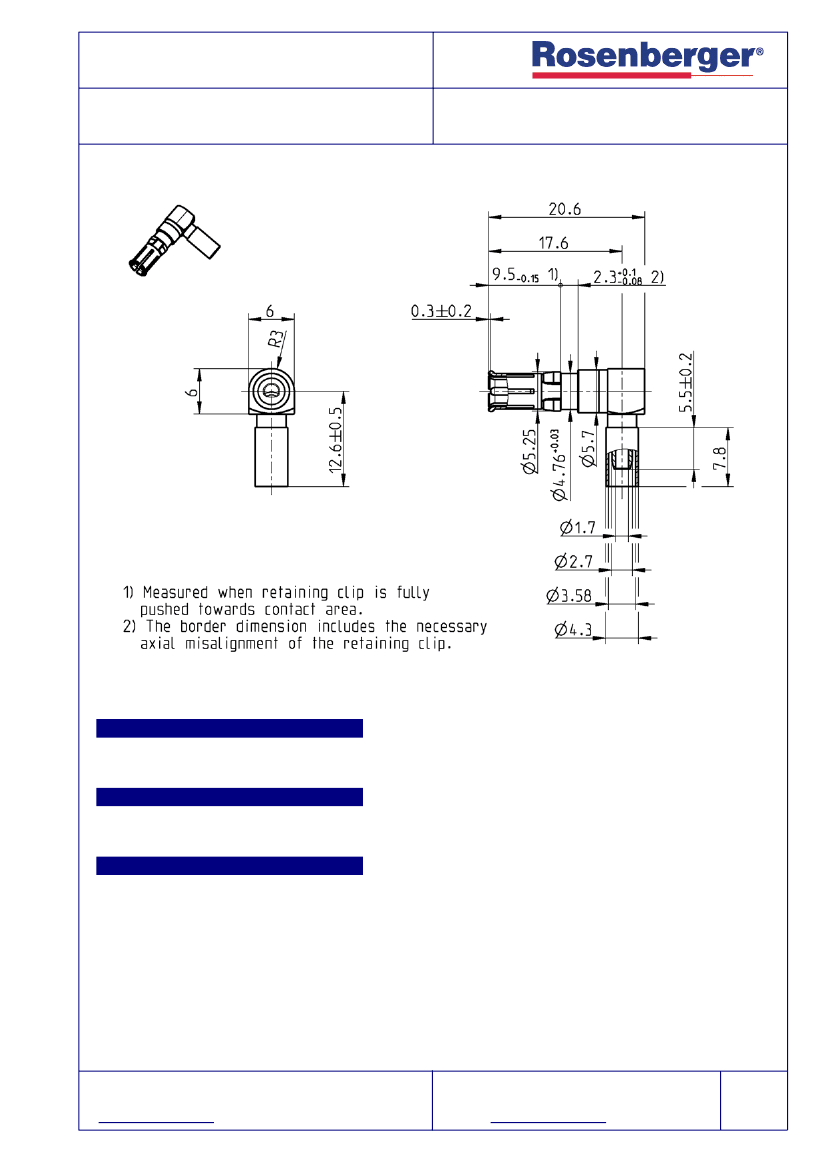

TECHNICAL DATA SHEET
D-SUB
Coax Insert
RIGHT ANGLE JACK
55K252-303L5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
D-Sub
Documents
Assembly instruction
55 B
Material and plating
Connector parts
Center contact
Outer contact
Body
Clip
Dielectric
Crimping ferrule
Material
Brass
CuBe
CuBe
CuBe
PTFE
Copper
Plating
AuroDur®, gold plated
AuroDur®, gold plated
AuroDur®, gold plated
Nickel, 2.5-5 µm
Gold, 0.1 µm
RF_35/11.05/3.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
