Power Inductors - Shielded
ctparts.com
CTSD10 Series
From 0.47 µH to 470 µH
Not shown at actual size.
SPECIFICATIONS
Parts are available in ±20% tolerance only.
*The IDC is that which causes a 30% inductance reduction from the initial value.
CTSD10F
Please specify “F” for RoHS compliant
Part
Number
CTSD10_-R47M
CTSD10_-R68M
CTSD10_-1R0M
CTSD10_-1R5M
CTSD10_-2R2M
CTSD10_-3R3M
CTSD10_-4R7M
CTSD10_-6R2M
CTSD10_-8R2M
CTSD10_-100M
CTSD10_-150M
CTSD10_-220M
CTSD10_-330M
CTSD10_-470M
CTSD10_-680M
CTSD10_-820M
CTSD10_-101M
CTSD10_-151M
CTSD10_-221M
CTSD10_-331M
CTSD10_-471M
Inductance
(µH ±20%)
0.47
0.68
1.00
1.50
2.20
3.30
4.70
6.20
8.20
10.0
15.0
22.0
33.0
47.0
68.0
82.0
100
150
220
330
470
L Test
Freq.
(kHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DCR
Typ.
Ω
(Ω)
0.0311
0.0394
0.0560
0.0816
0.1140
0.1348
0.1919
0.2338
0.3259
0.3610
0.5536
0.8398
1.2259
1.8375
2.300
3.125
4.112
5.188
8.013
12.288
15.125
IDC*
(A)
3.54
3.03
2.25
1.91
1.65
1.31
1.08
0.92
0.80
0.752
0.605
0.505
0.420
0.349
0.285
0.261
0.236
0.195
0.160
0.131
0.110
Compliant
Available
RoHS
CHARACTERISTICS
Description:
SMD (shielded) power inductor
Applications:
Digital cameras, CD players, cellular phones,
PDAs, PCMCIA cards, GPS systems, etc.
Operating Temperature:
-40°C to +85°C
Storage Temperature:
-40°C to +125°C
Inductance Tolerance:
±20%
Testing:
Tested on a HP4285A at 100 KHz
Packaging:
Tape & Reel
Marking:
Parts are marked with inductance code
Miscellaneous:
RoHS Compliant available.
Additional Information:
Additional electrical & physical
information available upon request
Samples available. See website for ordering information.

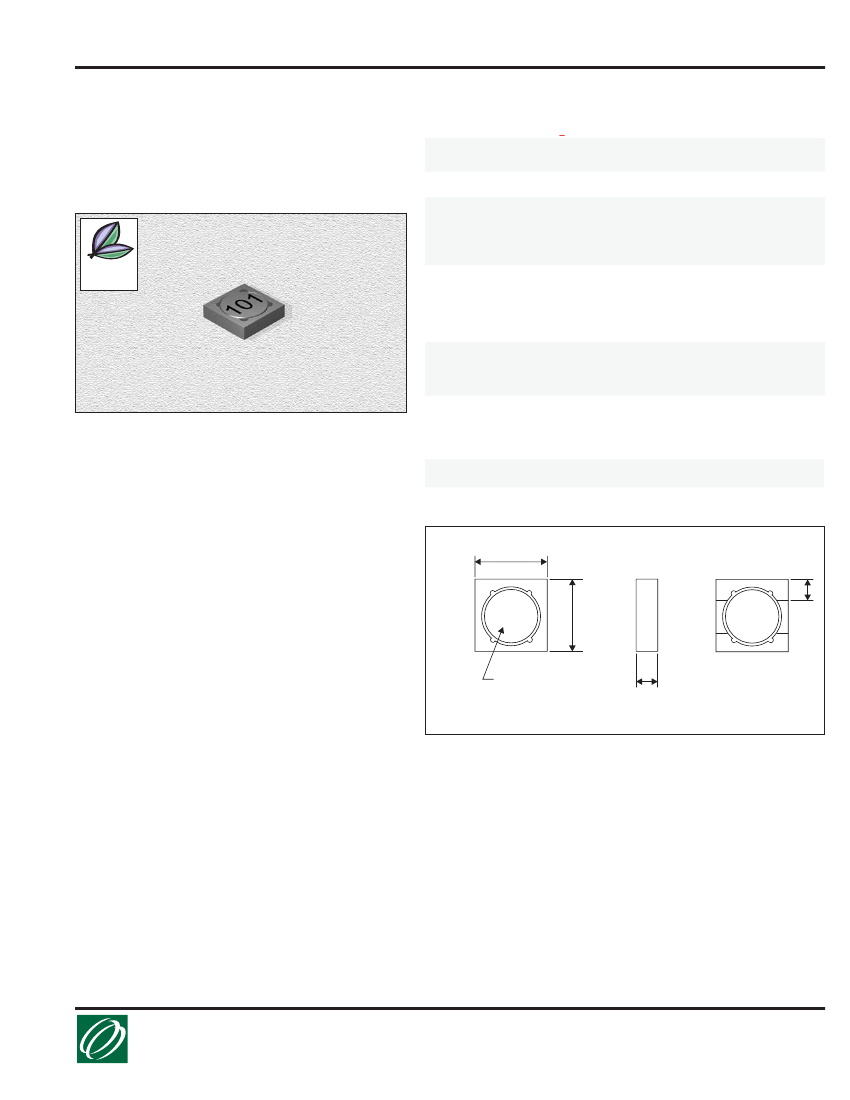

PHYSICAL DIMENSIONS
Size
mm
inches
A
Max.
5.2
0.205
B
Max.
5.2
0.205
C
Max.
1.0
0.039
D
Typ.
1.5
0.059
A
D
XXX
B
Inductance
Code
C
08.09.05
Technologies
Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2005 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
