SPD02N60C3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> SPD02N60C3

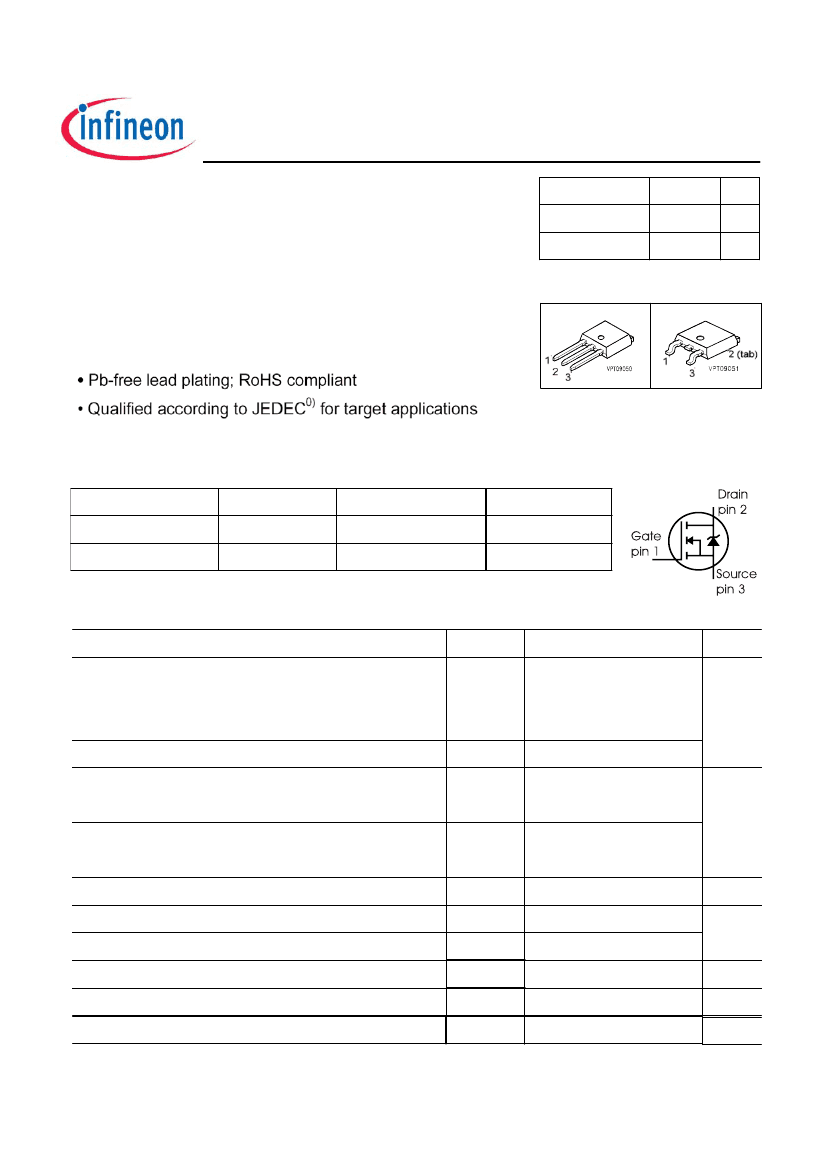

SPD02N60C3: Description1.8A, 600V, 3ohm, N-CHANNEL, Si, POWER, MOSFET, TO-252AA, GREEN, PLASTIC, TO-252, DPAK-3; CategoryDiscrete semiconductor The transistor; File Size2MB，14 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/; Environmental Compliance

Download Datasheet Parametric View All

SPD02N60C3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SPD02N60C3	-	-	View	Buy Now

SPD02N60C3 Overview

1.8A, 600V, 3ohm, N-CHANNEL, Si, POWER, MOSFET, TO-252AA, GREEN, PLASTIC, TO-252, DPAK-3

SPD02N60C3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Rochester Electronics
Parts packaging code	TO-252AA
package instruction	GREEN, PLASTIC, TO-252, DPAK-3
Contacts	3
Reach Compliance Code	unknown
Other features	AVALANCHE RATED
Avalanche Energy Efficiency Rating (Eas)	50 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	600 V
Maximum drain current (ID)	1.8 A
Maximum drain-source on-resistance	3 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-252AA
JESD-30 code	R-PSSO-G2
JESD-609 code	e3
Humidity sensitivity level	3
Number of components	1
Number of terminals	2
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	5.4 A
Certification status	COMMERCIAL
surface mount	YES
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
