Part Number

Search

MDC-215

Description
Circular DIN Connector, 5 Contact(s), Female, Board Mount, Solder Terminal, Socket
CategoryThe connector    The connector
File Size481KB,2 Pages
ManufacturerPower Dynamics, Inc.
Websitehttp://www.powerdynamics.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

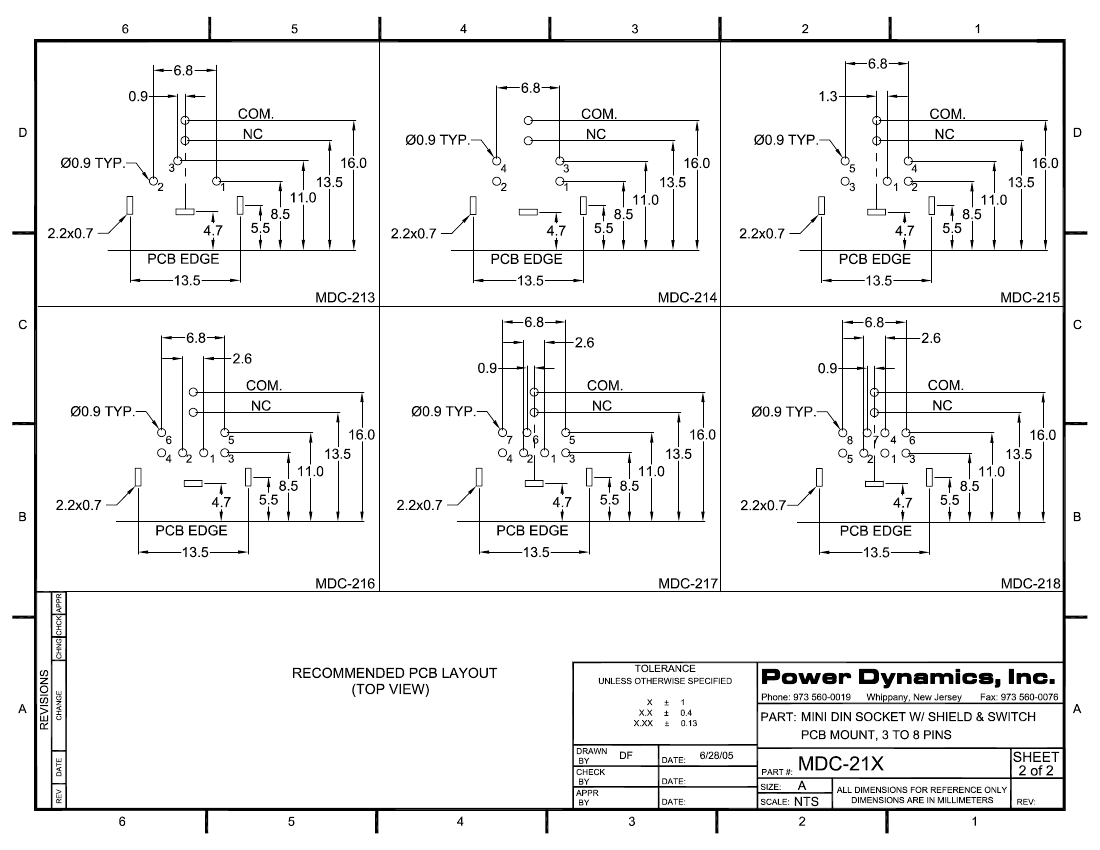

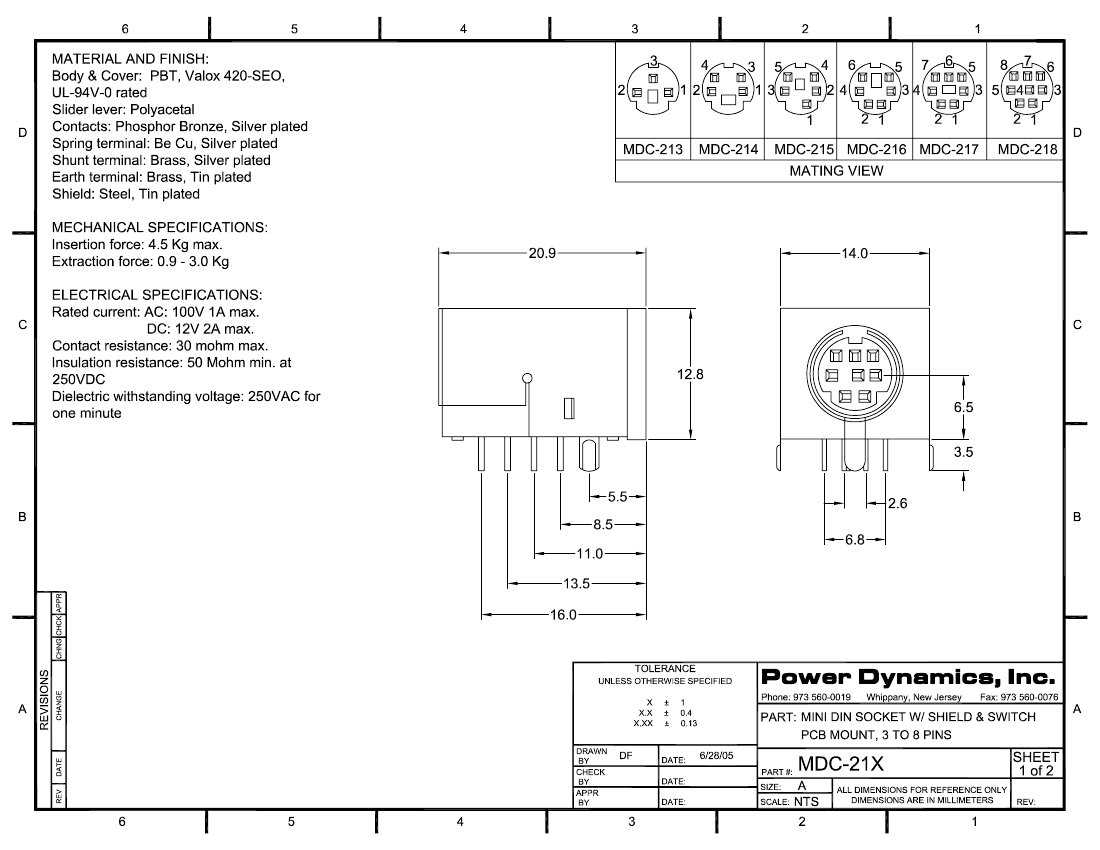

MDC-215 Overview

Circular DIN Connector, 5 Contact(s), Female, Board Mount, Solder Terminal, Socket

MDC-215 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerPower Dynamics, Inc.
Reach Compliance Codecompliant
Body/casing typeSOCKET
Connector typeCIRCULAR DIN CONNECTOR
Contact to complete cooperationSILVER
Contact completed and terminatedSilver (Ag)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
Contact pitch circle diameter6.8 mm
DIN complianceYES
Electromagnetic interference shieldingNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Installation methodRIGHT ANGLE
Installation typeBOARD
OptionsGENERAL PURPOSE
Termination typeSOLDER
Total number of contacts5

MDC-215 Related Products

MDC-215 MDC-214 MDC-216 MDC-217 MDC-218 MDC-213
Description Circular DIN Connector, 5 Contact(s), Female, Board Mount, Solder Terminal, Socket Circular DIN Connector, 4 Contact(s), Female, Board Mount, Solder Terminal, Socket Circular DIN Connector, 6 Contact(s), Female, Board Mount, Solder Terminal, Socket Circular DIN Connector, 7 Contact(s), Female, Board Mount, Solder Terminal, Socket Circular DIN Connector, 8 Contact(s), Female, Board Mount, Solder Terminal, Socket Circular DIN Connector, 3 Contact(s), Female, Board Mount, Solder Terminal, Socket
Is it lead-free? Lead free Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to conform to conform to
Maker Power Dynamics, Inc. Power Dynamics, Inc. Power Dynamics, Inc. Power Dynamics, Inc. Power Dynamics, Inc. Power Dynamics, Inc.
Reach Compliance Code compliant compliant compliant compliant compliant compliant
Body/casing type SOCKET SOCKET SOCKET SOCKET SOCKET SOCKET
Connector type CIRCULAR DIN CONNECTOR CIRCULAR DIN CONNECTOR CIRCULAR DIN CONNECTOR CIRCULAR DIN CONNECTOR CIRCULAR DIN CONNECTOR CIRCULAR DIN CONNECTOR
Contact to complete cooperation SILVER SILVER SILVER SILVER SILVER SILVER
Contact completed and terminated Silver (Ag) Silver (Ag) Silver (Ag) Silver (Ag) Silver (Ag) Silver (Ag)
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
Contact pitch circle diameter 6.8 mm 6.8 mm 6.8 mm 6.8 mm 6.8 mm 6.8 mm
DIN compliance YES YES YES YES YES YES
Electromagnetic interference shielding NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO
JESD-609 code e4 e4 e4 e4 e4 e4
MIL compliance NO NO NO NO NO NO
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD BOARD BOARD BOARD
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 5 4 6 7 8 3
