2695-20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2695-20

2695-20: Description2.54mm (.100) Pitch KK垄莽 Crimp Terminal Housing, 20 Circuits, Use with 2759|41572|6459; CategoryThe connector The connector; File Size404KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

2695-20 Overview

2.54mm (.100) Pitch KK垄莽 Crimp Terminal Housing, 20 Circuits, Use with 2759|41572|6459

2695-20 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	2695
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	20
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0022012201

Active

2.54mm (.100") Pitch KK® Crimp Terminal Housing, 20 Circuits, Use with 2759|41572|

6459

Documents:

3D Model

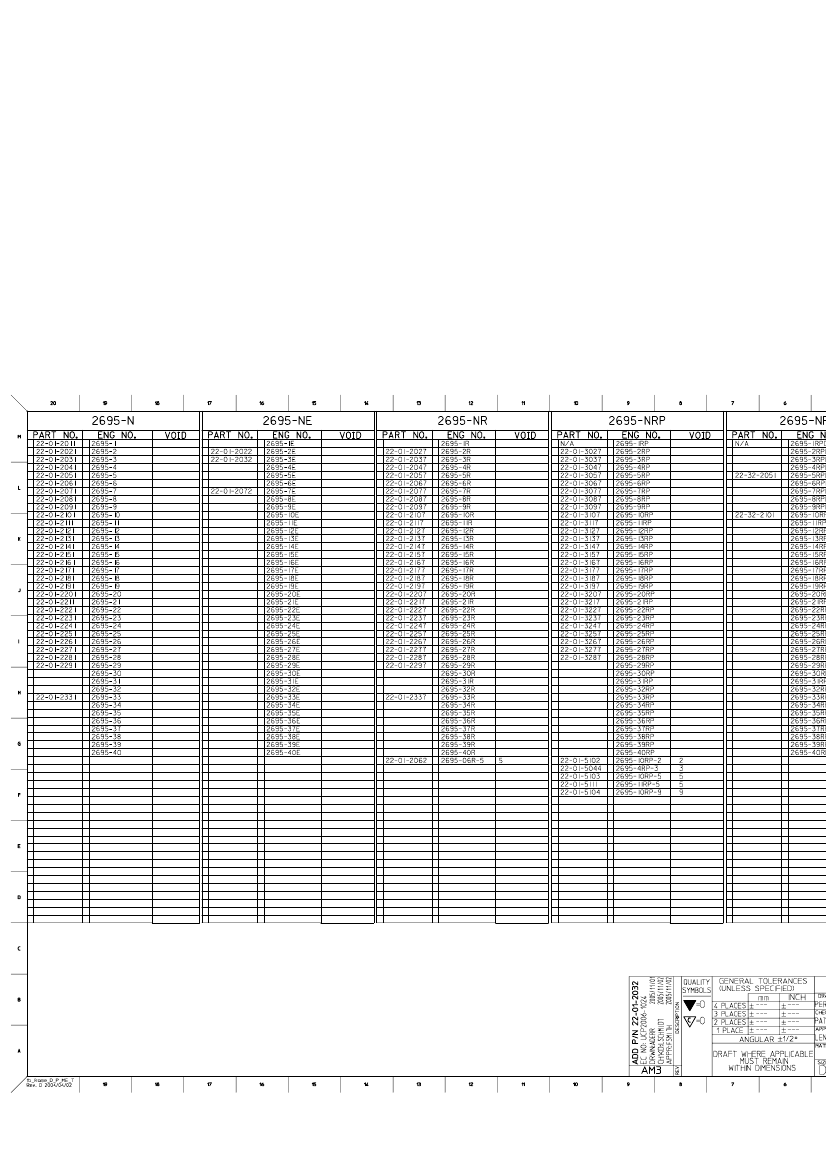

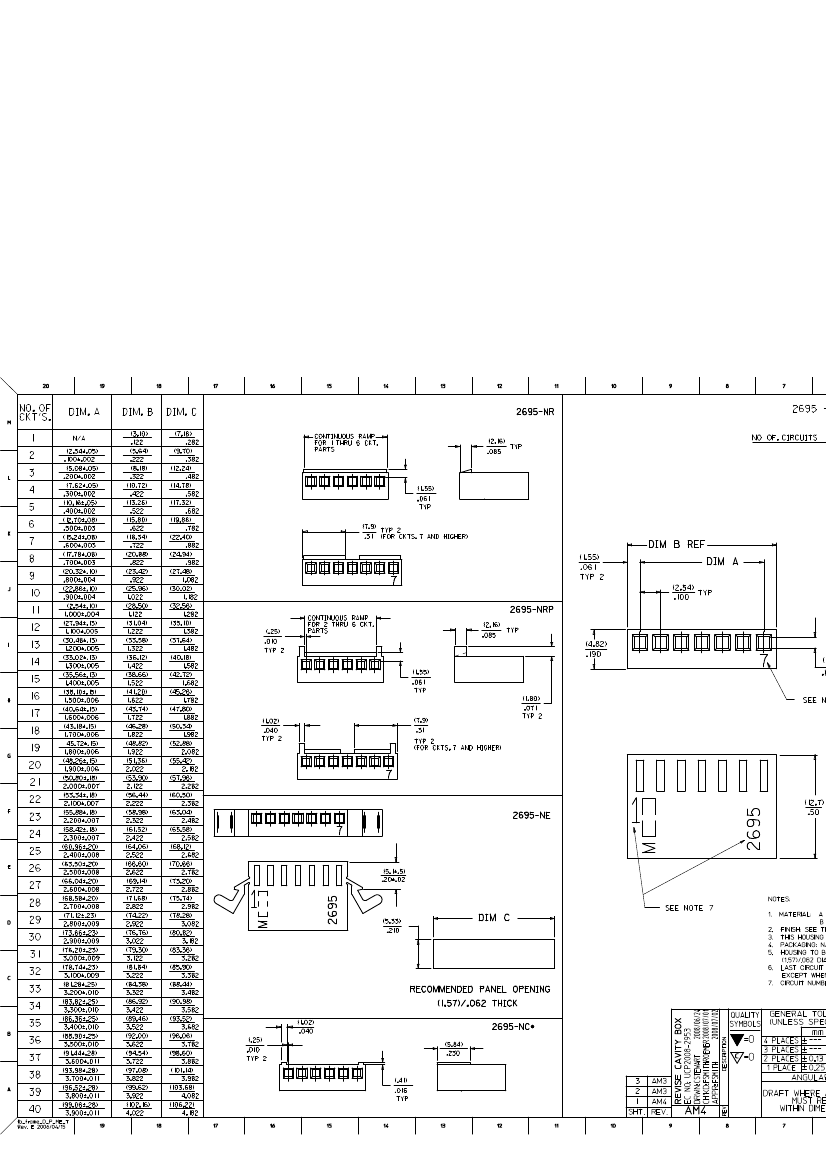

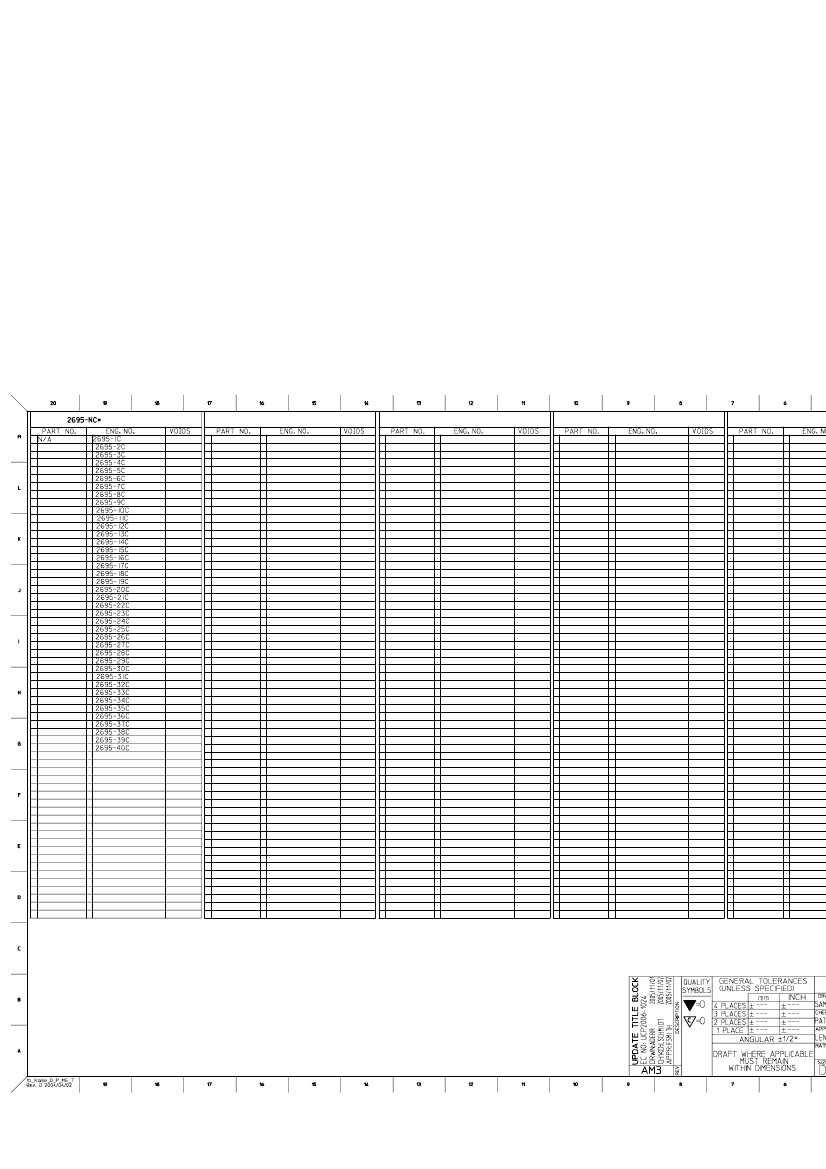

Drawing (PDF)

Product Specification PS-10-07 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Overview

Product Name

Crimp Housings

2695

KK®

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Stackable

Temperature Range - Operating

Natural (White)

94V-0

Female

Nylon

Bag

0.100 In

2.54 mm

0°C to +75°C

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Halogen

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

2695Se

Material Info

Old Part Number

2695-20

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-10-07

SD-2695

Mates

2.54mm

42375

Use W

KK® C

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

2695-20 Related Products

	2695-20	22-01-2201
Description	2.54mm (.100) Pitch KK垄莽 Crimp Terminal Housing, 20 Circuits, Use with 2759\|41572\|6459	2.54mm (.100) Pitch KK垄莽 Crimp Terminal Housing, 20 Circuits, Use with 2759\|41572\|6459
Reach Compliance Code	unknow	compli
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	2695	2695
Mixed contacts	NO	NO
Installation type	CABLE	CABLE
Number of rows loaded	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	CRIMP	CRIMP
Total number of contacts	20	20
