2SC4613S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SC4613S

2SC4613S: DescriptionPower Bipolar Transistor, 0.7A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, TO-126ML, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size131KB，4 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

2SC4613S Overview

Power Bipolar Transistor, 0.7A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, TO-126ML, 3 PIN

2SC4613S Parametric

Parameter Name	Attribute value
Parts packaging code	SIP
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Maximum collector current (IC)	0.7 A
Collector-emitter maximum voltage	160 V
Configuration	SINGLE
Minimum DC current gain (hFE)	140
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Maximum power dissipation(Abs)	1.5 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	120 MHz
Base Number Matches	1

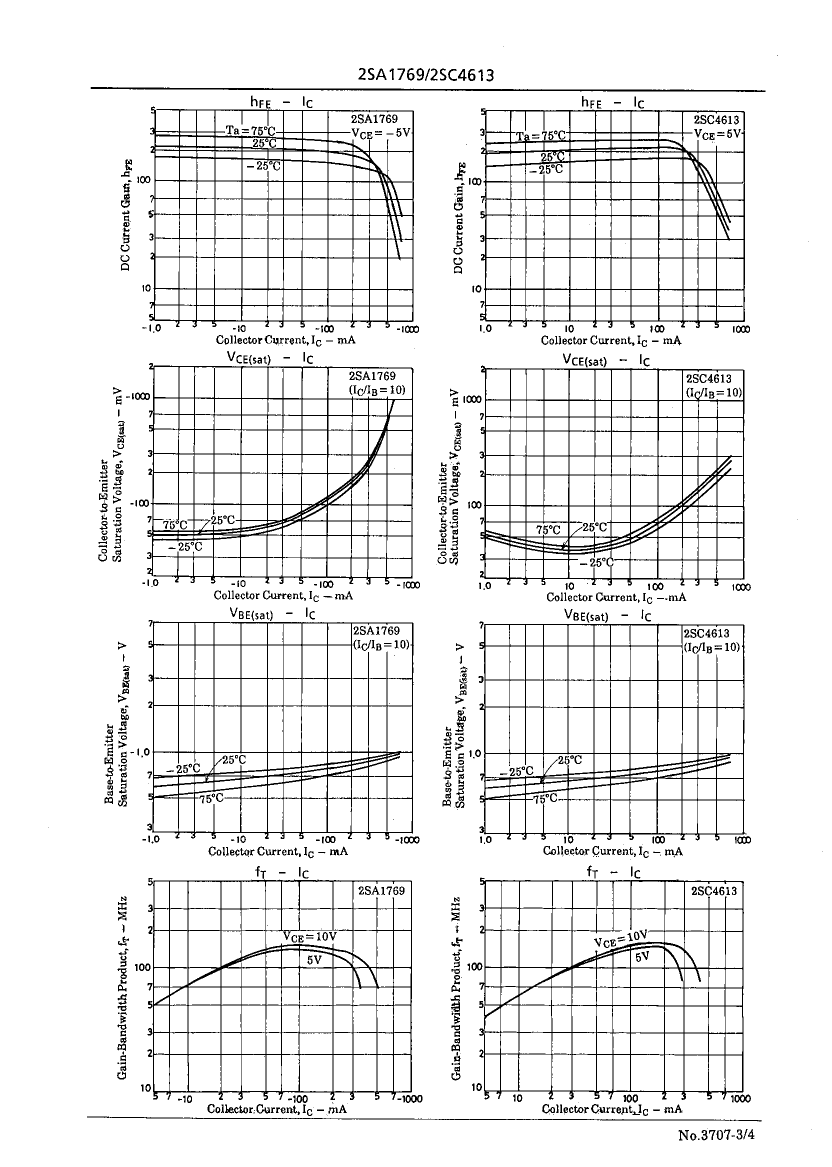

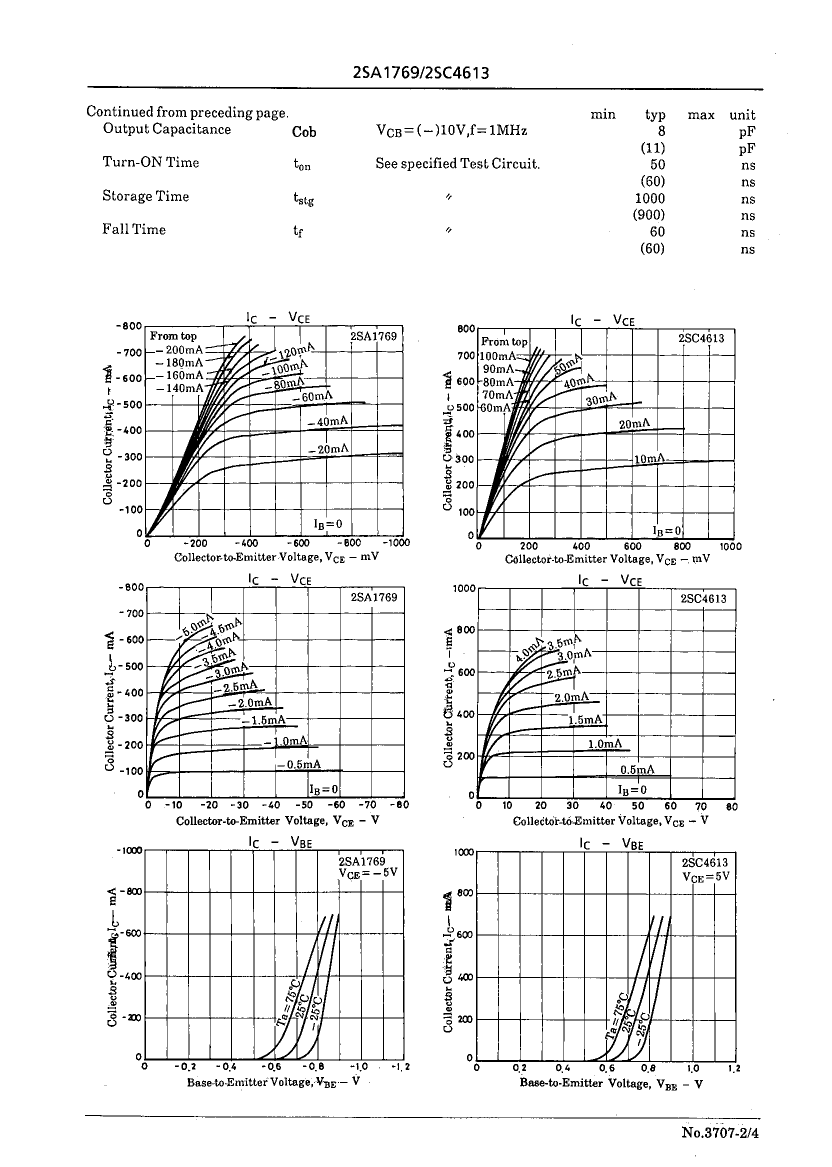

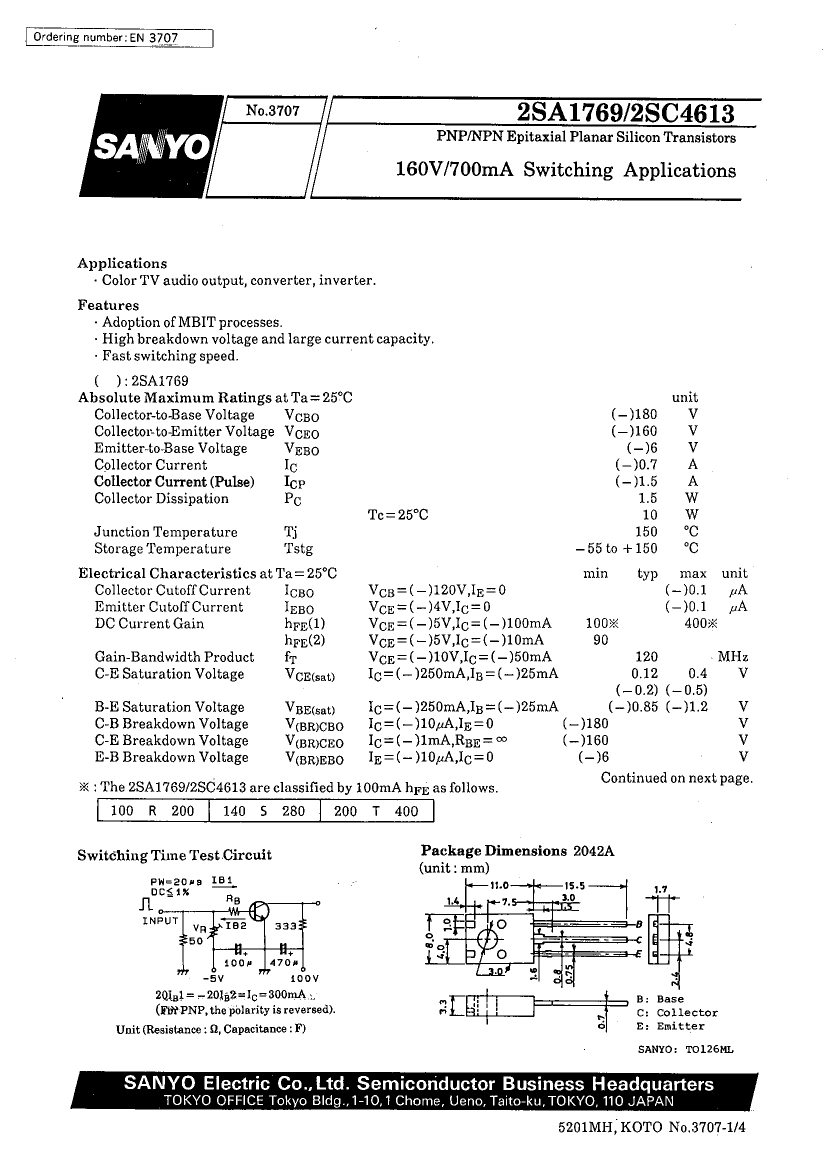

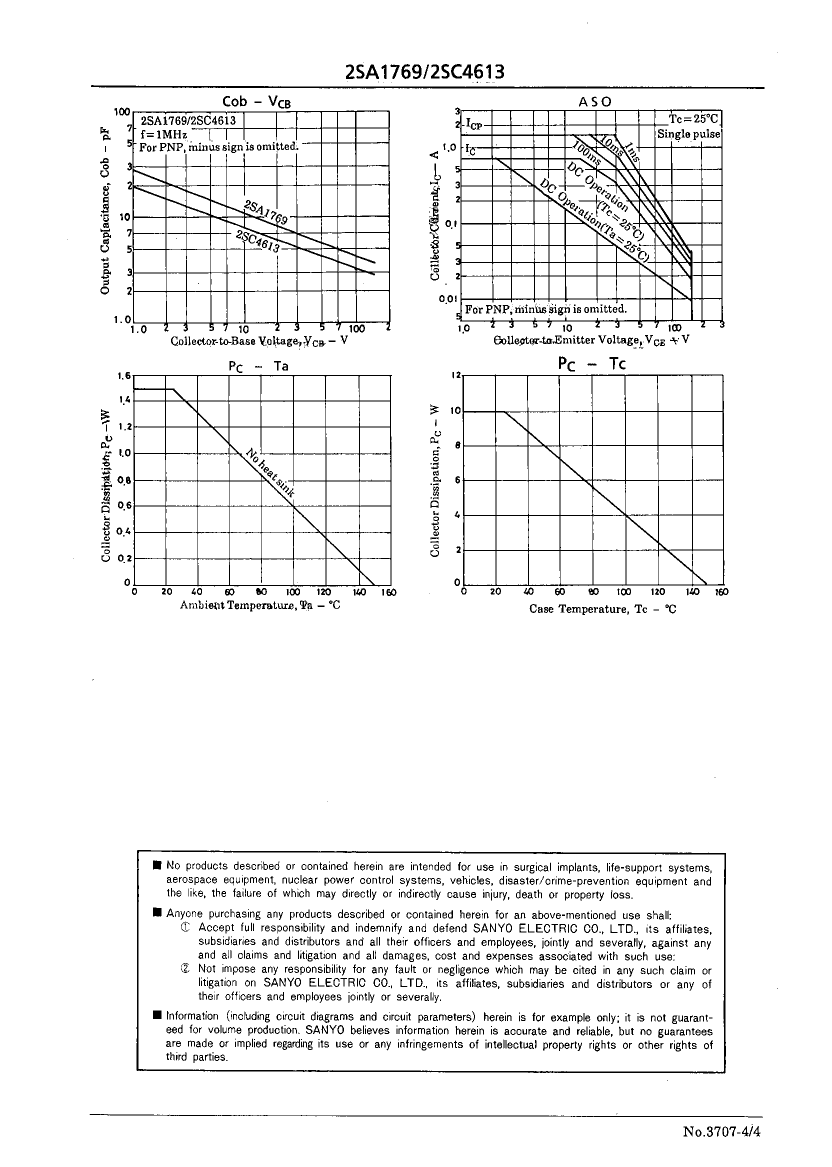

Preview

Download Datasheet

View All

2SC4613S Related Products

	2SC4613S	2SA1769R	2SC4613R	2SC4613T	2SA1769S	2SA1769T
Description	Power Bipolar Transistor, 0.7A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, TO-126ML, 3 PIN	Power Bipolar Transistor, 0.7A I(C), 160V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin, TO-126ML, 3 PIN	Power Bipolar Transistor, 0.7A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, TO-126ML, 3 PIN	Power Bipolar Transistor, 0.7A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, TO-126ML, 3 PIN	Power Bipolar Transistor, 0.7A I(C), 160V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin, TO-126ML, 3 PIN	Power Bipolar Transistor, 0.7A I(C), 160V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin, TO-126ML, 3 PIN
Parts packaging code	SIP	SIP	SIP	SIP	SIP	SIP
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Contacts	3	3	3	3	3	3
Reach Compliance Code	unknow	unknown	unknow	unknow	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Maximum collector current (IC)	0.7 A	0.7 A	0.7 A	0.7 A	0.7 A	0.7 A
Collector-emitter maximum voltage	160 V	160 V	160 V	160 V	160 V	160 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	140	100	100	200	140	200
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	NPN	PNP	NPN	NPN	PNP	PNP
Maximum power dissipation(Abs)	1.5 W	1.5 W	1.5 W	1.5 W	1.5 W	1.5 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	120 MHz	120 MHz	120 MHz	120 MHz	120 MHz	120 MHz
Base Number Matches	1	-	1	1	1	-
