5102-12: Description12 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR; CategoryThe connector The connector; File Size82KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

5102-12 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5102-12	-	-	View	Buy Now

5102-12 Overview

12 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR

5102-12 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknow
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	5102
Mixed contacts	NO
Installation method	STRAIGHT
Number of rows loaded	1
Options	GENERAL PURPOSE
Total number of contacts	12
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

This document was generated on 06/03/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0022011124

Active

spox

2.50mm (.098") Pitch SPOX™ Wire-to-Wire and Wire-to-Board Receptacle Housing, 12

Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-5045-001 (PDF)

Product Specification PS-5045-002 (PDF)

Product Specification PS-5102-002 (PDF)

Product Specification PS-5102-004 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

TUV

LR19980

R72090224

E29179

General

Product Family

Series

Overview

Product Name

Crimp Housings

5102

spox

SPOX™

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Not Halo

Need mo

environm

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Natural

94V-0

Female

Yes

Nylon

Bag

0.098 In

2.50 mm

Yes

-40°C to +105°C

Email pro

For a mu

Complian

Please vi

non-prod

5102Se

Mates

5045 V

Header

Material Info

Old Part Number

5102-12

Use W

5103 C

Reference - Drawing Numbers

Product Specification

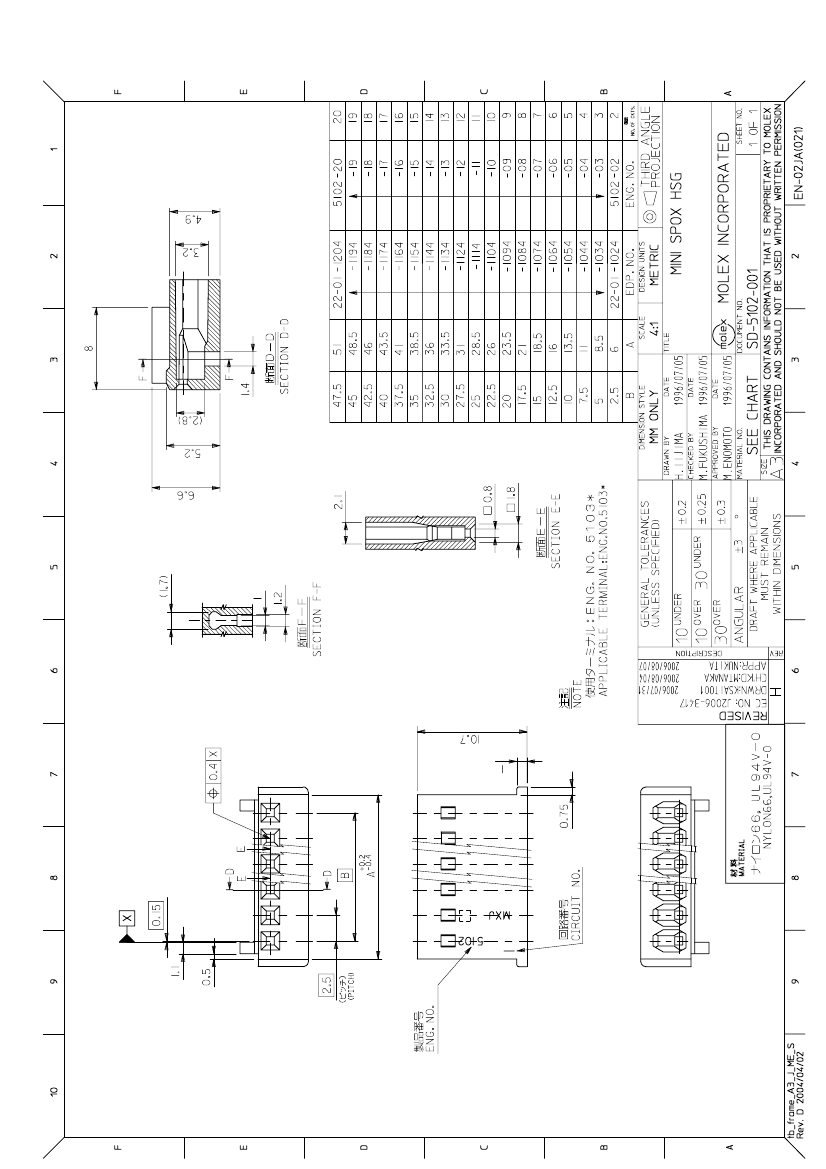

Sales Drawing

PS-5045-001, PS-5045-002, PS-5102-002,

PS-5102-004

SD-5102-001

This document was generated on 06/03/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
