This document was generated on 05/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0009524084
Active
kk
3.96mm (.156") Pitch KK® Crimp Housing, Female, Friction Ramp, 8 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-5239-002 (PDF)
Product Specification PS-5239-003 (PDF)
Product Specification PS-5239-004 (PDF)
Product Specification PS-5239-005 (PDF)
Product Specification PS-5239-006 (PDF)
Product Specification PS-5239-007 (PDF)
Product Specification PS-5239-010 (PDF)
Product Specification PS-5239-011 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
TUV
R72090224
General
Product Family
Series
Overview
Product Name
Crimp Housings
5239
kk
KK®
Physical
Circuits (maximum)
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
8
Natural
94V-2
Female
No
Yes
Nylon
1
Bag
No
0.156 In
3.96 mm
Yes
No
-40°C to +105°C
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
5239Se
Mates
Right A
Vertica
Material Info
Old Part Number
5239-08
Reference - Drawing Numbers
Product Specification
PS-5239-002, PS-5239-003, PS-5239-004,
PS-5239-005, PS-5239-006, PS-5239-007,
PS-5239-010, PS-5239-011, RPS-5239-001

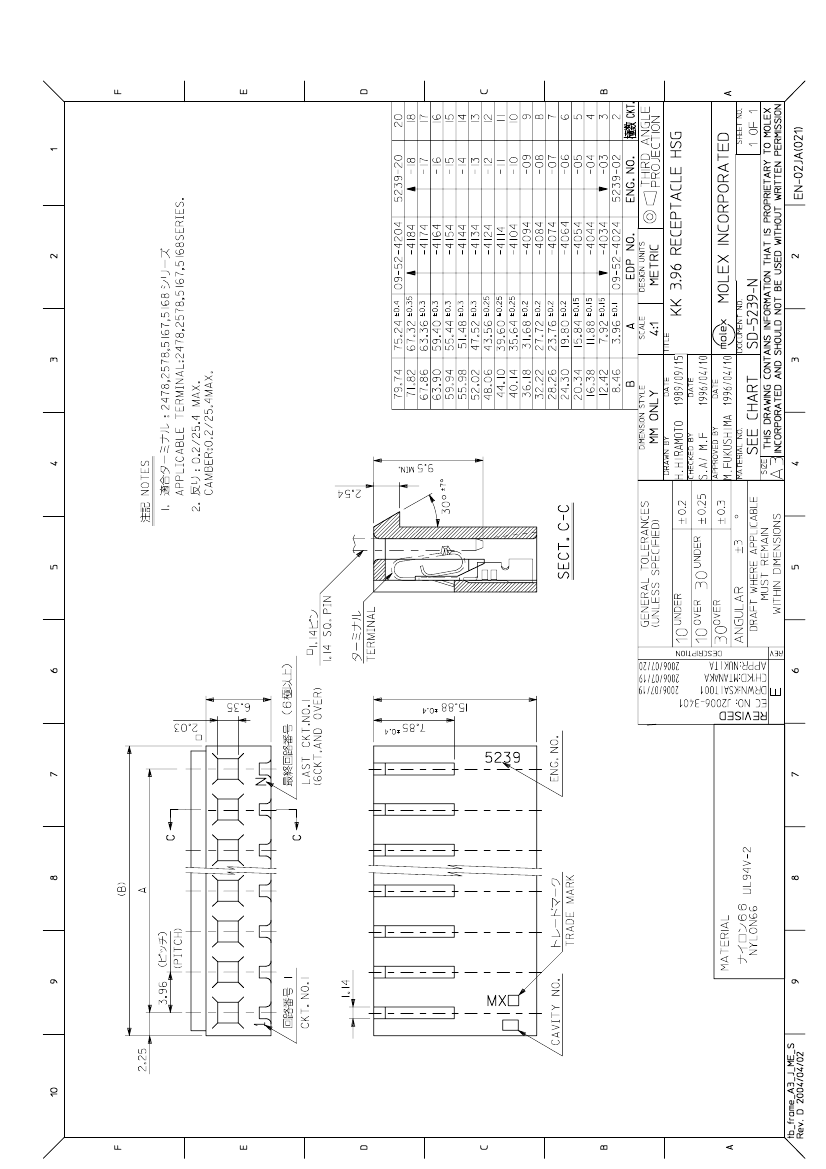

SD-5239-N
Use W
5168 C
AWG, 5
18-24 A
Crimp T
Sales Drawing
