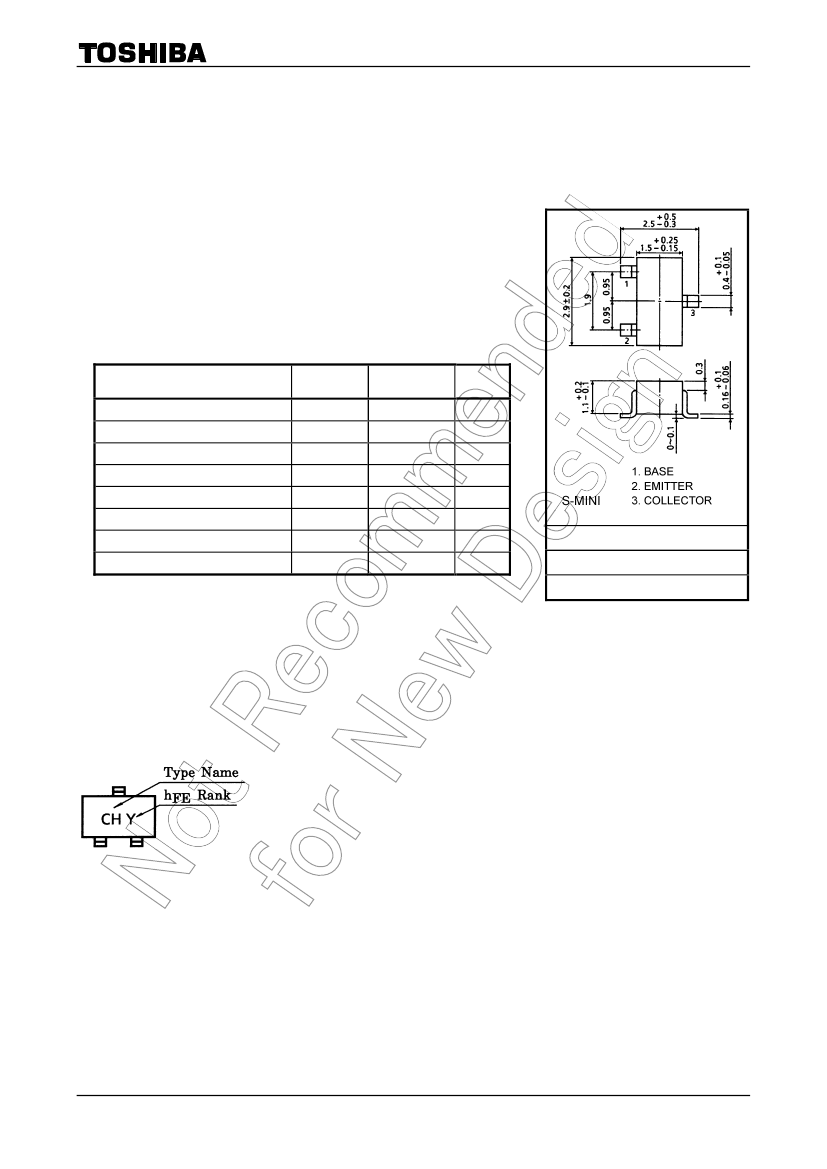

2SC3437
TOSHIBA Transistor
Silicon NPN Epitaxial Type (PCT process)
2SC3437
Ultra High Speed Switching Applications
Computer, Counter Applications
•
•
•
High transition frequency: f
T
= 400 MHz (typ.)
Low saturation voltage: V
CE (sat)
= 0.3 V (max)
High speed switching time: t
stg
= 15 ns (typ.)
Unit: mm
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
Rating
40
15
5
200
40
150
125
−55~125
Unit
V
V
V
mA
mA
mW
°C
°C
JEDEC
JEITA
TO-236MOD
SC-59
TOSHIBA
2-3F1A
Note: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in
Weight: 0.012 g (typ.)
temperature, etc.) may cause this product to decrease in the
reliability significantly even if the operating conditions (i.e.
operating temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Marking
1
2007-11-01

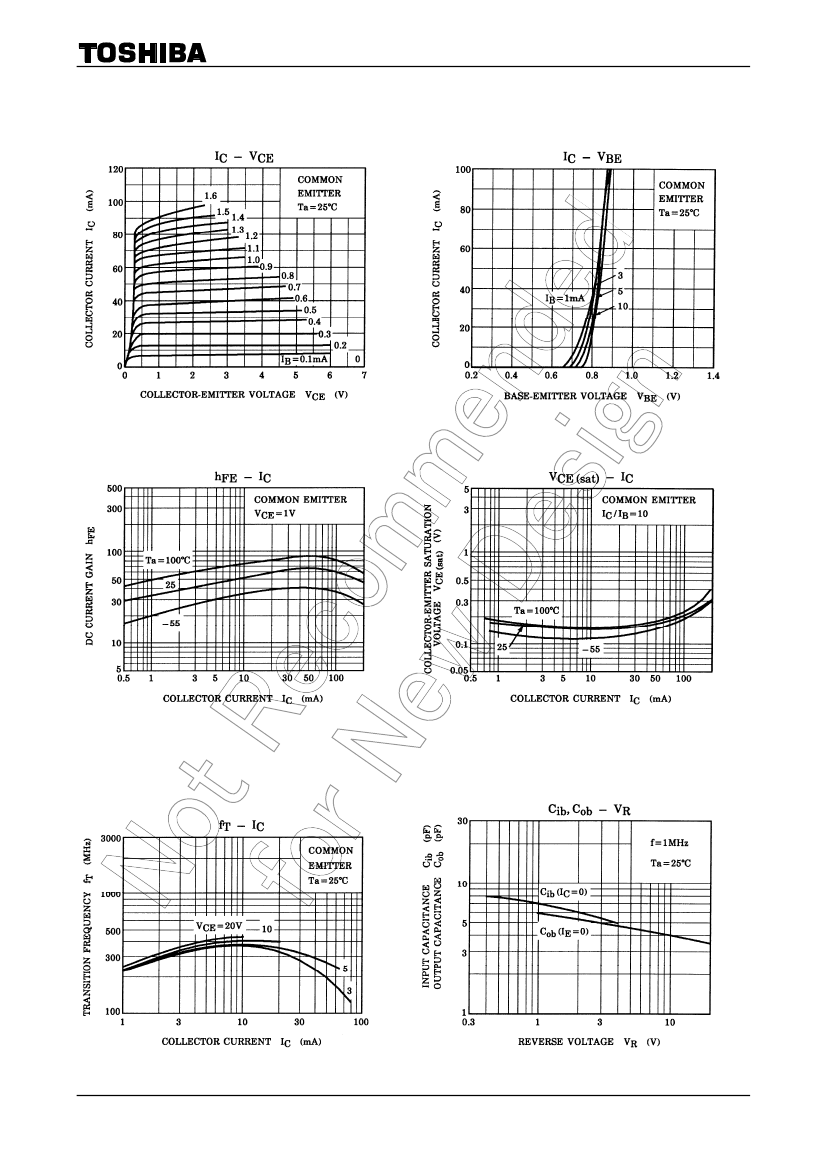

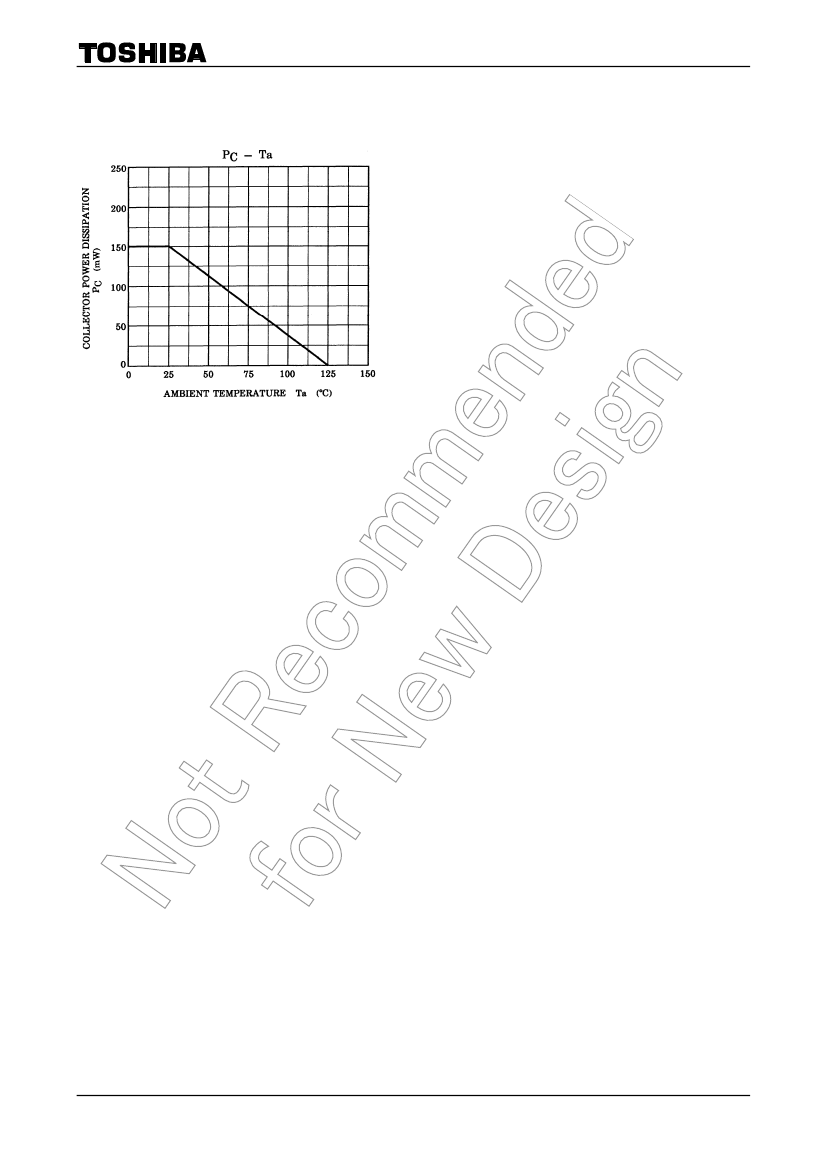

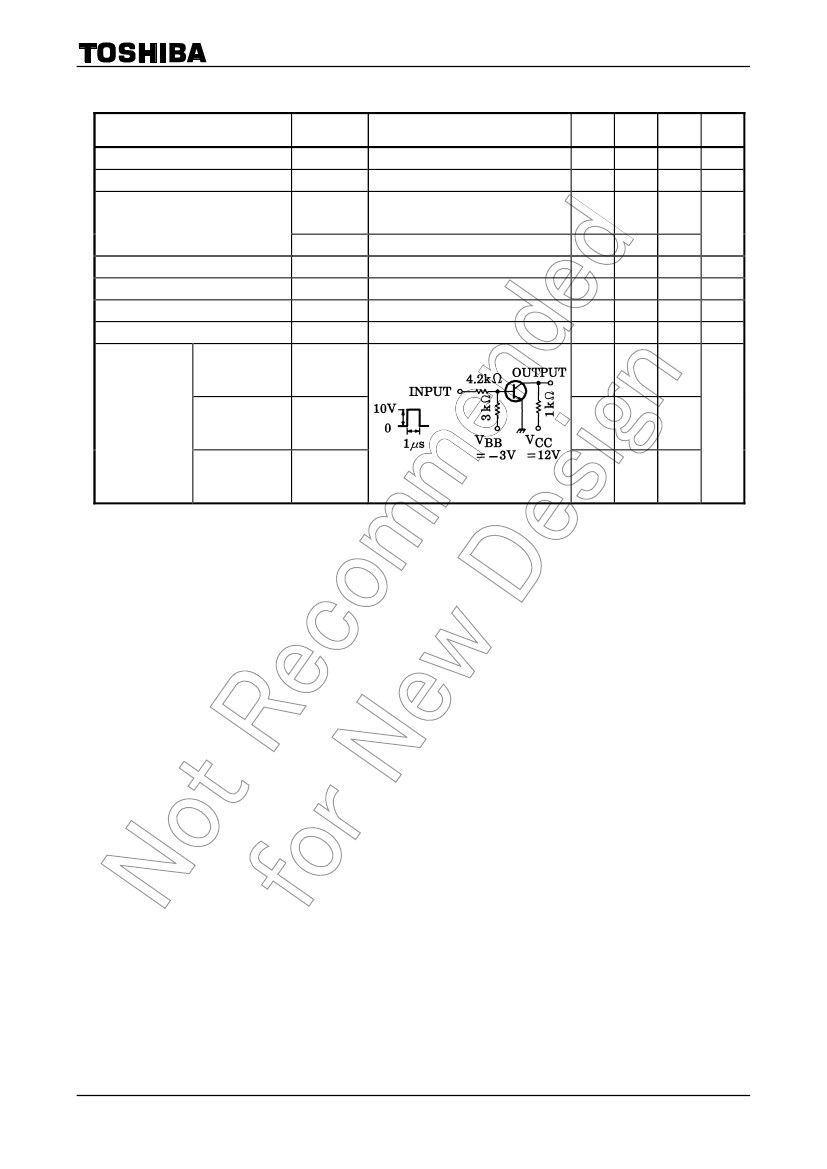

2SC3437
