REVISION V
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE: .75 LBS.
3. PARTS TO BE PACKAGED IN TRAYS.
4. MUST BE CHECKED ON EVERY 6 CONSECUTIVE PINS.
(ALL
5. SEE RECOMMENDED FOOTPRINT DRAWING FOR STENCIL REQUIREMENTS.
6. MEASURE ON ALL 4 CORNERS OF THE ASSEMBLY, INCLUDING ADJACENT ROW.

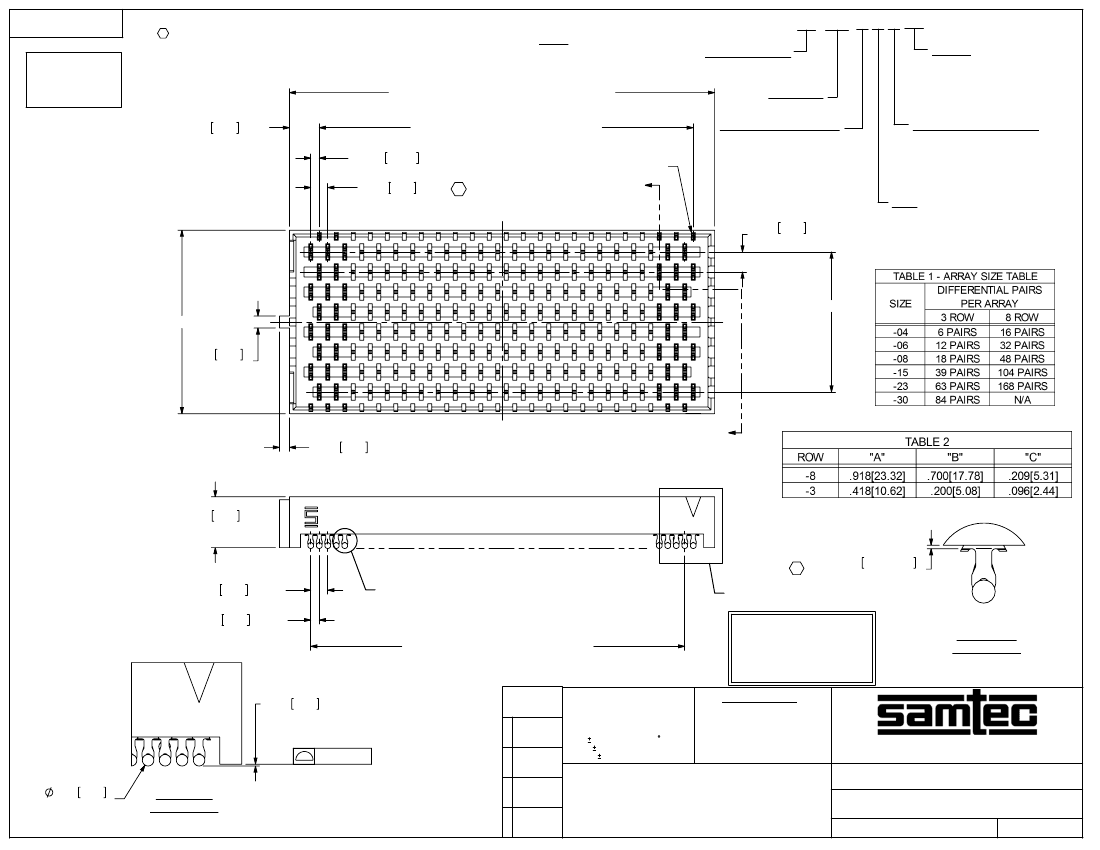

DPAF-23-03.0-X-8-1 SHOWN
CONTACTS NOT SHOWN FOR CLARITY)
FIG 1
DPAF-XX-03.0-X-X-X-XX
No OF POSITIONS
-04, -06, -08, -15, -23,
*
-30
(PER ROW)
LEAD STYLE
-03.0
PLATING SPECIFICATION
**-H: 30µ" HEAVY GOLD
IN CONTACT AREA,
MATTE TIN ON TAIL,
-S: 30µ" SELECTIVE GOLD
IN CONTACT AREA,
MATTE TIN ON TAIL.
G3
(No OF POS) x .085 [2.16] + .171 [4.34] REF
.149 3.79 REF
.0425 1.080
.085 2.16 (TYP) C
(No OF POS - 1) x .0850 [2.16] (TYP)
G1
(GROUND PIN)
"A"
OPTION
-A: ALIGNMENT PIN
(SEE FIG 2, SHT 3)
-K: KAPTON PAD
(SEE FIG 3, SHT 3)
-TR: TAPE & REEL
SOLDER CRIMP MATERIAL
-1: 63% TIN / 37% LEAD
(USE SUB-C-191-03.0-S-1)
-2:
96.5% TIN / 3% SILVER /
.5% COPPER
(USE SUB-C-191-03.0-S-2)
.100 2.54
REF (TYP)
ROW
-8: 8 DIFFERENTIAL PAIR ROWS
-3: 3 DIFFERENTIAL PAIR ROWS
= NOT RELEASED FOR PRODUCTION
*
** = FOR EXISTING CUSTOMERS ONLY
"B" REF
"A" REF
.060 1.52
REF
PIN 2 (PAIR 1)
PIN 1 (PAIR 1)
G2
"A"
.050 1.27 REF
PIN 4 (PAIR 2)
PIN 3 (PAIR 2)
.254 6.45
REF
C .0045±.002 0.11±0.05
(SEE NOTE 6)
'B'
.085 2.16 (TYP)
.043 1.08 (TYP)
'C'
PATENT NUMBERS
(No OF POS - 1) x .0850 [2.16] (TYP)
6979238 / 7137832
6969286 / 7178232
7159312 / 7172438
7052337 / 7125293
DETAIL 'C'
SCALE 8 : 1
(ALL CONTACTS NOT
SHOWN FOR CLARITY)
.005 0.11 REF
FREQUENCY
THIS SHEET
A
CPC
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.010[0.25]
.029 0.74
REF (TYP)
13
B
C
D
C9, C14
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DETAIL 'B'
SCALE 4 : 1
F:\DWG\MISC\MKTG\DPAF-XX-03.0-X-X-X-XX-MKT.SLDDRW
INSULATOR: L.C.P., COLOR: BLACK
CONTACT OR TERMINAL: COPPER ALLOY
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.085 PITCH DP SOCKET ASSEMBLY
DPAF-XX-03.0-X-X-X-XX
06/06/2003
SHEET
1
OF
3
BY:
CHAD F
REVISION V
.013 0.33 REF
C .0244±.0050 0.620±0.127
.015 0.37 REF
DPAF-23-8-X
.043 1.08 REF
SUB-C-191-03.0-X-X
.034 0.85 REF C
C
L
C
L
.058±.005 1.48±0.13 (TYP) C

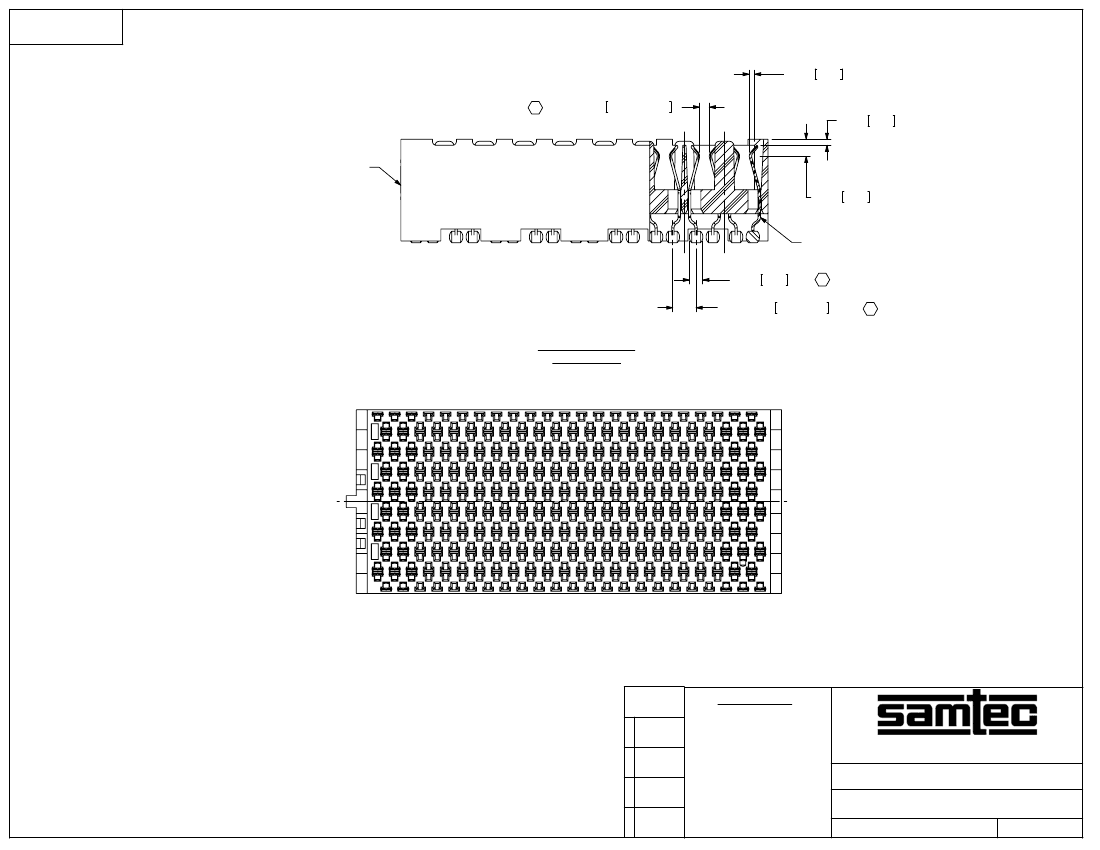

SECTION "A"-"A"
SCALE 4 : 1
(BOTTOM VIEW PROJECTED FROM SHEET 1)
(ALL CONTACTS NOT SHOWN FOR CLARITY)
FREQUENCY
THIS SHEET
A
B C10, C13
C
D
CPC
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.085 PITCH DP SOCKET ASSEMBLY
DPAF-XX-03.0-X-X-X-XX
06/06/2003
SHEET
2
OF
3
F:\DWG\MISC\MKTG\DPAF-XX-03.0-X-X-X-XX-MKT.SLDDRW
BY:
CHAD F
REVISION V

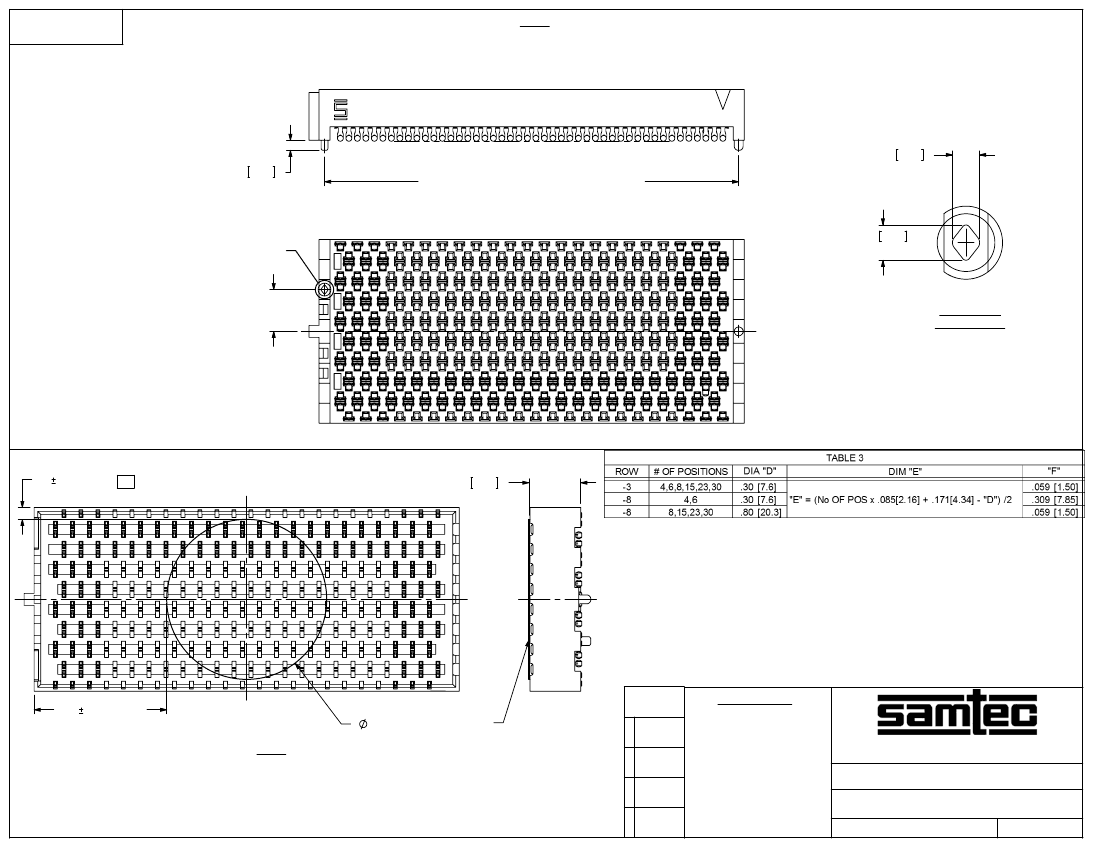

DPAF-23-03.0-X-8-1-A SHOWN
(SAME AS FIG 1, EXCEPT AS SHOWN)
[ALL CONTACTS NOT SHOWN FOR CLARITY]
FIG 2
.050 1.27
REF (TYP)
(No OF POS) x .085 [2.16] + .116 [2.95] REF
.034 0.86
REF
'E'
.044 1.12
REF
"C" REF
DETAIL 'E'
SCALE 8 : 1
"F" .020[0.51]
V
.259 6.58
"E"
.020 [0.51]
"D"
K-1000-800
FREQUENCY
THIS SHEET
A
B
C
D
CPC
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 3
DPAF-23-03.0-X-8-1-A-K SHOWN
(SAME AS FIG 1, EXCEPT AS SHOWN)
(ALL CONTACTS NOT SHOWN FOR CLARITY)
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.085 PITCH DP SOCKET ASSEMBLY
DPAF-XX-03.0-X-X-X-XX
06/06/2003
SHEET
3
OF
3
F:\DWG\MISC\MKTG\DPAF-XX-03.0-X-X-X-XX-MKT.SLDDRW
BY:
CHAD F
