ADC0803LCWM-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> ADC0803LCWM-T

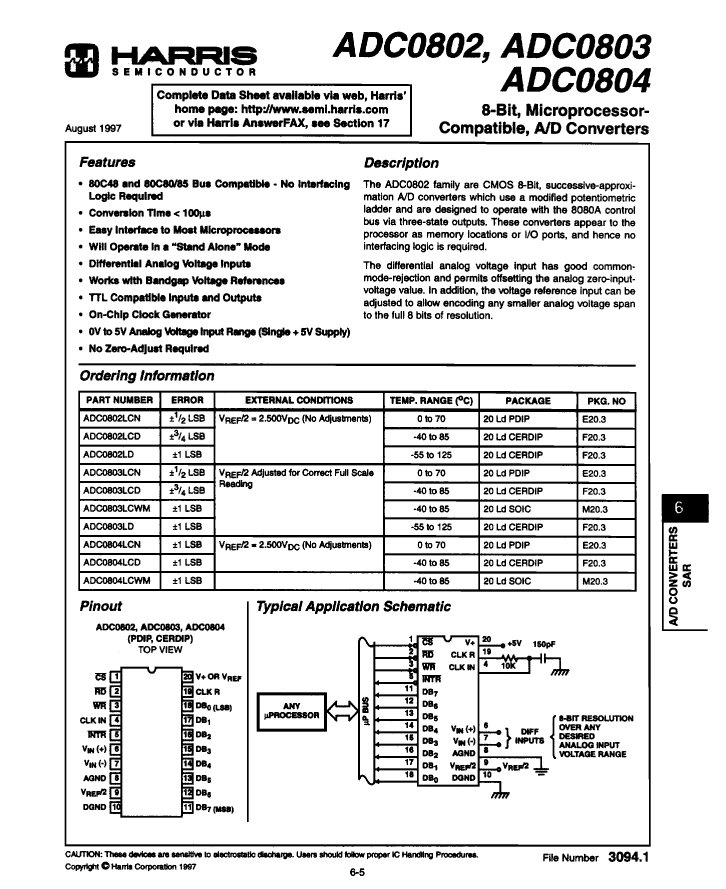

ADC0803LCWM-T: DescriptionADC, Successive Approximation, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, PDSO20; CategoryAnalog mixed-signal IC converter; File Size49KB，1 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

ADC0803LCWM-T Overview

ADC, Successive Approximation, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, PDSO20

ADC0803LCWM-T Parametric

Parameter Name	Attribute value
Maker	Harris
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum analog input voltage	5 V
Minimum analog input voltage
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDSO-G20
Maximum linear error (EL)	0.3906%
Number of analog input channels	1
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output bit code	BINARY
Output format	PARALLEL, 8 BITS
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

ADC0803LCWM-T Related Products

	ADC0803LCWM-T	ADC0803LCD	ADC0804LCWM	ADC0804LCD
Description	ADC, Successive Approximation, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, PDSO20	ADC, Successive Approximation, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, CDIP20	ADC, Successive Approximation, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, PDSO20	ADC, Successive Approximation, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, CDIP20
Maker	Harris	Harris	Harris	Harris
package instruction	,	DIP, DIP20,.3	SOP, SOP20,.3	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum analog input voltage	5 V	5.05 V	5.05 V	5.05 V
Minimum analog input voltage	-	-0.05 V	-0.05 V	-0.05 V
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDSO-G20	R-GDIP-T20	R-PDSO-G20	R-GDIP-T20
Maximum linear error (EL)	0.3906%	0.195%	0.4%	0.39%
Number of analog input channels	1	1	1	1
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	20	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output bit code	BINARY	BINARY	BINARY	BINARY
Output format	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
Is it Rohs certified?	-	incompatible	incompatible	incompatible
JESD-609 code	-	e0	e0	e0
encapsulated code	-	DIP	SOP	DIP
Encapsulate equivalent code	-	DIP20,.3	SOP20,.3	DIP20,.3
power supply	-	5 V	5 V	5 V
Maximum slew rate	-	2.5 mA	2.5 mA	2.5 mA
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	-	2.54 mm	1.27 mm	2.54 mm
