5504932-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5504932-2

5504932-2: Description900um, MULTI MODE, SIMPLEX SC CONNECTOR; CategoryThe connector The connector; File Size572KB，14 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5504932-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5504932-2	-	-	View	Buy Now

5504932-2 Overview

900um, MULTI MODE, SIMPLEX SC CONNECTOR

5504932-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Connection Type	SIMPLEX
Connector type	FIBER OPTIC SC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
Fiber size	900um
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	5504932
model	MULTI
Options	GENERAL PURPOSE

Preview

Download Datasheet

View All

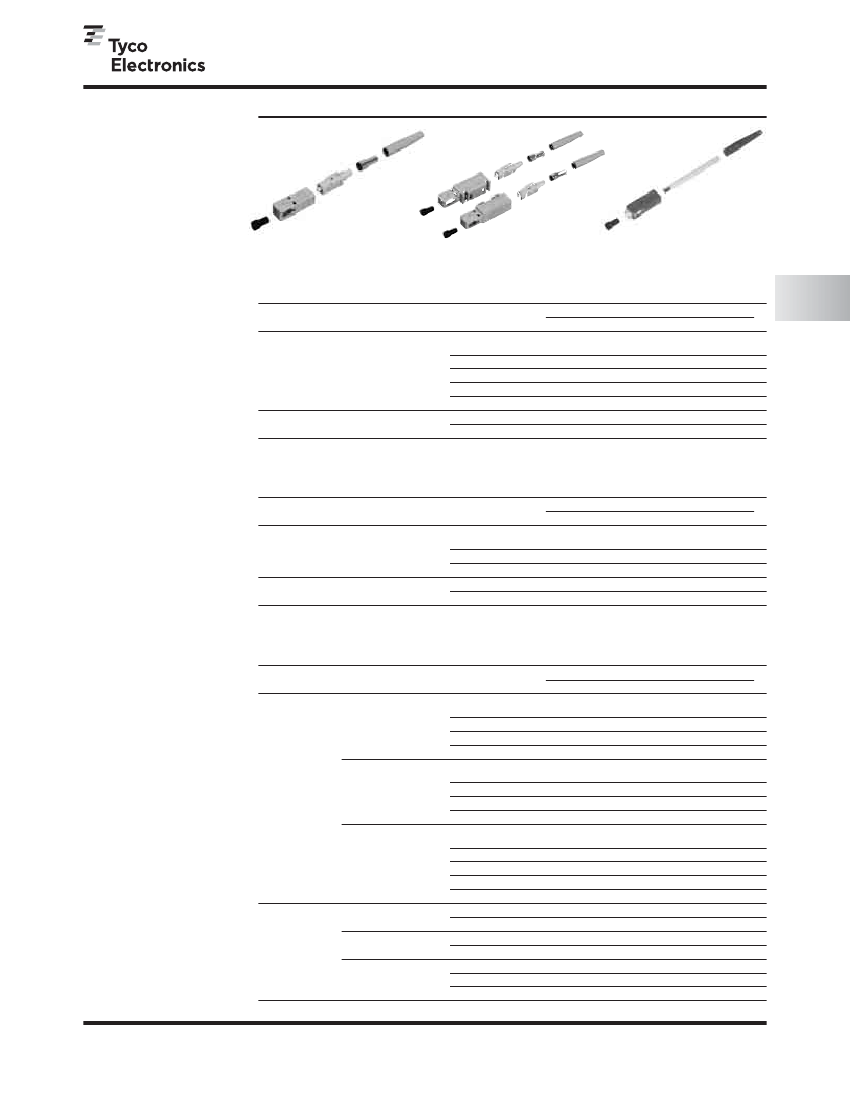

Fiber Optic Products Catalog

SC Connectors

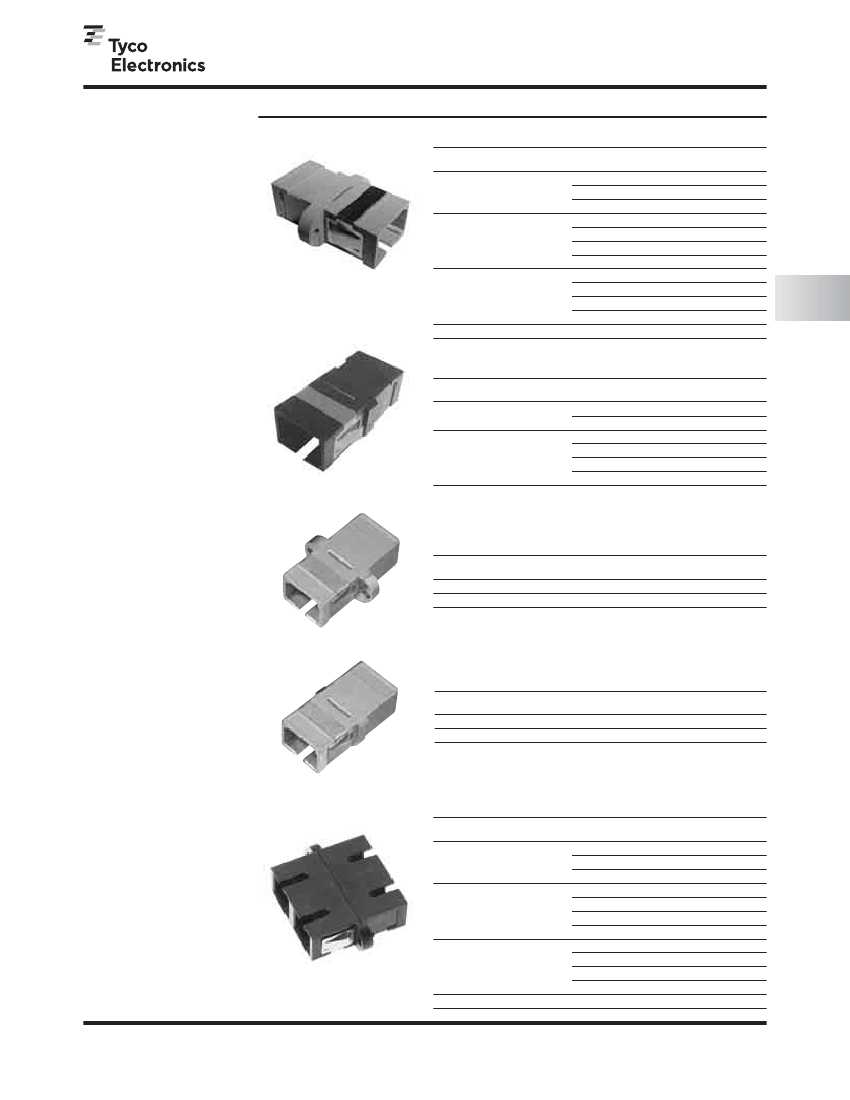

Connectors/Adapters/

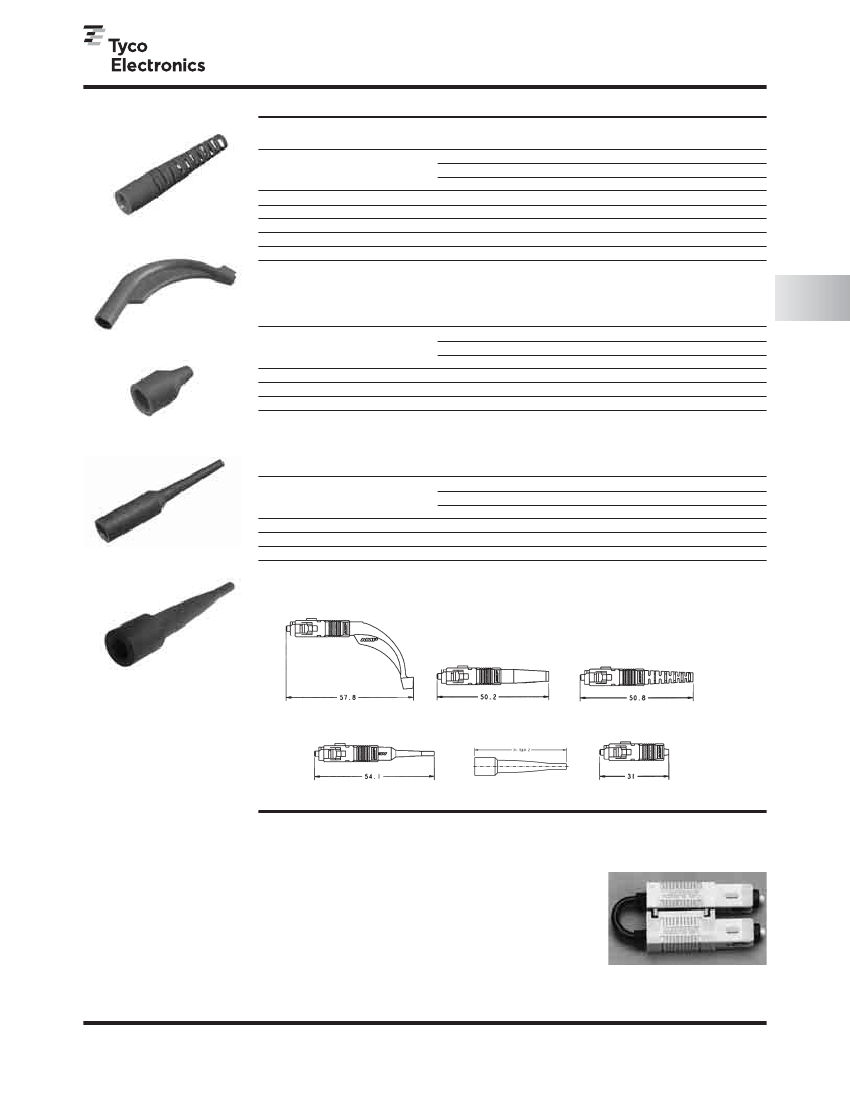

Tooling & Accessories

Product Facts

■

One-piece connector body:

■

Fastest assembly

■

Field installable

■

Anaerobic adhesive

compatible

Compliant with

■

JIS C-5973

■

Fibre Channel

■

TIA FOCIS-3

Pre-radiused ceramic

ferrules

For 125 µm cladding

diameter

Instruction Sheet 408-8674

http://www.tycoelectronics.

com/documents

Color coded to comply with

568C

■

Aqua for 50/125 laser

optimized

■

Black for standard 50/125

■

Beige for 62.5/125

■

Blue for singlemode

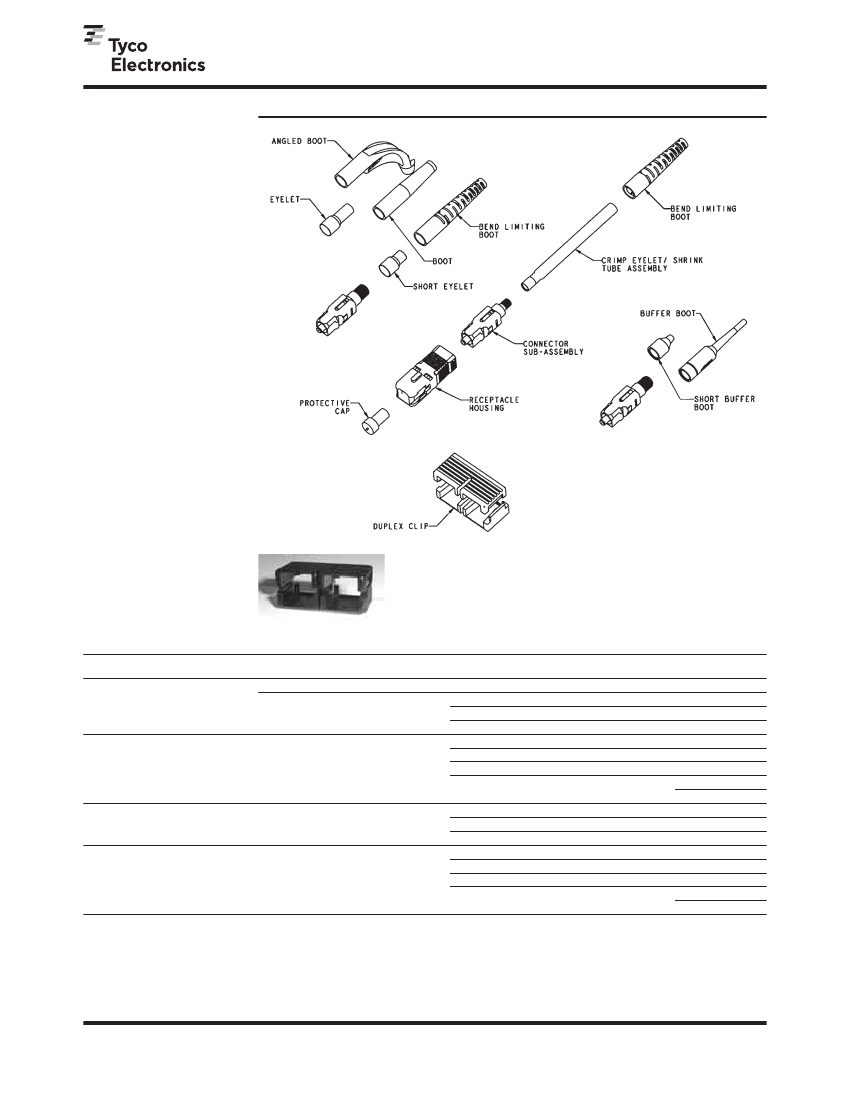

Simplex Connector

Duplex Connector

SC 1.6 mm to 2.0 mm Connector

■

Singlemode SC Connector Kits — Polymer Crimp Body

Description

Housing

Color

Boot

Color

Used With

900 µm Buffered,

3.0 mm Jacketed

2.4 mm Jacketed

2.0 mm Jacketed

900 µm Buffer

3.0 mm Jacketed

2.0 mm Jacketed

Individual Pack

5504646-7

5504646-1

5504933-2

5503934-2

5492123-1

5504655-1

5504936-2

Part Numbers

Bulk Pack

—

5504646-2

5504933-4

5503934-3

5492123-2

5504655-2

—

Crimp Tool

503911-1

492026-1

N/A

503911-1

492026-1

■

Simplex

Blue

■

Duplex

Blue

GR-326 Style Singlemode SC Connector Kits — Metal Crimp Body

Description

Housing

Color

Boot

Color

Used With

3.0 mm Jacketed

Simplex

Blue

2.4 mm Jacketed

2.0 mm Jacketed

2.4 mm Jacketed

2.0 mm Jacketed

Part Numbers

Individual Pack

Bulk Pack

4-1918861-5

6588714-5

6588714-1

6693776-5

6693776-1

—

6588714-6

6588714-4

6693776-6

6693776-2

Crimp Tool

(1) 492131-1

(1) 58532-1

1588176-1

Performance Characteristics

for Singlemode SC Connector

Kits — Polymer Crimp Body

Insertion Loss

— <0.2 dB Typical

■

Return Loss

— <-55 dB Typical

■

Duplex

Blue

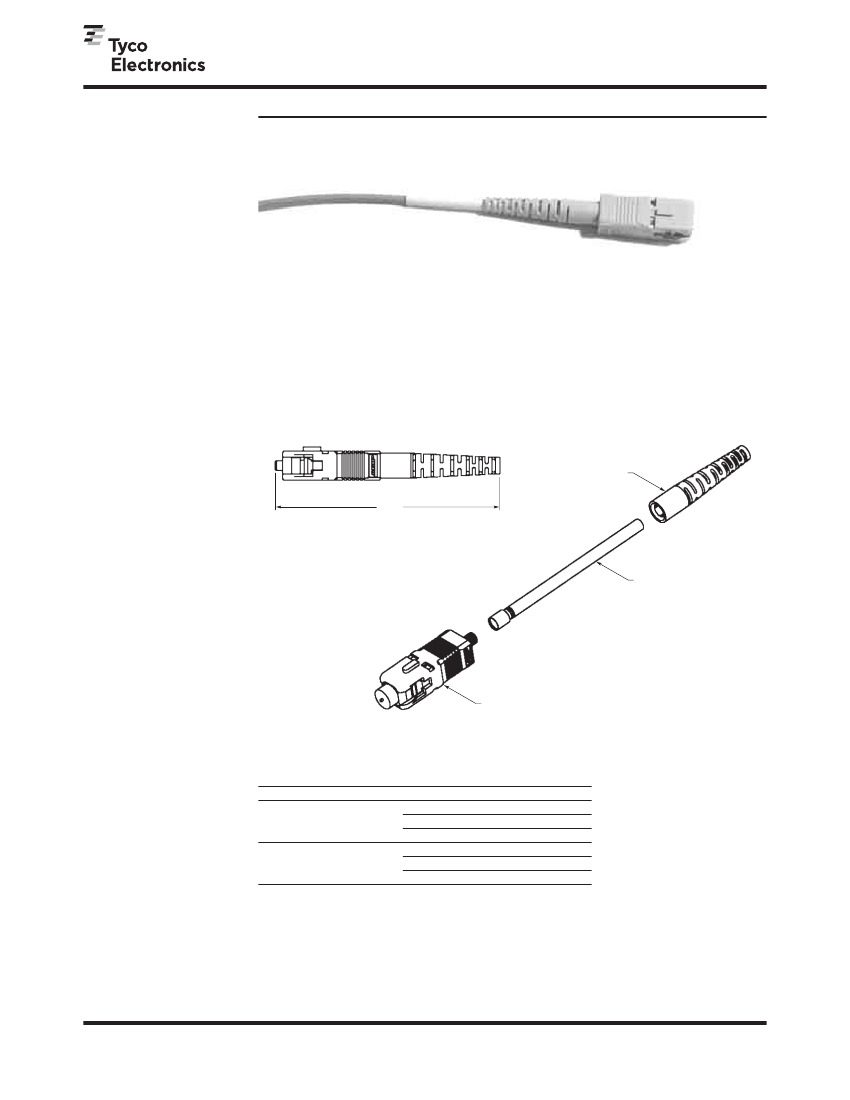

Multimode SC Connector Kits

Description

Housing

Color

Boot

Color

Used With

900 µm Buffered,

3.0 mm Jacketed

2.0 mm Jacketed

900 µm Buffer

900 µm Buffered,

3.0 mm Jacketed

2.0 mm Jacketed

900 µm Buffer

900 µm Buffered,

3.0 mm Jacketed

2.4 mm Jacketed

2.0 mm Jacketed

900 µm Buffer

3.0 mm Jacketed

2.0 mm Jacketed

3.0 mm Jacketed

2.0 mm Jacketed

3.0 mm Jacketed

2.4 mm Jacketed

2.0 mm Jacketed

Individual Pack

1-5503948-1

1-5503948-0

5504931-5

5504932-5

1-5503948-2

1-5503948-3

5504931-6

5504932-1

5503948-5

5503948-1

5504930-1

5504931-1

5504932-6

5504657-8

5504928-3

5504657-9

5504928-4

5504657-1

5504927-1

5504928-1

Part Numbers

Bulk Pack

—

5503948-8

5504931-3

5504932-2

—

5503948-2

5504930-2

—

5504657-2

5504927-2

—

Crimp Tool

503911-1

492026-1

N/A

503911-1

492026-1

N/A

503911-1

492026-1

N/A

503911-1

492026-1

503911-1

492026-1

503911-1

492026-1

Durability

— 200 Cycles

Performance Characteristics

for GR-326 Style Product

Insertion Loss

— <0.2 dB Typical

■

Return Loss

— <-59 dB Typical

■

Durability

— 200 Cycles

■

Beige

Aqua

Tested to GR-326 (Test Report

501-584)

Tunable

— 6 positions

Simplex

Beige

Black

Performance Characteristics

for Multimode SC Connector

Kits

Insertion Loss

— <0.2 dB Typical

■

Durability

— 500 Cycles

■

TIA 586B Compliant

■

Beige

Aqua

Black

Duplex

Note:

All part numbers are RoHS

compliant.

Beige

Catalog 1307895

Revised 11-07

www.tycoelectronics.com

Dimensions are in millimeters

and inches unless otherwise

specified. Values in brackets

are standard equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-1106-0803

South America: 55-11-2103-6000

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 31-73-624-6639
