AD9720TE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> AD9720TE

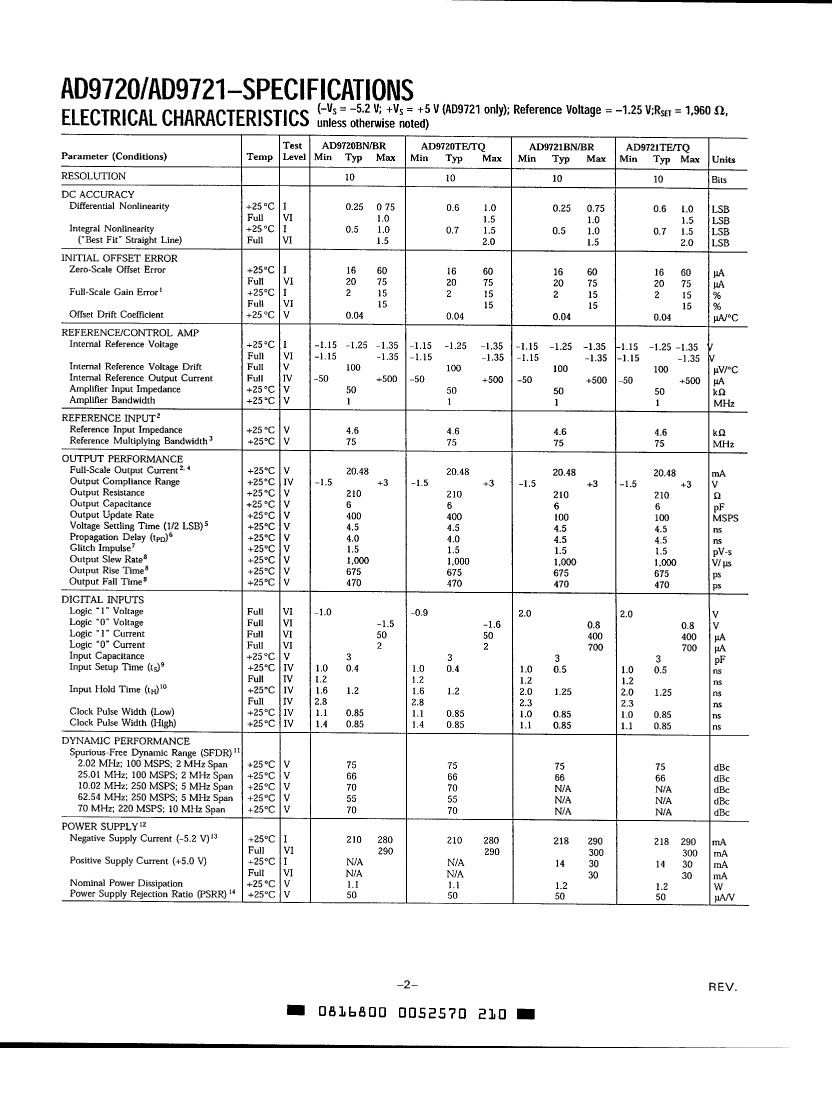

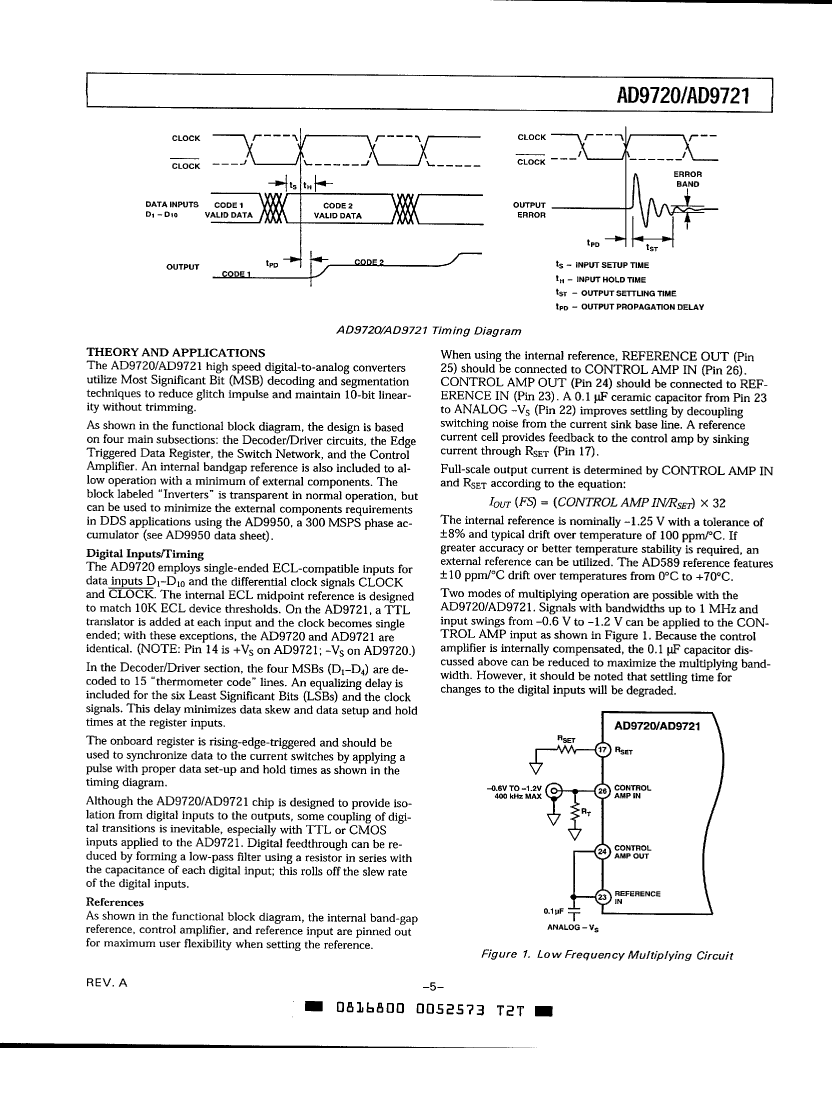

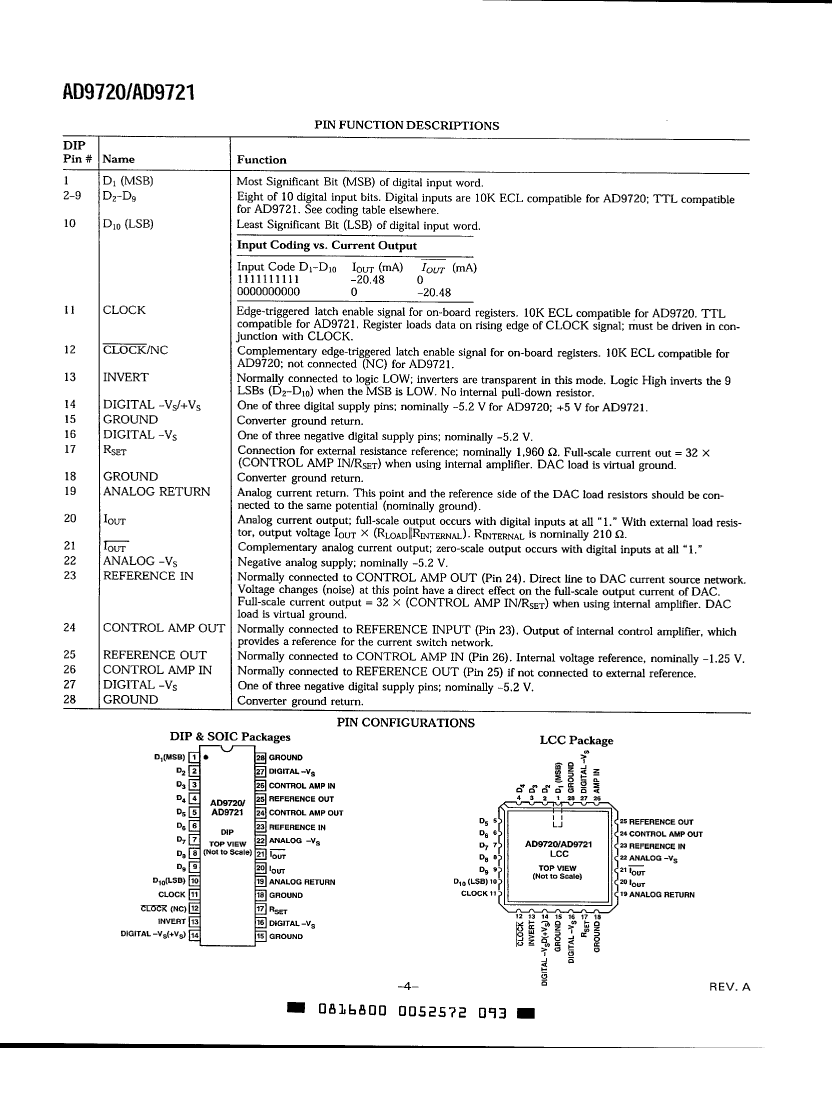

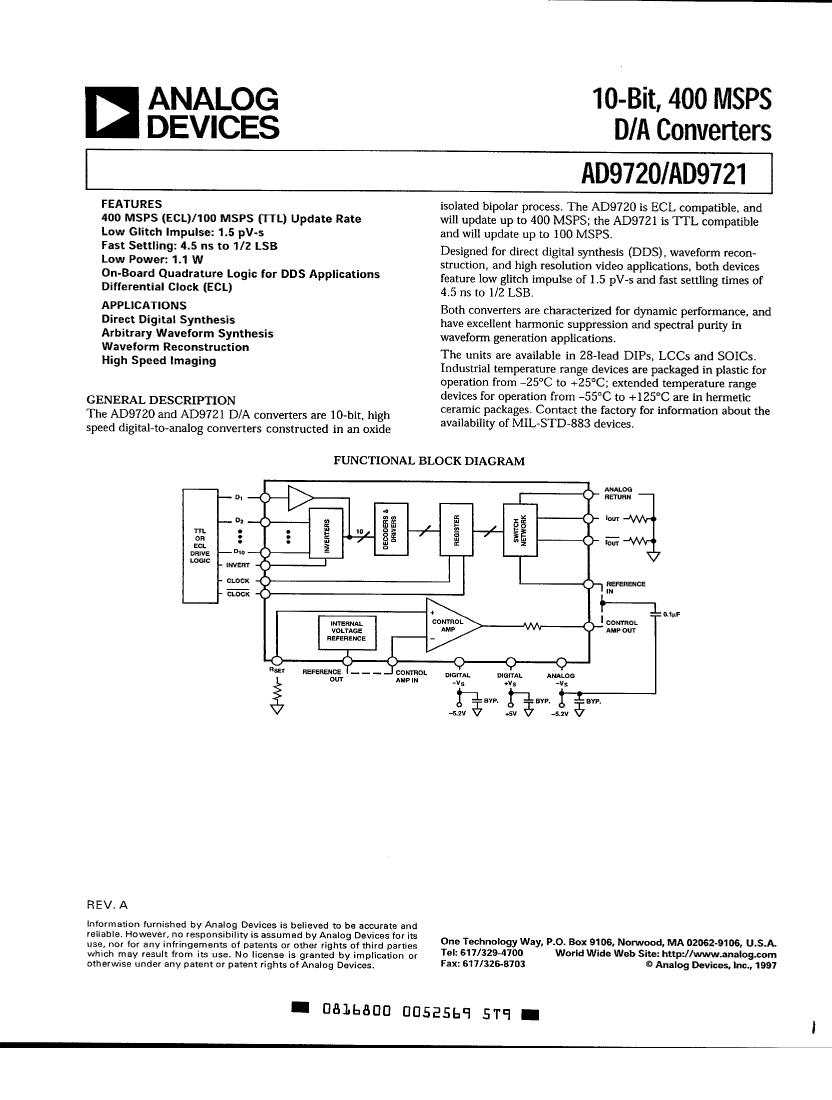

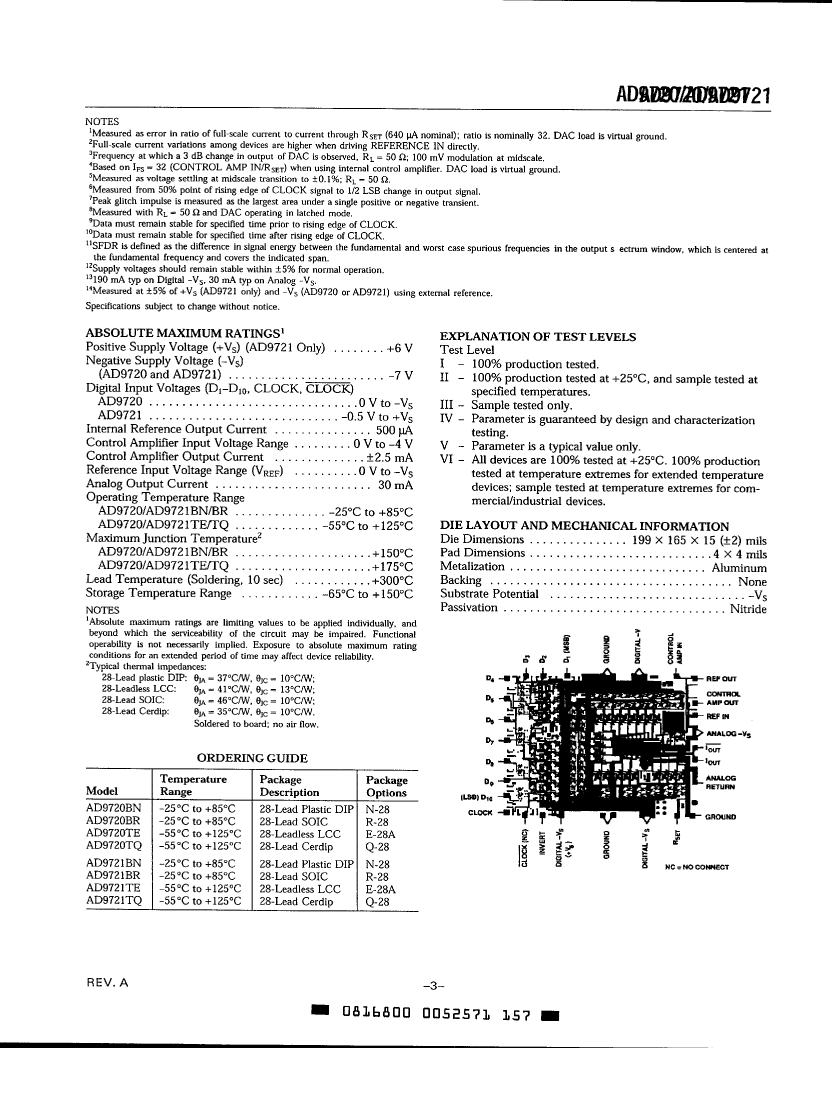

AD9720TE: DescriptionIC PARALLEL, WORD INPUT LOADING, 0.0045 us SETTLING TIME, 10-BIT DAC, CQCC28, HERMETIC SEALED, CERAMIC, LCC-28, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size407KB，8 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

AD9720TE Overview

IC PARALLEL, WORD INPUT LOADING, 0.0045 us SETTLING TIME, 10-BIT DAC, CQCC28, HERMETIC SEALED, CERAMIC, LCC-28, Digital to Analog Converter

AD9720TE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	QLCC
package instruction	HERMETIC SEALED, CERAMIC, LCC-28
Contacts	28
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum analog output voltage	3 V
Minimum analog output voltage	-1.5 V
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, WORD
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
length	11.43 mm
Maximum linear error (EL)	0.1953%
Nominal negative supply voltage	-5.2 V
Number of digits	10
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	220
power supply	-5.2 V
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	2.54 mm
Nominal settling time (tstl)	0.0045 µs
Maximum slew rate	290 mA
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	11.43 mm

Preview

Download Datasheet

View All

AD9720TE Related Products

	AD9720TE	AD9721TQ	AD9720BR	AD9720BN	AD9721BN	AD9721BR	AD9720TQ	AD9721TE
Description	IC PARALLEL, WORD INPUT LOADING, 0.0045 us SETTLING TIME, 10-BIT DAC, CQCC28, HERMETIC SEALED, CERAMIC, LCC-28, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 0.0045 us SETTLING TIME, 10-BIT DAC, CDIP28, HERMETIC SEALED, CERDIP-28, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 0.0045 us SETTLING TIME, 10-BIT DAC, PDSO28, PLASTIC, SOIC-28, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 0.0045 us SETTLING TIME, 10-BIT DAC, PDIP28, PLASTIC, DIP-28, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 0.0045 us SETTLING TIME, 10-BIT DAC, PDIP28, PLASTIC, DIP-28, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 0.0045 us SETTLING TIME, 10-BIT DAC, PDSO28, PLASTIC, SOIC-28, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 0.0045 us SETTLING TIME, 10-BIT DAC, CDIP28, HERMETIC SEALED, CERDIP-28, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 0.0045 us SETTLING TIME, 10-BIT DAC, CQCC28, HERMETIC SEALED, CERAMIC, LCC-28, Digital to Analog Converter
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QLCC	DIP	SOIC	DIP	DIP	SOIC	DIP	QLCC
package instruction	HERMETIC SEALED, CERAMIC, LCC-28	HERMETIC SEALED, CERDIP-28	PLASTIC, SOIC-28	PLASTIC, DIP-28	PLASTIC, DIP-28	PLASTIC, SOIC-28	HERMETIC SEALED, CERDIP-28	HERMETIC SEALED, CERAMIC, LCC-28
Contacts	28	28	28	28	28	28	28	28
Reach Compliance Code	unknown	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	EAR99	EAR99	EAR99	EAR99	3A001.A.2.C	3A001.A.2.C
Maximum analog output voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Minimum analog output voltage	-1.5 V	-1.5 V	-1.5 V	-1.5 V	-1.5 V	-1.5 V	-1.5 V	-1.5 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	S-CQCC-N28	R-GDIP-T28	R-PDSO-G28	R-PDIP-T28	R-PDIP-T28	R-PDSO-G28	R-GDIP-T28	S-CQCC-N28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.1953%	0.1953%	0.1465%	0.1465%	0.1465%	0.1465%	0.1953%	0.1953%
Nominal negative supply voltage	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V
Number of digits	10	10	10	10	10	10	10	10
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28	28	28
Maximum operating temperature	125 °C	125 °C	85 °C	85 °C	85 °C	85 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-25 °C	-25 °C	-25 °C	-25 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	DIP	SOP	DIP	DIP	SOP	DIP	QCCN
Encapsulate equivalent code	LCC28,.45SQ	DIP28,.6	SOP28,.4	DIP28,.6	DIP28,.6	SOP28,.4	DIP28,.6	LCC28,.45SQ
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	220	NOT SPECIFIED	220	NOT SPECIFIED	NOT SPECIFIED	220	NOT SPECIFIED	220
power supply	-5.2 V	5,-5.2 V	-5.2 V	-5.2 V	5,-5.2 V	5,-5.2 V	-5.2 V	5,-5.2 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.54 mm	5.59 mm	2.65 mm	6.35 mm	6.35 mm	2.65 mm	5.59 mm	2.54 mm
Nominal settling time (tstl)	0.0045 µs	0.0045 µs	0.0045 µs	0.0045 µs	0.0045 µs	0.0045 µs	0.0045 µs	0.0045 µs
Maximum slew rate	290 mA	300 mA	290 mA	290 mA	300 mA	300 mA	290 mA	300 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	NO	YES	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	OTHER	OTHER	OTHER	OTHER	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	30	NOT SPECIFIED	30	NOT SPECIFIED	NOT SPECIFIED	30	NOT SPECIFIED	30
width	11.43 mm	15.24 mm	7.5 mm	15.24 mm	15.24 mm	7.5 mm	15.24 mm	11.43 mm
Maker	ADI	-	-	ADI	ADI	ADI	ADI	ADI
length	11.43 mm	-	17.93 mm	37.4 mm	37.4 mm	17.93 mm	-	11.43 mm
Base Number Matches	-	1	1	1	1	1	-	-
