NDP6030PLS62Z datasheet, PDF - EEWORLD Datasheet

NDP6030PLS62Z: DescriptionPower Field-Effect Transistor, 30A I(D), 30V, 0.025ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size192KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

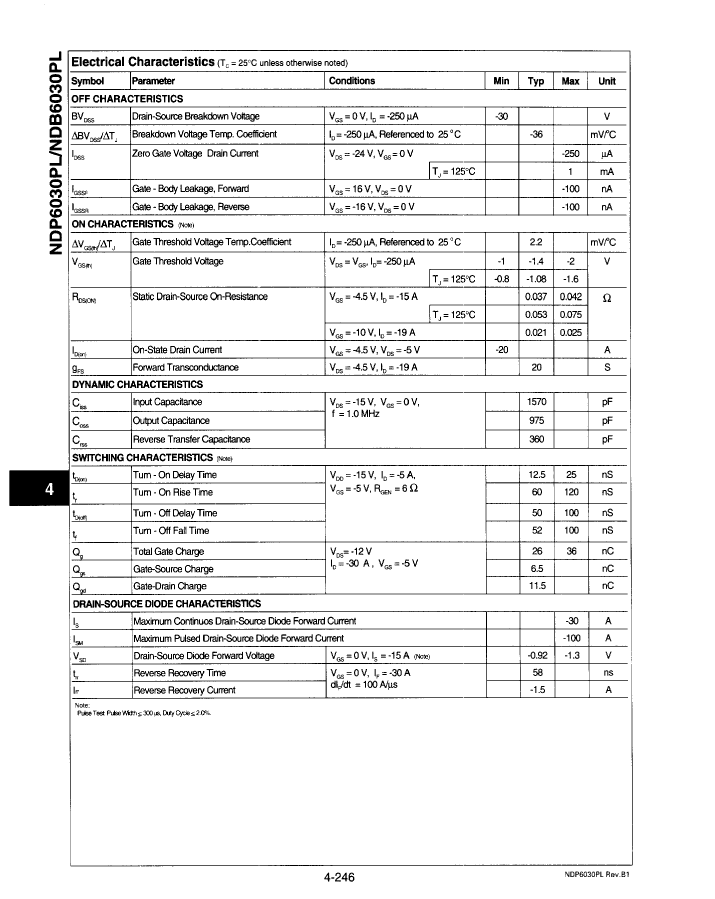

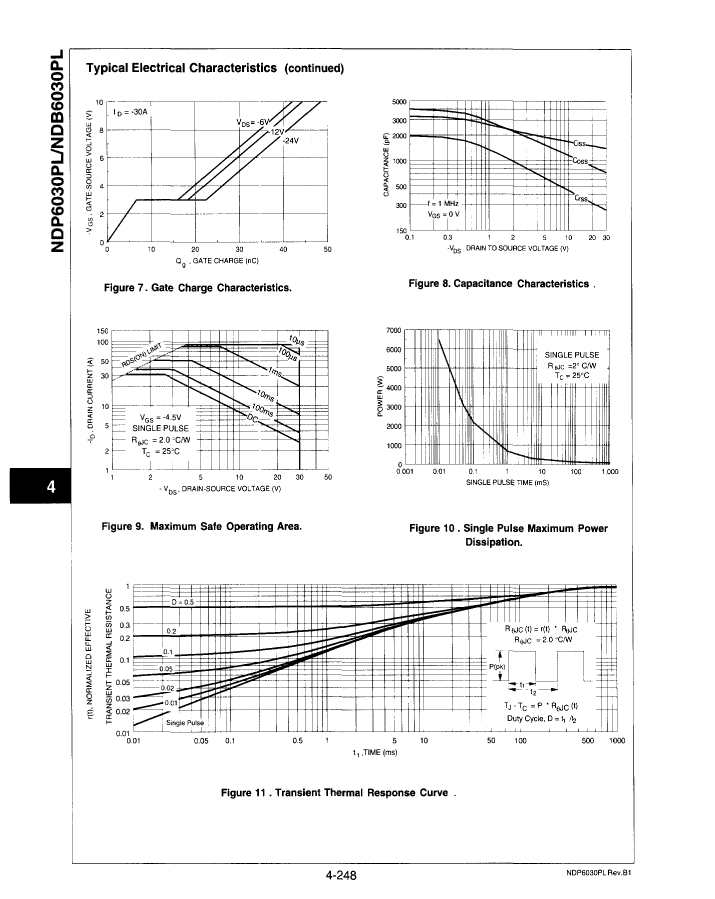

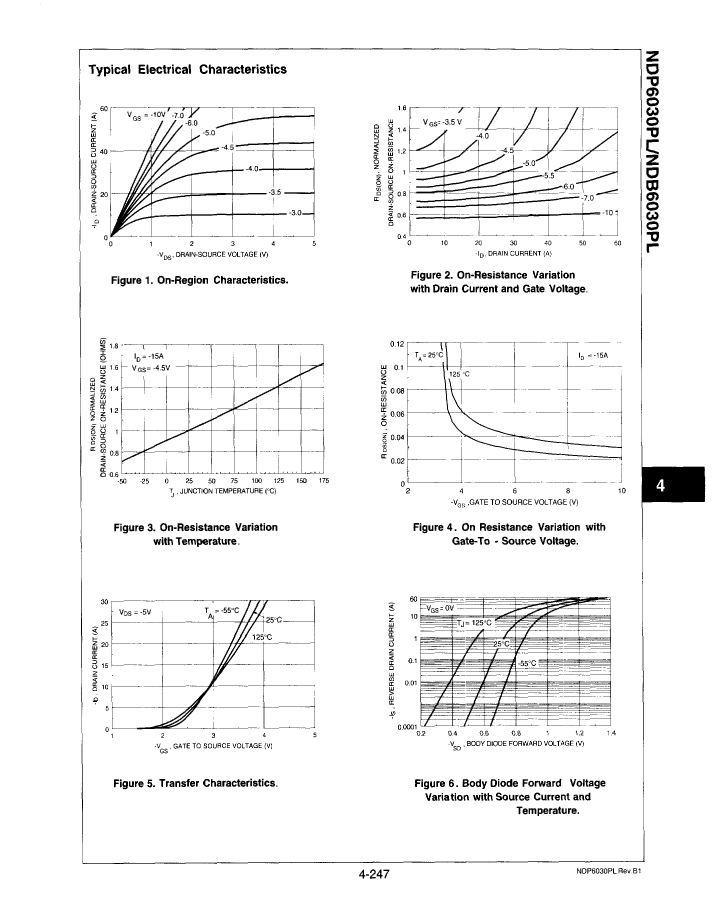

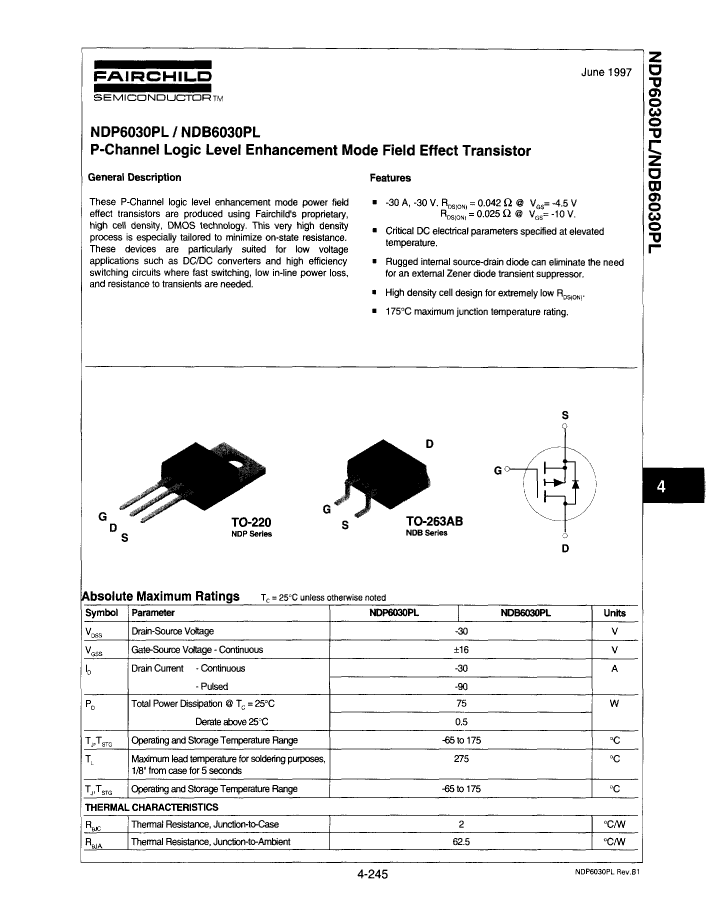

NDP6030PLS62Z Overview

Power Field-Effect Transistor, 30A I(D), 30V, 0.025ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220, 3 PIN

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	TO-220AB
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	30 V
Maximum drain current (ID)	30 A
Maximum drain-source on-resistance	0.025 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	175 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	P-CHANNEL
Maximum pulsed drain current (IDM)	90 A
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON

	NDP6030PLS62Z	NDB6030PLL86Z
Description	Power Field-Effect Transistor, 30A I(D), 30V, 0.025ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220, 3 PIN	Power Field-Effect Transistor, 30A I(D), 30V, 0.025ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB,
Maker	Fairchild	Fairchild
package instruction	FLANGE MOUNT, R-PSFM-T3	SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	30 V	30 V
Maximum drain current (ID)	30 A	30 A
Maximum drain-source on-resistance	0.025 Ω	0.025 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-220AB	TO-263AB
JESD-30 code	R-PSFM-T3	R-PSSO-G2
Number of components	1	1
Number of terminals	3	2
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	175 °C	175 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	SMALL OUTLINE
Polarity/channel type	P-CHANNEL	P-CHANNEL
Maximum pulsed drain current (IDM)	90 A	90 A
Certification status	Not Qualified	Not Qualified
surface mount	NO	YES
Terminal form	THROUGH-HOLE	GULL WING
Terminal location	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
