PF201UEBM03KQ22 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> PF201UEBM03KQ22

PF201UEBM03KQ22: DescriptionKEYLOCK SWITCH, DP3T, LATCHED, 4A, 28VDC, PANEL MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size252KB，4 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric Compare View All

PF201UEBM03KQ22 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PF201UEBM03KQ22	-	-	View	Buy Now

PF201UEBM03KQ22 Overview

KEYLOCK SWITCH, DP3T, LATCHED, 4A, 28VDC, PANEL MOUNT, ROHS COMPLIANT

PF201UEBM03KQ22 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	C&K
package instruction	ROHS COMPLIANT
Reach Compliance Code	not_compliant
ECCN code	EAR99
Actuator color	BLACK
Executor completed	MATTE
Actuator material	NYLON
Actuator type	KEYLOCK
Other features	ROHS COMPLIANT
body height	15.62 mm
Body length or diameter	15.88 mm
center contact material	COPPER
Center contact plating	SILVER
Contact (AC) maximum rated R load	4A@128VAC
Maximum contact current (AC)	4 A
Maximum contact current (DC)	4 A
Contact (DC) maximum rated R load	4A@28VDC
Contact resistance	0.1 mΩ
Maximum contact voltage (AC)	128 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VRMS V
Electrical life	10000 Cycle(s)
End contact material	COPPER
End contact plating	SILVER
Shell material	NYLON
Graduation angle	45 deg
Insulation resistance	1000000000 Ω
JESD-609 code	e4
Installation features	PANEL MOUNT
Number of independent keys	1
Number of positions	2
Number of switching segments	1
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	LATCHED
switch function	DP3T
Switch type	KEYLOCK SWITCH
Terminal surface	Silver (Ag)
Terminal length	0.23 inch
Terminal material	COPPER
Termination type	SOLDER

Preview

Download Datasheet

View All

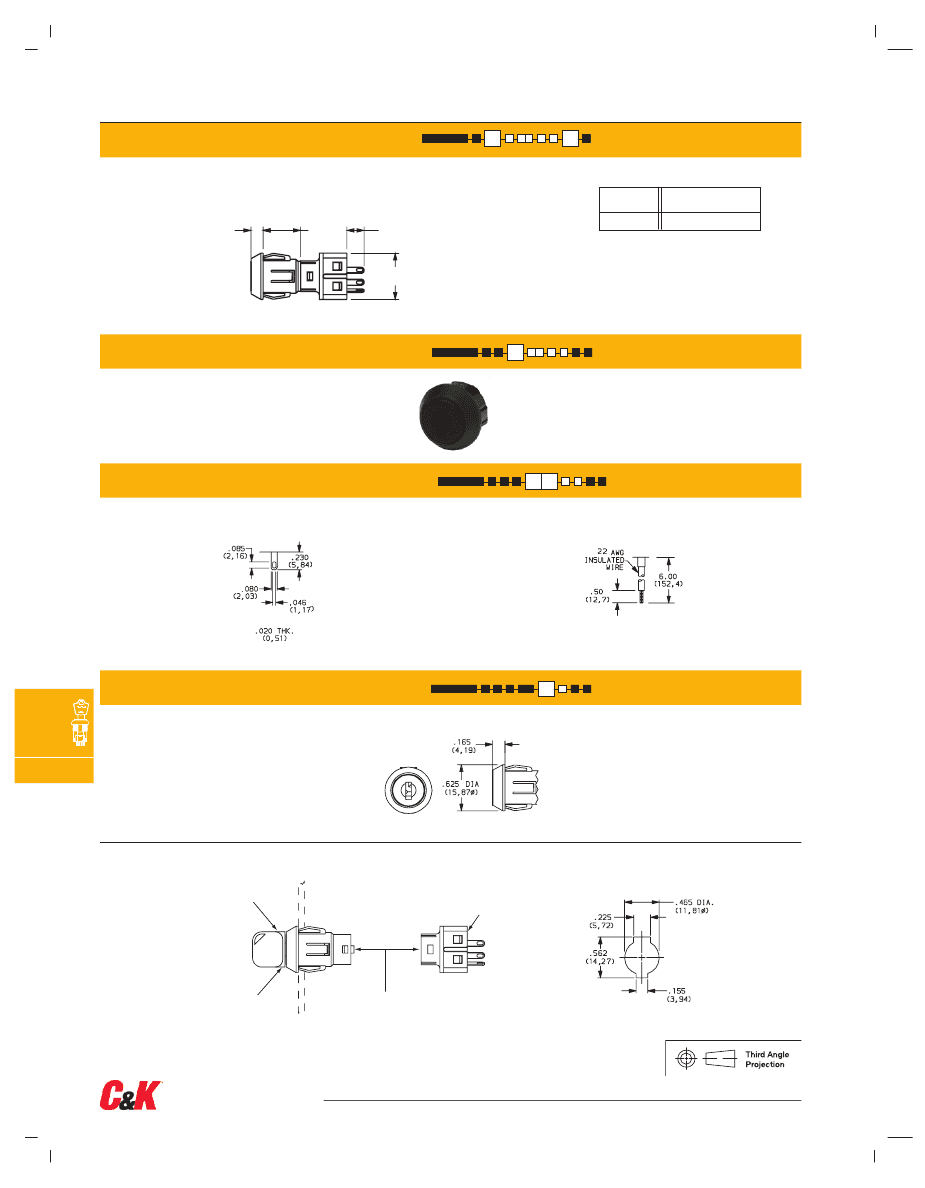

PF Series

5 Tumbler Miniature Snap-in Switchlocks

Features/Benefits

•

Snap-in mounting

•

Multi-pole and multi-position

•

Positive detent

Typical Applications

•

Computers

•

Point-of-sale terminals

•

Instrumentation

Models Available

Specifications

CONTACT RATING: Q contact material: 4 AMPS @ 125 V AC or

28 V DC; 2 AMPS @ 250 V AC (UL/CSA). See page L-25 for

additional ratings.

ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.

CONTACT RESISTANCE: Below 10 m

Ω

typ. initial @

2-4 V DC, 100 mA, for both silver and gold plated contacts.

INSULATION RESISTANCE: 109

Ω

min.

DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.

INDEXING: 45º: 3 positions, 90º:2 positions.

Materials

LOCK: 6/6 nylon with matte finish (UL 94V-2), black,

5 tumbler, single bitted lock with integral detent mechanism.

KEYS: Two nickel plated brass keys with black plastic head.

SWITCH HOUSING: 6/6 nylon (UL 94V-2).

CONTACTS & TERMINALS: Q contact material: Copper, silver plated.

See page L-25 for additional contact materials.

TERMINAL SEAL: Epoxy.

NOTE:

Any models supplied with Q or B contact material are RoHS compliant.

NOTE:

Specifications and materials listed above are for switchlocks with standard options.

For information on specific and custom switchlocks, consult Customer Service Center.

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages L–23 through L–25. For additional options not shown in catalog, consult Customer Service Center.

Switch and lock Function

PF011U

SP, 90º Index, keypull pos. 1 & 2

PF201U

DP, 45º Index, keypull pos. 1 & 3

PF211U

DP, 90º Index, keypull pos. 1 & 2

Keying

Two nickel plated

brass keys with insert

molded plastic head

Lock Type

5 Tumbler lock

with detent

Lock Finish

Plastic lock with matte finish

Terminations

Solder lug with hole

Wire lead

Switchlock

Lock Style

Cone shaped facing

Contact Material

Silver

Gold

Lock Color

Black

Key Color

Black

Dimensions are shown: Inch (mm)

Specifications and dimensions subject to change

L–22

www.ck-components.com

PF201UEBM03KQ22 Related Products

	PF201UEBM03KQ22	PF211UEBM03KQ22	PF011UEBM03KQ22
Description	KEYLOCK SWITCH, DP3T, LATCHED, 4A, 28VDC, PANEL MOUNT, ROHS COMPLIANT	KEYLOCK SWITCH, DPDT, LATCHED, 4A, 28VDC, PANEL MOUNT, ROHS COMPLIANT	KEYLOCK SWITCH, SPDT, LATCHED, 4A, 28VDC, PANEL MOUNT, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	C&K	C&K	C&K
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99
Actuator color	BLACK	BLACK	BLACK
Executor completed	MATTE	MATTE	MATTE
Actuator material	NYLON	NYLON	NYLON
Actuator type	KEYLOCK	KEYLOCK	KEYLOCK
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body height	15.62 mm	15.62 mm	15.62 mm
Body length or diameter	15.88 mm	15.88 mm	15.88 mm
center contact material	COPPER	COPPER	COPPER
Center contact plating	SILVER	SILVER	SILVER
Contact (AC) maximum rated R load	4A@128VAC	4A@128VAC	4A@128VAC
Maximum contact current (AC)	4 A	4 A	4 A
Maximum contact current (DC)	4 A	4 A	4 A
Contact (DC) maximum rated R load	4A@28VDC	4A@28VDC	4A@28VDC
Contact resistance	0.1 mΩ	0.1 mΩ	0.1 mΩ
Maximum contact voltage (AC)	128 V	128 V	128 V
Maximum contact voltage (DC)	28 V	28 V	28 V
Dielectric withstand voltage	1000VRMS V	1000VRMS V	1000VRMS V
Electrical life	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)
End contact material	COPPER	COPPER	COPPER
End contact plating	SILVER	SILVER	SILVER
Shell material	NYLON	NYLON	NYLON
Graduation angle	45 deg	90 deg	90 deg
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
JESD-609 code	e4	e4	e4
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Number of independent keys	1	1	1
Number of positions	2	2	2
Number of switching segments	1	1	1
seal	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED
surface mount	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED
switch function	DP3T	DPDT	SPDT
Switch type	KEYLOCK SWITCH	KEYLOCK SWITCH	KEYLOCK SWITCH
Terminal surface	Silver (Ag)	Silver (Ag)	Silver (Ag)
Terminal length	0.23 inch	0.23 inch	0.23 inch
Terminal material	COPPER	COPPER	COPPER
Termination type	SOLDER	SOLDER	SOLDER
