2SD2123LC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SD2123LC

2SD2123LC: DescriptionSmall Signal Bipolar Transistor, 1.5A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon; CategoryDiscrete semiconductor The transistor; File Size221KB，4 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

2SD2123LC Overview

Small Signal Bipolar Transistor, 1.5A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon

2SD2123LC Parametric

Parameter Name	Attribute value
package instruction	IN-LINE, R-PSIP-T3
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	1.5 A
Collector-emitter maximum voltage	160 V
Configuration	SINGLE
Minimum DC current gain (hFE)	100
JESD-30 code	R-PSIP-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	NPN
Maximum power dissipation(Abs)	18 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	180 MHz
Base Number Matches	1

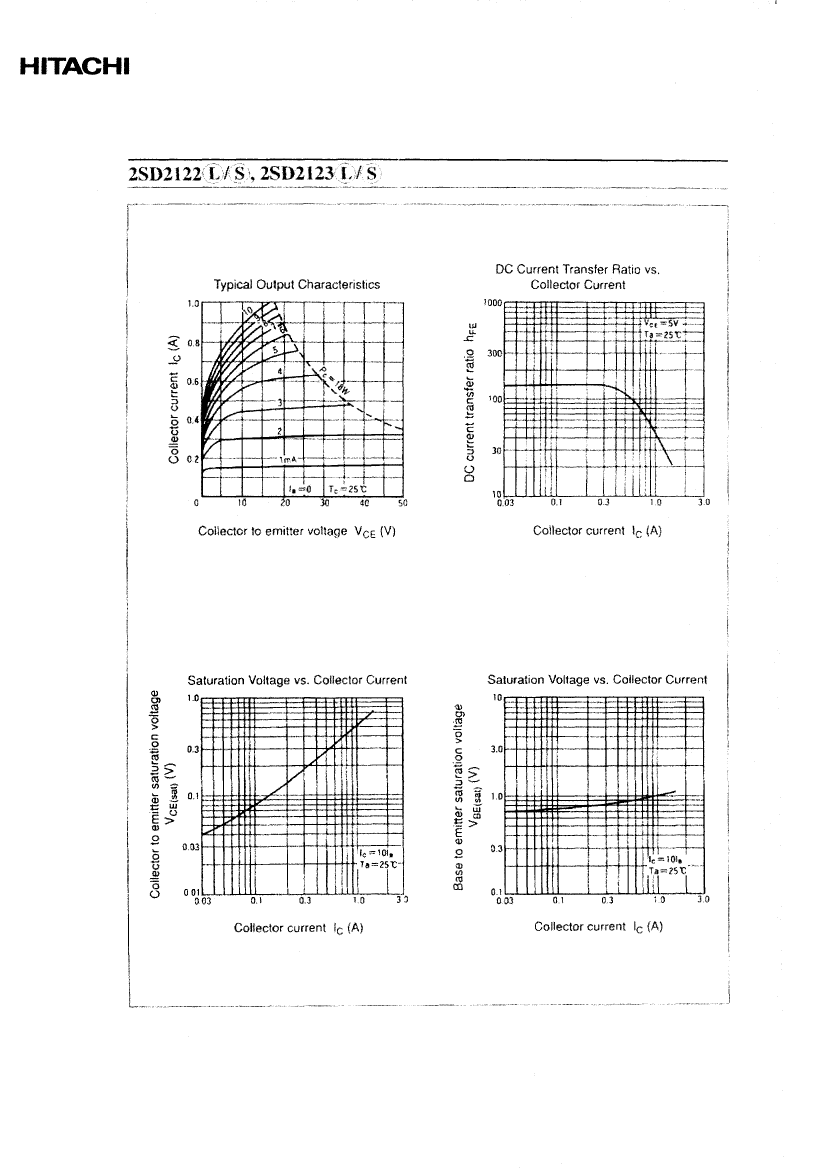

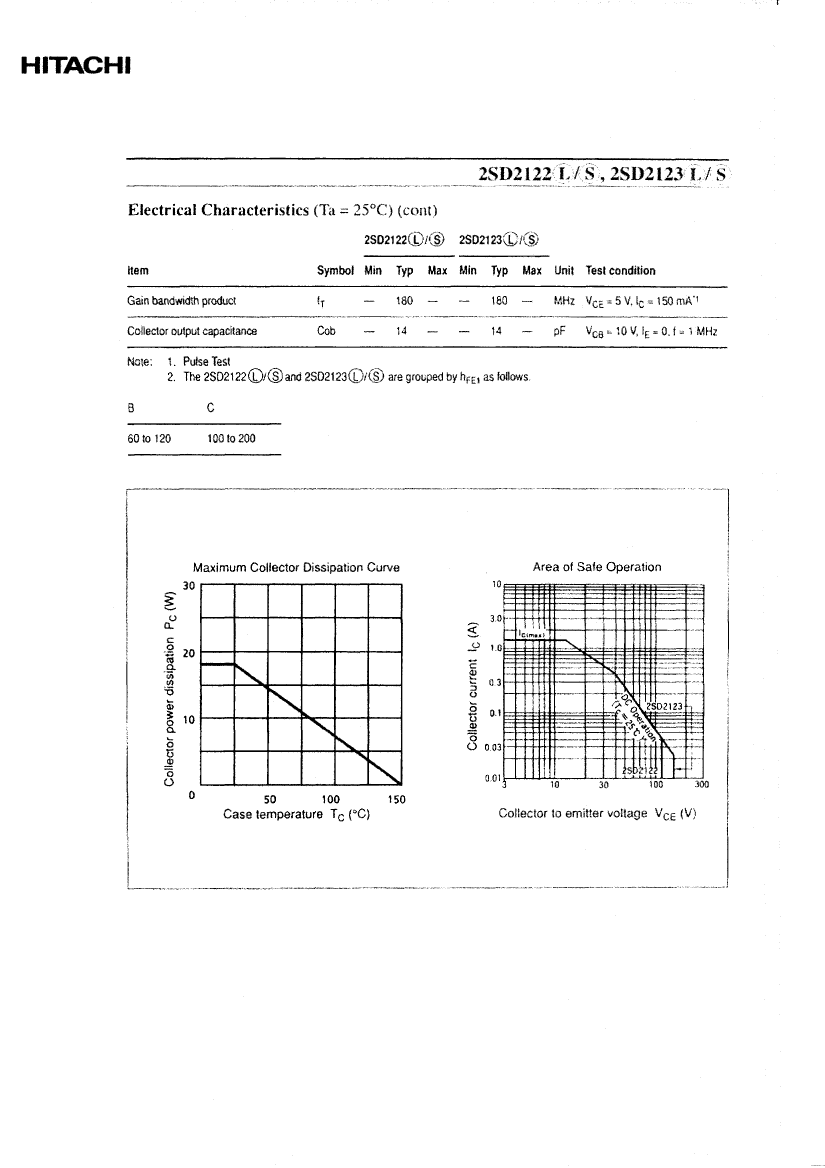

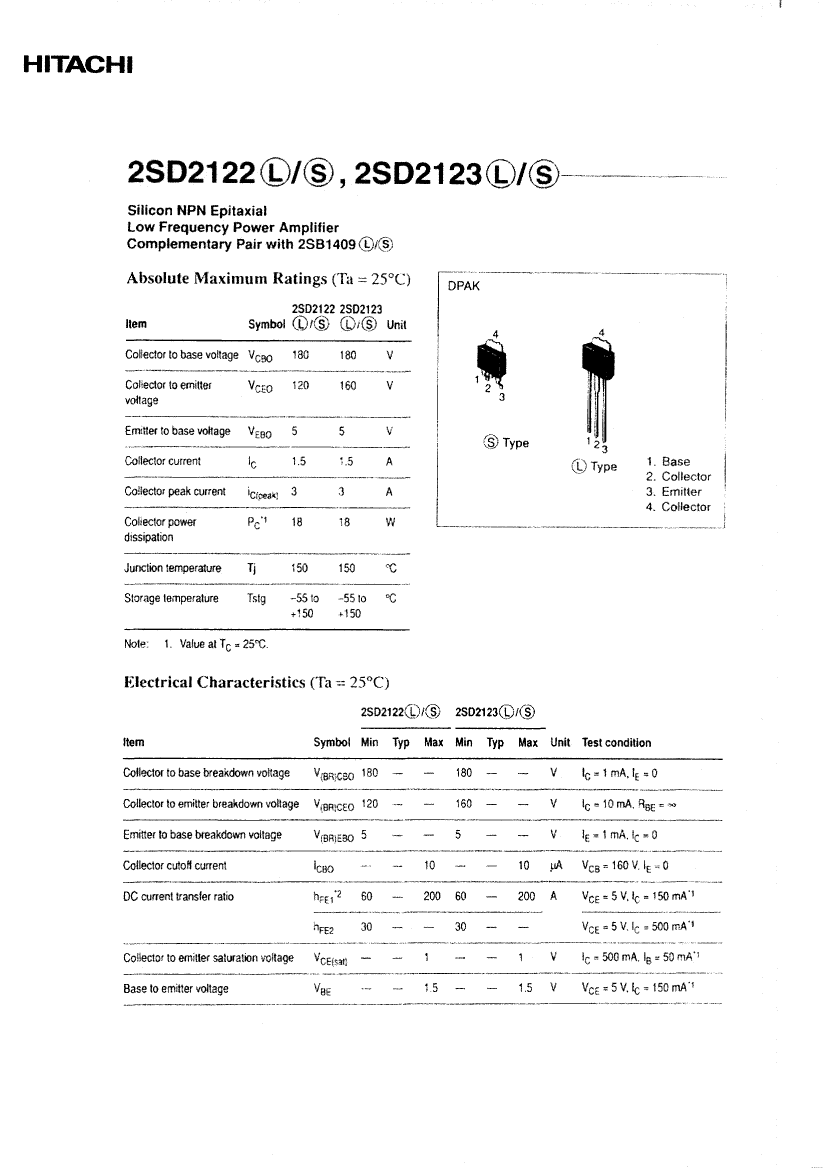

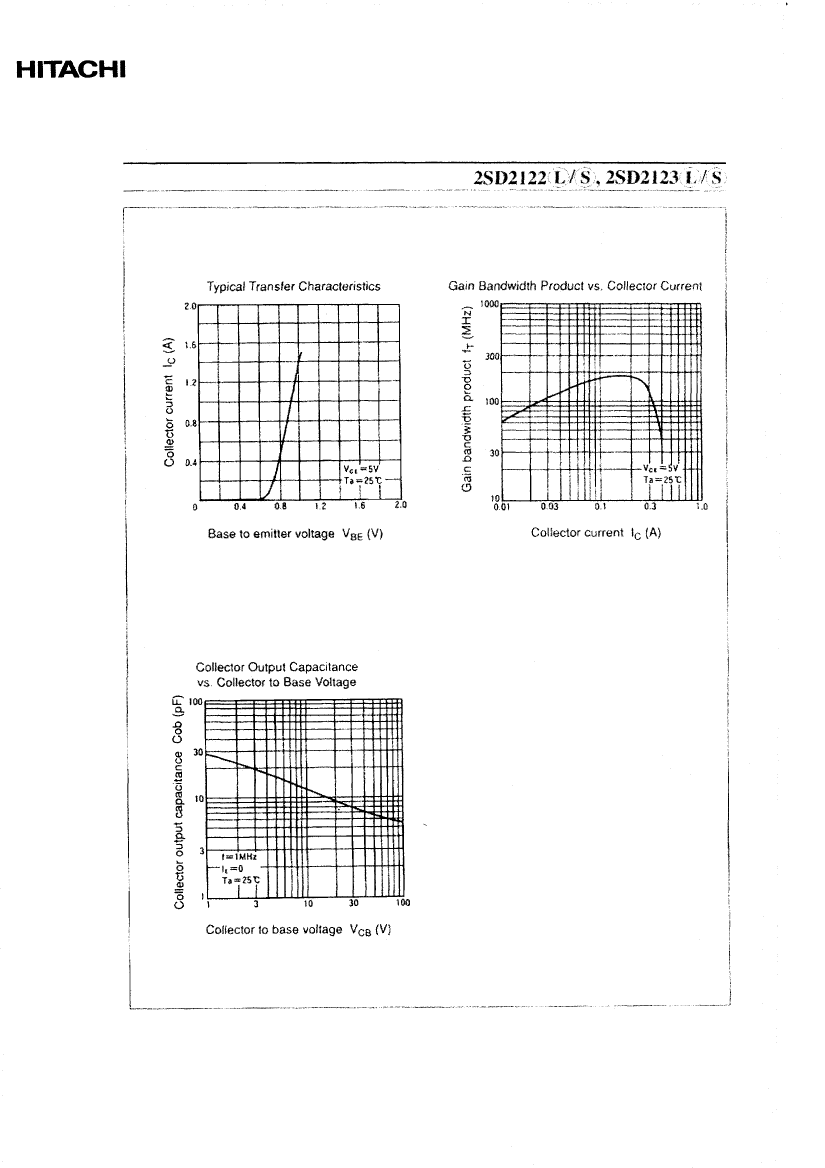

Preview

Download Datasheet

View All

2SD2123LC Related Products

	2SD2123LC	2SD2122LB	2SD2122LC	2SD2122SB	2SD2122SC	2SD2123SC	2SD2123SB	2SD2123LB
Description	Small Signal Bipolar Transistor, 1.5A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon	Small Signal Bipolar Transistor, 1.5A I(C), 120V V(BR)CEO, 1-Element, NPN, Silicon	Small Signal Bipolar Transistor, 1.5A I(C), 120V V(BR)CEO, 1-Element, NPN, Silicon	Small Signal Bipolar Transistor, 1.5A I(C), 120V V(BR)CEO, 1-Element, NPN, Silicon	Small Signal Bipolar Transistor, 1.5A I(C), 120V V(BR)CEO, 1-Element, NPN, Silicon	Small Signal Bipolar Transistor, 1.5A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon	Small Signal Bipolar Transistor, 1.5A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon	Small Signal Bipolar Transistor, 1.5A I(C), 160V V(BR)CEO, 1-Element, NPN, Silicon
package instruction	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	IN-LINE, R-PSIP-T3
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Collector-emitter maximum voltage	160 V	120 V	120 V	120 V	120 V	160 V	160 V	160 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	100	60	100	60	100	100	60	60
JESD-30 code	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSIP-T3
Number of components	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	2	2	2	2	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN	NPN	NPN
Maximum power dissipation(Abs)	18 W	18 W	18 W	18 W	18 W	18 W	18 W	18 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	YES	YES	YES	YES	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	180 MHz	180 MHz	180 MHz	180 MHz	180 MHz	180 MHz	180 MHz	180 MHz
Base Number Matches	1	1	1	1	1	1	1	1
