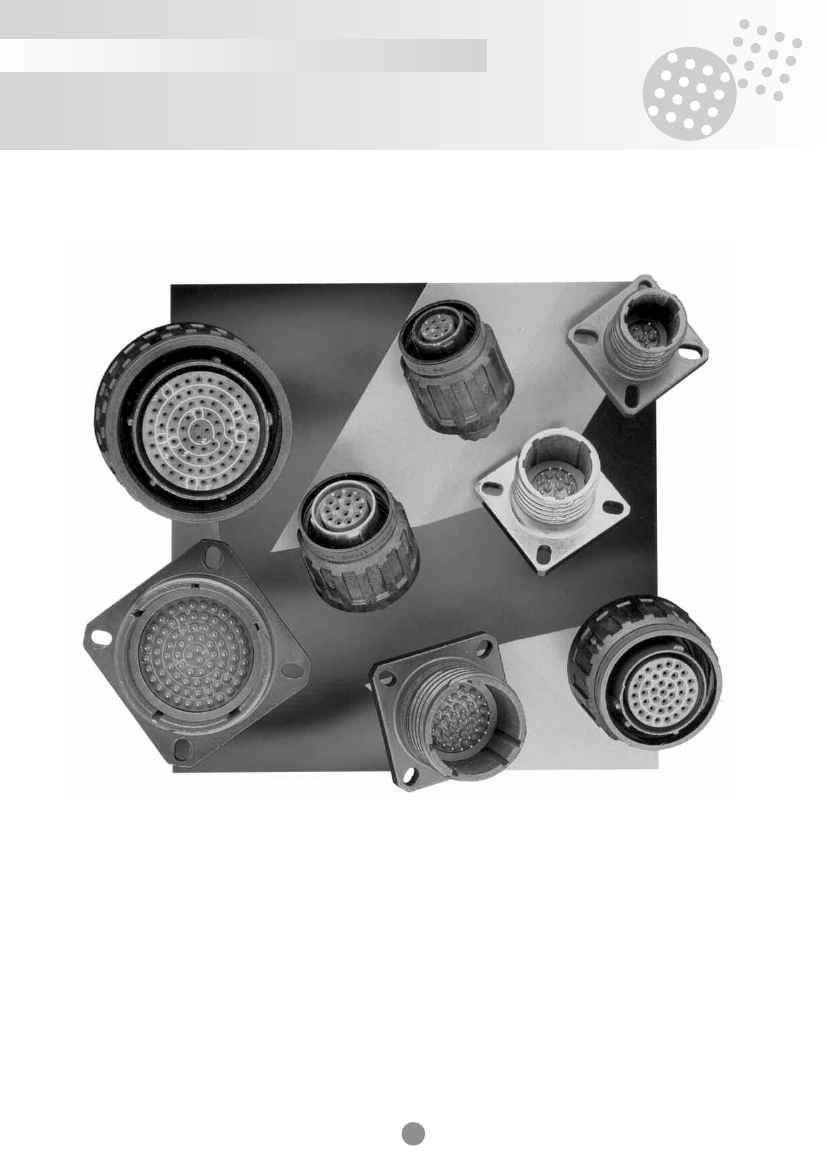

8D - D38999 Composite Series
Connector part numbers
Basic Series
8D
0
-
1
1
J
35
P
N
Shell style:
0:

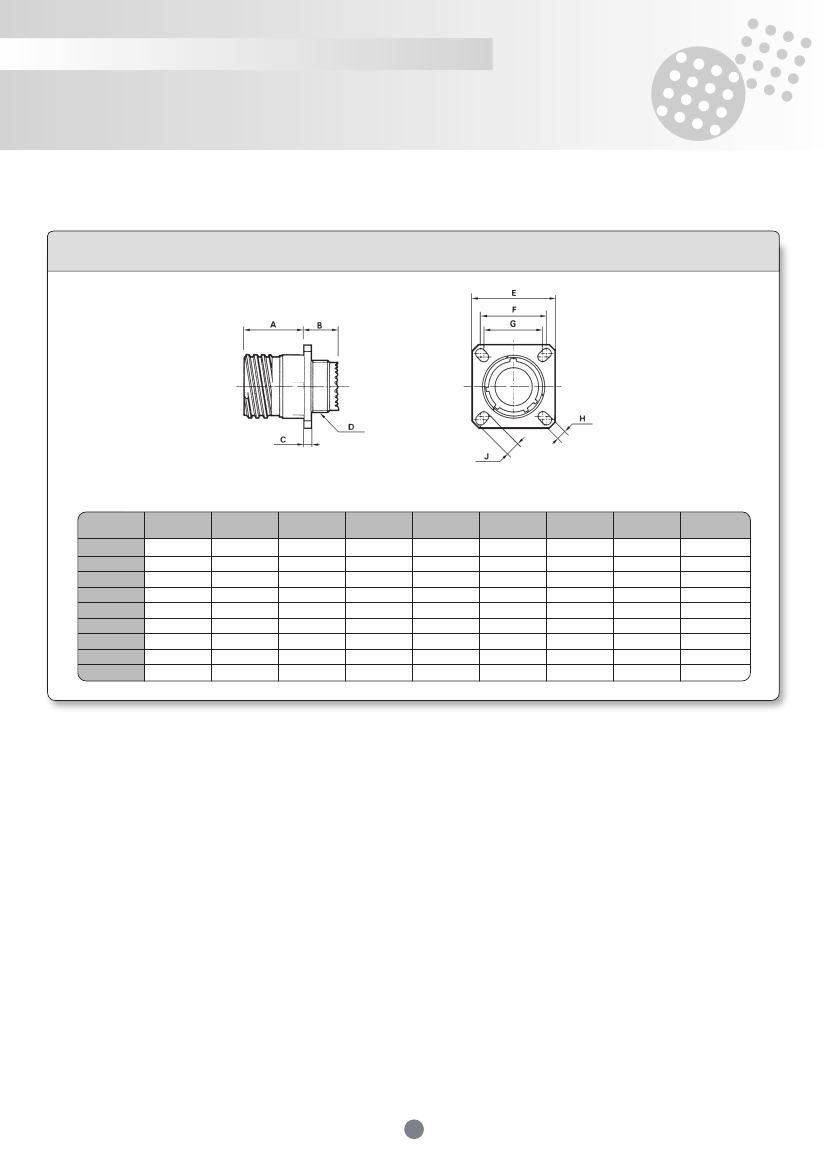

Square flange receptacle
5:

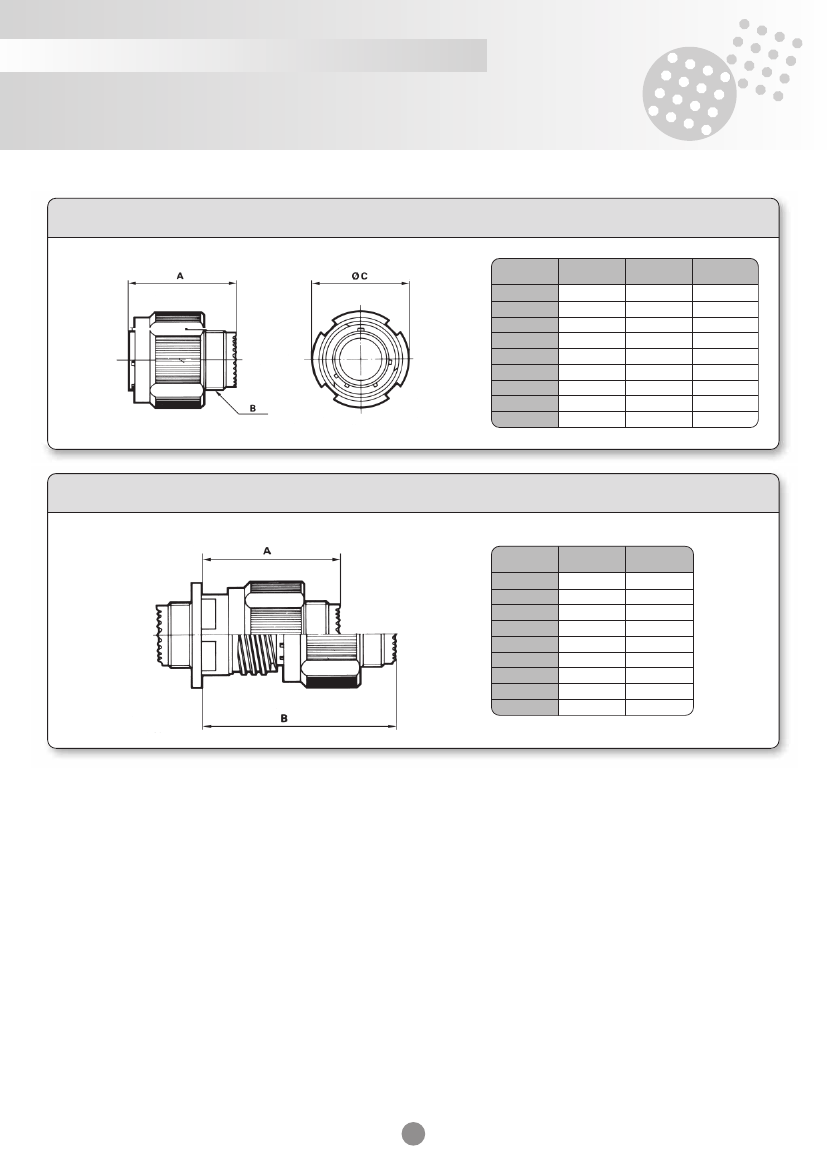

Plug with RFI shielding
Type:
None:
Connectors with standard crimp contacts.
L:
Receptacle with long spill (male and female size #22D, #20).
C:
Receptacle with short spill (male and female #22D, #20, #16).
S:
Receptacle with specific spill (male et female #22D)
W:
Receptacle with male contacts #22D for wire wrap (3 wraps)
T:
Receptacle with male contacts #20 for wire wrap (2 wraps)
P:
Receptacle with solder cup (male and female size #22D; male #16 & #1
2;
female #16 & #1 and male female #20 please consult us)
2
Shell size:
09 - 1 - 1 - 1 - 1 - 19 - 21 - 23 - 25
1 3 5 7
Plating:
J:
Olive drab cadmium
M:
Nickel
X:
Without plating
Contact layout:
See page 10 to 1
3
Contact type:
P:
Pin (500 mating/unmating)
H:
Pin (1
500 mating/unmating)
A:
Connector supplied less pin contact or with specific contacts (connector marking: A + orientation)
S:
Socket (500 mating/unmating)
J:
Socket (1
500 mating/unmating)
B:
Connector supplied less socket contact or with specific contacts (connector marking: B + orientation)
Orientation:
N, A, B, C, D & E (see page 63)
Specification:
046:
Tinned straight spills
251:
Connector provided with power contacts (layouts with contact #8)
022:
Fuel tank
Special custom:
None:
Standard plastic cap
M:
Antistatic plastic cap
L:
For P or S contact type only, connectors delivered without contacts, connectors marking P or S plus orientation.
-
-
L
MIL-DTL-38999 part numbers*
Basic Series
D38999
20
M
Shell style:
20:
Square flange receptacle
26:
Plug with RFI shielding.
Plating:
J:
Olive drab cadmium
M:
Nickel
Shell size:
A - B - C - D - E - F - G - H - J
Contact layout:
See page 1 for layout according to MIL-DTL-38999
4
Contact type:
P:
Pin (500 mating/unmating)
H:
Pin (1
500 mating/unmating)
A:
Connector supplied less pin contact or with specific contacts (connector marking: A + orientation)
S:
Socket (500 mating/unmating)
J:
Socket (1
500 mating/unmating)
B:
Connector supplied less socket contact or with specific contacts (connector marking: B + orientation)
Orientation:
N, A, B, C, D & E (see page 63)
L:
For P or S contact type only, connector delevired without contacts, connector marking P or S (without L)
B
35
P
N
L
* Note: To place an order of MIL connectors delivered without MIL removable crimp contacts and keep P or S plus orientation marking,
it must be specify clearly on the order (by adding a suffix L at the end of the P/N or specified in comment).
