5962-01-286-1613 datasheet, PDF

5962-01-286-1613: DescriptionIC,SIMPLE-PLD,PLA-TYPE,TTL,DIP,20PIN,CERAMIC; CategoryProgrammable logic devices Programmable logic; File Size519KB，9 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

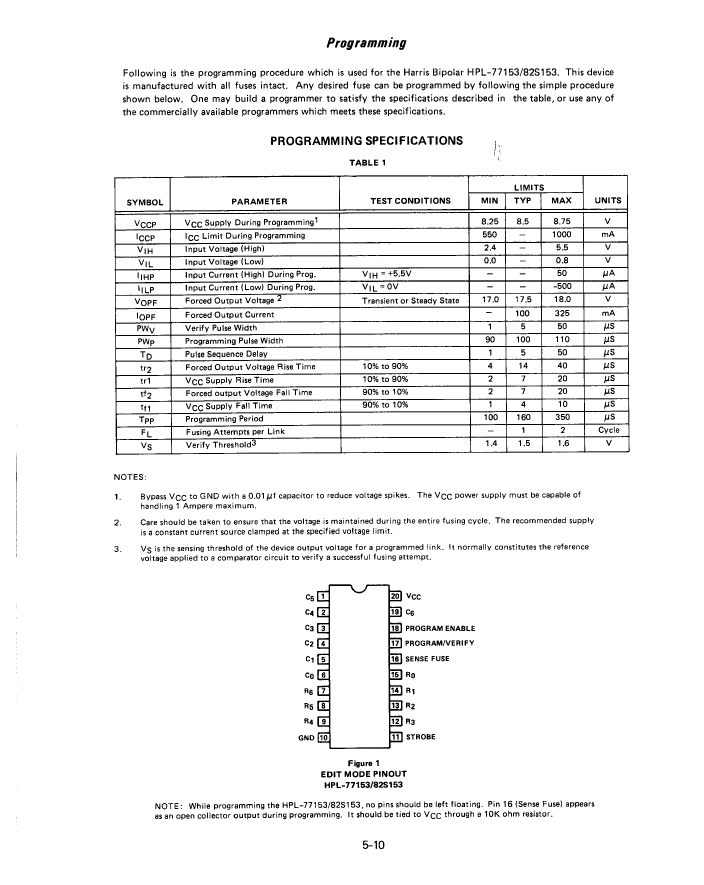

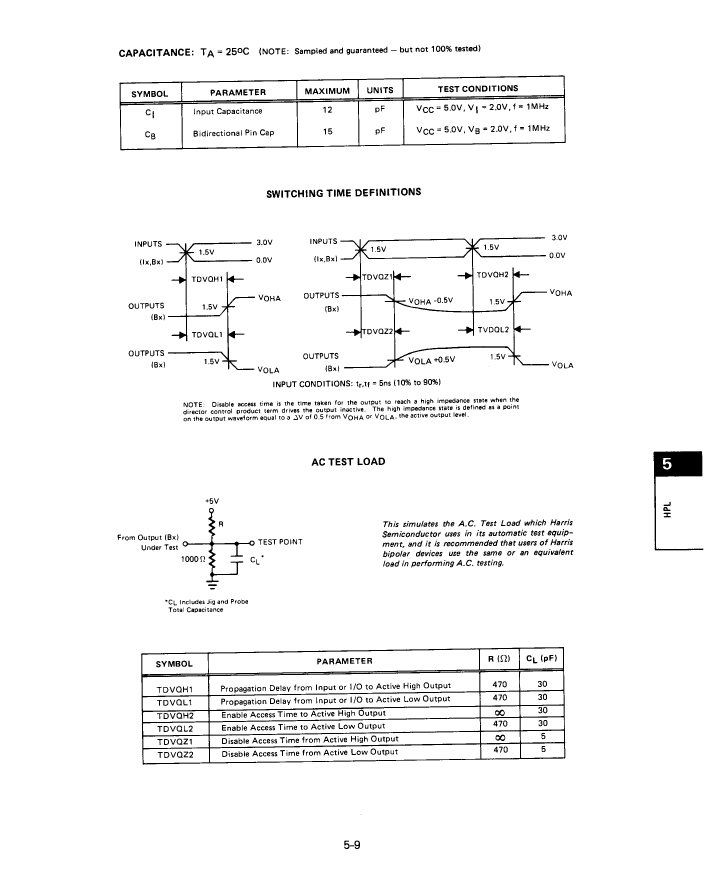

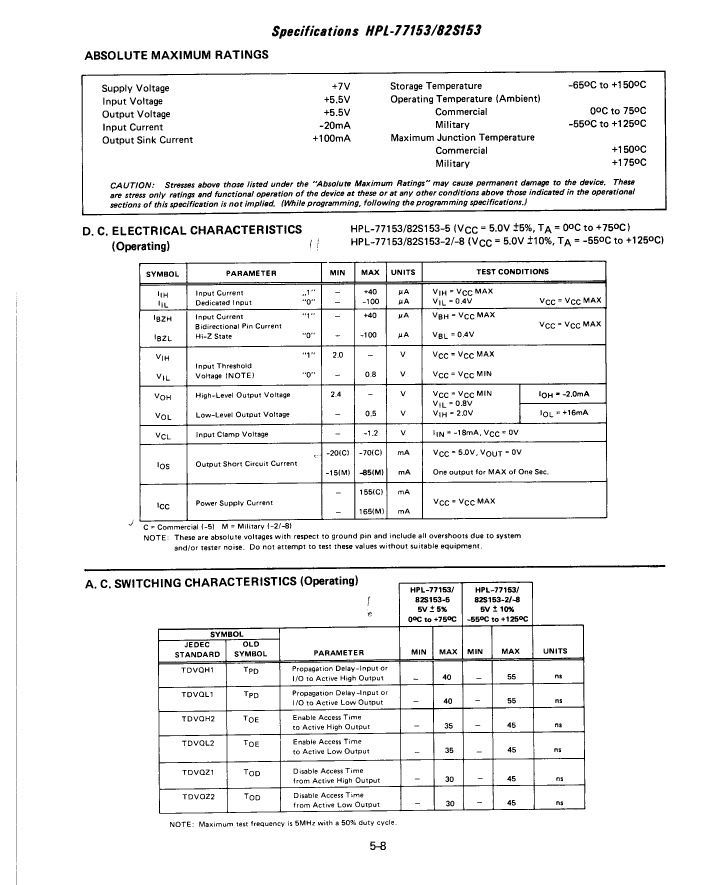

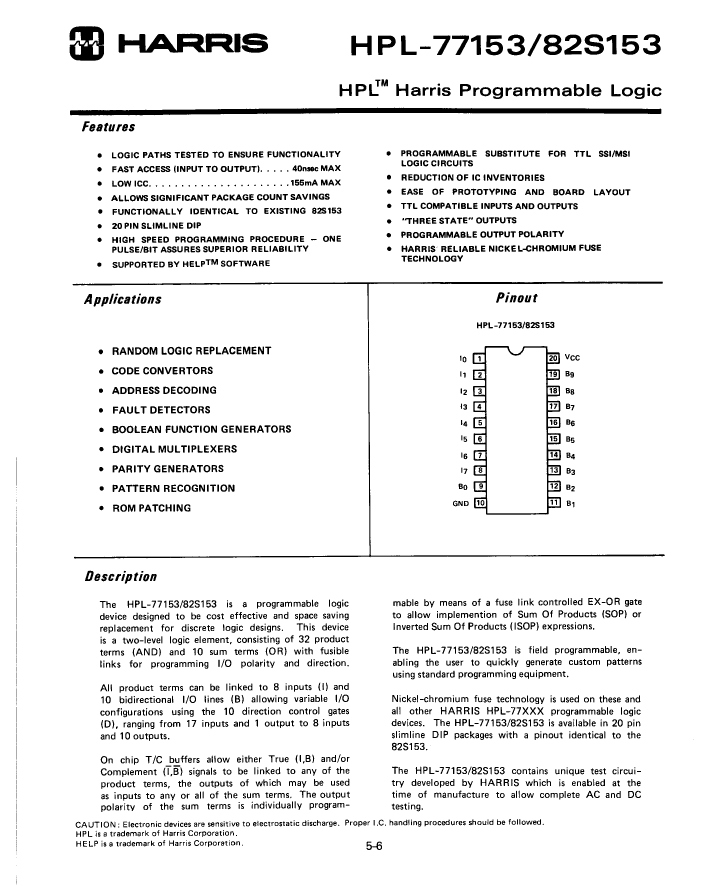

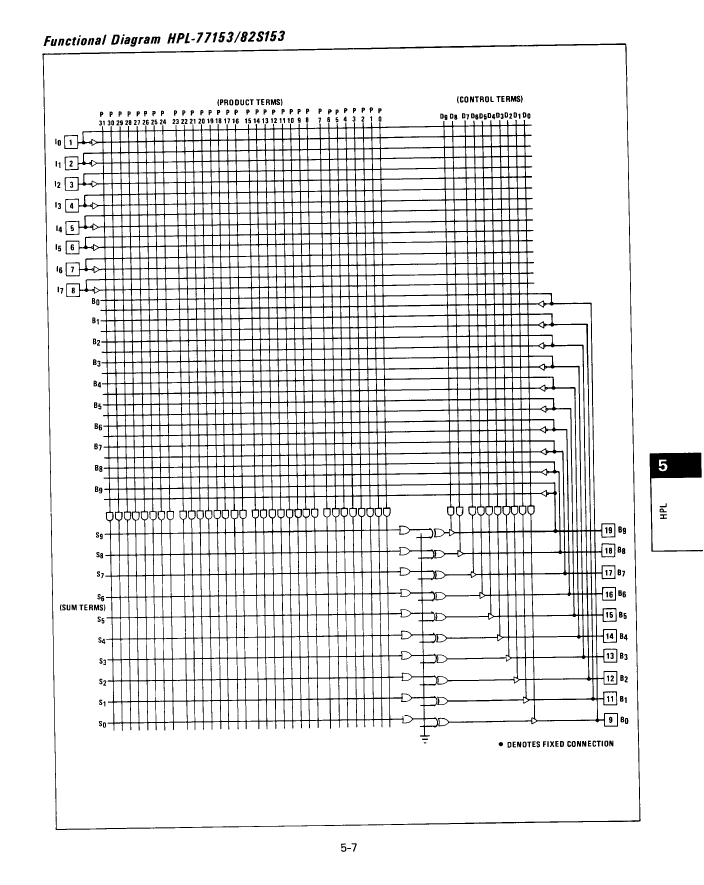

5962-01-286-1613 Overview

IC,SIMPLE-PLD,PLA-TYPE,TTL,DIP,20PIN,CERAMIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	DIP, DIP20,.3
Reach Compliance Code	not_compliant
ECCN code	3A001.A.2.C
Architecture	PLA-TYPE
JESD-30 code	R-XDIP-T20
Number of entries	18
Output times	10
Number of product terms	42
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Programmable logic type	OT PLD
propagation delay	55 ns
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)
Nominal supply voltage	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	5962-01-286-1613	0805CA105ZA11A	HPL1-77153-8	HPL1-77153-5	HPL3-77153-5
Description	IC,SIMPLE-PLD,PLA-TYPE,TTL,DIP,20PIN,CERAMIC	High Voltage MLC Chips	HPL1-77153-8	HPL1-77153-5	HPL3-77153-5
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Reach Compliance Code	not_compliant	-	not_compliant	_compli	_compli
Architecture	PLA-TYPE	-	PLA-TYPE	PLA-TYPE	PLA-TYPE
JESD-30 code	R-XDIP-T20	-	R-XDIP-T20	R-XDIP-T20	R-PDIP-T20
Number of entries	18	-	18	18	18
Output times	10	-	10	10	10
Number of product terms	42	-	42	42	42
Number of terminals	20	-	20	20	20
Maximum operating temperature	125 °C	-	125 °C	70 °C	70 °C
Package body material	CERAMIC	-	CERAMIC	CERAMIC	PLASTIC
encapsulated code	DIP	-	DIP	DIP	DIP
Encapsulate equivalent code	DIP20,.3	-	DIP20,.3	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	-	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	-	5 V	5 V	5 V
Programmable logic type	OT PLD	-	OT PLD	OT PLD	OT PLD
propagation delay	55 ns	-	55 ns	40 ns	40 ns
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	-	5 V	5 V	5 V
surface mount	NO	-	NO	NO	NO
technology	TTL	-	TTL	TTL	TTL
Temperature level	MILITARY	-	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	-	DUAL	DUAL	DUAL
JESD-609 code	-	-	e0	e0	e0
Terminal surface	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
