5229-09APB

Description
9 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SOLDER, RECEPTACLE
CategoryThe connector    The connector
File Size127KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

5229-09APB Overview

9 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SOLDER, RECEPTACLE

5229-09APB Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknow
Body/casing typeRECEPTACLE
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTIN
Contact point genderFEMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts9
UL Flammability Code94V-0
This document was generated on 06/04/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0022153093
Active
2.54mm (.100") Right Angle, Non-ZIF, Low Profile Receptacle, 9 Circuits
Agency Certification
UL
E29179
General
Product Family
Series
Overview
Product Name
FFC/FPC Connectors
5229
ffc_fpc_throughhole
N/A
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Physical
Circuits (Loaded)
Contact Position
Entry Angle
Flammability
Mated Height (in)
Mated Height (mm)
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
9
Bottom
90° Angle
94V-0
0.260 In
6.60 mm
1
Right Angle
0.142 In
3.60 mm
None
Tray
0.100 In
2.54 mm
No
No
No
-40°C to +105°C
Through Hole
FFC/FPC
Please vi
non-prod
Search
5229Se
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.5A, 1A
200V
Material Info
Old Part Number
5229-09APB
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
SPK-5229-001
PS-5229-003, PS-5229-004, PS-5229-005,
PS-5229-006, PS-5229-007

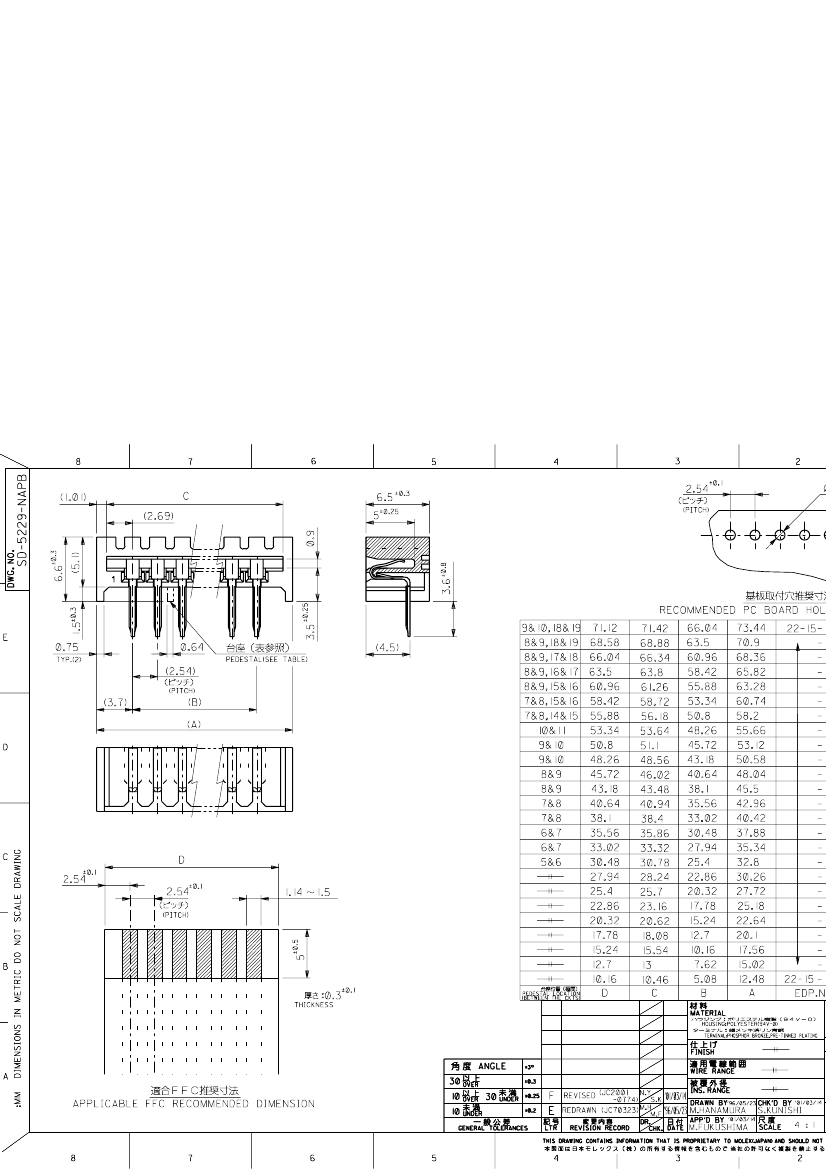

SD-5229-NAPB
This document was generated on 06/04/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
