70430-0222: Description13 CONTACT(S), FEMALE, FFC/FPC CONNECTOR; CategoryThe connector The connector; File Size134KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

70430-0222 Overview

13 CONTACT(S), FEMALE, FFC/FPC CONNECTOR

70430-0222 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (50)
Contact completed and terminated	GOLD (15) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Total number of contacts	13
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

Drawing (PDF)

0015474131

Active

cgrid__sl_products

2.54mm (.100") C-Grid SL™ Single Row, Female, Version C Receptacle, 13 Circuits

Product Specification PS-70430 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

UL

LR19880

E29179

General

Product Family

Series

Overview

Product Name

FFC/FPC Connectors

70430

cgrid__sl_products

SL™

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Flammability

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

13

Black

N/A

50

Vertical

94V-0

Phosphor Bronze

Gold

Tin

Polyester Alloy

1

Vertical

None

Tube

0.100 In

2.54 mm

15

0.375

75

1.875

No

Yes

-40°C to +105°C

IDT or Pierce

FFC/FPC

EU RoHS

ELV and

Complia

REACH S

Not Revi

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

Search

70430S

Mates

70544,

right an

Electrical

Current - Maximum per Contact

Voltage - Maximum

1A, 2A

250V

Material Info

Reference - Drawing Numbers

Product Specification

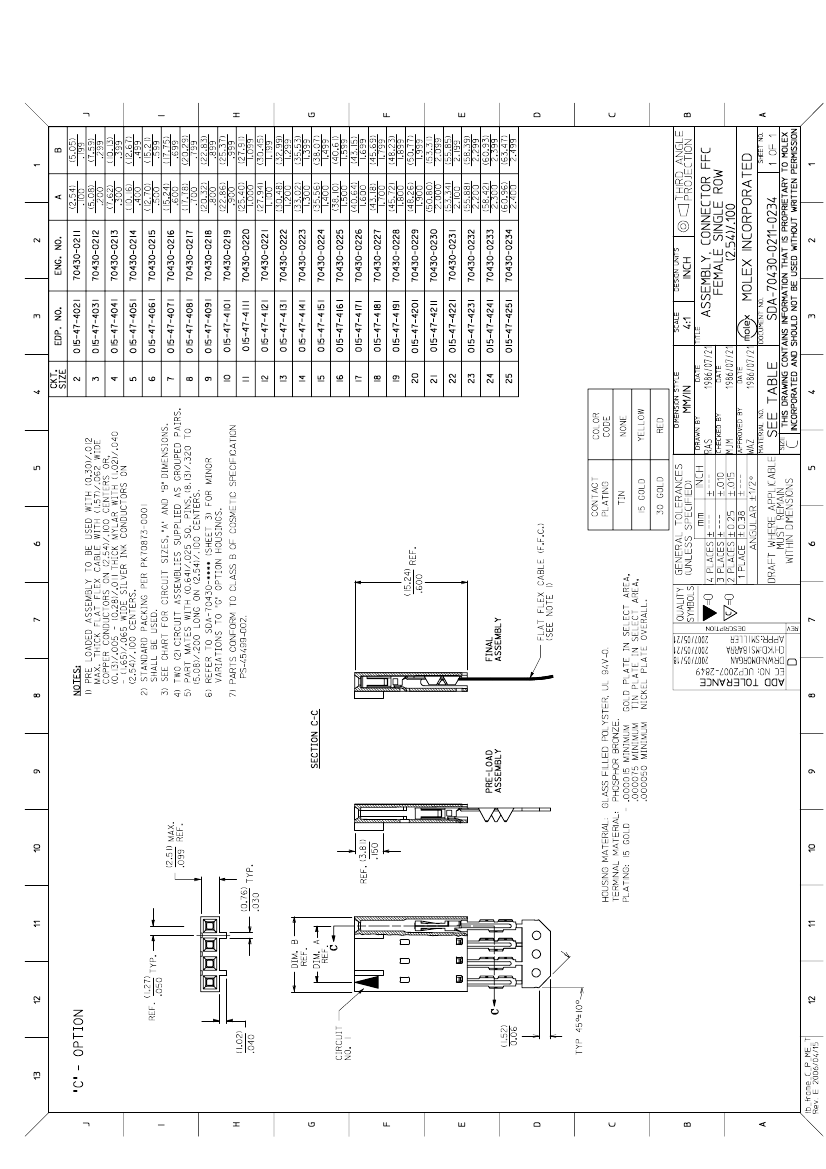

Sales Drawing

PS-70430

SDA-70430-0211-0234

Applic

Tooling

found b

Crimp H

contain

Specifi

Global

Descri

Tool Ki

Manua

Standa

Press f

70430-0222 Related Products

	70430-0222	015-47-4131
Description	13 CONTACT(S), FEMALE, FFC/FPC CONNECTOR	13 CONTACT(S), FEMALE, FFC/FPC CONNECTOR
Reach Compliance Code	unknow	unknown
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (50)	GOLD (15) OVER NICKEL (50)
Contact completed and terminated	GOLD (15) OVER NICKEL (50)	GOLD (15) OVER NICKEL (50)
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e4	e4
MIL compliance	NO	NO
Mixed contacts	NO	NO
Installation type	CABLE	CABLE
Number of rows loaded	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE
Total number of contacts	13	13
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
