71850-0129: Description2.54mm (.100") Pitch C-Grid垄莽 Receptacle, Through Hole, Dual Row, High Profile, Vertical, High-Temperature, 4 Circuits; File Size366KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

71850-0129 Overview

2.54mm (.100") Pitch C-Grid垄莽 Receptacle, Through Hole, Dual Row, High Profile, Vertical, High-Temperature, 4 Circuits

Preview

Download Datasheet

View All

This document was generated on 05/31/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0015445804

Active

cgrid__sl_products

2.54mm (.100") Pitch C-Grid® Receptacle, Through Hole, Dual Row, High Profile,

Vertical, High-Temperature, 4 Circuits

Documents:

3D Model

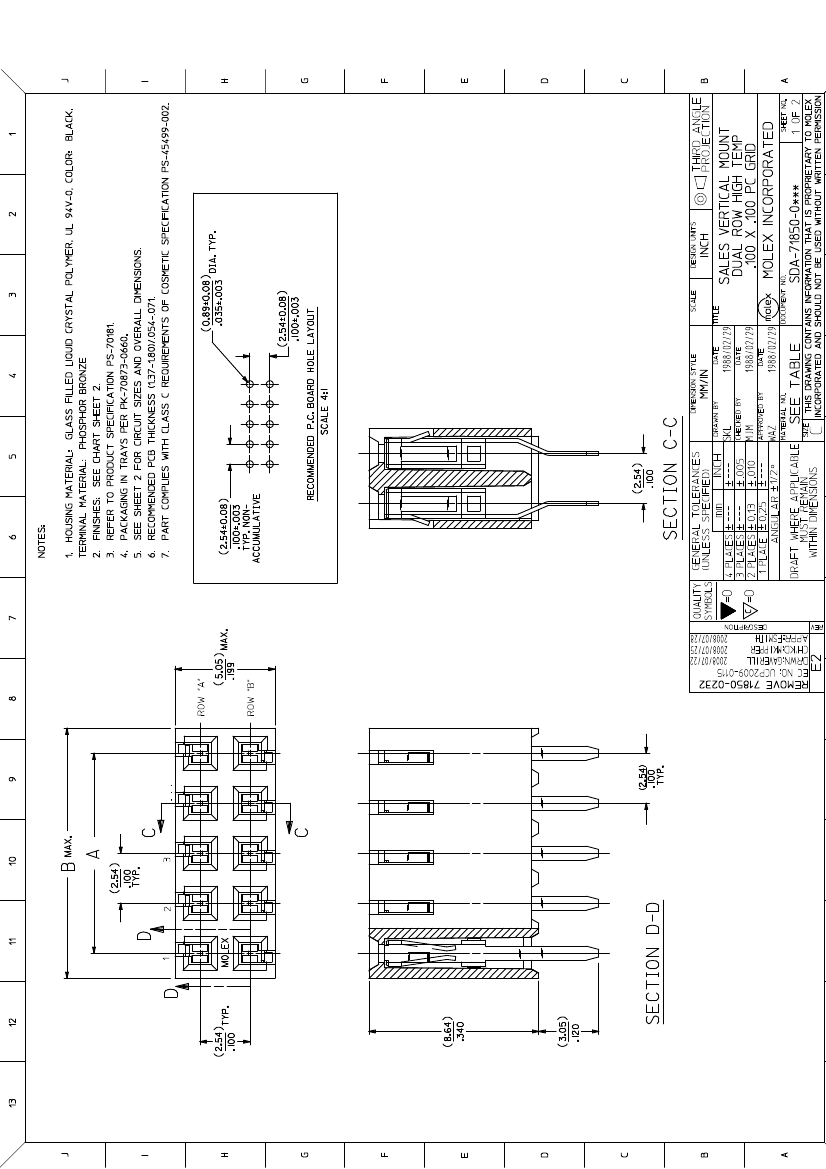

Drawing (PDF)

Product Specification PS-70181 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Overview

Product Name

PCB Receptacles

71850

Board-to-Board

cgrid__sl_products

C-Grid®

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Temperature Range - Operating

Termination Interface: Style

Black

94V-0

Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

Vertical

0.120 In

3.05 mm

None

0.062 In

1.60 mm

Tray

0.100 In

2.54 mm

0.375

1.875

-40°C to +105°C

Through Hole

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

71850S

Mates

8624 ,

70247

, 70227

8723 ,

, 71308

Electrical

Current - Maximum per Contact

Voltage - Maximum

2.5A

250V

Solder Process Data

Lead-free Process Capability

Process Temperature max. C

SMC & Wave Capable (TH only)

260
