A-2145-AA04B-102 datasheet, PDF

Datasheet> All Categories > The connector> A-2145-AA04B-102

A-2145-AA04B-102: Description4 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector; File Size167KB，8 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

A-2145-AA04B-102 Overview

4 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

A-2145-AA04B-102 Parametric

Parameter Name	Attribute value
Contact materials	BRASS/PHOSPHOR BRONZE
Terminal spacing	3.96 mm
Total number of contacts	4
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Manufacturer Series	2145
Contact surface matching	TIN (200) OVER COPPER
Contact coated terminals	TIN (200) OVER COPPER
Connection Type	TWO PART BOARD CONNECTOR
Connector male and female	FEMALE
collocation information	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of load rows	1
Terminal type	SOLDER
UL flammability code	94V-2

Preview

Download Datasheet

View All

This document was generated on 04/14/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

0009521046

Active

3.96mm (.156") Pitch KK® PC Board Connector, Right Angle, Nylon Connector, 5.0µm

(200µ") Tin (Sn), 4 Circuits

Documents:

3D Model

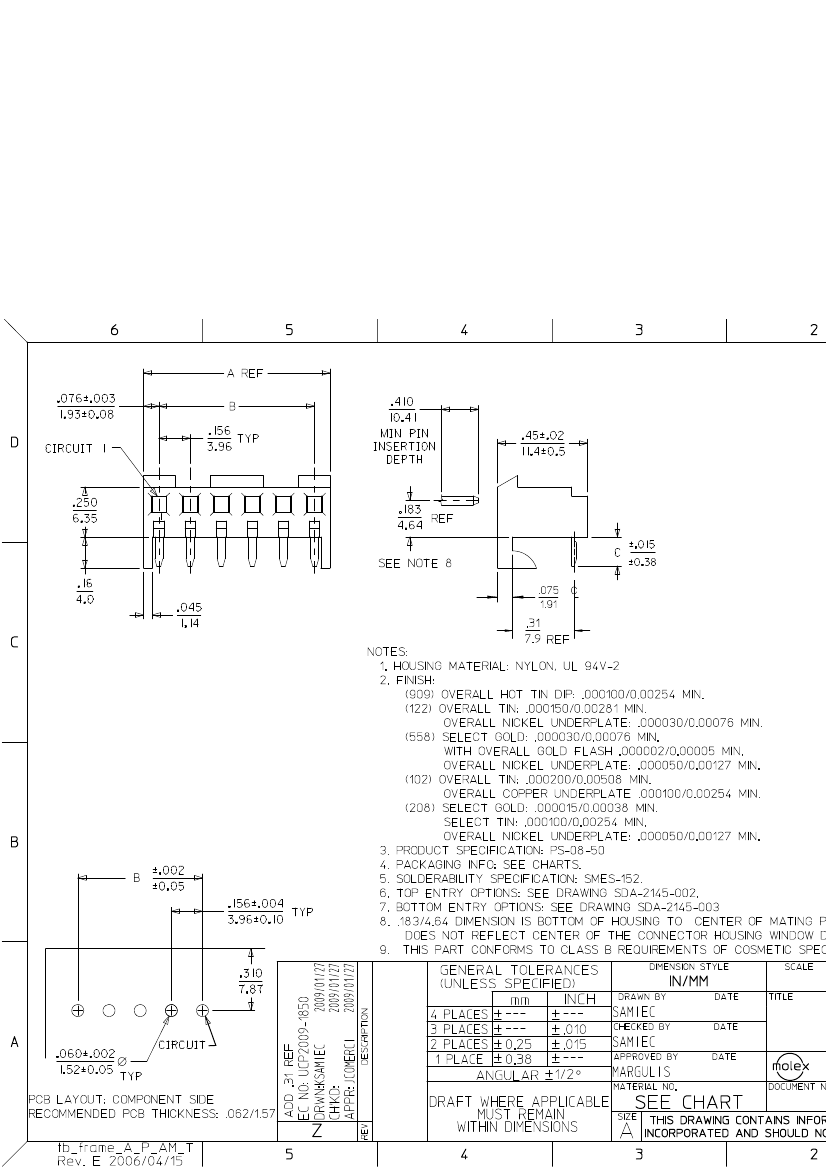

Drawing (PDF)

Product Specification PS-08-50 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

E29179

General

Product Family

Series

Application

Product Name

PCB Receptacles

2145

Board-to-Board

KK®

Physical

Circuits (Loaded)

Color - Resin

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Temperature Range - Operating

Termination Interface: Style

Natural

94V-2

Yes

Phosphor Bronze

Tin

Nylon

Right Angle

0.145 In

3.68 mm

Yes

0.062 In

1.60 mm

Bag, Tray

0.156 In

3.96 mm

200

5.00

200

5.00

Yes

0°C to +75°C

Through Hole

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

2145Se

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Solder Process Data

Duration at Max. Process Temperature (seconds)

Lead-free Process Capability

Max. Cycles at Max. Process Temperature

Process Temperature max. C

Wave Capable (TH only)

235
