A-7478-06A102: Description6 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector; File Size328KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

A-7478-06A102 Overview

6 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

A-7478-06A102 Parametric

Parameter Name	Attribute value
Contact materials	NOT SPECIFIED
Terminal spacing	2.54 mm
Total number of contacts	6
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Manufacturer Series	7478
Contact surface matching	TIN (200) OVER COPPER
Contact coated terminals	TIN (200) OVER COPPER
Connection Type	TWO PART BOARD CONNECTOR
Connector male and female	MALE
collocation information	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of load rows	1
Terminal type	SOLDER
UL flammability code	94V-0

Preview

Download Datasheet

View All

This document was generated on 04/09/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

0022053061

Active

2.54mm (.100") Pitch KK® Solid Header, Right Angle, with Friction Lock, 6 Circuits, Tin

(Sn) Plating

Documents:

3D Model

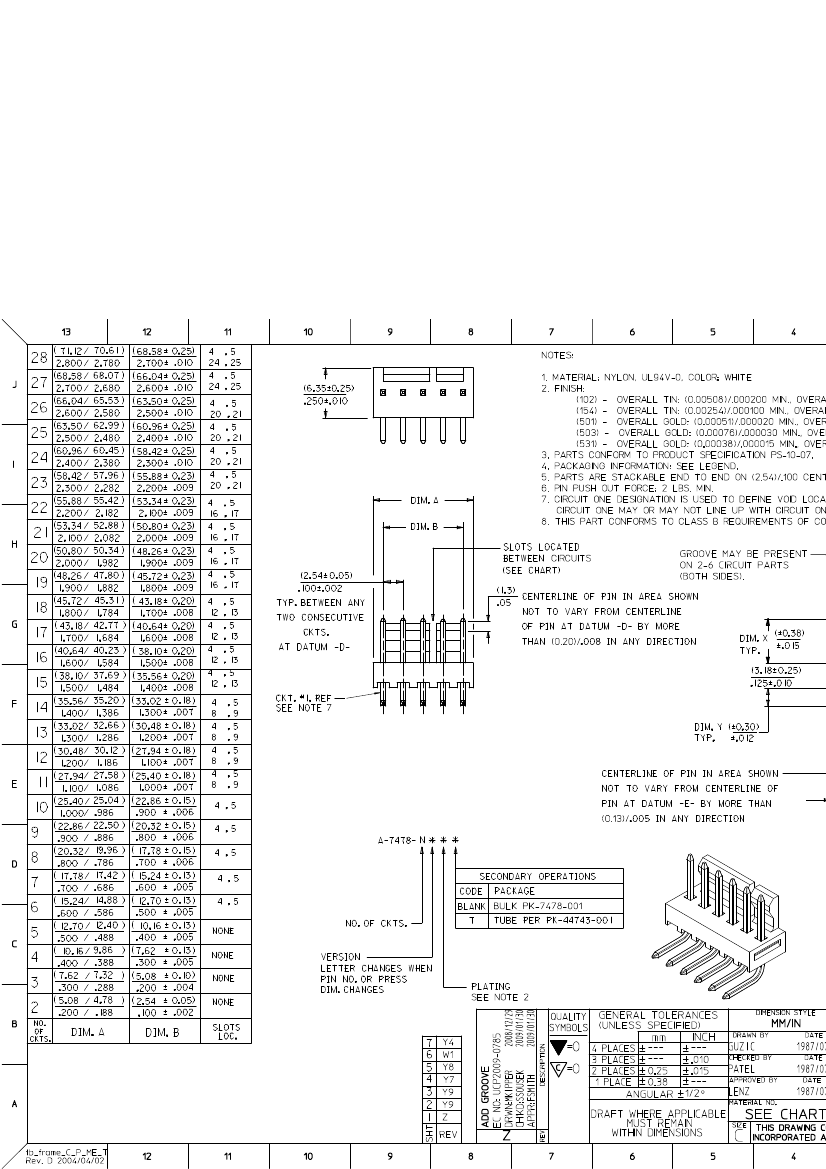

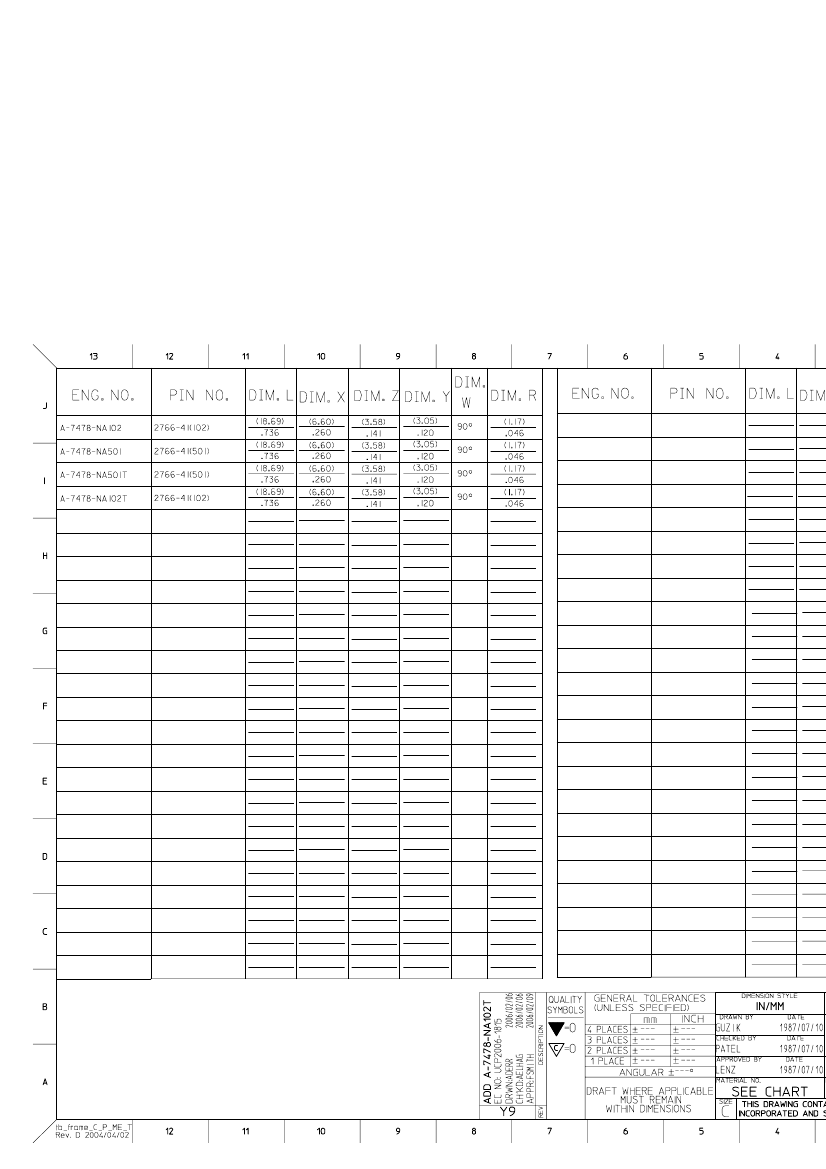

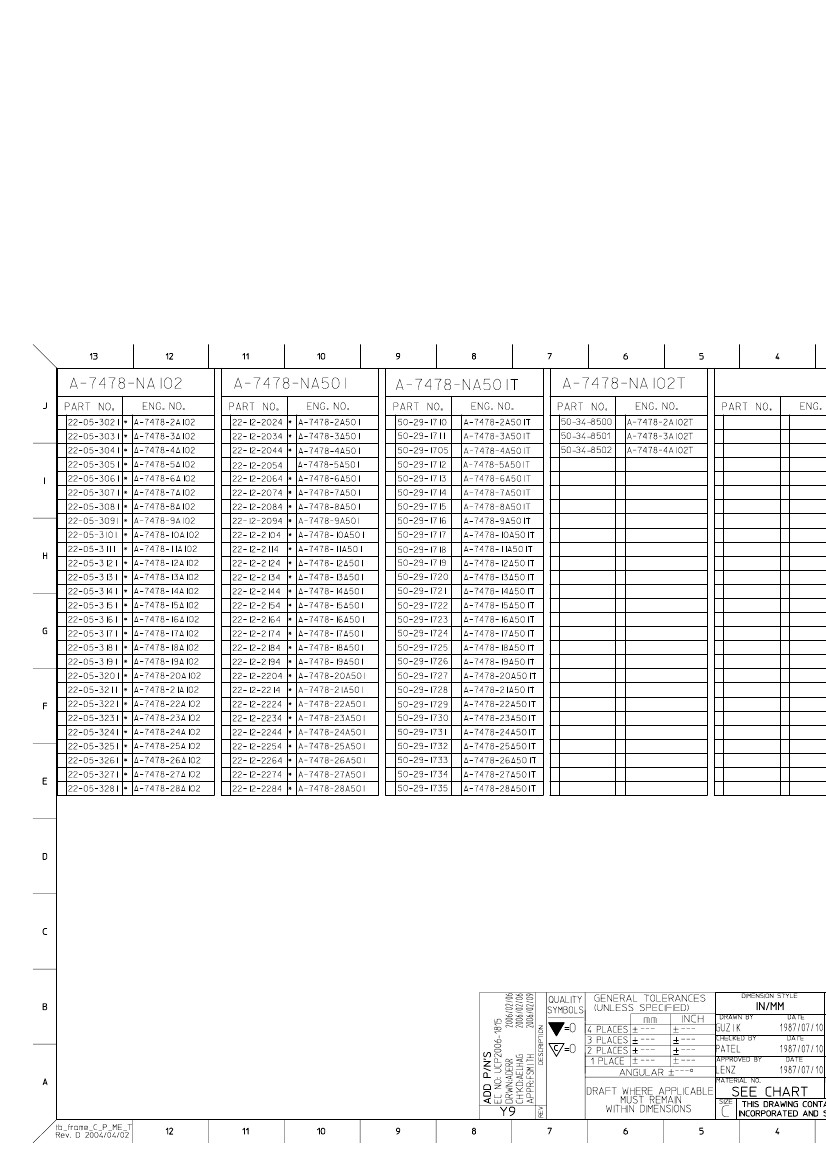

Drawing (PDF)

Product Specification PS-10-07 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Product Name

PCB Headers

7478

Wire-to-Board

KK®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Natural (White)

94V-0

Yes

Brass

Tin

Nylon

Right Angle

0.141 In

3.58 mm

None

0.062 In

1.60 mm

Bag

0.100 In

2.54 mm

Yes

Partial

Yes

0°C to +75°C

Through Hole

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Halogen

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

7478Se

Mates

2695 ,

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Solder Process Data

Duration at Max. Process Temperature (seconds)

Lead-free Process Capability

Max. Cycles at Max. Process Temperature

Wave Capable (TH only)
