A432236052

Description
Modular Jack, Right Angle, Low Profile, 6/2, 5 Ports, Panel Stops
File Size664KB,8 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

A432236052 Overview

Modular Jack, Right Angle, Low Profile, 6/2, 5 Ports, Panel Stops

This document was generated on 06/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
Documents:
3D Model

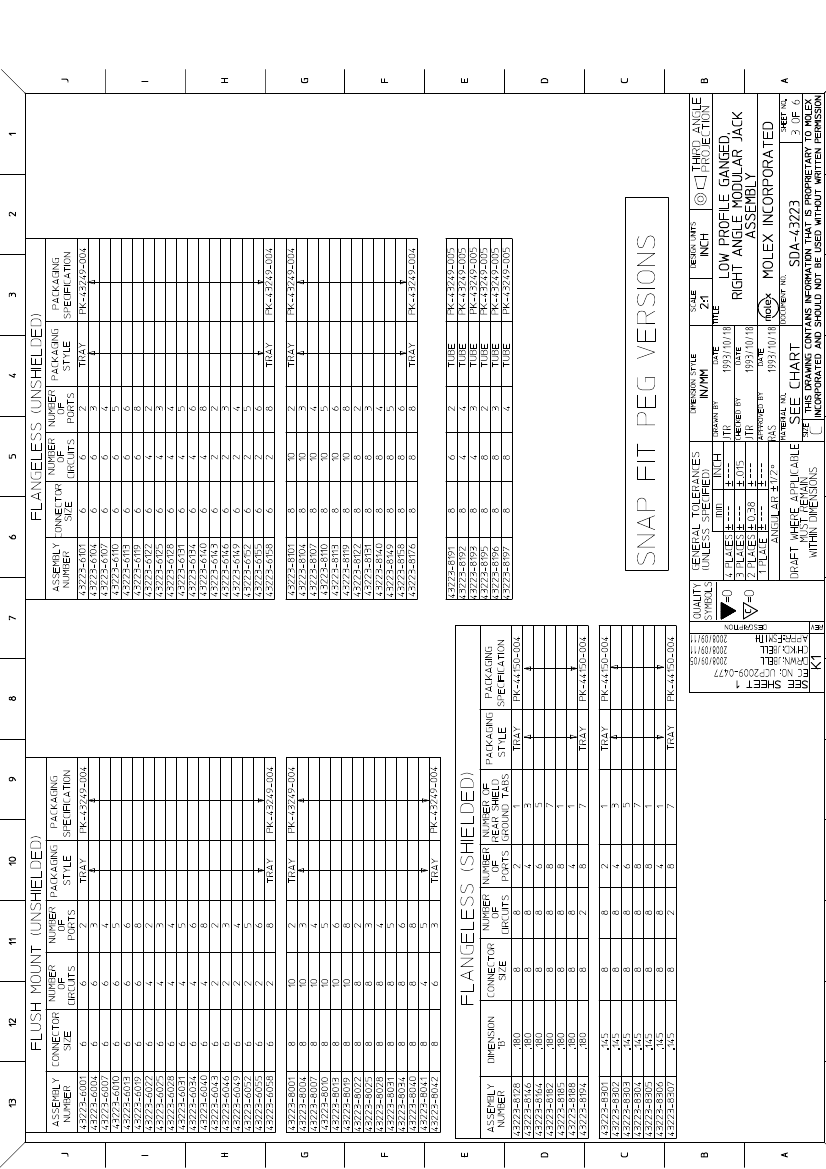

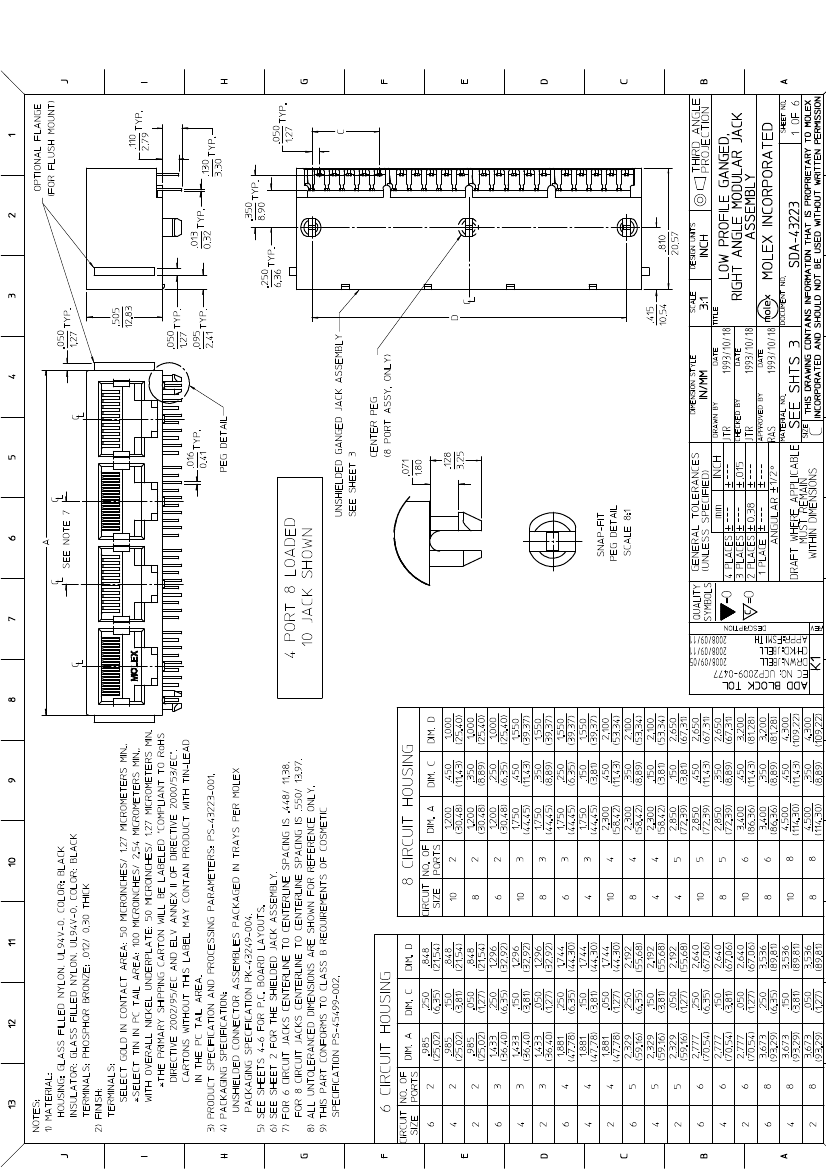

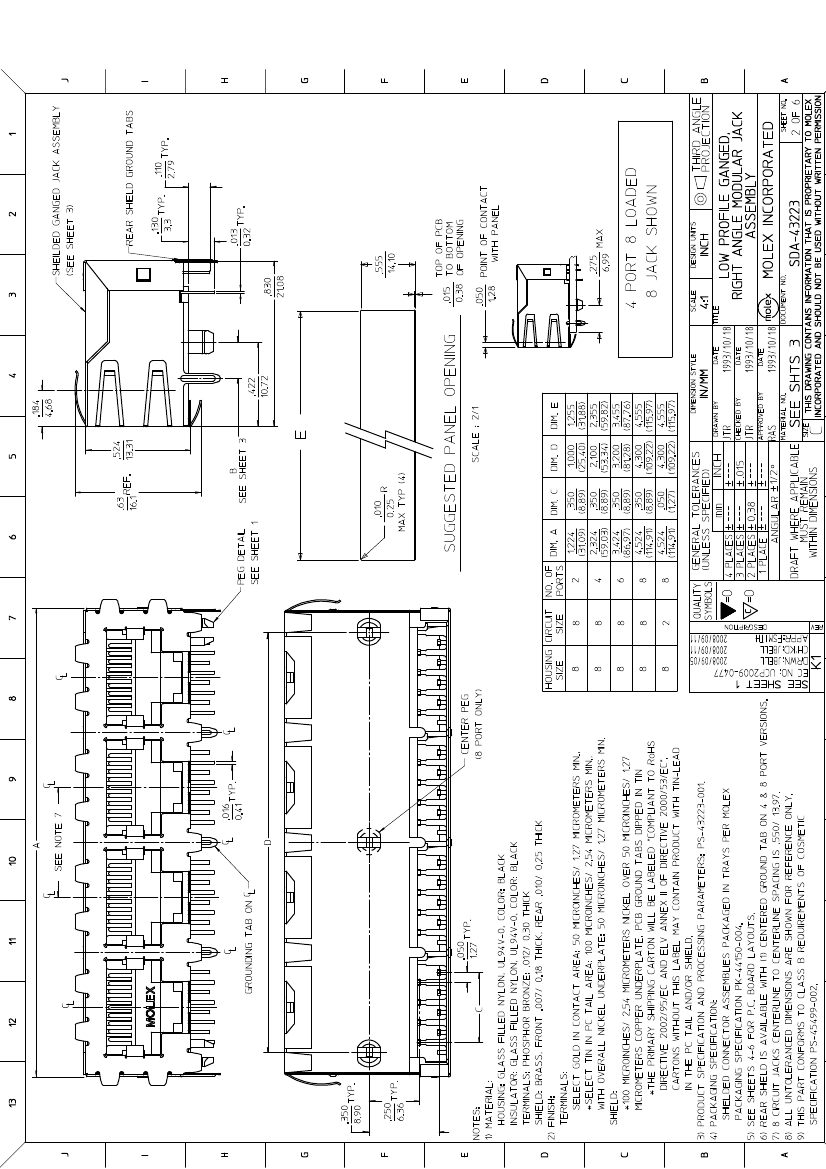

Drawing (PDF)
0432236052
Active
modular_plugs_jacks
Modular Jack, Right Angle, Low Profile, 6/2, 5 Ports, Panel Stops
Product Specification PS-43223-001 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E107635
General
Product Family
Series
Component Type
Magnetic
Overview
Performance Category
Power over Ethernet (PoE)
Product Name
Modular Jacks/Plugs
43223
PCB Jack
No
modular_plugs_jacks
3
N/A
RJ11
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Physical
Boot Color
Color - Resin
Durability (mating cycles max)
Flammability
Inverted / Top Latch
Keying to Mating Part
Lightpipes/LEDs
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Orientation
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Ports
Positions / Loaded Contacts
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
N/A
Black
500
94V-0
No
None
None
Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic
Right Angle (Side Entry)
Yes
Yes
0.062 In
1.57 mm
Tray
With Flange
0.040 In
1.02 mm
0.050 In
1.27 mm
50
1.25
100
2.5
5
6/2
No
-40°C to +85°C
Through Hole
No
Email pro
For a mu
Complian
Please vi
non-prod
Search
43223S
Mates
FCC 68
