BB-5273Z: DescriptionAvikrimp垄芒 Fully Insulated Quick Disconnect, Female, for 14-16 AWG Wire, Metal Strip; CategoryThe connector terminals; File Size137KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

BB-5273Z Overview

Avikrimp垄芒 Fully Insulated Quick Disconnect, Female, for 14-16 AWG Wire, Metal Strip

BB-5273Z Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknow
ECCN code	EAR99
Factory Lead Time	5 weeks
terminal gender	FEMALE
Terminal and terminal strip types	PUSH-ON TERMINAL
Conductor cross section	2 mm2
Wire gauge	14 AWG

Preview

Download Datasheet

View All

This document was generated on 04/13/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

Documents:

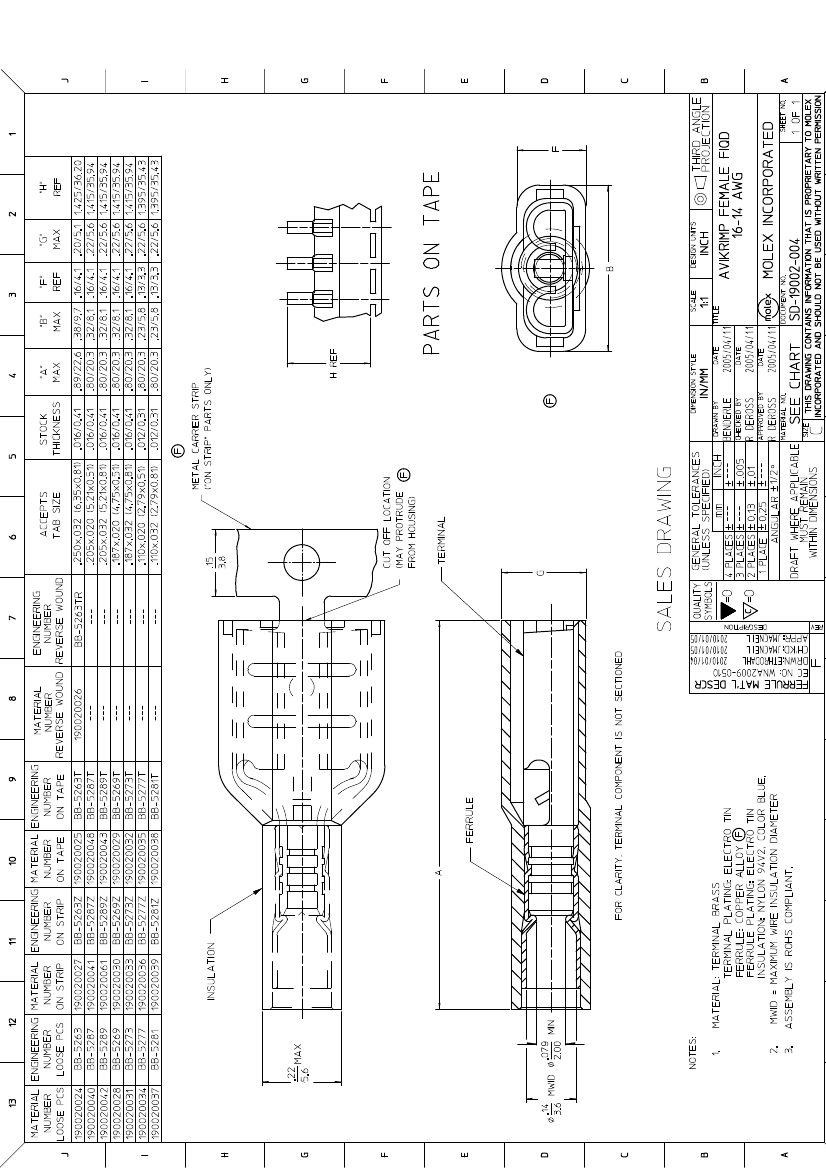

Drawing (PDF)

0190020033

Active

Avikrimp™ Fully Insulated Quick Disconnect, Female, for 14-16 AWG Wire, Metal Strip

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

UL

LR18689

E79133

General

Product Family

Series

Crimp Quality Equipment

Product Name

Type

Quick Disconnects

19002

Yes

Avikrimp™

Quick Disconnect

Physical

Barrel Type

Flammability

Gender

Glow-Wire Compliant

Insulation

Lock to Mating Part

Material - Metal

Orientation

Packaging Type

Polarized to Mating Part

Tab Thickness

Tab Width

Temperature Range - Operating

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Closed

94V-2

Female

No

Nylon (PA)

None

Brass

Straight

Reel

No

0.81mm (.032")

4.75mm (.187")

-65°C to +105°C

3.94mm (.155") max.

14, 16

1.30 - 2.00

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

Search

19002S

Electrical

Voltage - Maximum

300V

Material Info

Old Part Number

BB-5273Z

Reference - Drawing Numbers

Sales Drawing

SD-19002-004

Applic

Tooling

found b

Crimp H

contain

Specifi

Global

Descri

ASP To

Dies fo

Air Crim

for Met

Termin

Mini-M

Applica
