C-8105-08

Description
Avikrimp垄芒 Block Spade Terminal for 10-12 AWG Wire
CategoryThe connector
File Size53KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

C-8105-08 Overview

Avikrimp垄芒 Block Spade Terminal for 10-12 AWG Wire

C-8105-08 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknow
ECCN codeEAR99
Manufacturer's serial numberC-8105
terminal genderFEMALE
Terminal and terminal strip typesWIRE TERMINAL
Conductor cross section5 mm2
Wire gauge10 AWG
This document was generated on 04/14/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Description:
Documents:
Drawing (PDF)
0191390060
Active
Avikrimp™ Block Spade Terminal for 10-12 AWG Wire
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E32244
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
19139
Yes
N/A
Avikrimp™
Spade Block
Physical
Barrel Type
Flammability
Insulation
Material - Plating Mating
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Stud Size
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
94V-0
Nylon (PA)
Tin
Bag
12
0.3
12
0.3
8 (M4)
Crimp or Compression
5.70mm (.225") max.
10, 12
3.30 - 5.00
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
19139S
Material Info
Old Part Number
C-8105-08
Reference - Drawing Numbers

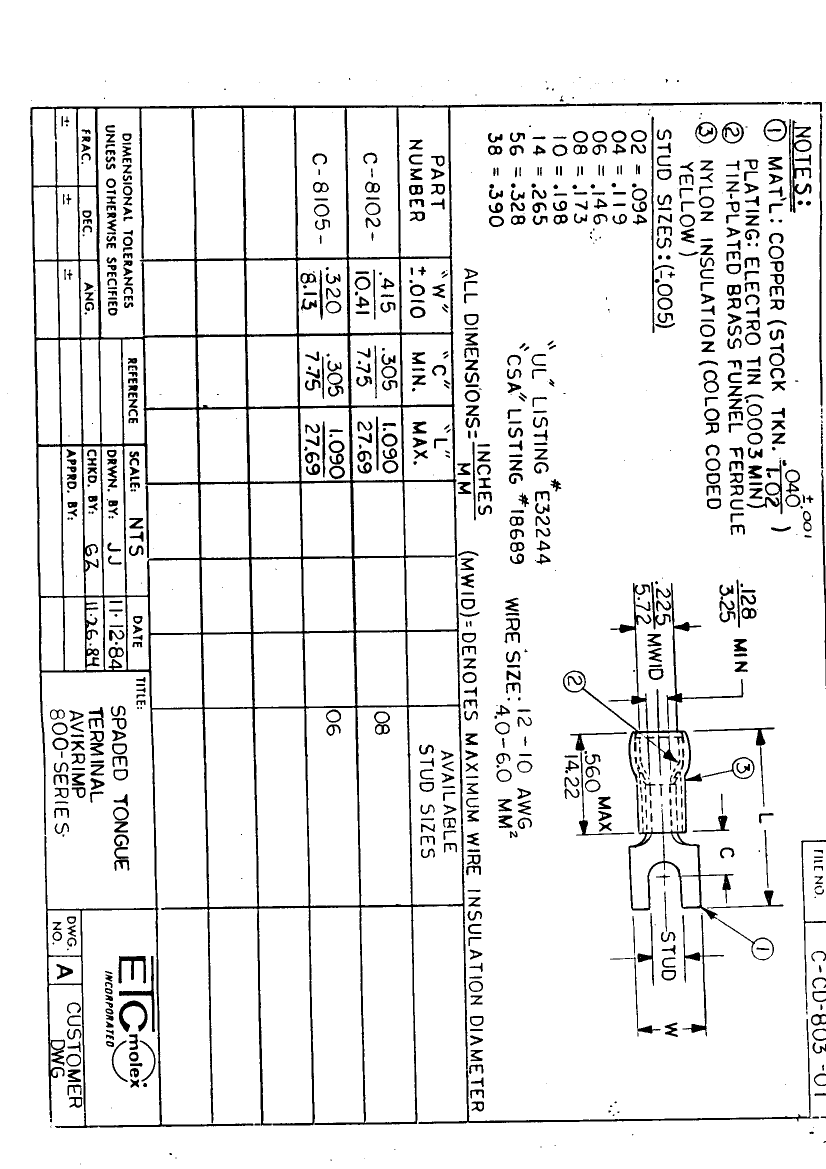

Sales Drawing
CCD80301
Applic
Tooling
found b
Crimp H
contain
Specifi
Global
Descri
Hand C
Hand C
Crimp H
AT-200
Hand T
This document was generated on 04/14/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

C-8105-08 Related Products

C-8105-08 CCD80301
Description Avikrimp垄芒 Block Spade Terminal for 10-12 AWG Wire Avikrimp垄芒 Block Spade Terminal for 10-12 AWG Wire
