5962-89728022X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 5962-89728022X

5962-89728022X: DescriptionIC 2-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CQCC20, Voltage Reference; CategoryPower/power management The power supply circuit; File Size60KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-89728022X Overview

IC 2-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CQCC20, Voltage Reference

5962-89728022X Parametric

Parameter Name	Attribute value
Maker	ADI
package instruction	QCCN,
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	S-CQCC-N20
Number of functions	1
Output times	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output voltage	10.005 V
Minimum output voltage	9.995 V
Nominal output voltage	10 V
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Qualified
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	13.5 V
surface mount	YES
technology	BIPOLAR
Maximum voltage temperature coefficient	4 ppm/°C
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	YES

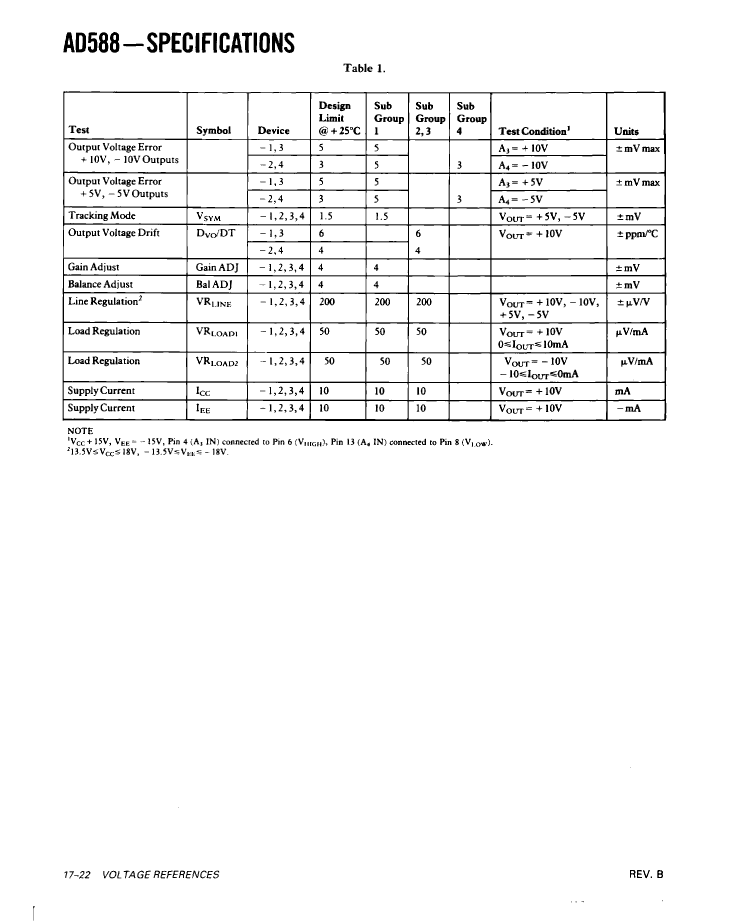

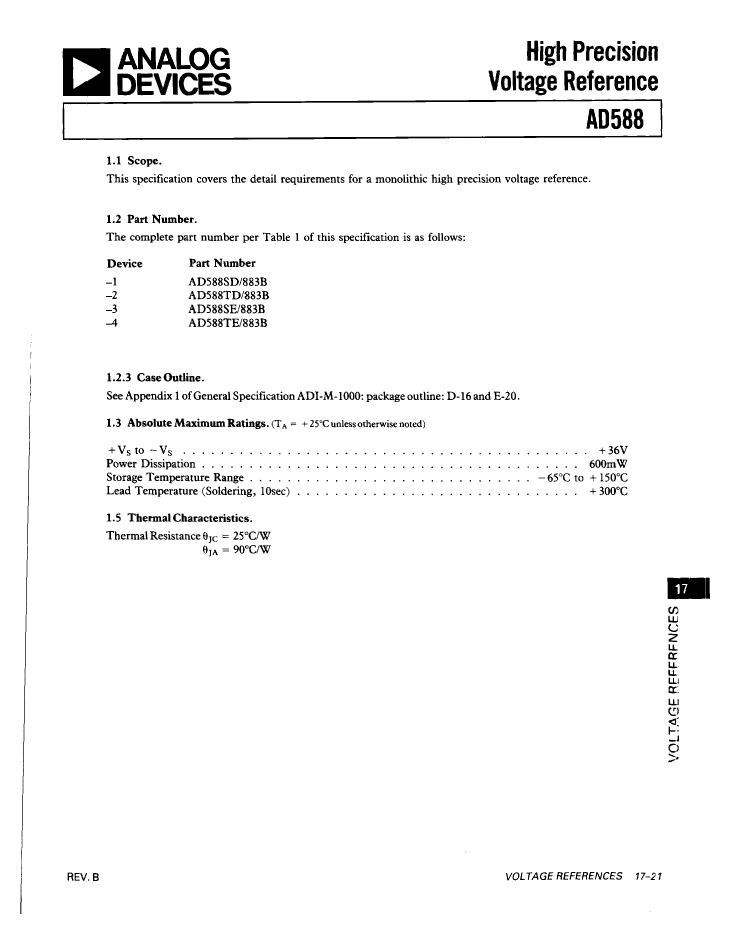

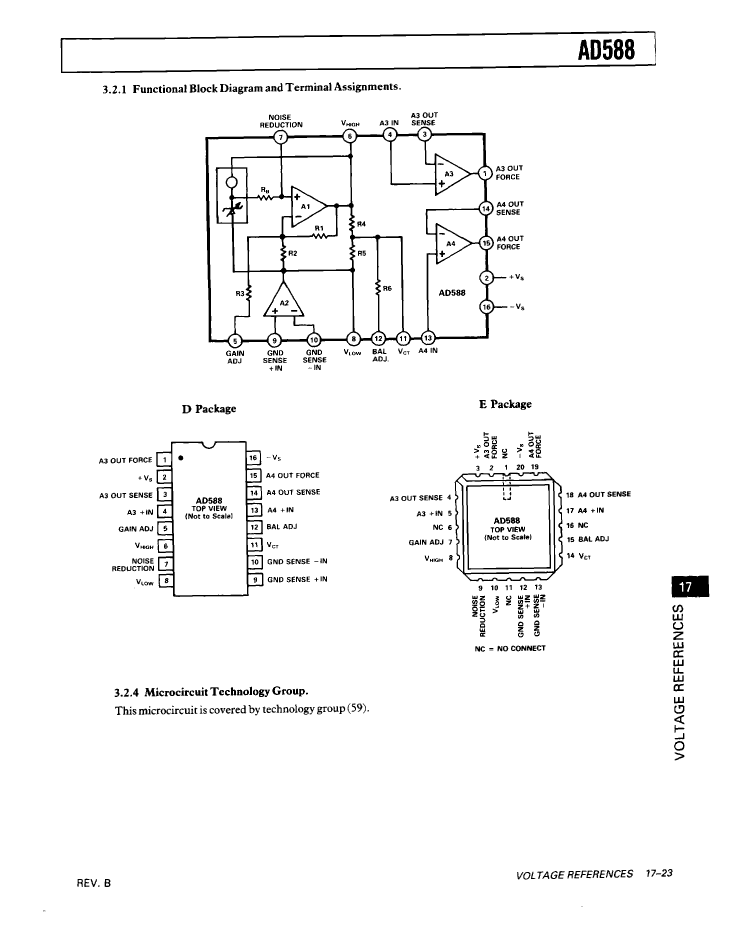

Preview

Download Datasheet

View All

5962-89728022X Related Products

	5962-89728022X	5962-89728012X	5962-8972801EX	5962-8972802EX
Description	IC 2-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CQCC20, Voltage Reference	IC 2-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CQCC20, CERAMIC, LCC-20, Voltage Reference	IC 2-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CDIP16, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-16, Voltage Reference	IC 2-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CDIP16, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-16, Voltage Reference
Maker	ADI	ADI	ADI	ADI
package instruction	QCCN,	QCCN,	DIP,	DIP,
Reach Compliance Code	compliant	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	S-CQCC-N20	S-CQCC-N20	R-CDIP-T16	R-CDIP-T16
Number of functions	1	1	1	1
Output times	2	2	2	2
Number of terminals	20	20	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output voltage	10.005 V	10.005 V	10.005 V	10.005 V
Minimum output voltage	9.995 V	9.995 V	9.995 V	9.995 V
Nominal output voltage	10 V	10 V	10 V	10 V
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN	DIP	DIP
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE
Certification status	Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	18 V	18 V	18 V	18 V
Minimum supply voltage (Vsup)	13.5 V	13.5 V	13.5 V	13.5 V
surface mount	YES	YES	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Maximum voltage temperature coefficient	4 ppm/°C	6 ppm/°C	6 ppm/°C	4 ppm/°C
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE
Terminal location	QUAD	QUAD	DUAL	DUAL
Fine-tuning/adjustable output	YES	YES	YES	YES
Parts packaging code	-	QLCC	DIP	DIP
Contacts	-	20	16	16
JESD-609 code	-	e0	e0	e0
Terminal surface	-	TIN LEAD	TIN LEAD	TIN LEAD
Base Number Matches	-	1	1	1
