A-41661-ANB501-A2B501: Description2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; Categorysemiconductor Other integrated circuit (IC); File Size368KB，15 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

A-41661-ANB501-A2B501 Overview

2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

Preview

Download Datasheet

View All

This document was generated on 03/25/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

0026485021

Active

3.96mm (.156") Pitch KK® Header, Breakaway, Vertical, 2 Circuits, Tin (Sn) Plating,

Pin length 20.85mm (.821")

Documents:

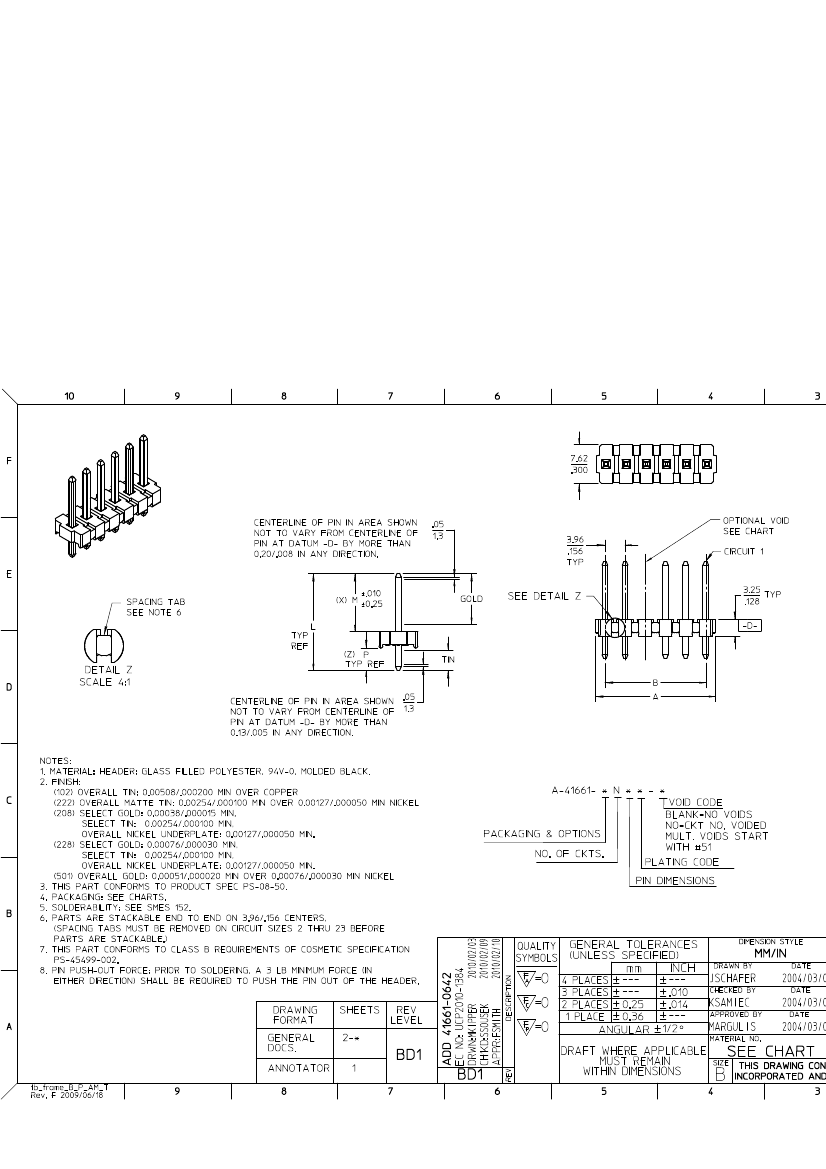

Drawing (PDF)

Product Specification PS-08-50 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Product Name

PCB Headers

41661

Board-to-Board, Wire-to-Board

KK®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Polarized to PCB

Temperature Range - Operating

Termination Interface: Style

Yes

Black

94V-0

None

Brass

Gold

Polyester

Vertical

0.172 In

4.37 mm

None

0.062 In

1.57 mm

Bag

0.156 In

3.96 mm

0.156 In

3.96 mm

Yes

-40°C to +105°C

IDT or Pierce

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

41661S

Mates

2139 K

Crimp H

7674 K

Solder

41815

Electrical

Current - Maximum per Contact

4.5A

A-41661-ANB501-A2B501 Related Products

	A-41661-ANB501-A2B501	A-41661-A02B501
Description	2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
