AP5S-FREQ-F-J-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> AP5S-FREQ-F-J-T

AP5S-FREQ-F-J-T: DescriptionHCMOS/TTL Output Clock Oscillator, 10MHz Min, 166MHz Max, ROHS COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size153KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

AP5S-FREQ-F-J-T Overview

HCMOS/TTL Output Clock Oscillator, 10MHz Min, 166MHz Max, ROHS COMPLIANT PACKAGE-4

AP5S-FREQ-F-J-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TAPE AND REEL; TRI-STATE OUTPUT ENABLE/DISABLE FUNCTION
maximum descent time	3.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Manufacturer's serial number	AP5S
Installation features	SURFACE MOUNT
Maximum operating frequency	166 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Oscillator type	HCMOS/TTL
Output load	15 pF
physical size	7.0mm x 5.0mm x 1.6mm
longest rise time	3.5 ns
Maximum supply voltage	2.75 V
Minimum supply voltage	2.25 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

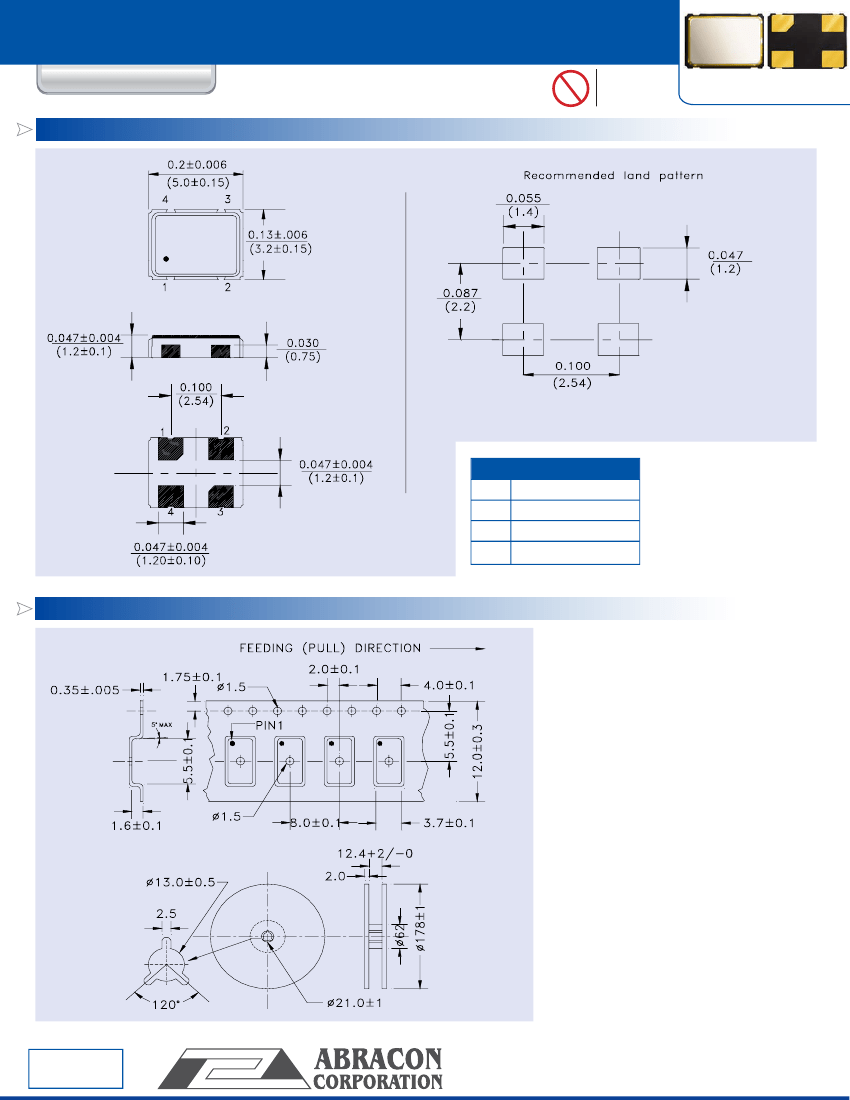

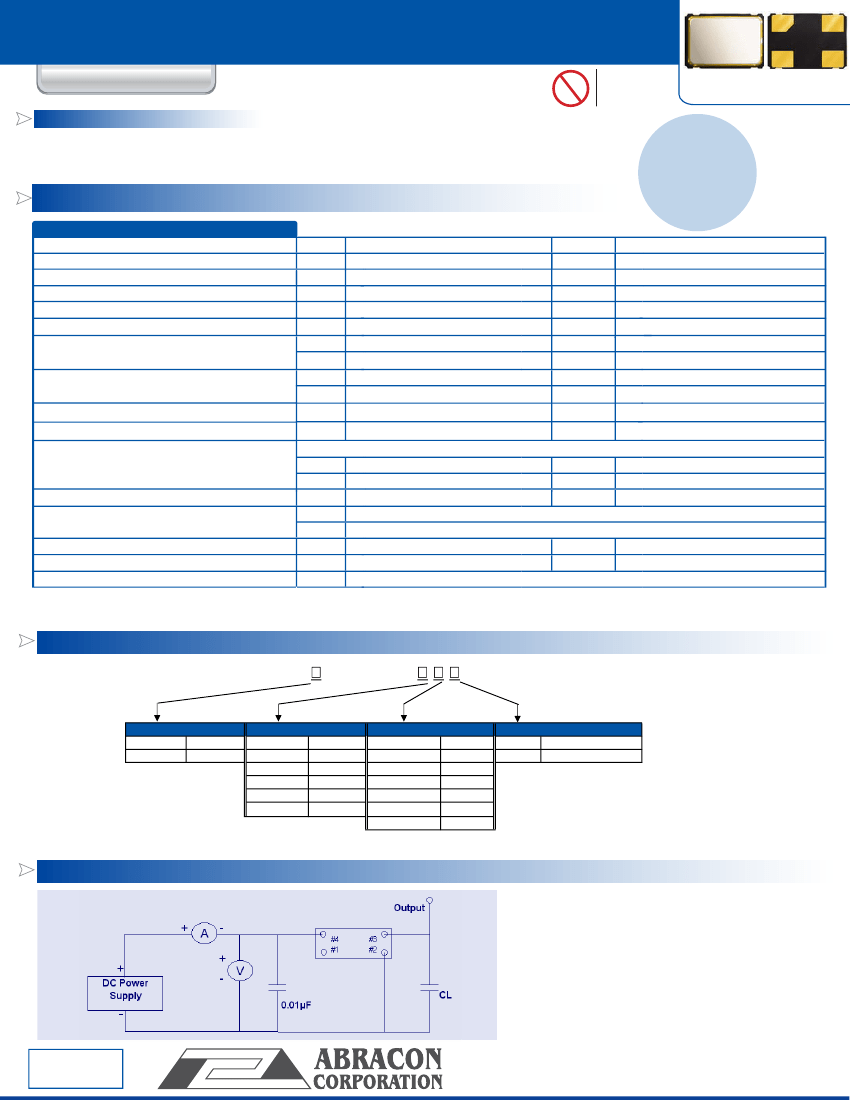

HCMOS/TTLMABLE

PROPROGRAMMABLE CRYSTAL CLOCK OSCILLATOR

GRAM COMPATIBLE SURFACE-MOUNT

AP5S

FEATURES:

• Performance comparable to fixed frequency oscillator

• Lowest peak-to-peak jitter

• Low supply current

• Alternative to long lead-time XO's

For Small

Quantities,

Delivery Time

is 1-5 days

Maximum

200

166

+70

125

100

3.63

2.75

55.0

3.5

RoHS

Compliant

5.0 x 3.2 x 1.2mm

| | | | | | | | | | | | | | |

ELECTRICAL SPECIFICATIONS:

3.3V, 2.5V OPERATION

Characteristics

Frequency Range 3.3V

2.5V

Operation Temp. Range (See Options)

Storage Temp. Range (See Options)

Overall Frequency Stability * (See Options)

Input Voltage (Operating Vdd)

3.3V

2.5V

Symmetry at 1/2 Vdd

Rise and fall time (Tr/Tf)**

Output Voltage

VOH

VOL

Start-up Time

Tri-state Function (Input to pin 1)

Jitter peak-to-peak

Phase Jitter (RMS, 12kHz to 20MHz)

Output Type

pSec

Input Current

Unit

MHz

°C

ppm

nSec

msec

Minimum

-55

-100

2.97

2.25

Typical

3.3

2.5

Vdd-0.4min

0.4V max

pin 1 : High or Open , pin 3 : Enable

pin 1 : Low , pin 3 : Disable

2.5

CMOS

* Inclusive of calibration @25°C, operating temperature range, input voltage variation, load variation, aging, shock, and vibration.

** Transition times are measured between 10% and 90% of Vdd with an output load of 15 pf.

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

AP5S -Frequency- - -

Supply Voltage

Blank*

3.3 V

2.5 V

*3.3V : Standard

Operating Temp.

0°C to +50°C

-10°C to +60°C

-20°C to +70°C

-30°C to +70°C

-30°C to +85°C

-40°C to +85°C

Freq. Stability

Y(*)

±10ppm

J(**)

±20ppm

±25ppm

±30ppm

±35ppm

±40ppm

±50ppm

Blank

Packaging

Bulk

Tape and Reel

* Available for 0°C to +50°C and -10°C to +60°C only.

** Contact ABRACON for -40°C to +85°C.

TEST CIRCUIT:

Revised: 5.15.07

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com
