SN74LS348DE4 datasheet, PDF - EEWORLD Datasheet

SN74LS348DE4: DescriptionEncoder, LS Series, 8-Bit, Complementary Output, TTL, PDSO16, SO-16; Categorylogic logic; File Size557KB，13 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

SN74LS348DE4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SN74LS348DE4	-	-	View	Buy Now

Encoder, LS Series, 8-Bit, Complementary Output, TTL, PDSO16, SO-16

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	SOP,
Reach Compliance Code	unknown
Other features	8 TO 3 LINE PRIORITY ENCODER
series	LS
JESD-30 code	R-PDSO-G16
length	9.9 mm
Logic integrated circuit type	ENCODER
Number of digits	8
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	21 ns
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

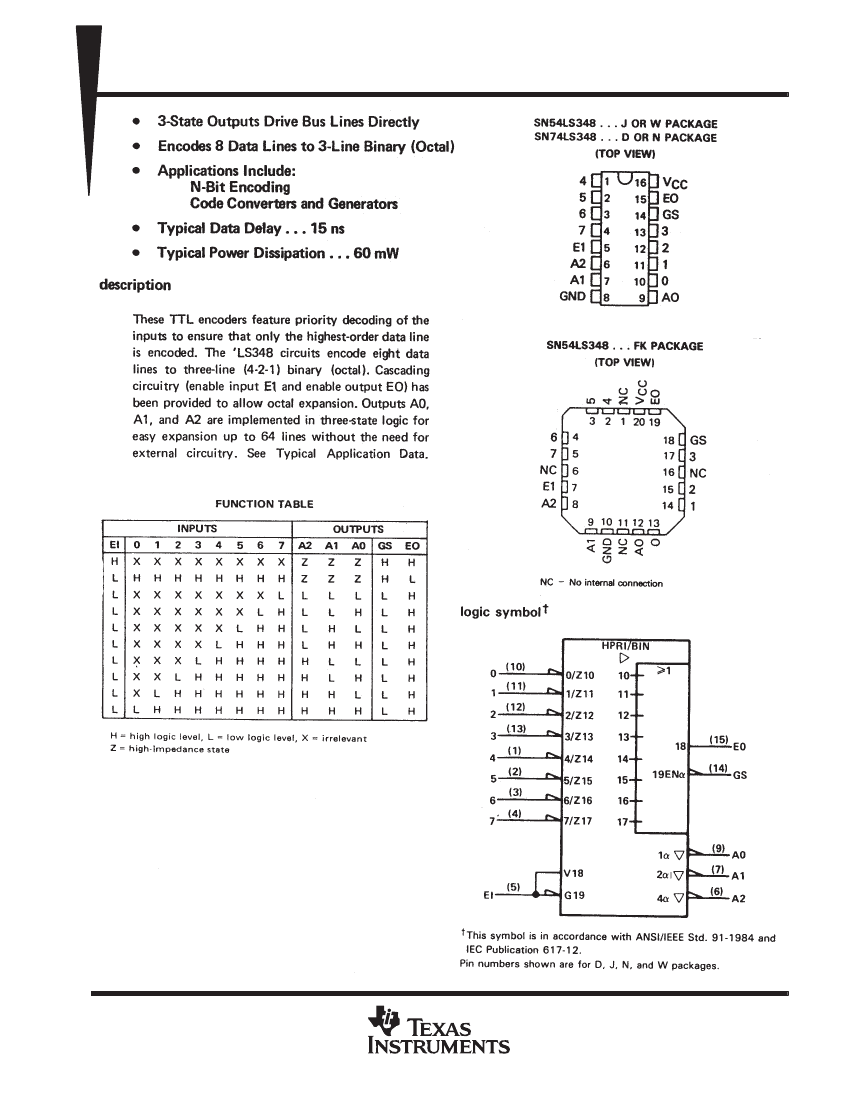

SN54LS348, SN74LS348 (TIM9908)

8-LINE TO 3-LINE PRIORITY ENCODERS

WITH 3-STATE OUTPUTS

SDLS161 – OCTOBER 1976 – REVISED MARCH 1988

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.

1988, Texas Instruments Incorporated

POST OFFICE BOX 655303

•

DALLAS, TEXAS 75265
