KT2016A33.600AGU18T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> KT2016A33.600AGU18T

KT2016A33.600AGU18T: DescriptionTCXO, Sine, TCXO, SINE OUTPUT, 33.6 MHz, ROHS COMPLIANT, ULTRA MINIATURE, SMD, 4 PIN; CategoryPassive components oscillator; File Size265KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric View All

KT2016A33.600AGU18T Overview

TCXO, Sine, TCXO, SINE OUTPUT, 33.6 MHz, ROHS COMPLIANT, ULTRA MINIATURE, SMD, 4 PIN

KT2016A33.600AGU18T Parametric

Parameter Name	Attribute value
Maker	Kyocera
Reach Compliance Code	unknown
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	0.5%
Installation features	SURFACE MOUNT
Nominal operating frequency	33.6 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-10 °C
Oscillator type	SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	2.0mm x 1.6mm x 0.8mm
Maximum supply voltage	3.6 V
Minimum supply voltage	1.7 V
Nominal supply voltage	1.8 V
surface mount	YES

Preview

Download Datasheet

View All

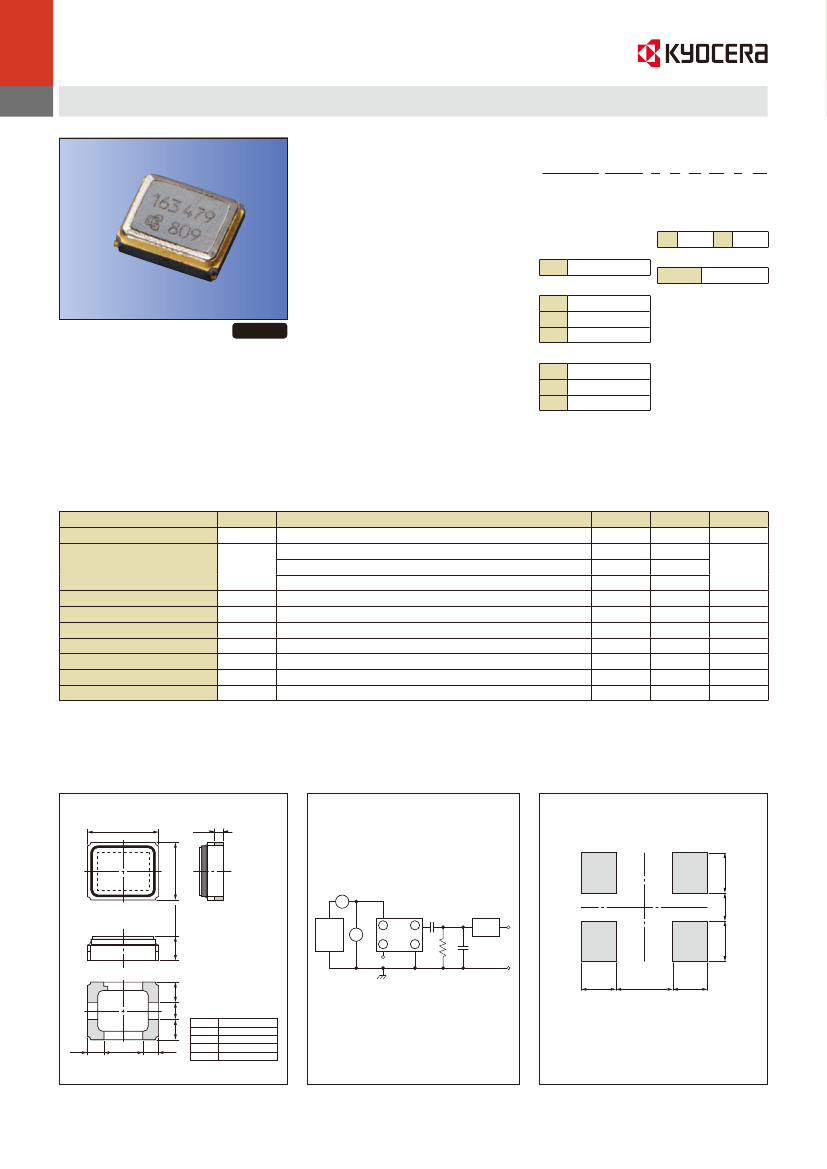

Temperature Compensated Crystal Oscillators (TCXO)

Surface Mount Type TCXO (LSI Type) KT2016 Series for GPS

2.0×1.6mm

Features

• Ultra-miniature SMD type

(2.0×1.6×0.8mm)

• Freq. temp. chrst.

±0.5×10

−

−30

+85°C

• 1.7 to 3.6V drive available

• Reflow compatible

• Disable Function (Option)

How to Order

KT2016A 27456 A C W 28 T xx

①

②

③ ④ ⑤ ⑥ ⑦ ⑧

⑥

Supply Voltage

1.8V

2.8V

①

Series

②

Output Frequency

③

Freq. Temp. Chrst.

±0.5×10

−

−30°C

−20°C

−10°C

+85°C

+80°C

+75°C

⑦

Voltage Control Range

TCXO

Applications

• GPS Unit

④

Lower Operating Temp.

⑧

Option Code

RoHS Compliant

⑤

Upper Operating Temp.

Packaging (Tape & Reel 4000 pcs./ reel)

Specifications

Item

Output Frequency Range

Frequency Tolerance

Frequency Aging

Storage Temperature Range

Operating Temperature Range

Supply Voltage

Output Level

Current Consumption

Harmonics

Symbol

_tol

_age

_stg

_use

Vpp

—

Conditions

Standard Frequency: 16.368, 16.369, 19.2, 26, 27.456, 33.6

vs Temperature

vs Load

vs Voltage

Per Year

Min.

—

−0.5

−0.1

−0.2

−1

−40

−30

1.7

0.8

—

Max.

—

+0.5

+0.1

+0.2

+85

3.6

—

−5

Units

MHz

×10

−

×10

−

°C

Vp-p

dBc

10k ohm / / 10pF

Dimensions

(Unit: mm)

Test Circuit

Recommended Land Pattern

(Unit: mm)

Ω±

0.6

1.2

0.6

#1pin

#2pin

#3pin

#4pin

Pin Configuration

Enable/ Disable function

GND

OUTPUT

+Vcc

Note: A capacitor of value 0.01 F between V

and GND is recommended.

0.8

0.4

0.8
