AB38T-FREQ-12.5-E-1-M-T datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> AB38T-FREQ-12.5-E-1-M-T

AB38T-FREQ-12.5-E-1-M-T: DescriptionParallel - Fundamental Quartz Crystal, 0.03MHz Min, 0.2MHz Max, ROHS COMPLIANT PACKAGE-2; CategoryPassive components Crystal/resonator; File Size628KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

AB38T-FREQ-12.5-E-1-M-T Overview

Parallel - Fundamental Quartz Crystal, 0.03MHz Min, 0.2MHz Max, ROHS COMPLIANT PACKAGE-2

AB38T-FREQ-12.5-E-1-M-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	1 µW
frequency stability	0.0069%
frequency tolerance	10 ppm
load capacitance	12.5 pF
Manufacturer's serial number	AB38T
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	0.2 MHz
Minimum operating frequency	0.03 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	D3.2XH8.3 (mm)/D0.126XH0.327 (inch)
Series resistance	30000 Ω
surface mount	NO

Preview

Download Datasheet

View All

32.768kHz WATCH CRYSTAL, 8.3 x ø3.2MM CYLINDER PACKAGE

AB38T

FEATURES:

• Watch frequency

• Frequency range from 30kHz to 200kHz

• Excellent heat resistance.

APPLICATIONS:

RoHS

Compliant

• Real time clock

• Measuring instruments.

• Clock source for communication or A/V equipment.

| | | | | | | | | | | | | | |

8.3 x ø3.2mm

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N:

Nominal frequency:

Operating temperature:

Storage temperature:

Turn-over temperature:

Frequency tolerance:

Temperature Coefficient:

Equivalent series resistance:

Shunt capacitance C0:

Load capacitance CL:

Motional capacitance C1:

Capacitance ratio:

Quality factor:

Drive level:

Aging @ 25° C first year:

Insulation resistance:

AB38T Series

32.768kHz

-10°C to + 60°C (see option)

-40°C to + 85°C

+25°C ± 5°C

± 20 ppm max.(see option)

-0.034 ± 0.006 ppm/ T²

30 k

Ω

max.

1.60 pF typ.

12.5 pF typ. (see option)

0.0035 pF typ.

4600 typ.

90,000 typ.

1.0 µW max.

± 3 ppm max. (32.768kHz) and ± 5 ppm max. (others)

500 Mohms min. at 100Vdc ± 15V

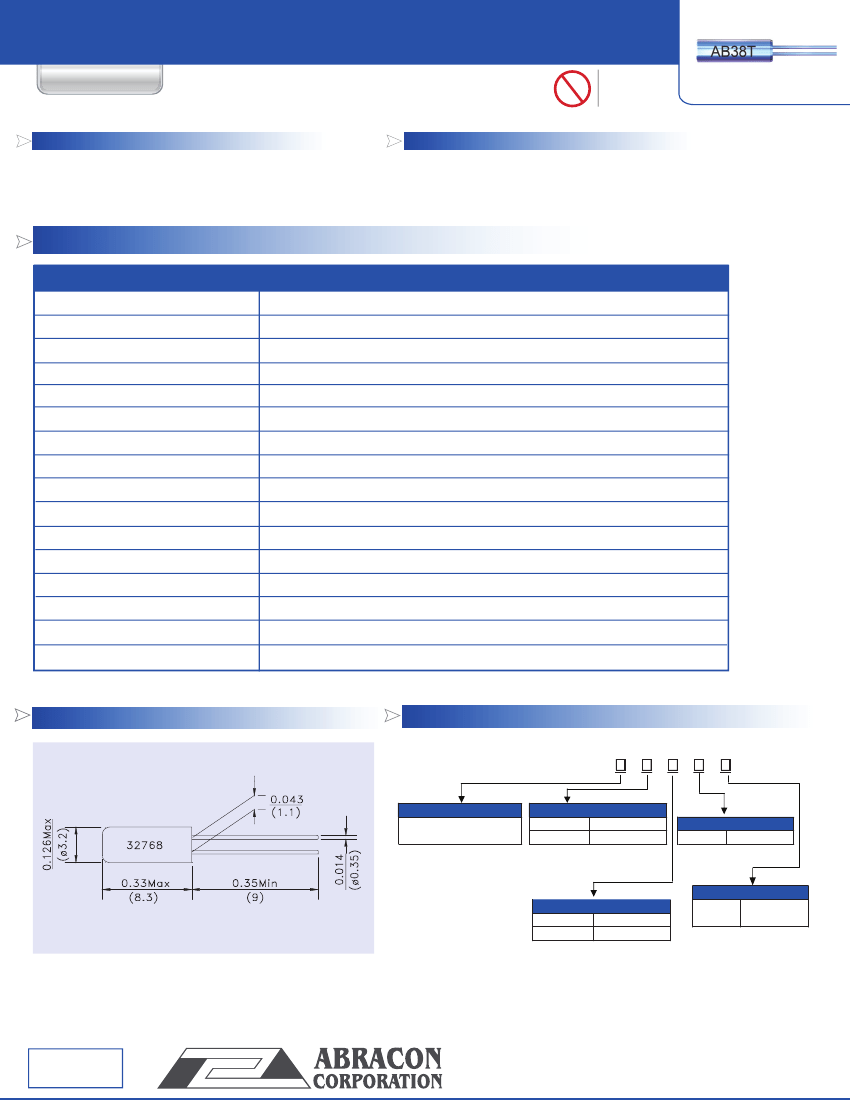

OUTLINE DRAWING:

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

AB38T- Frequency-

CL Option

Please specify load cap.

in pF (ex. 6pF)

Value Added Option

Formed leads

Temperature options

0°C to + 70°C

-20°C to + 70°C

Dimensions: Inches (mm)

Freq. Tolerance

± 10 ppm, max

± 15 ppm, max

* Please contact ABRACON

for availability

Packaging option

Tape and Reel

(1000pcs/reel)

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 10.24.08

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
