BA3571FS-T1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Consumption circuit> BA3571FS-T1

Preview

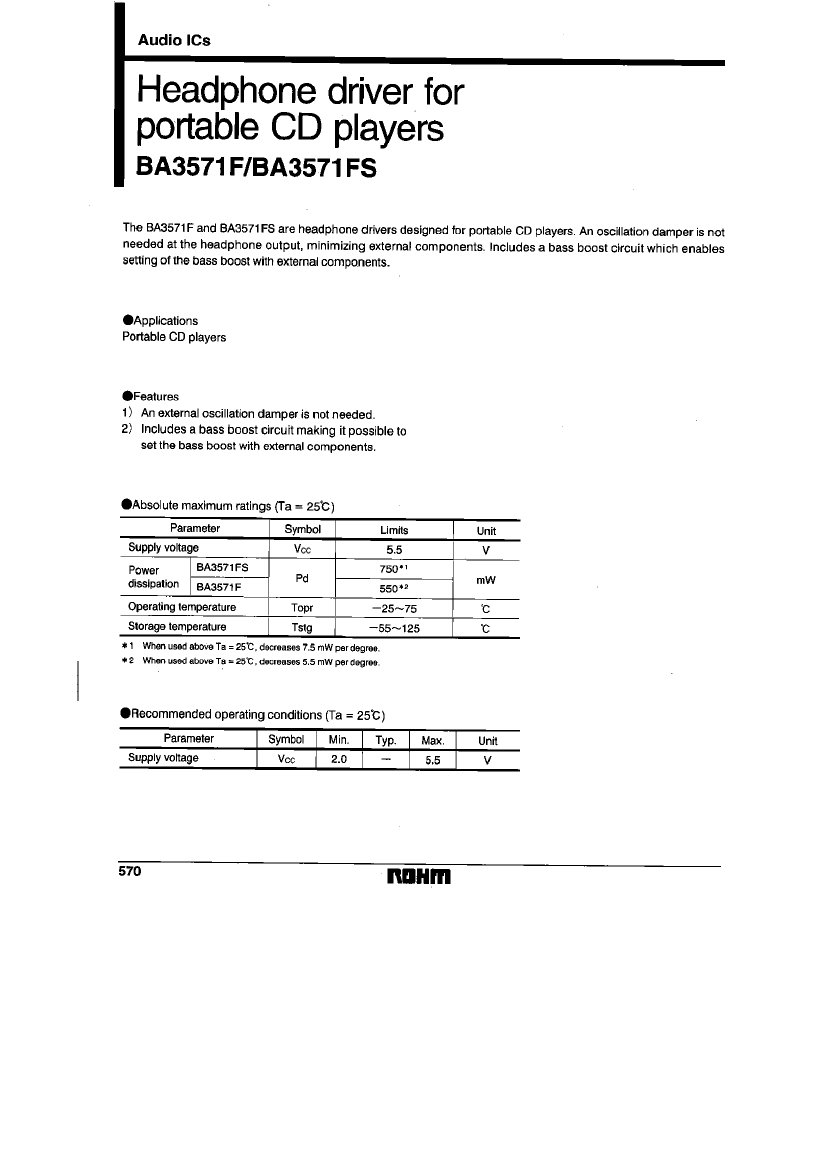

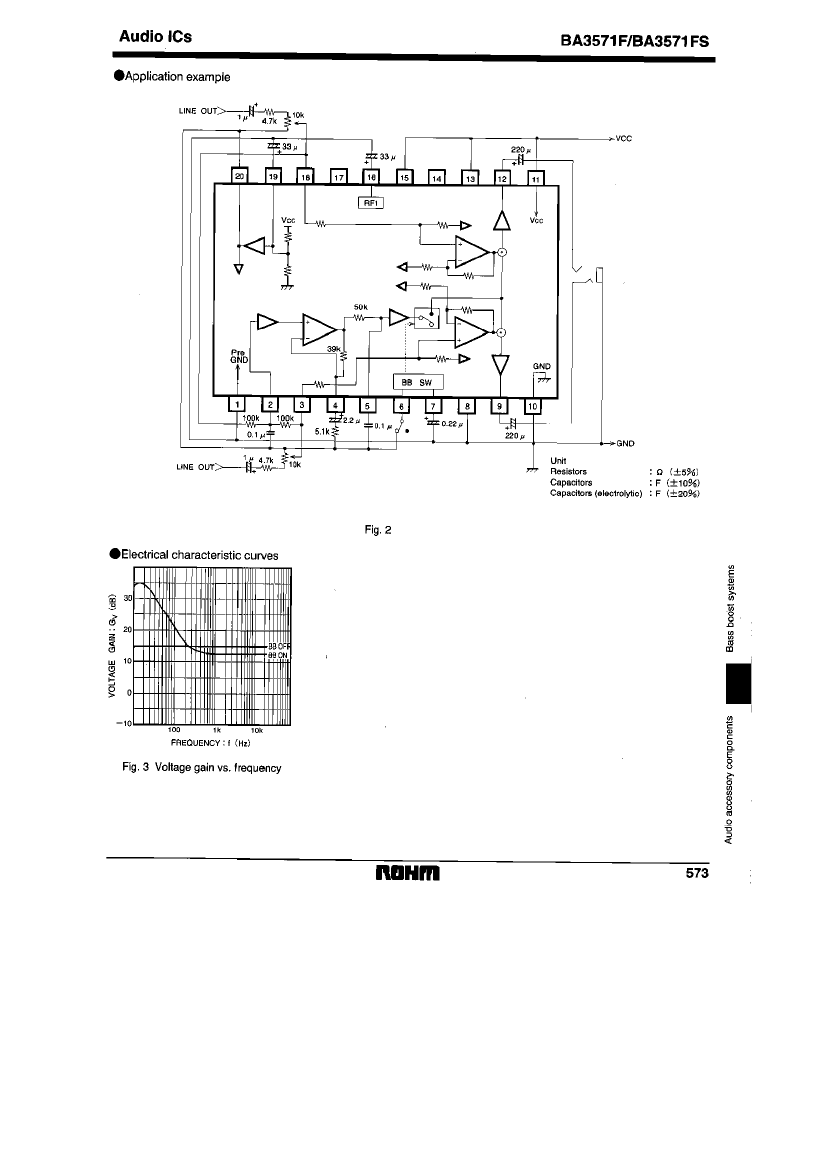

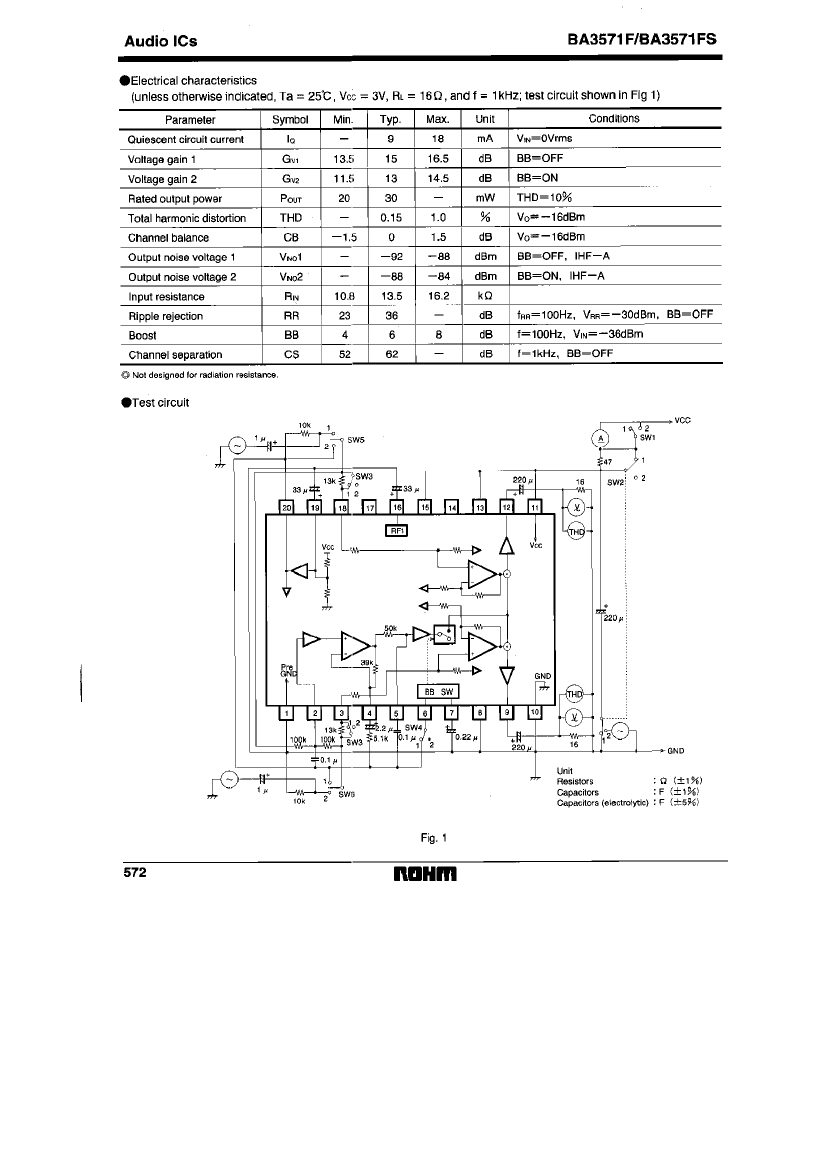

BA3571FS-T1: DescriptionAudio Amplifier, 1 Func, PDSO20, SSOP-20; CategoryAnalog mixed-signal IC Consumption circuit; File Size94KB，6 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA3571FS-T1 Overview

Audio Amplifier, 1 Func, PDSO20, SSOP-20

BA3571FS-T1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SSOP
package instruction	SSOP-20
Contacts	20
Reach Compliance Code	compliant
ECCN code	EAR99
Commercial integrated circuit types	AUDIO AMPLIFIER
JESD-30 code	R-PDSO-G20
JESD-609 code	e3/e2
length	8.7 mm
Number of functions	1
Number of terminals	20
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	2.01 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	5.4 mm

Preview

Download Datasheet

View All

BA3571FS-T1 Related Products

	BA3571FS-T1	BA3571F-E2	BA3571FT1	BA3571FE2	BA3571F-T1	BA3571FS-E2	BA3571FST1	BA3571FSE2
Description	Audio Amplifier, 1 Func, PDSO20, SSOP-20	Audio Amplifier, 1 Func, PDSO20, SOP-20	AUDIO AMPLIFIER, PDSO20, SOP-20	AUDIO AMPLIFIER, PDSO20, SOP-20	Audio Amplifier, 1 Func, PDSO20, SOP-20	Audio Amplifier, PDSO20, SSOP-20	AUDIO AMPLIFIER, PDSO20, SSOP-20	AUDIO AMPLIFIER, PDSO20, SSOP-20
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	SSOP	SOIC	SOIC	SOIC	SOIC	SSOP	SSOP	SSOP
package instruction	SSOP-20	SOP, SOP20,.3	SOP,	SOP,	SOP-20	SSOP-20	SSOP,	SSOP,
Contacts	20	20	20	20	20	20	20	20
Reach Compliance Code	compliant	compliant	unknown	unknown	compliant	compliant	unknown	unknown
Commercial integrated circuit types	AUDIO AMPLIFIER	AUDIO AMPLIFIER	AUDIO AMPLIFIER	AUDIO AMPLIFIER	AUDIO AMPLIFIER	AUDIO AMPLIFIER	AUDIO AMPLIFIER	AUDIO AMPLIFIER
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
JESD-609 code	e3/e2	e3/e2	e3/e2	e3/e2	e3/e2	e3/e2	e3/e2	e3/e2
length	8.7 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm	8.7 mm	8.7 mm	8.7 mm
Number of terminals	20	20	20	20	20	20	20	20
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SOP	SOP	SOP	SOP	SSOP	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.01 mm	1.9 mm	1.9 mm	1.9 mm	2.01 mm	1.9 mm	1.9 mm	1.9 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	TIN/TIN COPPER	TIN/TIN COPPER	TIN/TIN COPPER	TIN/TIN COPPER	TIN/TIN COPPER	TIN/TIN COPPER	TIN/TIN COPPER	TIN/TIN COPPER
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	10	10	10	10	10	10	10
width	5.4 mm	5.4 mm	5.4 mm	5.4 mm	5.4 mm	5.4 mm	5.4 mm	5.4 mm
Number of functions	1	1	1	1	1	-	1	1
Maximum operating temperature	75 °C	75 °C	-	75 °C	75 °C	75 °C	-	-
Minimum operating temperature	-25 °C	-25 °C	-	-25 °C	-25 °C	-25 °C	-	-
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	-	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	-	-
